Eastman 20YE515012 Description

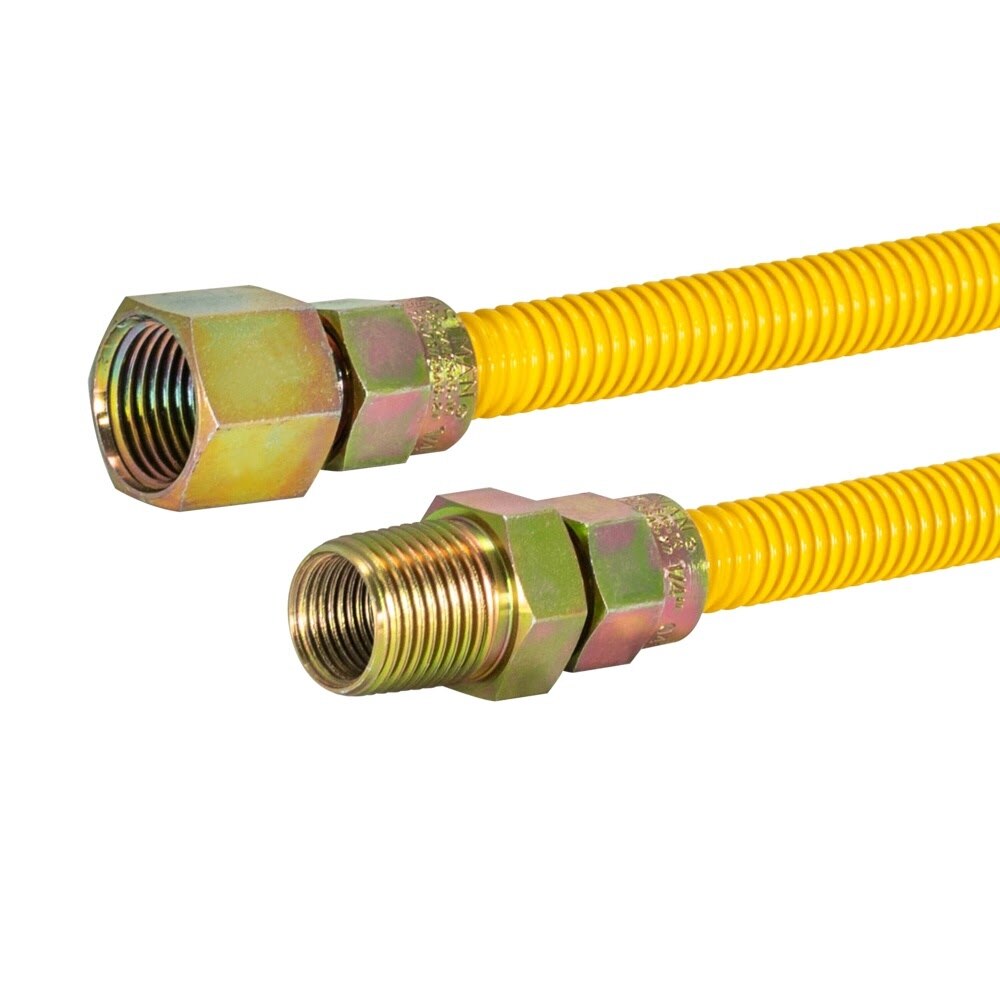

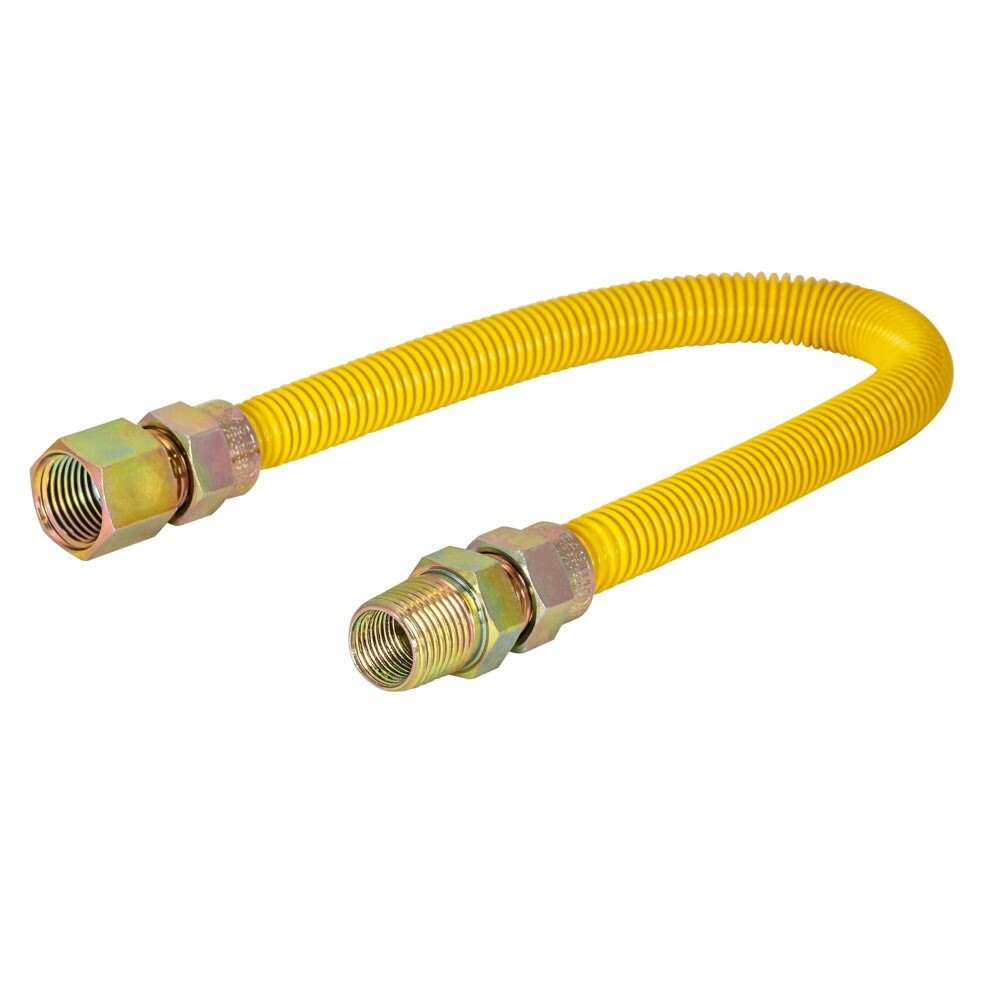

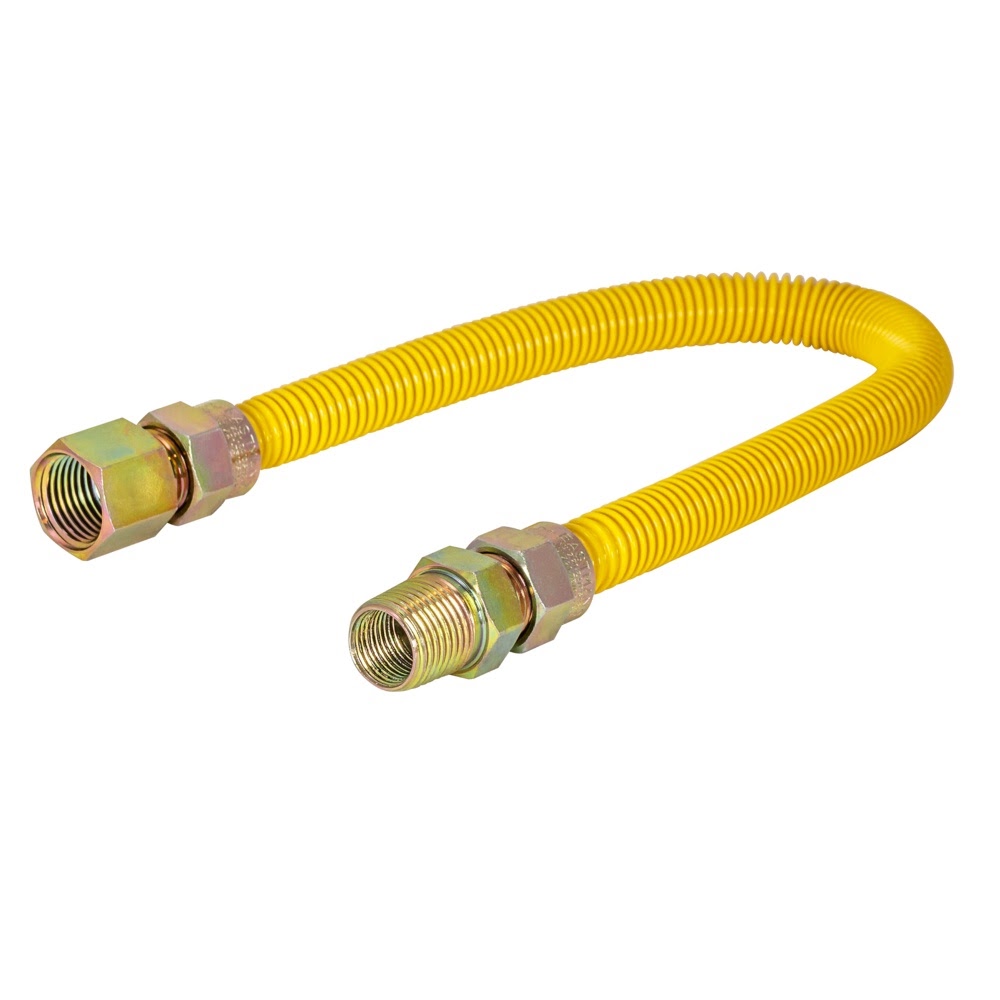

The Eastman 20YE515012 gas connector is a 1/2 in. OD x 12 in. flexible stainless steel connector with a yellow epoxy coating and 1/2 in. FIP x 1/2 in. MIP ends. Designed for water heaters, dryers, and other moderate-usage appliances, it is approved for natural gas or liquid propane service up to 102,000 BTUs and rated for indoor or outdoor use.
Eastman 20YE515012 Includes
- (1) Gas Connector
Eastman 20YE515012 Features

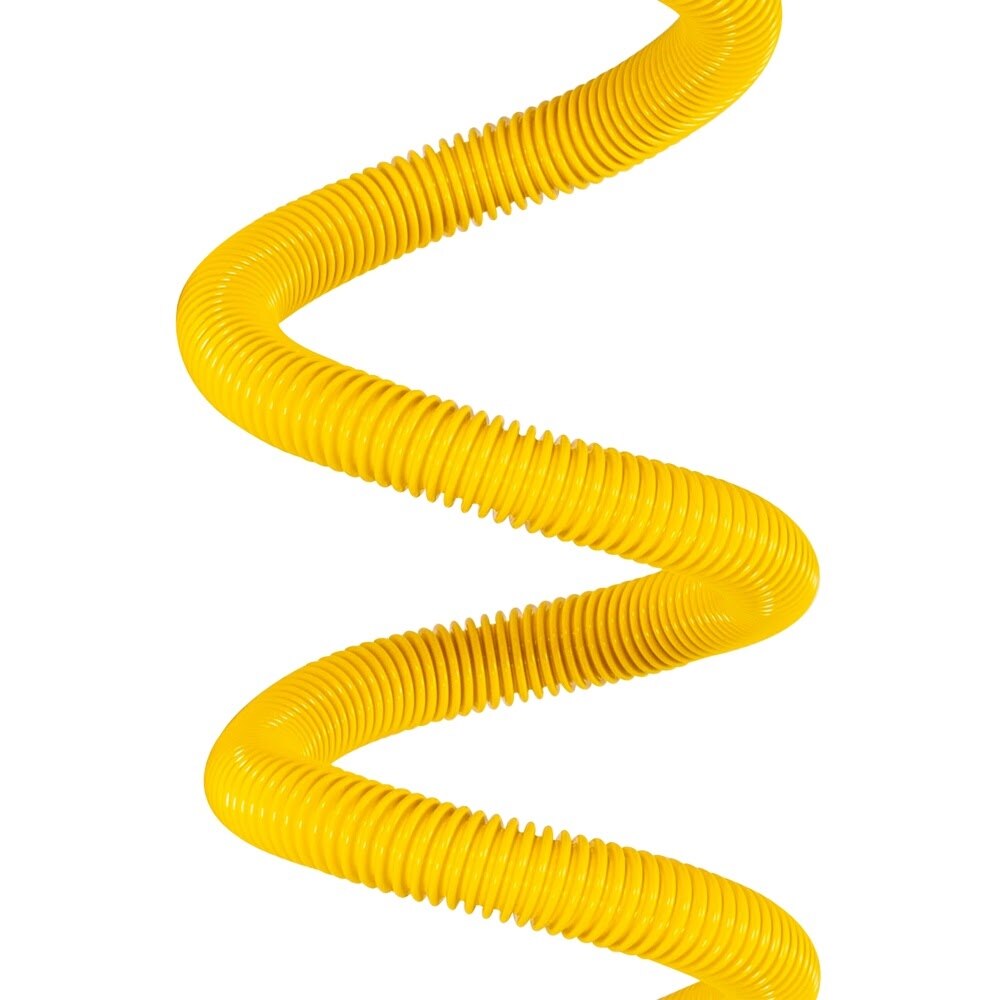

- Flexible stainless steel connector with deep corrugations for added flexibility
- Yellow epoxy coating helps resist corrosion, chemical stains, and UV exposure
- 1/2 in. FIP x 1/2 in. MIP connection ends
- Designed for water heaters, dryers, and moderate-usage appliances
- Compatible with natural gas and liquid propane
- Approved for indoor and outdoor use
- Supports appliances rated up to 102,000 BTUs
- Factory leak tested for reliable performance
- Temperature rating from -20 Degrees F to 150 Degrees F+
- Installs easily without special tools
Eastman 20YE515012 Specifications
| Brand | Eastman |
| Part Number | 20YE515012 |
| Product Type | Gas Connector |
| Material | Stainless steel |
| Coating | Epoxy-coated |
| Color | Yellow |
| Outside Diameter | 1/2 in. |
| Length | 12 in. |
| Inlet Connection | 1/2 in. FIP |
| Outlet Connection | 1/2 in. MIP |
| Fuel Type | Natural gas or liquid propane |
| Maximum Appliance Rating | 102,000 BTU |
| Temperature Rating | -20 Degrees F to 150 Degrees F+ |
| Use Location | Indoor and outdoor |
| Item Width | 1.10 in. |
| Item Height | 0.94 in. |
| Item Weight | 0.50 lb |
| Certifications | ANSI Z21.24/CSA 6.10, ANSI Z21.69/CSA 6.16, ANSI Z21.75/CSA 6.27 |
