Eastman 20YE515136 Description

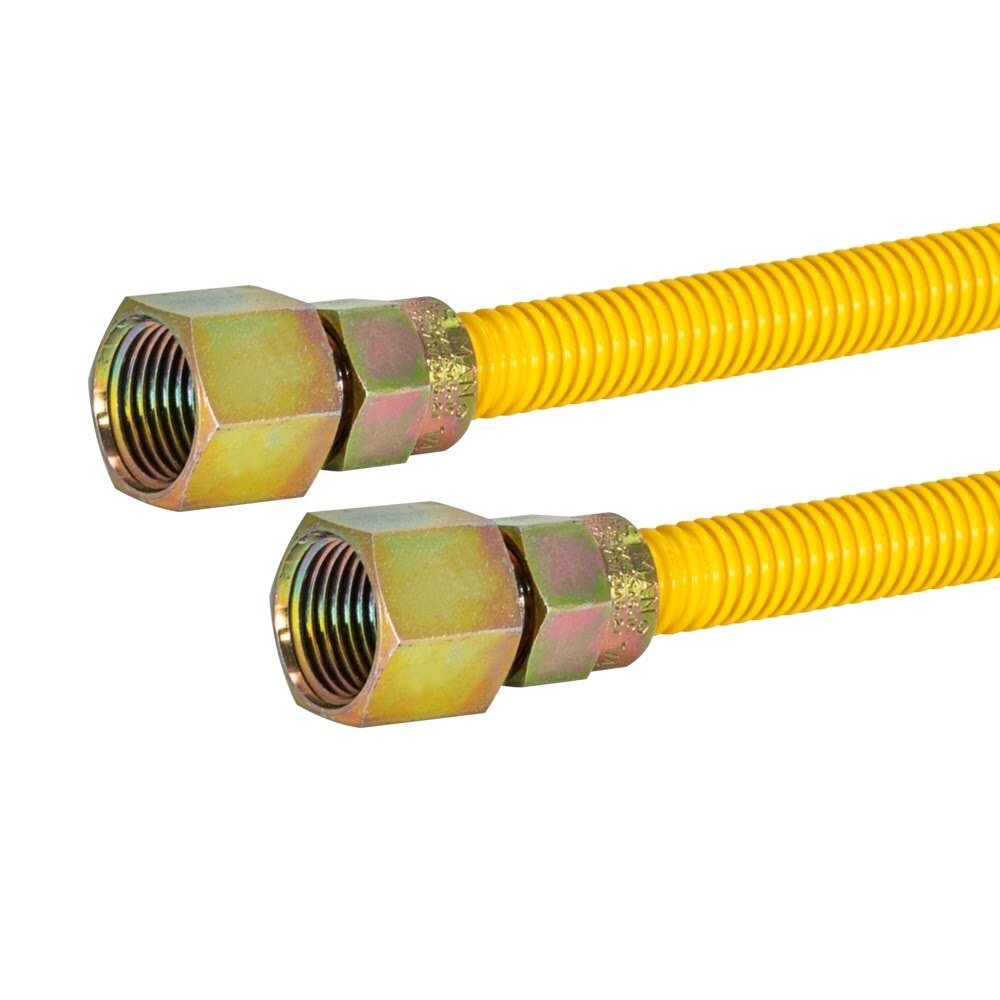

The Eastman Steel-Flex gas connector is a 36 in. stainless steel gas supply line with a yellow epoxy coating for added protection against corrosion, stains, UV, and household chemicals. Deep corrugations help resist crushing, kinking, and cracking, while the 1/2 in. FIP x 1/2 in. FIP ends provide a durable connection for natural gas or LP applications.
Eastman 20YE515136 Includes
- (1) 1/2 in. OD x 36 in. Gas Connector with 1/2 in. FIP x 1/2 in. FIP Ends
Eastman 20YE515136 Features
- Yellow epoxy coated stainless steel 304 construction
- Deep corrugations help resist crushing, kinking, and cracking
- DuraCoat coating protects against corrosion, stains, UV, and household chemicals
- Compatible with natural gas and LP applications
- Zinc-plated steel FIP fittings provide durable connections
- Approved for indoor and outdoor use
- 100% leak tested at the factory
- CSA certified
- Temperature rating from -20 Degrees F to 150 Degrees F+
- Suitable for water heaters and dryers with gas ratings up to 71,100 BTUs
Eastman 20YE515136 Specifications
| Outer Diameter | 1/2 in. |
| Length | 36 in. |
| Connection 1 | 1/2 in. FIP |
| Connection 2 | 1/2 in. FIP |
| Material | Stainless Steel 304 |
| Coating | Yellow Epoxy |
| Fitting Material | Zinc-Plated Steel S45C |
| Gas Type | Natural Gas and LP |
| Application | Gas supply line for HVAC, water heaters, ranges, dryers, and other appliances |
| Maximum BTU Rating | 71,100 BTUs |
| Temperature Rating | -20 Degrees F to 150 Degrees F+ |
| Usage | Indoor and Outdoor |
| Certification | CSA Certified |
| Standards | ANSI Z21.24/CSA 6.10; ANSI Z21.69/CSA 6.16; ANSI Z21.75/CSA 6.27 |
| Product Width (in) | 1.10 |
| Product Height (in) | 0.94 |
| Product Length (in) | 36 |
| Product Weight (lb) | 0.71 |
