Eastman 20YE51V060B Description

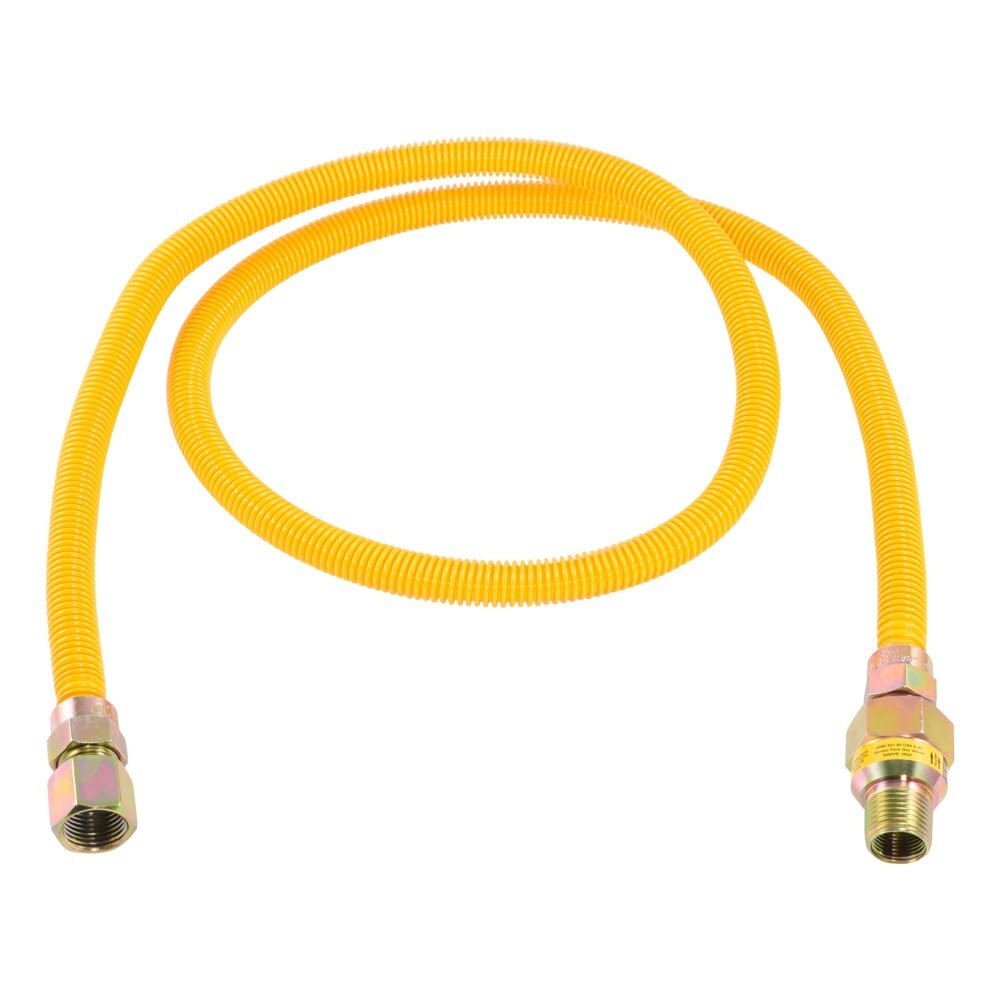

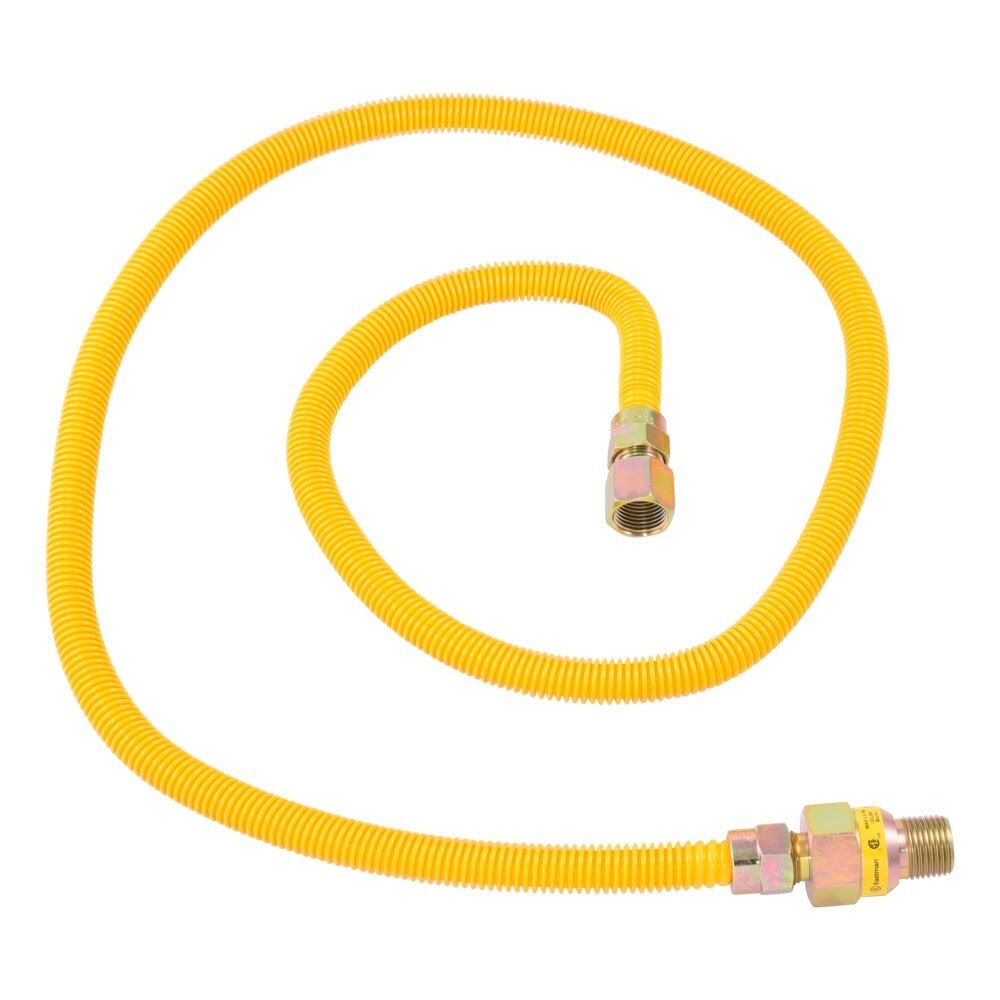

The Eastman 20YE51V060B gas connector is a 60 in. yellow coated stainless steel supply line designed for appliance installation and repair. It features 1/2 in. FIP x 1/2 in. MIP connections with an integrated EFV for added gas flow protection, and its corrosion-resistant coating is suitable for indoor or outdoor use on water heaters, ranges, cooktops, and dryers.
Eastman 20YE51V060B Includes
- (1) 60 in. 1/2 in. OD Yellow Coated Stainless Steel Gas Connector
- (1) 1/2 in. FIP Fitting

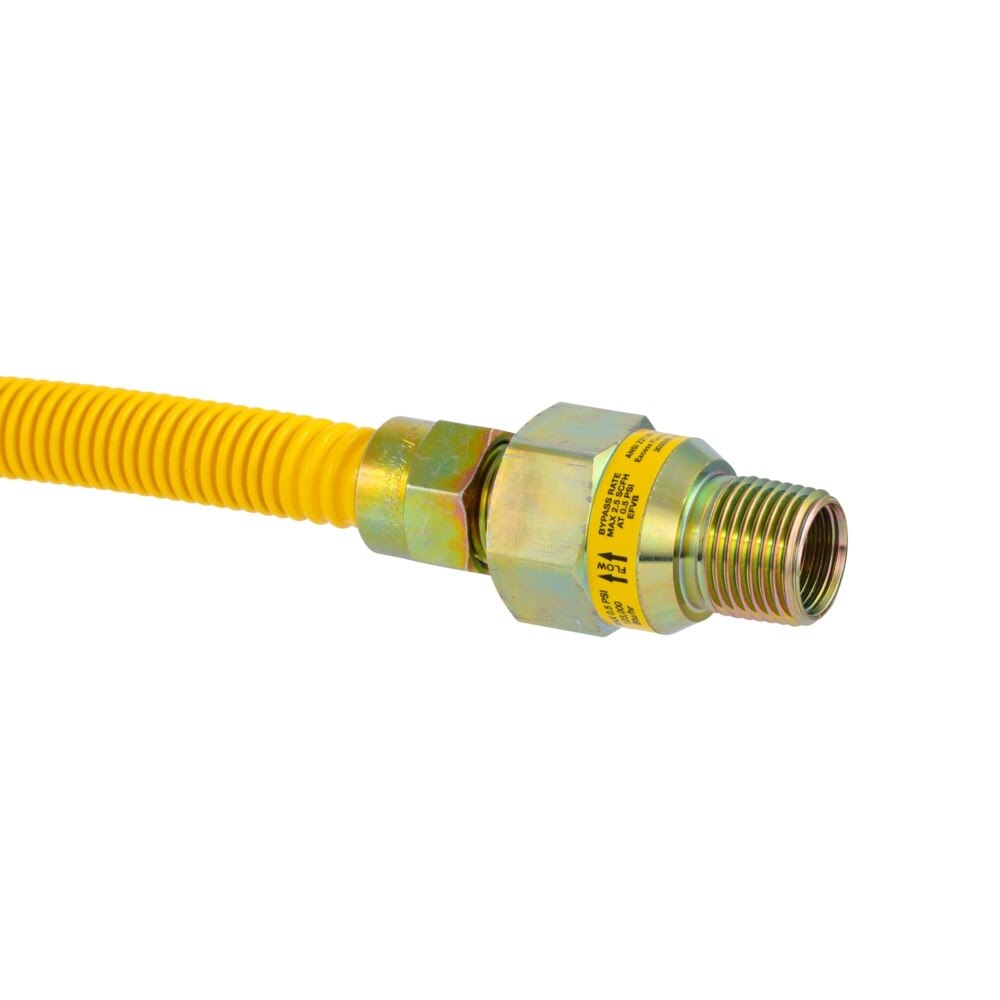

- (1) 1/2 in. MIP EFV Auto Shut-Off Valve
Eastman 20YE51V060B Features
- Integrated EFV helps restrict gas flow in the event of a rupture or disconnect
- EFV can be installed vertically or horizontally
- Yellow coated stainless steel construction resists corrosion, UV rays, and harsh chemicals
- Suitable for indoor and outdoor use
- Fits 1/2 in. FIP x 1/2 in. MIP gas connections
- Designed for water heaters, ranges, cooktops, and dryers
- Installs like a standard gas fitting
- CSA certified to ANSI Z21.24/CSA 6.10 and ANSI Z21.75/CSA 6.27
- Valve design has no moving parts to wear, break, or misalign over time
Eastman 20YE51V060B Specifications
| Brand | Eastman |
| Product Type | Gas Connector |
| Connector Outside Diameter | 1/2 in. |
| Length | 60 in. |
| Inlet Diameter | 1/2 in. |
| Outlet Diameter | 1/2 in. |
| Inlet Fitting Type | 1/2 in. FIP |
| Outlet Fitting Type | 1/2 in. MIP |
| Valve Type | EFV |
| Material | Stainless Steel |
| Finish | Yellow Coated |
| Working Pressure | 1/2 psi |
| Application | Water Heater, Range, Cooktop, Dryer |
| Packaging Type | Bagged |
| Indoor/Outdoor Use | Yes |
| Certification | ANSI Z21.24/CSA 6.10 and ANSI Z21.75/CSA 6.27 |
| Maximum BTU Rating | 53,200 BTUs |
| Each Shipping Weight | 1.03 lb |
