Eastman 30SS555036 Description
The Eastman 5/8 in. OD 36 in. stainless steel gas connector is designed to connect ranges, boilers, and other high-usage appliances to a shut-off valve. Its corrugated 304 stainless steel body and zinc-plated fittings provide flexibility, corrosion resistance, and dependable performance for natural gas or LP applications indoors or outdoors.
Eastman 30SS555036 Includes

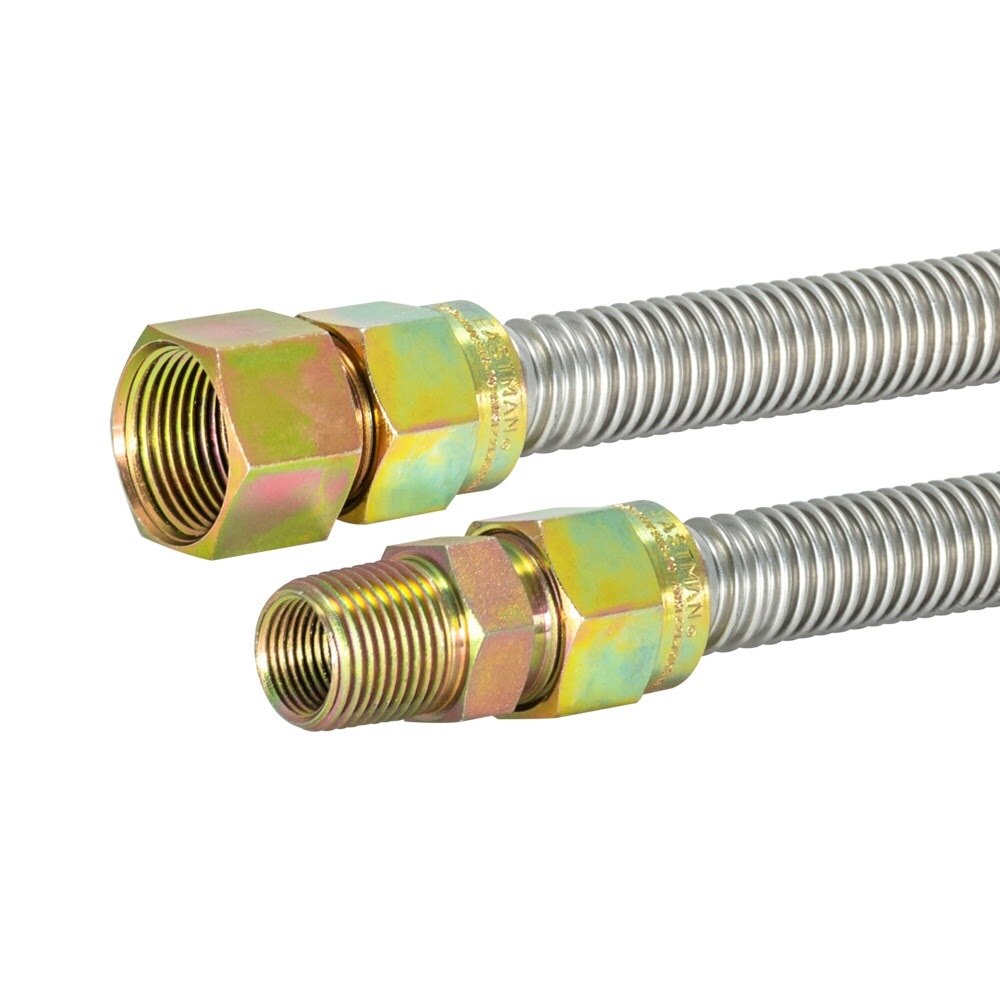

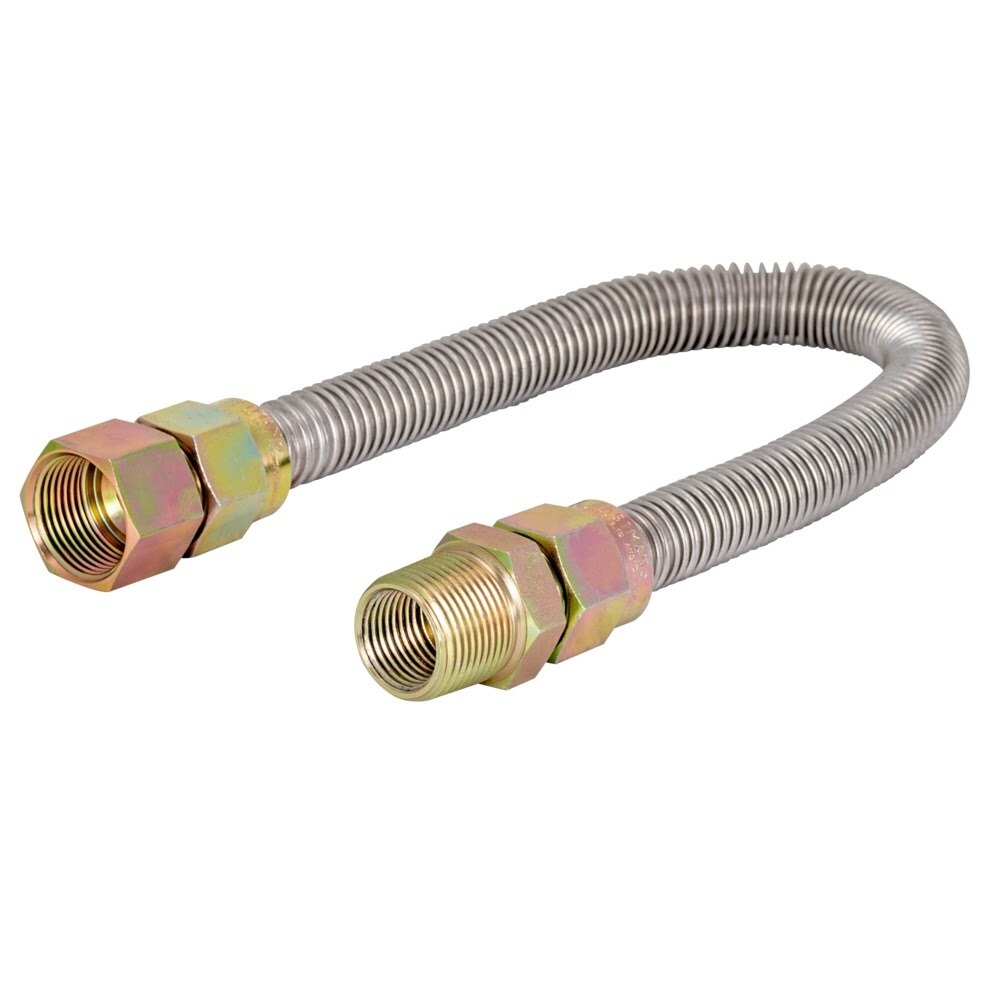

- (1) 36 in. x 5/8 in. OD Stainless Steel Gas Connector
- (1) 3/4 in. FIP Fitting
- (1) 1/2 in. MIP Fitting with Tapped 3/8 in. FIP
Eastman 30SS555036 Features
- Designed for most ranges and boilers with gas ratings up to 125,000 BTUs
- Compatible with natural gas and LP applications
- Approved for indoor and outdoor use
- Corrugated 304 stainless steel construction resists corrosion and staining
- Deep corrugations enhance flexibility for easier installation
- Zinc-plated steel fittings provide durable connections
- Factory leak tested for dependable performance
- Rated for use from -20 Degree F to 150 Degree F
- Certified to ANSI and CSA standards
Eastman 30SS555036 Specifications
| Type | Gas connector |
| Material | Corrugated 304 stainless steel |
| Connector Length | 36 in. |
| Outer Diameter | 5/8 in. |
| Inlet Fitting Type | FIP |
| Inlet Fitting Size | 3/4 in. |
| Outlet Fitting Type | MIP |
| Outlet Fitting Size | 1/2 in. |
| Fitting Material | Zinc-plated steel |
| Gas Type | Natural gas and LP |
| Maximum Pressure | 0.5 PSI |
| BTU Rating | 125,000 BTU |
| Working Temperature Range | -20 Degree F to 150 Degree F |
| Indoor/Outdoor Use | Yes |
| Corrosion Resistant | Yes |
| Flexible | Yes |
| Lead-Free | Yes |
| Excess Flow Valve | No |
| Package Quantity | 1 |
| Warranty | 5-year limited |
