Eastman 30YE505036B Description

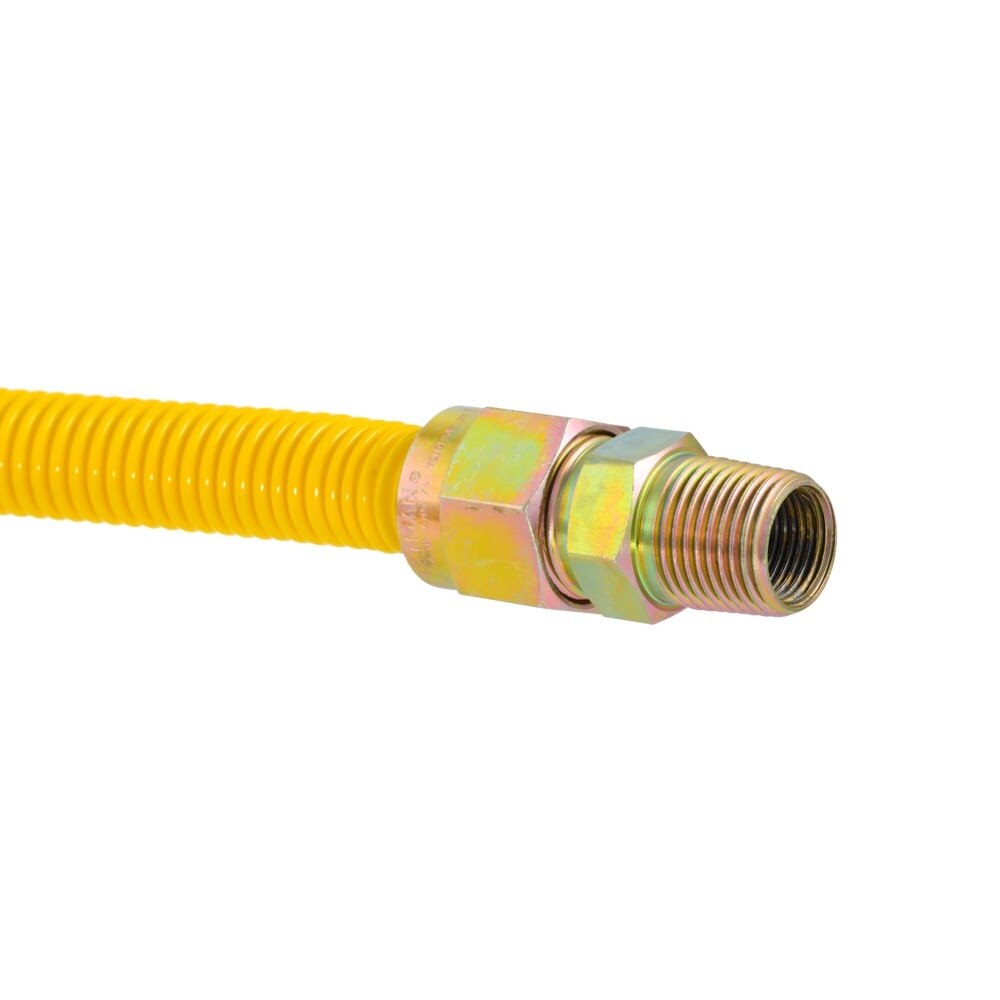

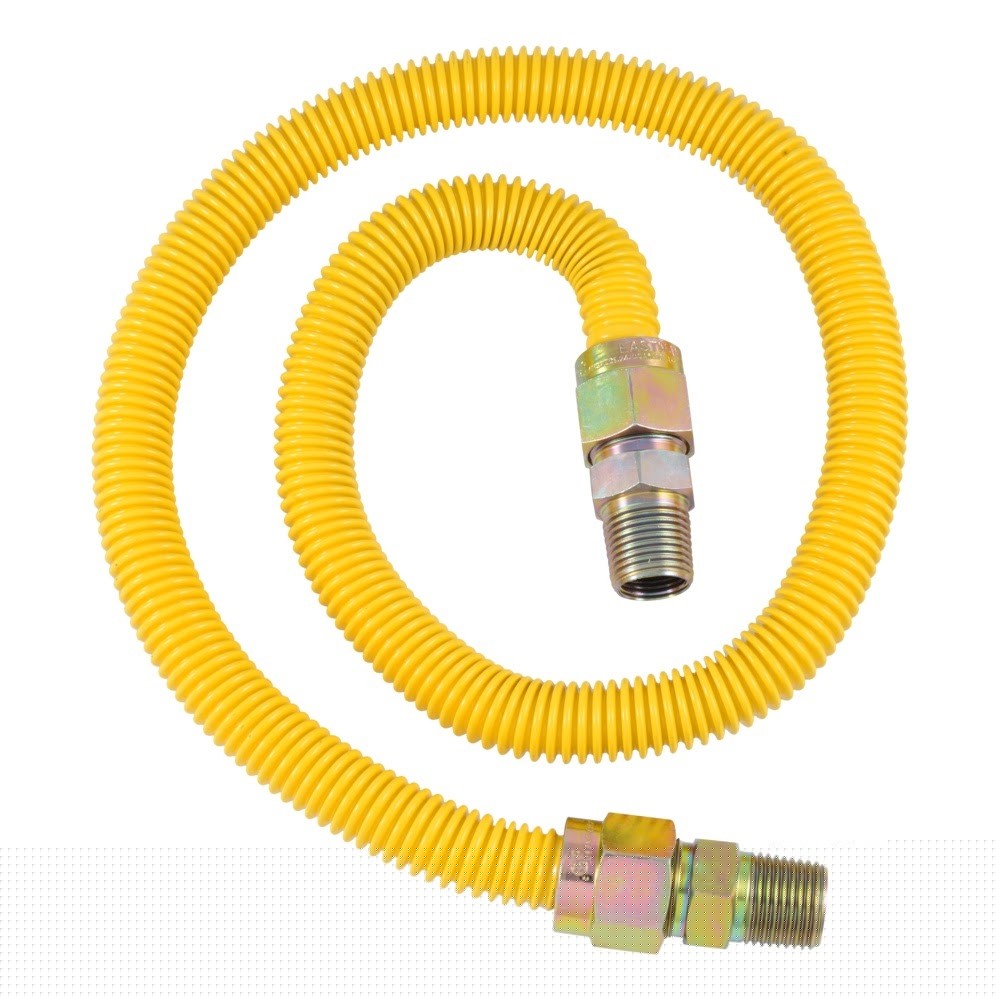

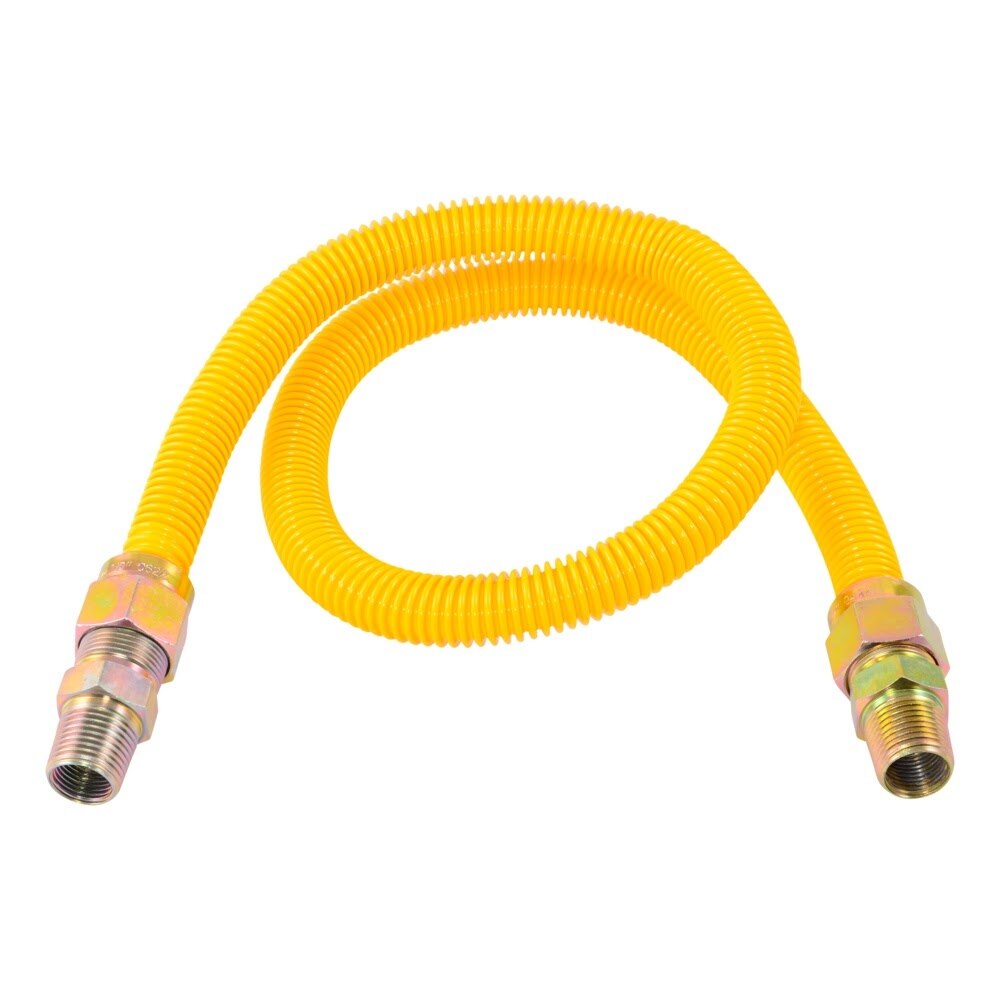

The Eastman 36 in. gas connector features a 5/8 in. OD flexible stainless steel body with a yellow protective coating and 1/2 in. MIP end connections. Designed for ranges, boilers, and other high-usage appliances, it works with natural gas or LP applications up to 125,000 BTUs and is approved for indoor or outdoor use.
Eastman 30YE505036B Includes
- (1) 36 in. 5/8 in. OD gas connector
- (2) 1/2 in. MIP fittings
Eastman 30YE505036B Features
- 36 in. long 5/8 in. OD flexible stainless steel gas connector
- 1/2 in. MIP x 1/2 in. MIP connection configuration
- Yellow epoxy coating helps resist corrosion, stains, and UV exposure
- Deep corrugations enhance flexibility for installation
- Suitable for natural gas and LP applications
- For most ranges, boilers, and other high-usage appliances up to 125,000 BTUs
- Approved for indoor and outdoor use
- 100% leak tested at the factory
- Certified to applicable ANSI and CSA standards
Eastman 30YE505036B Specifications
| Type | Gas connector |
| Material | Stainless steel |
| Finish | Yellow epoxy-coated |
| Length | 36 in. |
| Outer Diameter | 5/8 in. |
| Inlet Fitting End Type | MIP |
| Outlet Fitting End Type | MIP |
| Inlet Fitting Size | 1/2 in. |
| Outlet Fitting Size | 1/2 in. |
| Package Quantity | 1 |
| Maximum PSI | 0.5 |
| BTU Rating | 125000 |
| Fuel Type | Natural gas and LP |
| Excess Flow Valve (EFV) | No |
| Fitting Material | Zinc |
| Corrosion Resistant | Yes |
| Flexible | Yes |
| Indoor/Outdoor Use | Yes |
| Working Temperature Range | -20 to 150 Degree F |
| Warranty | 5-year limited |
