Eastman 30YE50V060B Description

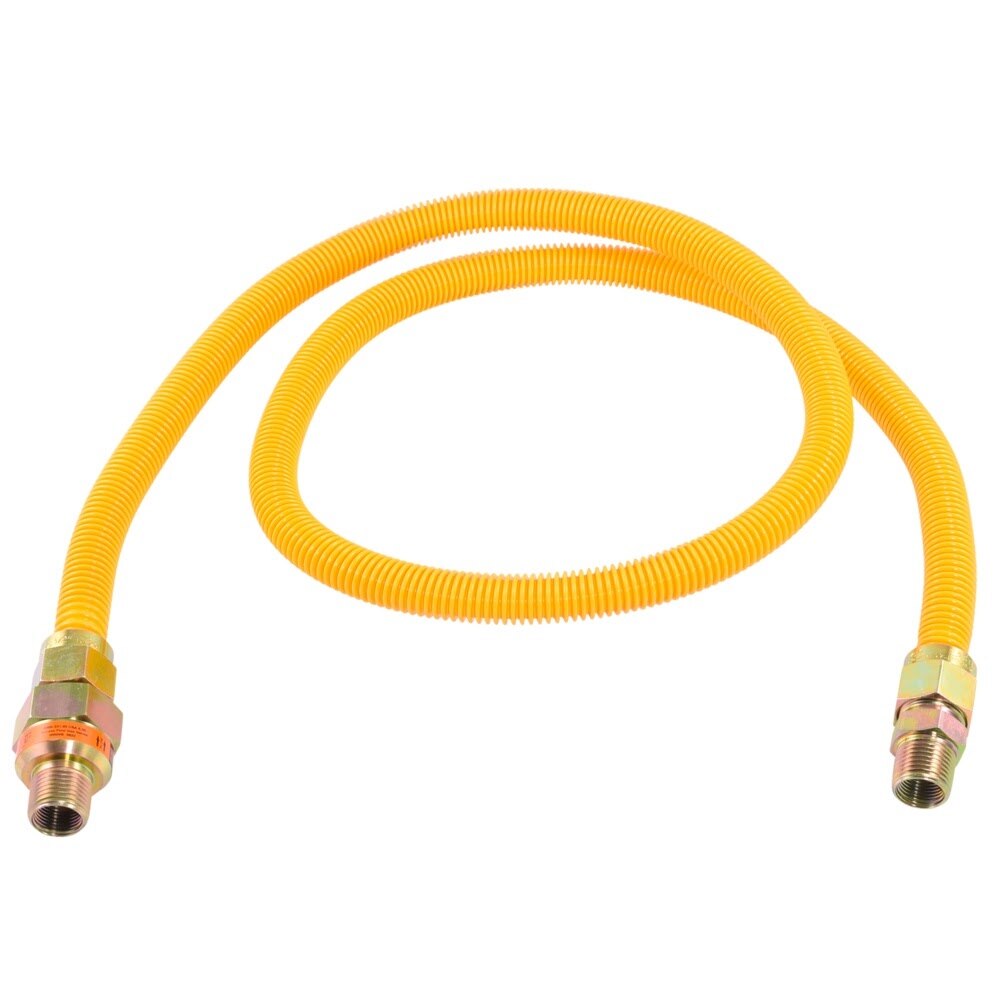

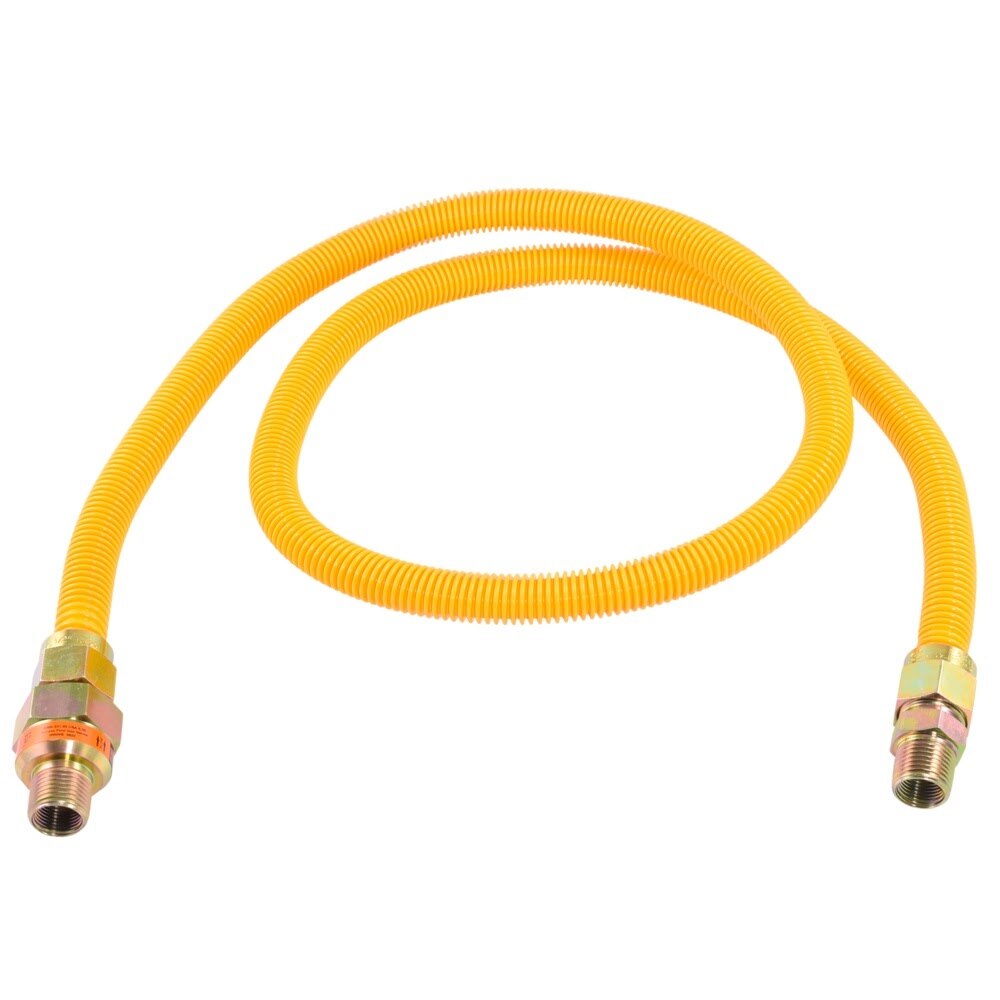

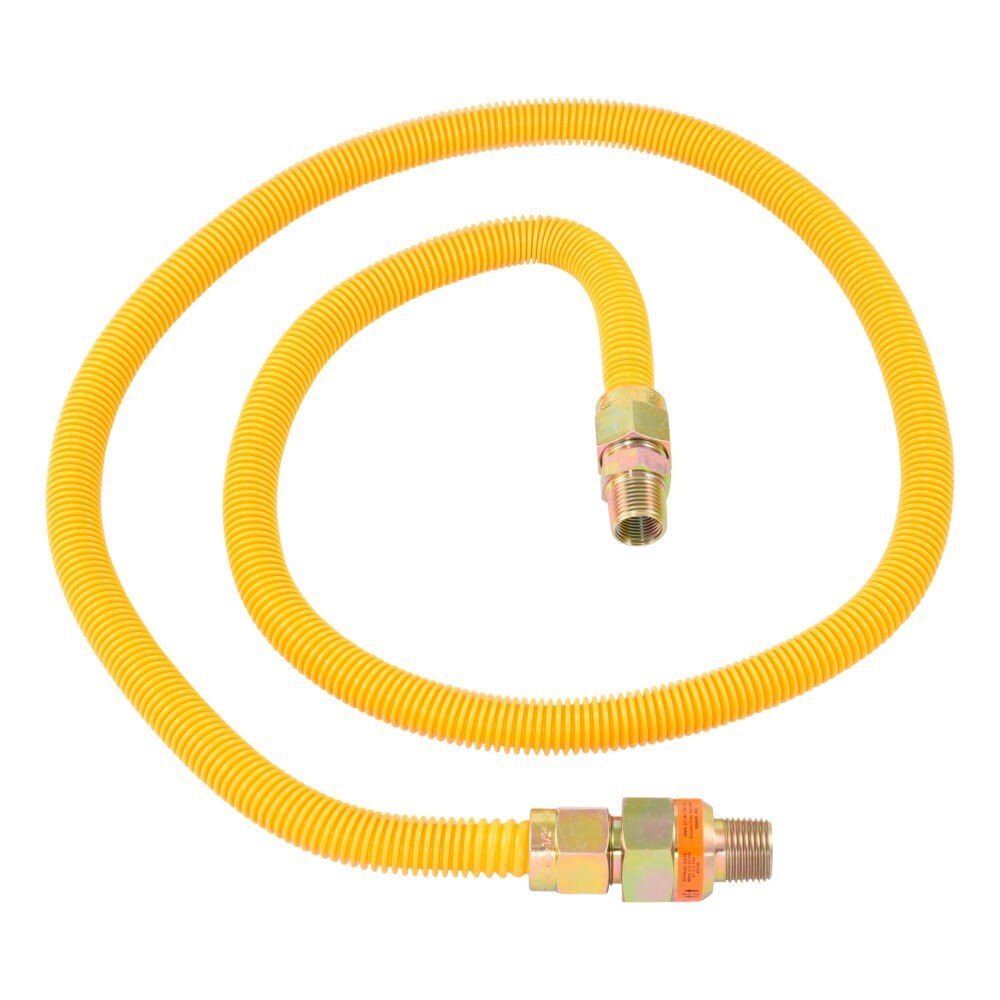

The Eastman 60 in. gas connector is built from 5/8 in. OD epoxy-coated stainless steel to connect ranges, boilers, and other gas appliances to a shut-off valve. It features 1/2 in. MIP ends and an ArmorBoost excess flow valve that helps restrict gas flow during a rupture or disconnect, while the yellow coating resists corrosion, household chemicals, and UV exposure for indoor or outdoor use.
Eastman 30YE50V060B Includes
- (1) 60 in. 5/8 in. OD epoxy-coated stainless steel gas connector
- (1) 1/2 in. MIP tapped 3/8 in. FIP fitting
- (1) 1/2 in. MIP tapped 3/8 in. FIP ArmorBoost EFV auto shut-off valve
Eastman 30YE50V060B Features
- 60 in. long 5/8 in. OD stainless steel gas connector
- 1/2 in. MIP x 1/2 in. MIP connection configuration

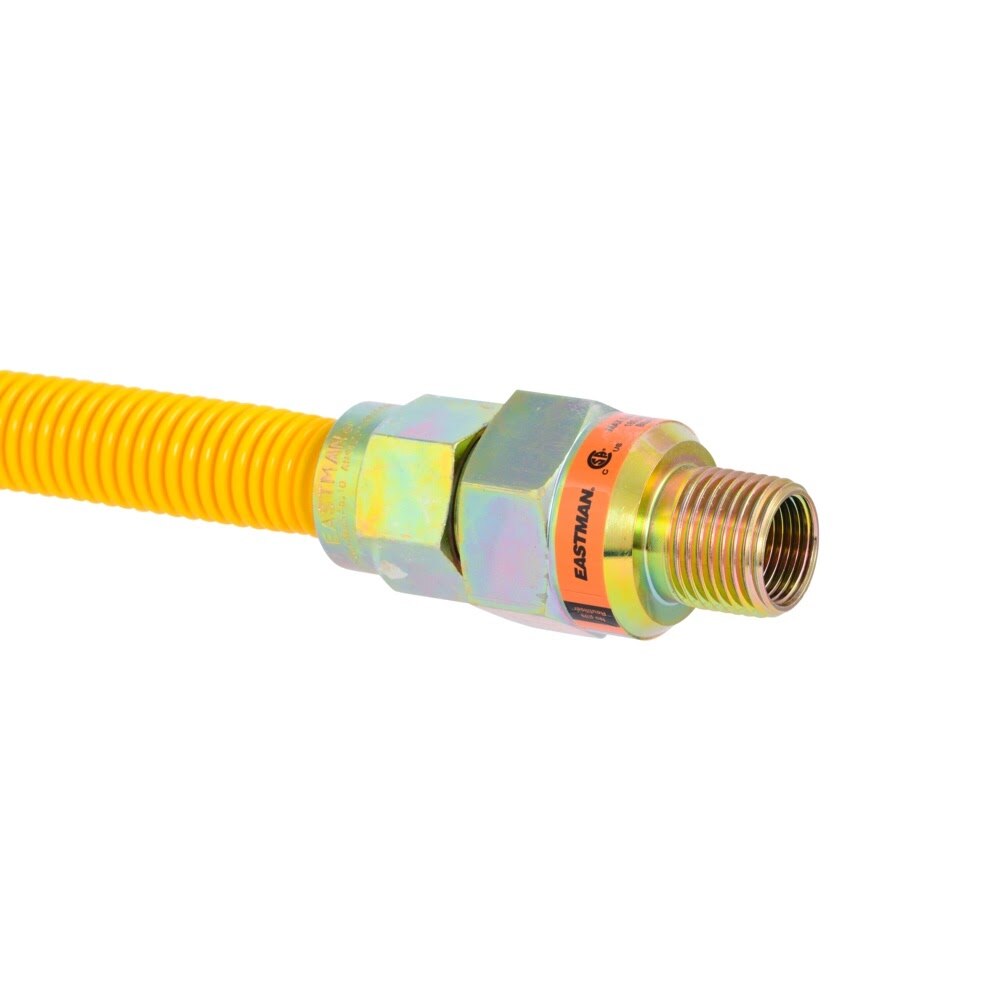

- ArmorBoost EFV helps restrict gas flow during catastrophic rupture or disconnect
- Fire-safe thermal ring expands at extreme temperatures to stop gas flow
- DuraCoat epoxy coating resists corrosion, chemical stains, and UV rays
- Approved for indoor and outdoor use
- Omnidirectional design allows installation in any position
- Installs like a standard gas fitting with no special tools required
- Certified for gas ranges, boilers, and appliances up to 93,200 BTUs
Eastman 30YE50V060B Specifications
| Application | Gas appliance |
| Material | Stainless steel |
| Coating | DuraCoat epoxy |
| Color | Yellow |
| Length | 60 in. |
| Outside Diameter | 5/8 in. |
| Inlet Diameter | 1/2 in. |
| Outlet Diameter | 1/2 in. |
| Inlet Fitting Type | MIP |
| Outlet Fitting Type | MIP |
| Valve Type | ArmorBoost EFV thermal excess flow valve |
| Working Pressure | 0.50 psi |
| Gas Rating | Up to 93,200 BTUs |
| Indoor/Outdoor Use | Yes |
| Packaging Type | Bagged |
