Eastman 30YE515118 Description

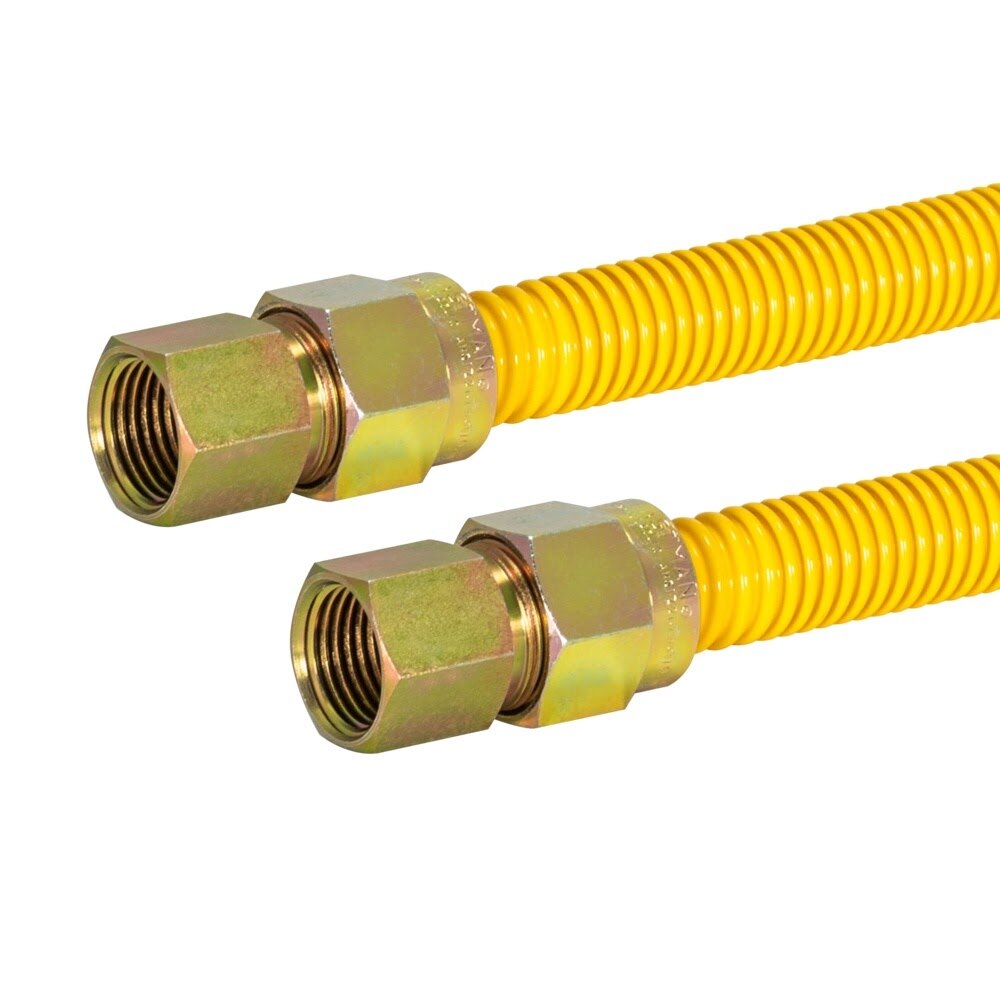

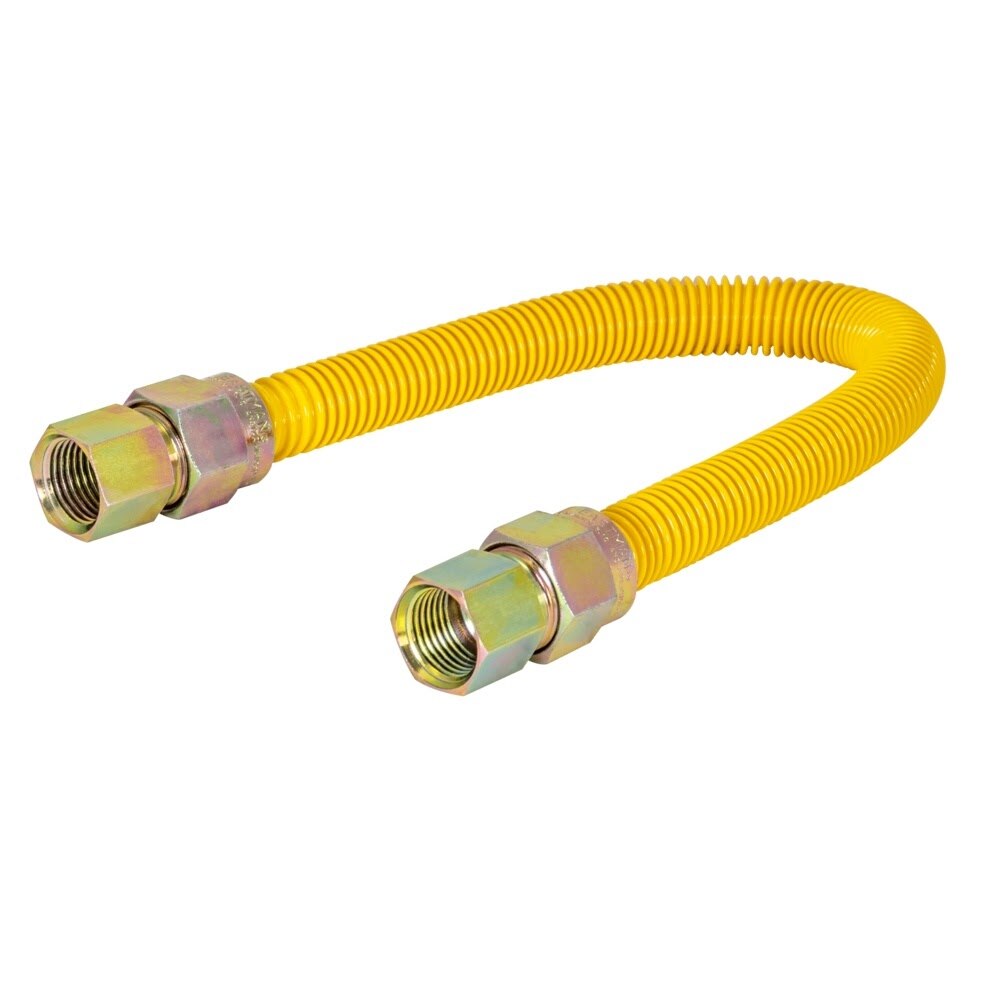

The Eastman gas connector is a 5/8 in. OD x 18 in. stainless steel gas supply line with a yellow epoxy coating and 1/2 in. FIP x 1/2 in. FIP ends. Designed for natural gas and LP installations, it offers strong resistance to corrosion, stains, household chemicals, and UV exposure for dependable indoor or outdoor use.
Eastman 30YE515118 Includes
- (1) 18 in. Gas Connector
- (2) 5/8 in. FLR x 1/2 in. FIP Fittings
Eastman 30YE515118 Features
- Yellow epoxy coated 304 stainless steel construction
- 5/8 in. OD x 18 in. connector size
- 1/2 in. FIP x 1/2 in. FIP end connections
- Compatible with natural gas and LP applications

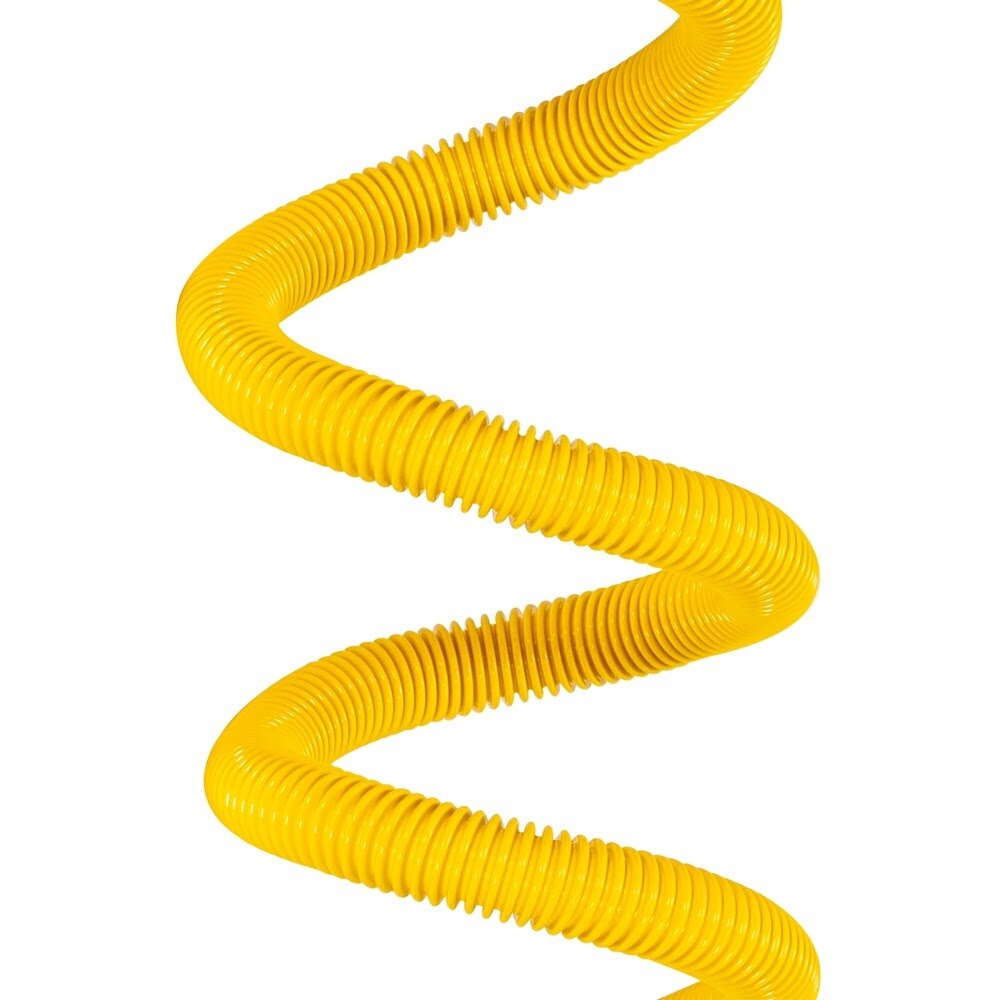

- Deep corrugations help resist crushing, kinking, and cracking
- Coating helps protect against corrosion, stains, UV, and household chemicals
- Approved for indoor and outdoor use
- Suitable for appliances rated up to 164,200 BTUs
- Factory leak tested for added confidence
- CSA certified in the U.S. and Canada
Eastman 30YE515118 Specifications
| Length | 18 in. |
| Outside Diameter | 5/8 in. |
| End 1 Connection | 1/2 in. FIP |
| End 2 Connection | 1/2 in. FIP |
| Included Fittings | (2) 5/8 in. FLR x 1/2 in. FIP |
| Material | Stainless steel 304 |
| Coating | Yellow epoxy |
| Fitting Material | Zinc-plated steel S45C |
| Gas Type | Natural gas and LP |
| Maximum Capacity | 164,200 BTUs |
| Temperature Rating | -20 Degrees F to 150 Degrees F+ |
| Use Location | Indoor and outdoor |
| Certification | CSA certified |
| Standards | ANSI Z 21.24/CSA 6.10; ANSI Z 21.69/CSA 6.16; ANSI Z 21.75/CSA 6.27 |
