Eastman 30YE51V024B Description

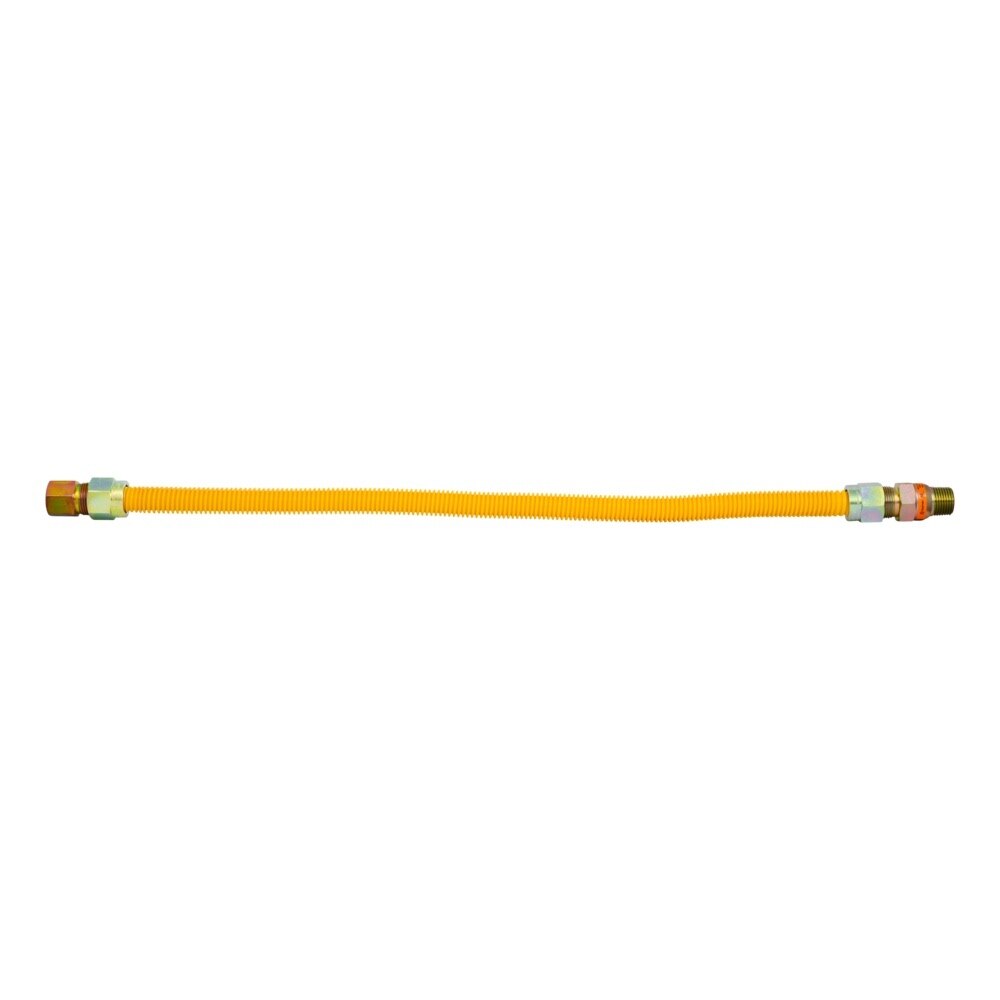

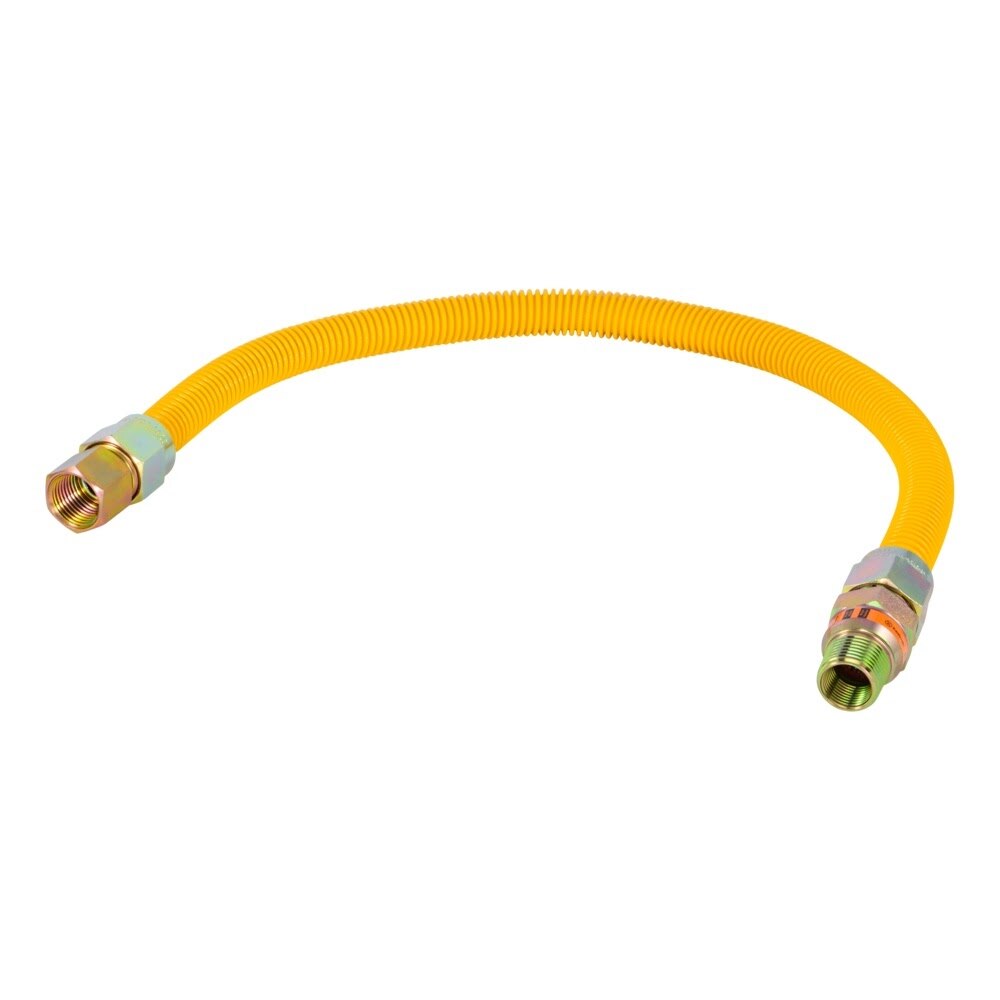

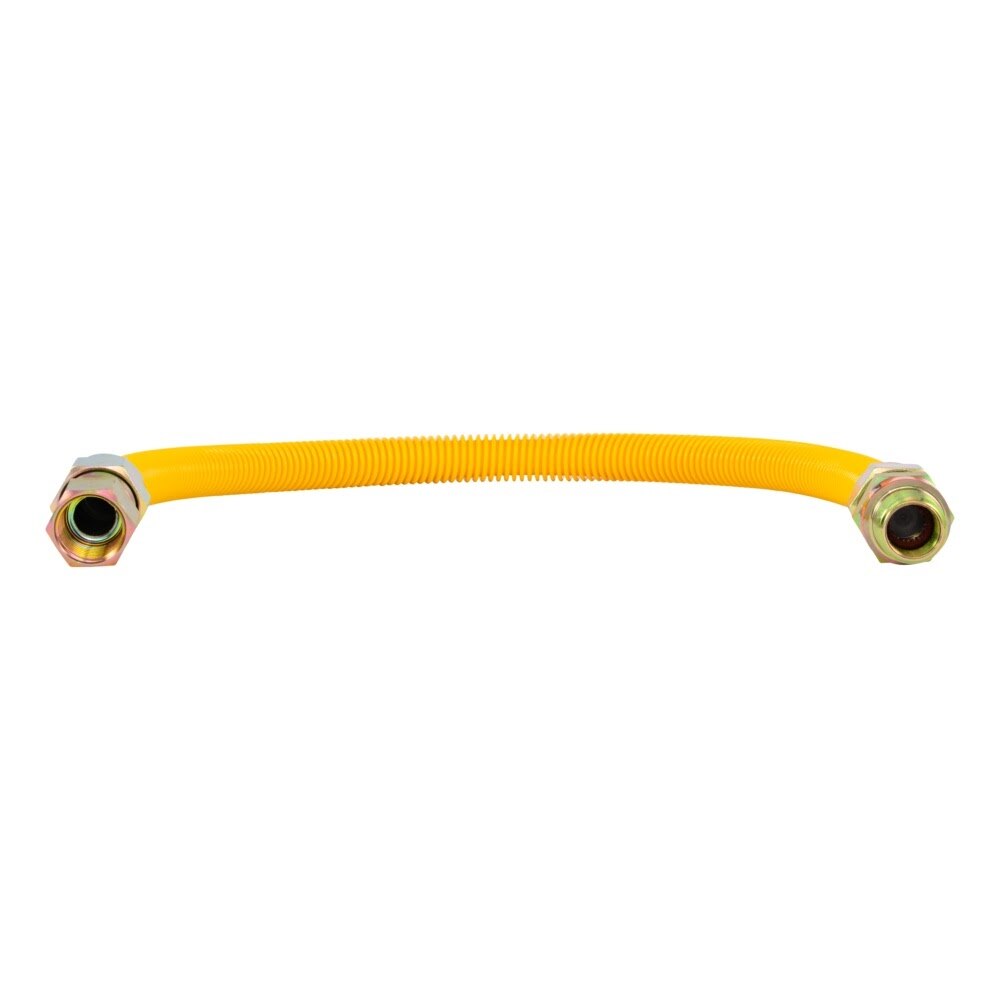

The Eastman 24 in. stainless steel gas connector features a 5/8 in. OD tube with 1/2 in. FIP x 1/2 in. MIP connections and an ArmorBoost EFV for added protection against gas line ruptures or disconnects. Its yellow DuraCoat epoxy coating resists corrosion, stains, and UV exposure, and the connector is approved for indoor or outdoor use with natural gas or liquid propane appliances up to 150,000 BTUs.
Eastman 30YE51V024B Includes
- (1) 24 in. Gas Connector
Eastman 30YE51V024B Features
- 24 in. gas connector with 5/8 in. outside diameter
- 1/2 in. FIP x 1/2 in. MIP connection ends
- ArmorBoost EFV helps protect against ruptures and disconnects
- Fire-safe thermal ring helps stop gas flow at extreme temperatures
- Yellow DuraCoat epoxy coating resists corrosion, stains, and UV exposure
- Compatible with natural gas and liquid propane
- Approved for indoor and outdoor use
- For most ranges and boilers up to 150,000 BTUs
- 100% factory leak tested
- Easy to install with no special tools required
Eastman 30YE51V024B Specifications
| Brand | Eastman |
| Product Type | Gas Connector |
| Series | ArmorBoost EFV |
| Length | 24 in. |
| Outside Diameter | 5/8 in. |
| Inlet Connection | 1/2 in. FIP |
| Outlet Connection | 1/2 in. MIP |
| Material | Stainless steel |
| Color | Yellow |
| Coating | DuraCoat epoxy |
| Compatible Fuel Types | Natural gas, liquid propane |
| Application | Ranges, boilers, and high-usage appliances |
| Maximum Capacity | 150,000 BTUs |
| Indoor/Outdoor Use | Indoor and outdoor |
| Temperature Rating | -20 Degree F to 150 Degree F+ |
| Leak Tested | 100% factory tested |
| Package Height | 1.06 in. |
| Package Width | 1.23 in. |
| Package Length | 24 in. |
| Each Shipping Weight | 0.85 lb |
