Eastman 30YE51V036B Description

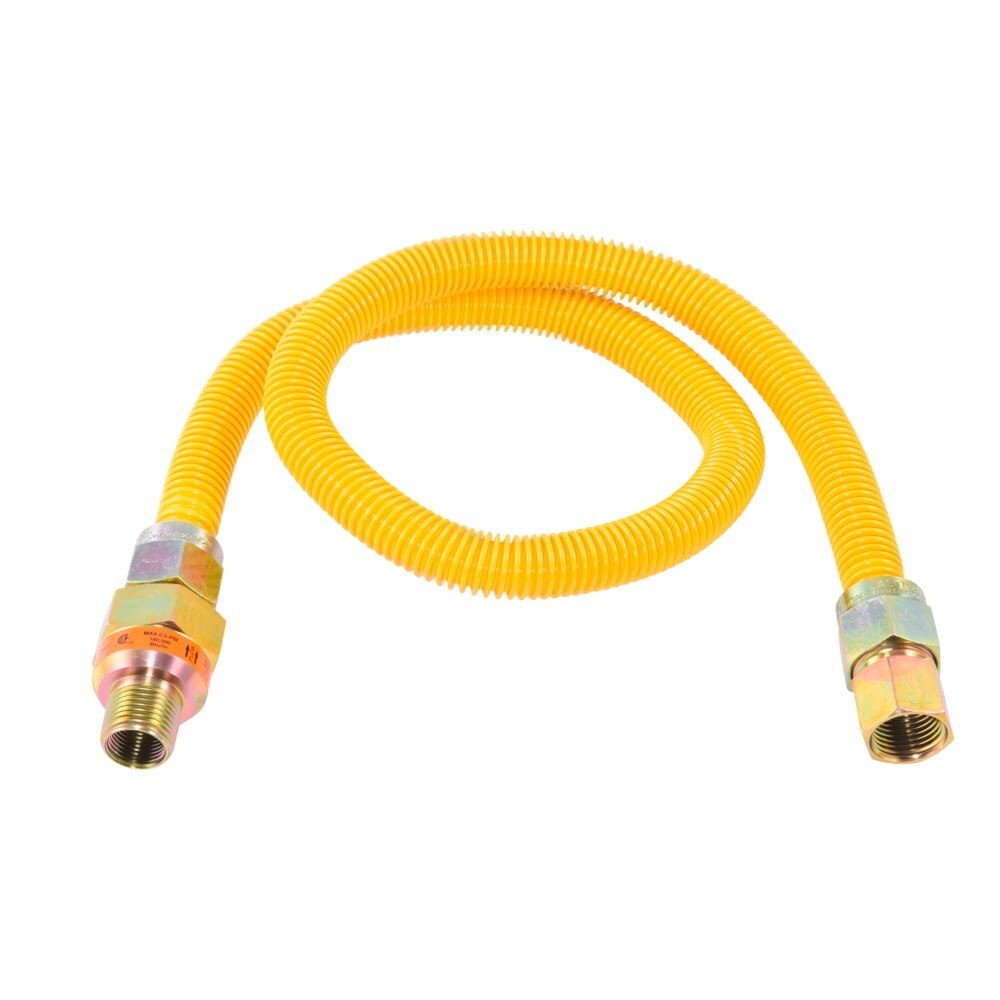

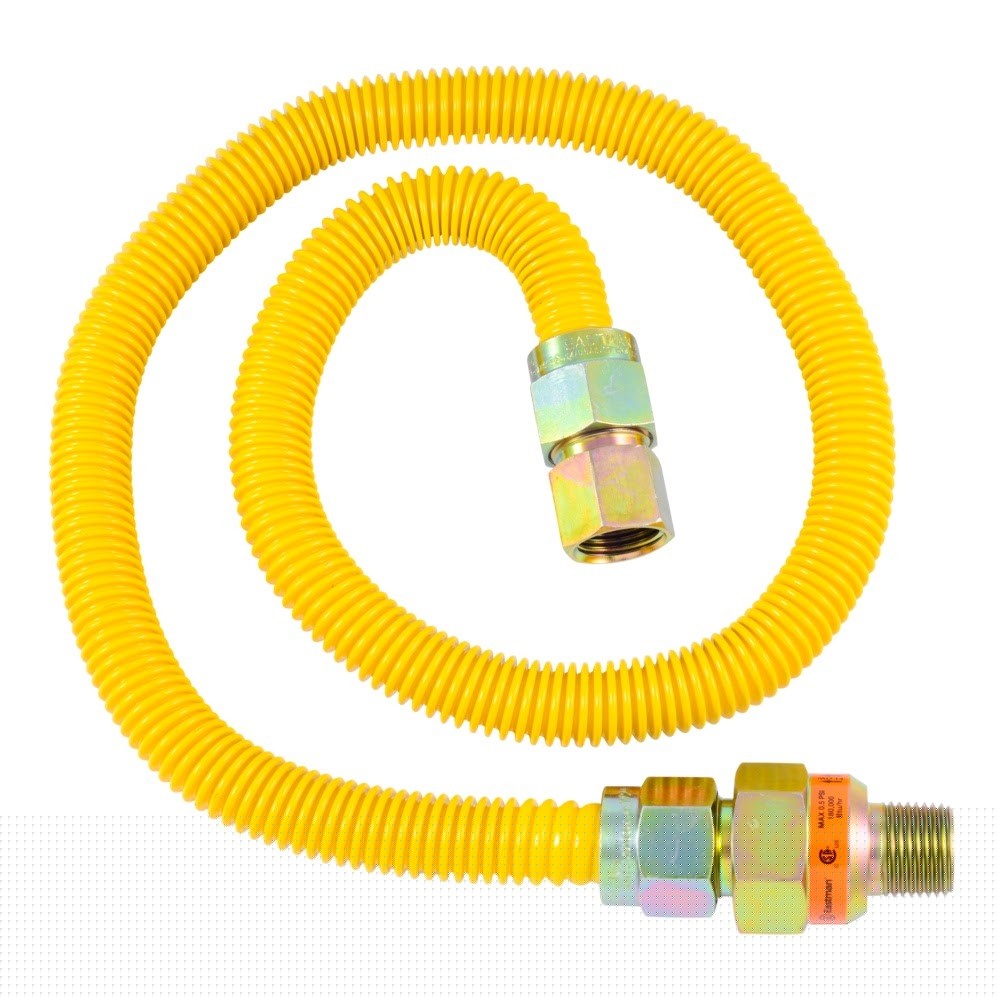

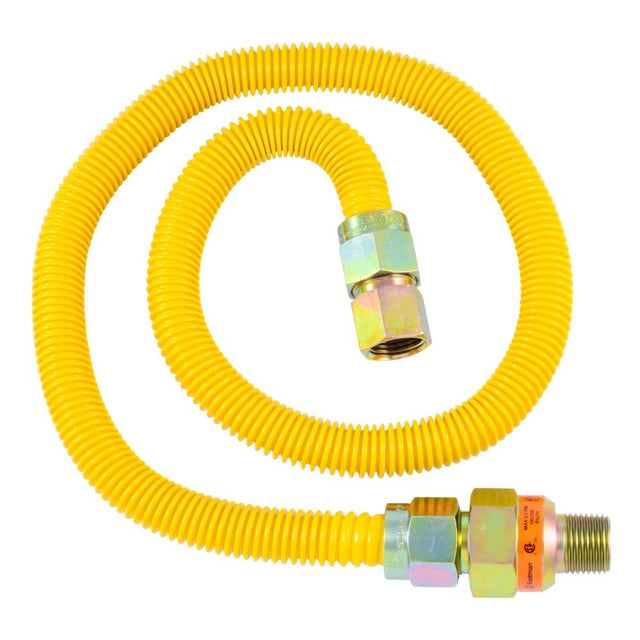

The Eastman 5/8 in. OD 36 in. gas connector is designed to connect gas ranges, boilers, and other high-usage appliances to a shut-off valve. It features a yellow-coated stainless steel construction with an integrated excess flow valve to help restrict gas flow in the event of a rupture or disconnect.
Eastman 30YE51V036B Includes
- (1) 5/8 in. OD 36 in. EFV Gas Connector
Eastman 30YE51V036B Features
- Designed for gas ranges, boilers, and other high-usage appliances
- 1/2 in. FIP x 1/2 in. MIP end connections

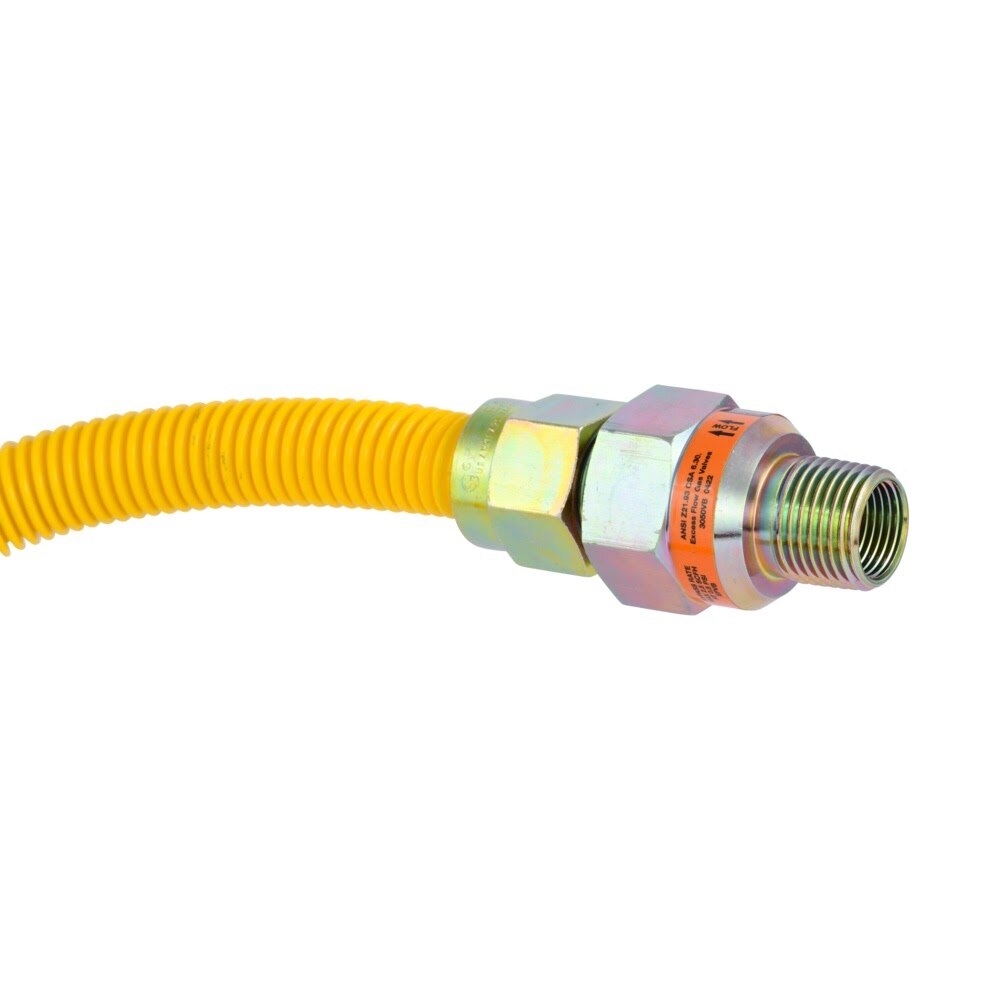

- ArmorBoost EFV helps protect against ruptures and disconnects
- Compatible with natural gas and liquid propane
- Approved for indoor and outdoor use
- Epoxy coating helps resist corrosion, stains, and UV exposure
- Easy to install with no special tools required
- 100% factory leak tested
Eastman 30YE51V036B Specifications
| Product Type | Gas Connector |
| Outer Diameter | 5/8 in. |
| Length | 36 in. |
| End 1 Connection | 1/2 in. FIP |
| End 2 Connection | 1/2 in. MIP |
| Material | Stainless steel |
| Color | Yellow |
| Valve Type | Excess flow valve (EFV) |
| Fuel Type | Natural gas and liquid propane |
| Application | Ranges, boilers, and high-usage appliances |
| Maximum BTU Rating | 150,000 BTUs |
| Use Location | Indoor and outdoor |
| Temperature Rating | -20 Degree F to 150 Degree F+ |
| Leak Tested | 100% factory tested |
