Eastman 30YE51V048B Description

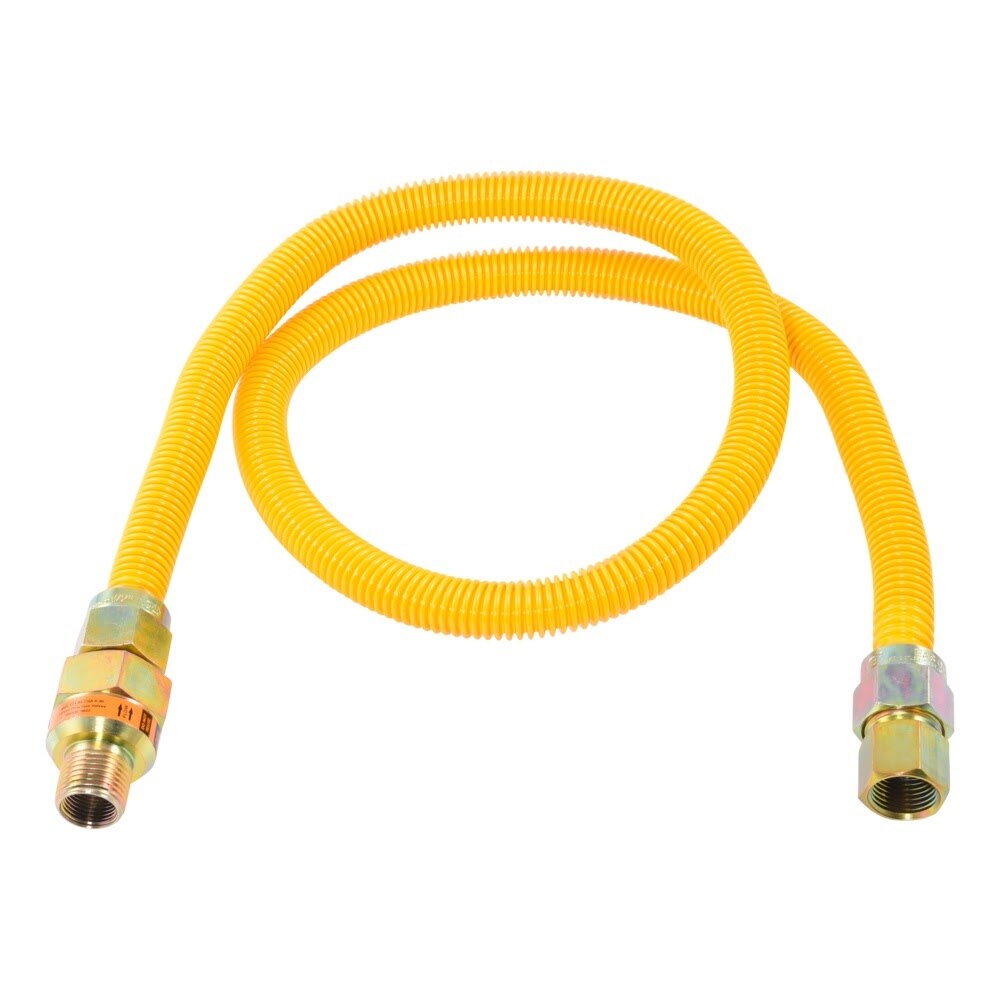

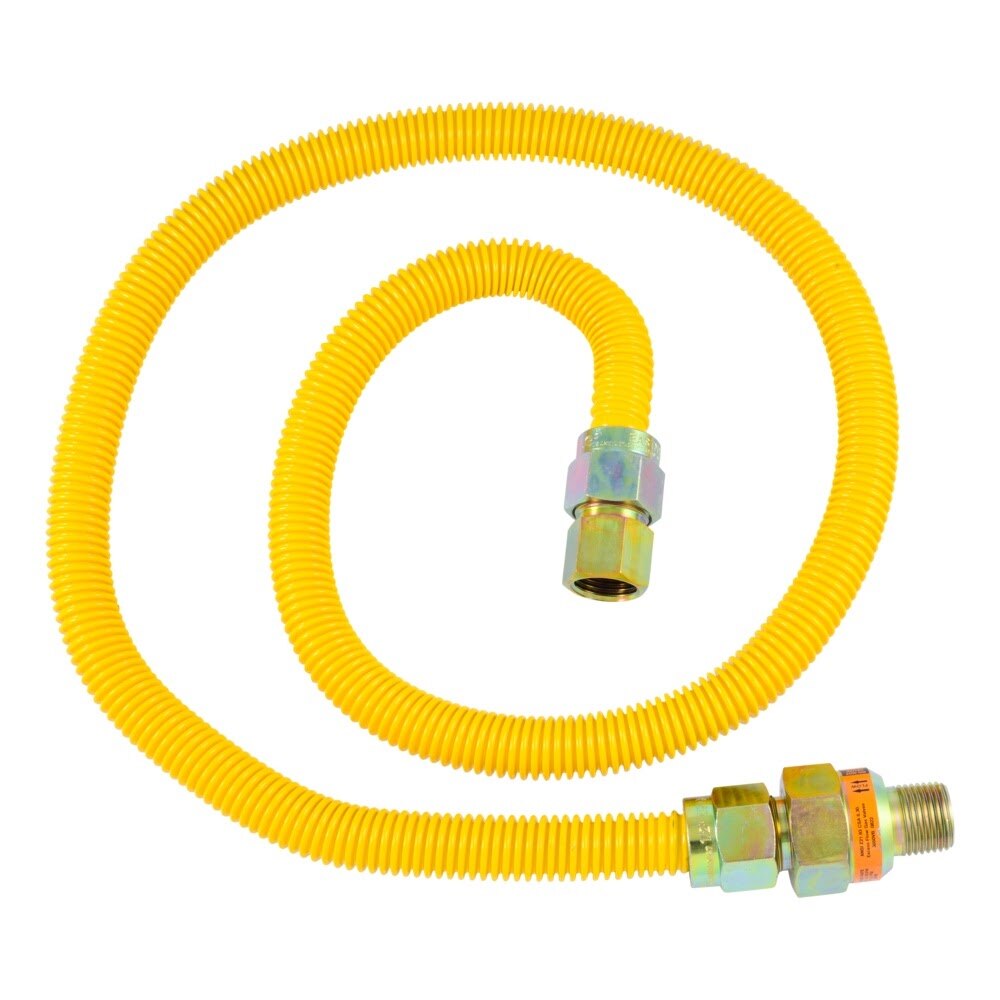

Eastman's 5/8 in. OD x 48 in. yellow stainless steel gas connector is designed to connect gas ranges, furnaces, boilers, and tankless water heaters to a shut-off valve. It features a corrosion-resistant yellow epoxy coating for indoor or outdoor use and an integrated EFV auto shut-off valve for added protection.
Eastman 30YE51V048B Includes
- (1) 48 in. 5/8 in. OD yellow gas connector
- (1) 1/2 in. FIP fitting
- (1) 1/2 in. MIP ArmorBoost EFV auto shut-off valve
Eastman 30YE51V048B Features
- 5/8 in. OD x 48 in. gas connector for ranges, furnaces, boilers, and tankless water heaters
- 1/2 in. FIP x 1/2 in. MIP connection ends
- Yellow epoxy coating resists corrosion, harsh chemicals, UV rays, and salt
- Approved for indoor and outdoor use

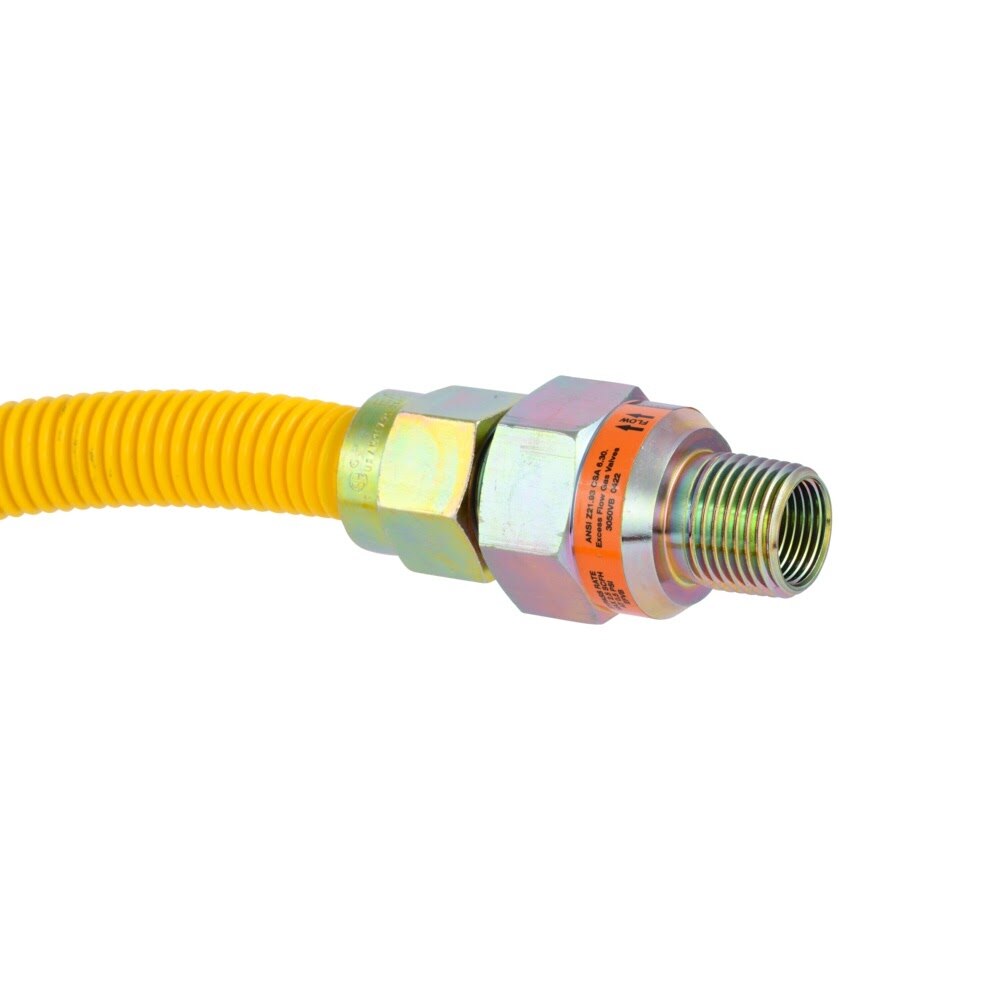

- Integrated EFV auto shut-off valve helps restrict gas flow in the event of a rupture or disconnect
- Fire-safe thermal ring expands under extreme heat to help stop gas flow
- Installs like a standard gas fitting with no special tools required
- Omnidirectional valve can be installed in any position
- Stainless steel connector construction for durable appliance gas connections
- Rated for appliances up to 106,000 BTU
Eastman 30YE51V048B Specifications
| Brand | Eastman |
| Product Type | Gas Connector |
| Outside Diameter | 5/8 in. |
| Length | 48 in. |
| Inlet Diameter | 1/2 in. |
| Inlet Fitting Type | FIP |
| Outlet Diameter | 1/2 in. |
| Outlet Fitting Type | MIP |
| Material | Stainless steel |
| Coating | Yellow epoxy resin coating |
| Valve Type | EFV auto shut-off valve |
| Working Pressure | 1/2 psi |
| Max Appliance Rating | 106,000 BTU |
| Packaging Type | Bagged |
| Use Location | Indoor/Outdoor |
Toolup Part # :
883011
