Eastman 30YE54V45048K Description

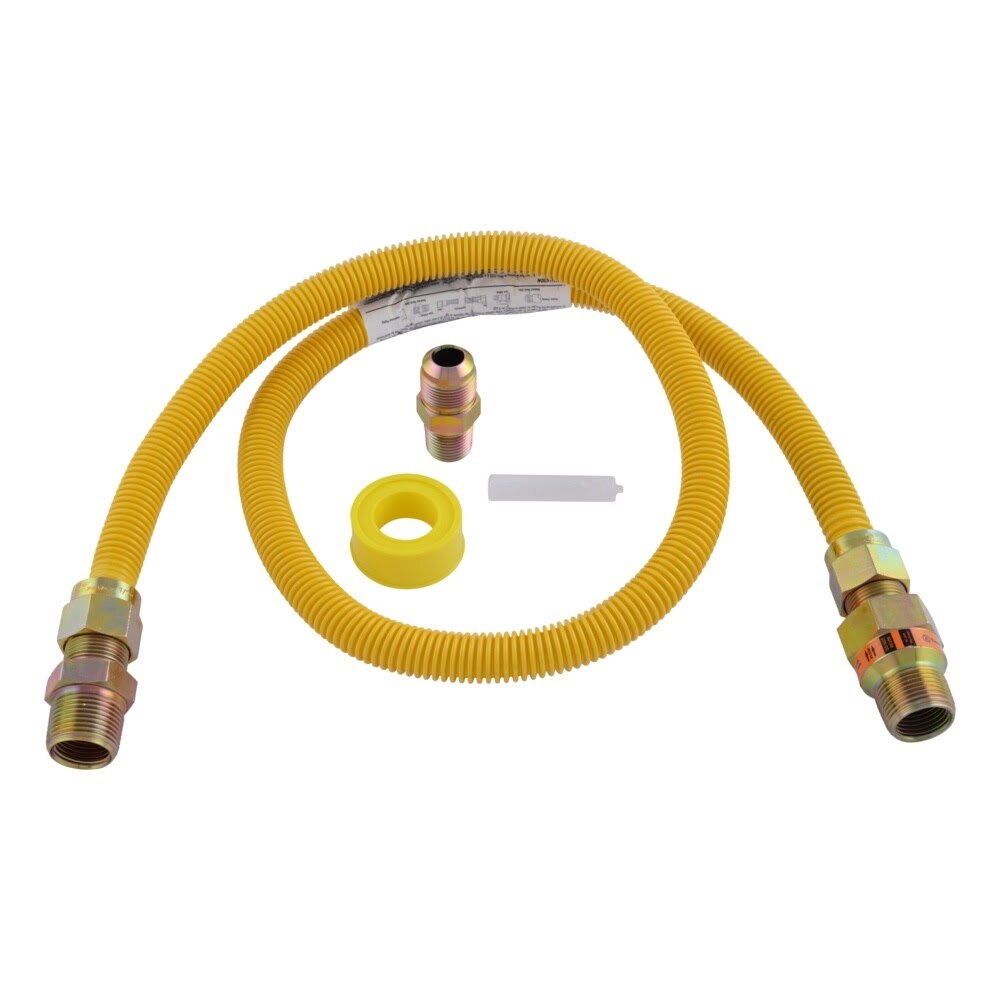

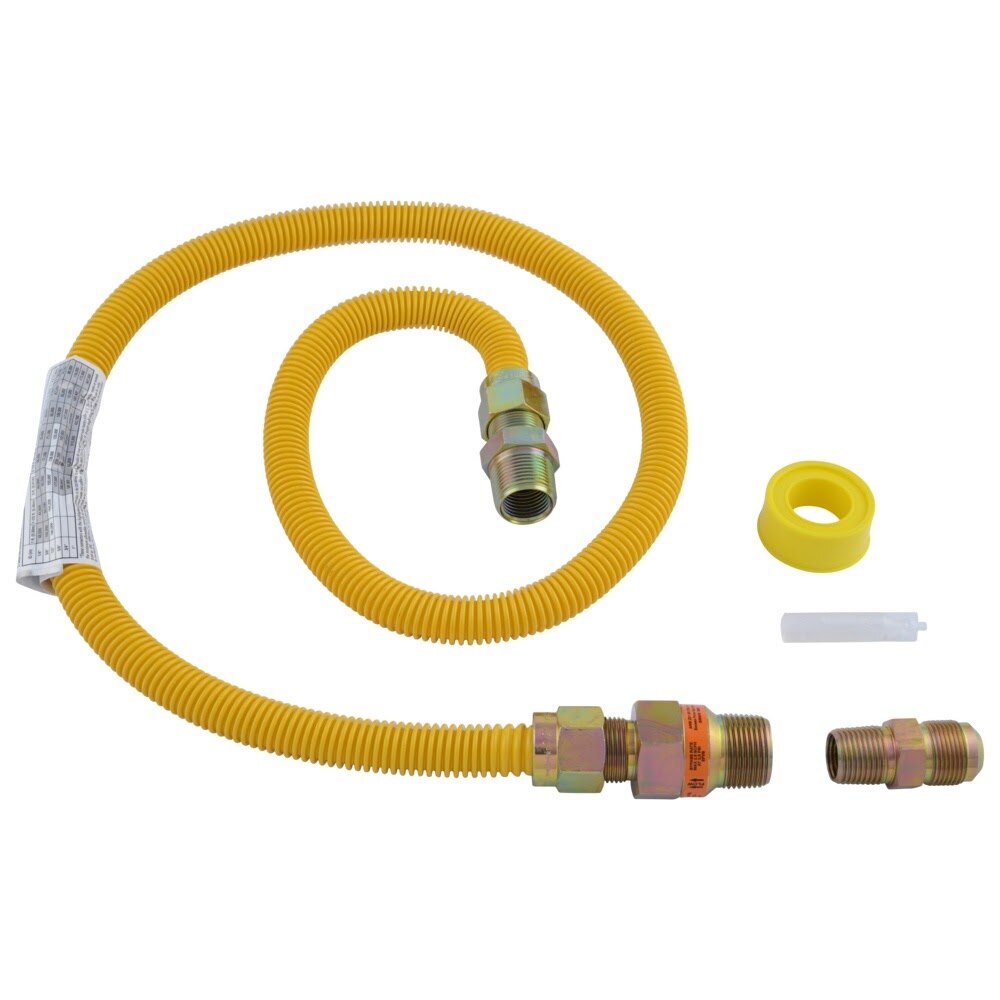

This Eastman gas range installation kit includes a 5/8 in. OD x 48 in. epoxy-coated stainless steel connector designed for connecting most major gas ranges to a shut-off valve. Built for use with natural gas or LP gas, it features an excess flow valve for added protection, is approved for indoor and outdoor use, and comes complete with fittings, leak detector solution, and PTFE thread sealant tape.
Eastman 30YE54V45048K Includes
- (1) Gas Range Installation Kit
- (1) 48 in. 5/8 in. OD epoxy-coated gas range connector
- (1) 3/4 in. MIP excess flow valve with 1/2 in. FIP tap
- (1) 3/4 in. MIP fitting with 1/2 in. FIP tap
- (1) 1/2 in. MIP fitting with 3/8 in. FIP tap
- (1) Leak detector solution
- (1) PTFE thread sealant tape
Eastman 30YE54V45048K Features
- Fits most gas ranges rated up to 106,000 BTUs
- Compatible with natural gas and liquid propane
- Epoxy-coated stainless steel connector resists corrosion, stains, and UV exposure

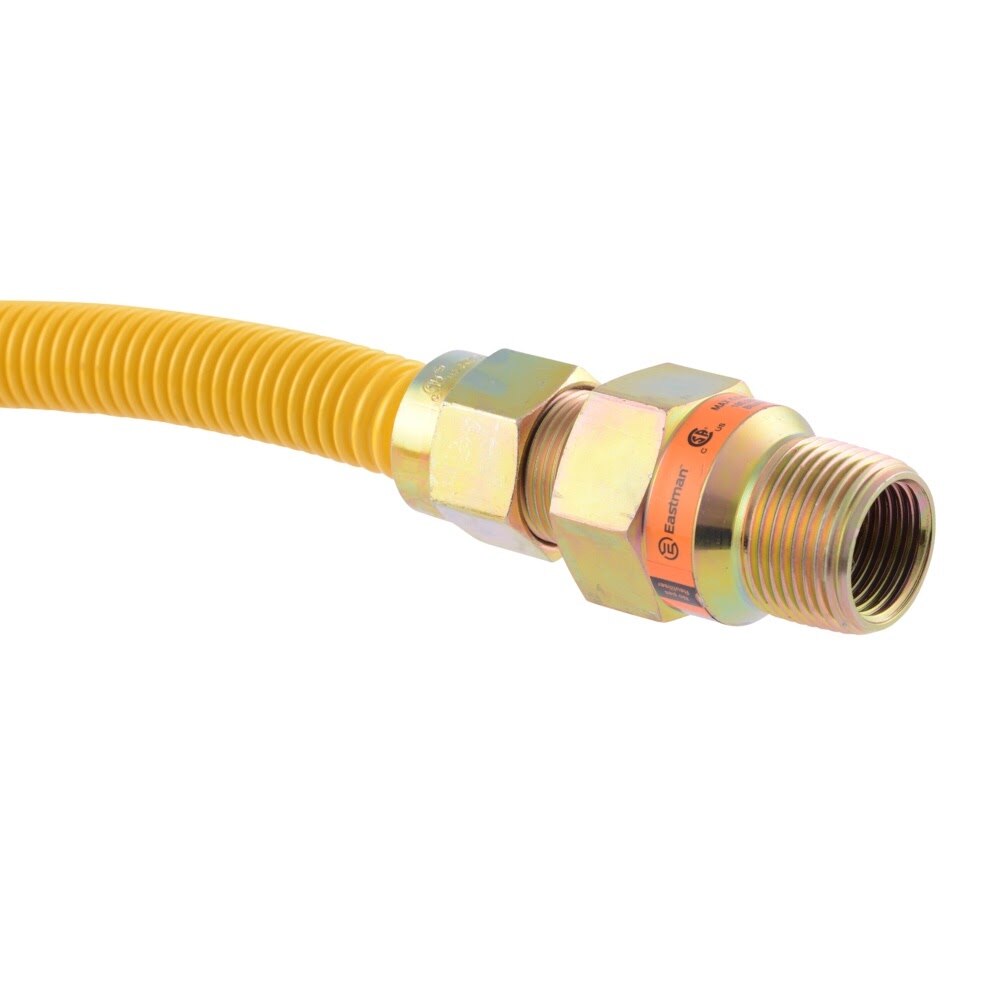

- Excess flow valve helps protect against ruptures and disconnects
- Approved for indoor and outdoor use
- Easy to install with no special tools required
- 100% factory leak tested
- Temperature rating from -20 Degrees F to 150 Degrees F+
Eastman 30YE54V45048K Specifications
| Product Type | Gas range installation kit |
| Connector Outside Diameter | 5/8 in. |
| Connector Length | 48 in. |
| Connector Material | Stainless steel |
| Finish | Yellow epoxy-coated |
| Valve Type | Excess Flow Valve (EFV) |
| Valve Connection | 3/4 in. MIP (tapped 1/2 in. FIP) |
| Fitting 1 | 3/4 in. MIP (tapped 1/2 in. FIP) |
| Fitting 2 | 1/2 in. MIP (tapped 3/8 in. FIP) |
| Gas Type | Natural gas and LP gas |
| Maximum Capacity | 106,000 BTUs |
| Use | Indoor and outdoor |
| Temperature Rating | -20 Degrees F to 150 Degrees F+ |
| Product Width (in) | 1.30 |
| Product Height (in) | 1.14 |
| Product Length (in) | 48 |
| Shipping Weight (lbs) | 1.42 |
| Certification | ANSI Z21.24/CSA 6.10; ANSI Z21.69/CSA 6.16; ANSI Z21.75/CSA 6.27 |
Toolup Part # :
882781
