Eastman 30YE55V524B Description

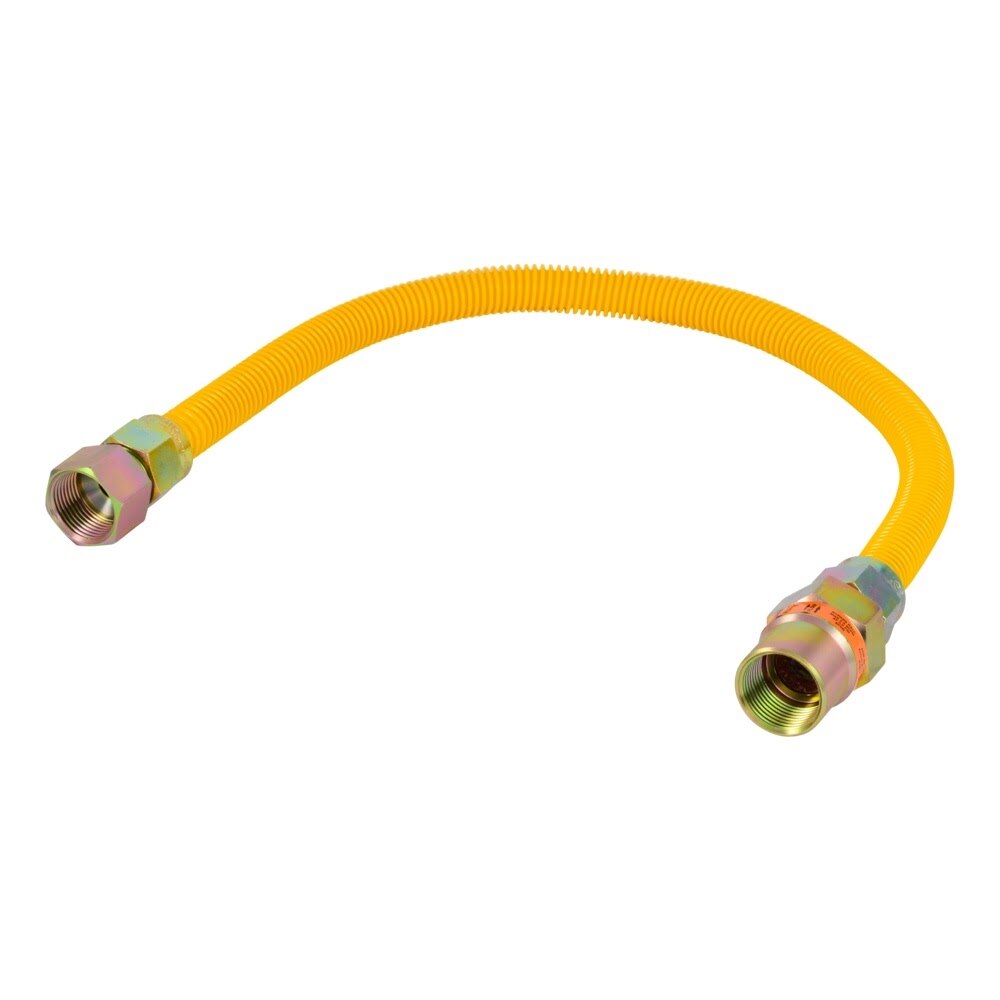

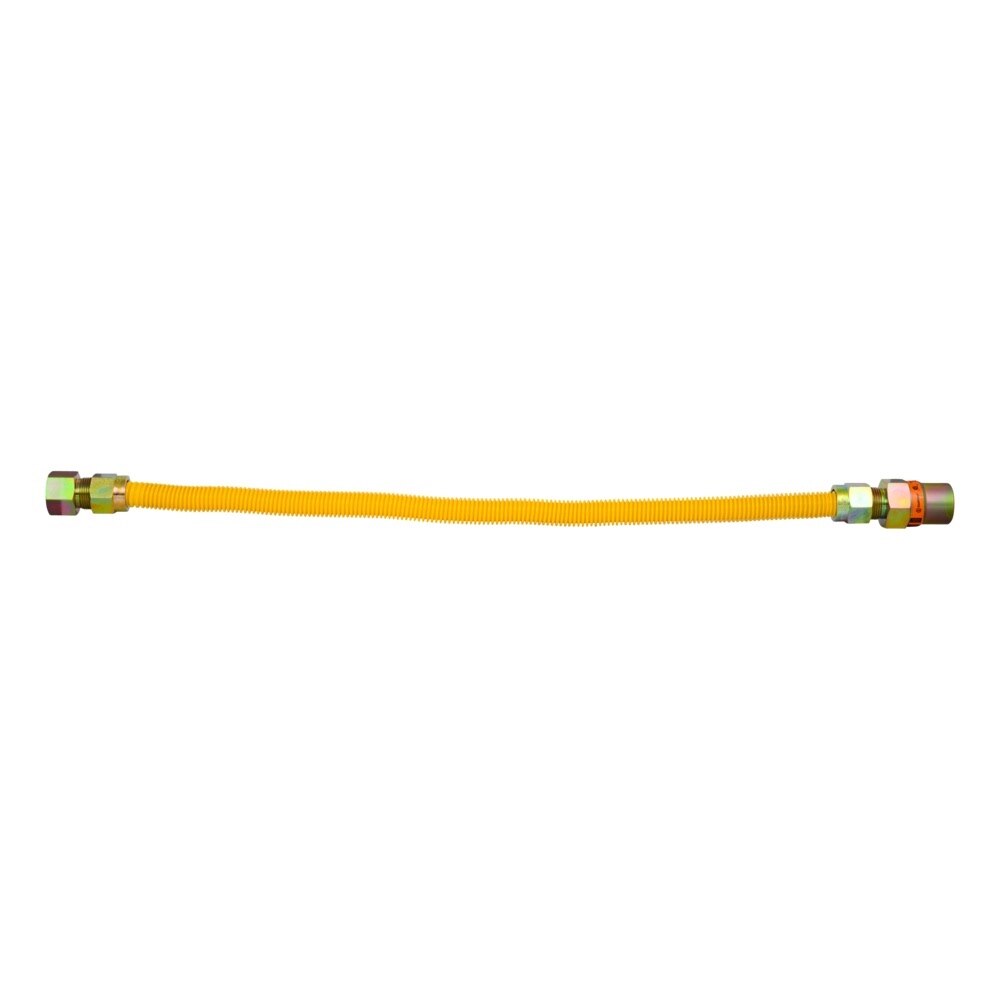

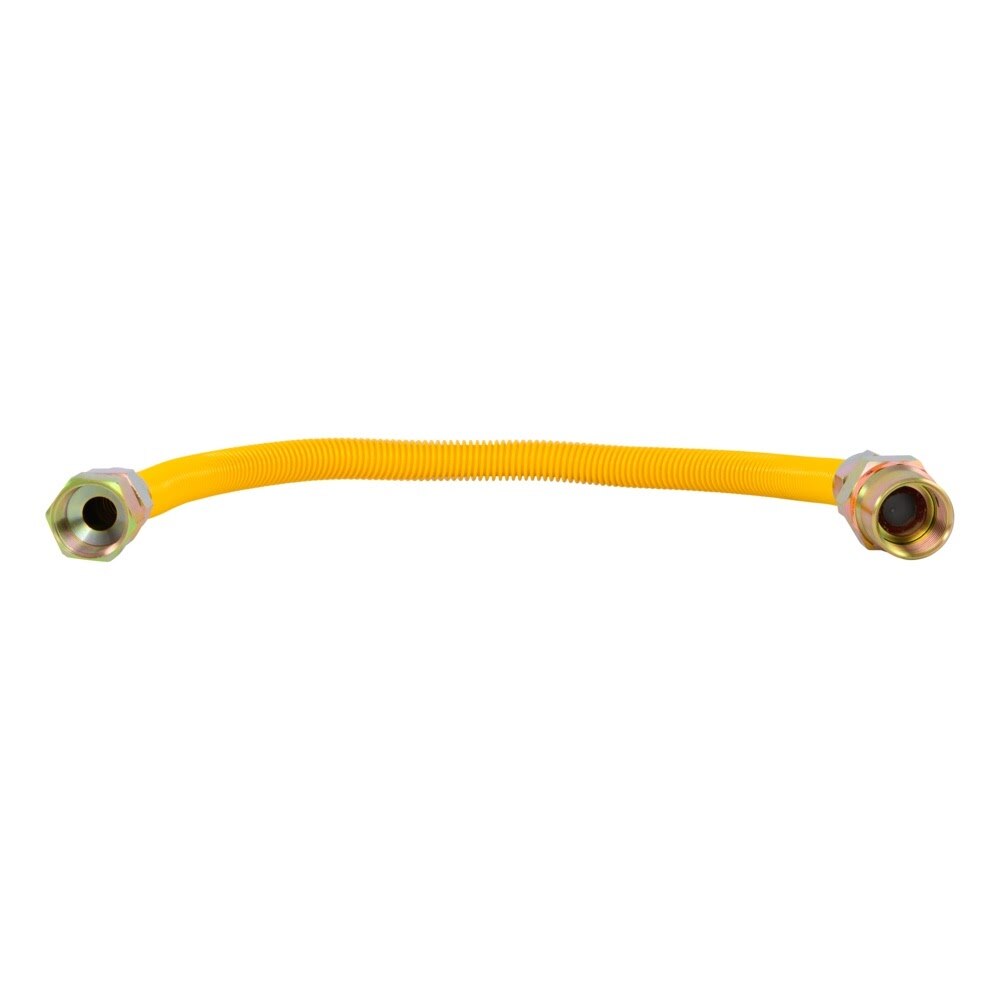

The Eastman 5/8 in. OD x 24 in. stainless steel gas connector is designed to connect gas appliances such as ranges, furnaces, boilers, and tankless water heaters to a shut-off valve. Its yellow DuraCoat epoxy coating helps resist corrosion, chemicals, UV exposure, and salt, while the integrated ArmorBoost EFV auto shut-off valve helps restrict gas flow in the event of a rupture or disconnect.
Eastman 30YE55V524B Includes
- (1) 24 in. 5/8 in. OD epoxy-coated gas connector
- (1) 3/4 in. FIP fitting
- (1) 3/4 in. FIP ArmorBoost EFV auto shut-off valve
Eastman 30YE55V524B Features
- Integrated ArmorBoost EFV auto shut-off valve helps restrict gas flow after a rupture or disconnect
- Fire-safe thermal ring expands to stop gas flow at temperatures above 350 Degree
- DuraCoat epoxy coating resists corrosion, harsh chemicals, UV rays, and salt
- Compatible with natural gas and LP propane applications
- Approved for indoor and outdoor use
- 100 percent leak tested for added reliability
- Rated for appliances up to 150,000 BTU
- Temperature rating from -20 Degree Fahrenheit to 150 Degree Fahrenheit
Eastman 30YE55V524B Specifications
| Brand | Eastman |
| Outside Diameter | 5/8 in. |
| Length | 24 in. |
| Inlet Size | 3/4 in. |
| Outlet Size | 3/4 in. |
| Inlet Fitting Type | FIP |
| Outlet Fitting Type | FIP with ArmorBoost EFV |
| Material | Stainless steel |
| Coating | DuraCoat epoxy |
| Color | Yellow |
| Gas Type | Natural gas and LP propane |
| Maximum BTU Rating | 150,000 BTU |
| Working Pressure | 1/2 psi |
| Temperature Rating | -20 Degree Fahrenheit to 150 Degree Fahrenheit |
| Use Location | Indoor and outdoor |
| Packaging Type | Bagged |
| Product Width | 1.36 in. |
| Product Height | 1.18 in. |
| Product Weight | 0.93 lb |
