Eastman 30YE55V560B Description

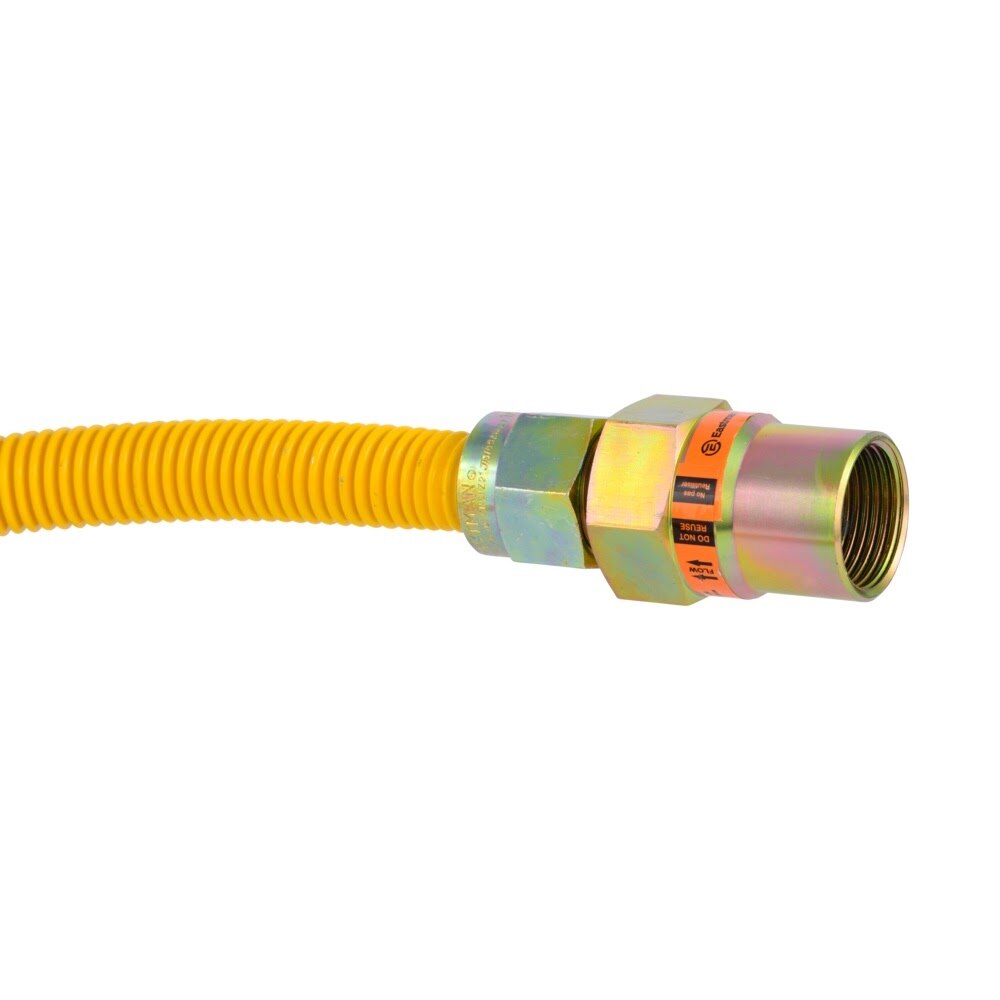

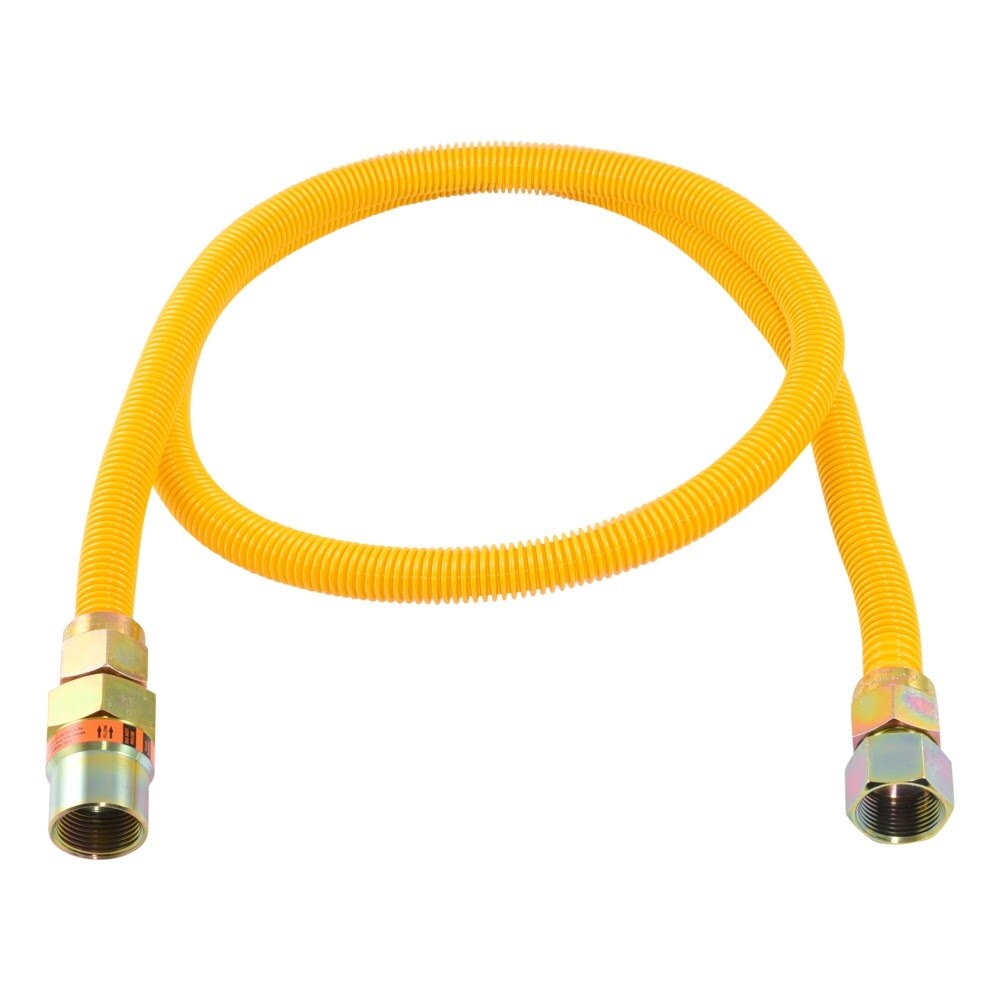

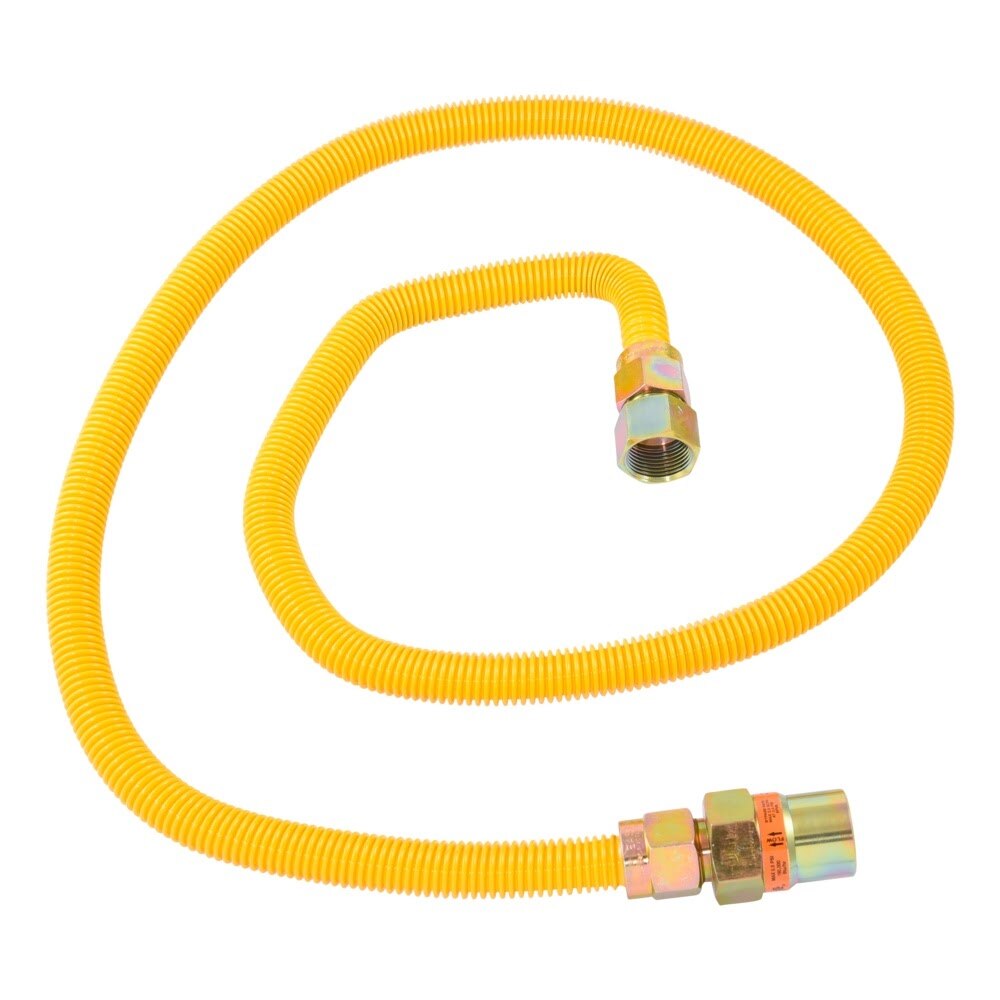

The Eastman 5/8 in. OD x 60 in. gas connector features 3/4 in. FIP x 3/4 in. FIP ends, a yellow coated stainless steel body, and an integrated excess flow valve for added gas line protection. Designed for gas ranges, boilers, and other high-usage appliances, it supports natural gas or liquid propane service and is approved for indoor and outdoor use.
Eastman 30YE55V560B Includes
- (1) 5/8 in. OD x 60 in. Gas Connector with Excess Flow Valve
Eastman 30YE55V560B Features
- 5/8 in. OD coated stainless steel gas connector
- 60 in. length with 3/4 in. FIP x 3/4 in. FIP connections
- Integrated excess flow valve helps restrict gas flow during ruptures or disconnects
- Fire-safe thermal ring helps stop gas flow at extreme temperatures
- Epoxy coating resists corrosion, chemical stains, and UV exposure
- Suitable for natural gas and liquid propane applications
- Approved for indoor and outdoor use
- Easy to install with no special tools required
- Factory leak tested for dependable performance
- Designed for gas ranges, boilers, and high-usage appliances up to 150,000 BTUs
Eastman 30YE55V560B Specifications
| Length | 60 in. |
| Outer Diameter | 5/8 in. |
| Connections | 3/4 in. FIP x 3/4 in. FIP |
| Valve Type | Excess Flow Valve (EFV) |
| Material | Stainless steel |
| Color | Yellow |
| Coating | Epoxy coated |
| Fuel Type | Natural gas and liquid propane |
| Application | Gas ranges, boilers, and high-usage appliances |
| Appliance Rating | Up to 150,000 BTUs |
| Use | Indoor/Outdoor |
| Temperature Rating | -20 Degree F to 150 Degree F+ |
| Product Weight | 1.34 lb |
| Standards | ANSI Z 21.24/CSA 6.10; ANSI Z 21.75/CSA 6.27; ANSI Z 21.60/CSA 6.16; ANSI Z 21.93/CSA 6.30 |
Toolup Part # :
882837
