Eastman 40YE545518 Description
This Eastman gas connector features a 1 in. OD stainless steel body with a yellow epoxy coating and 3/4 in. MIP x 3/4 in. FIP fittings. Designed for tankless water heaters and other high-usage appliances, it is compatible with natural gas or liquid propane and approved for indoor and outdoor use.
Eastman 40YE545518 Includes
- (1) 1 in. OD x 18 in. Gas Connector with 3/4 in. MIP x 3/4 in. FIP Fittings
Eastman 40YE545518 Features

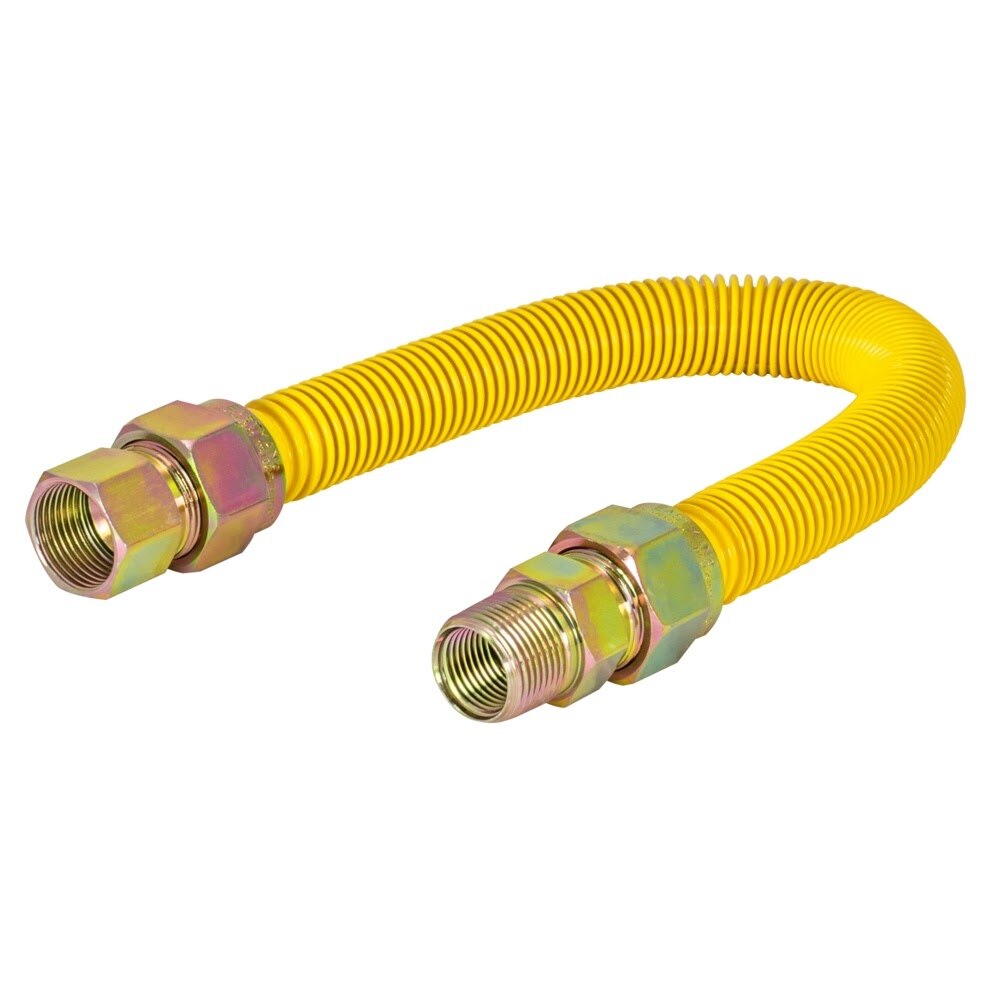

- 1 in. OD x 18 in. flexible stainless steel gas connector

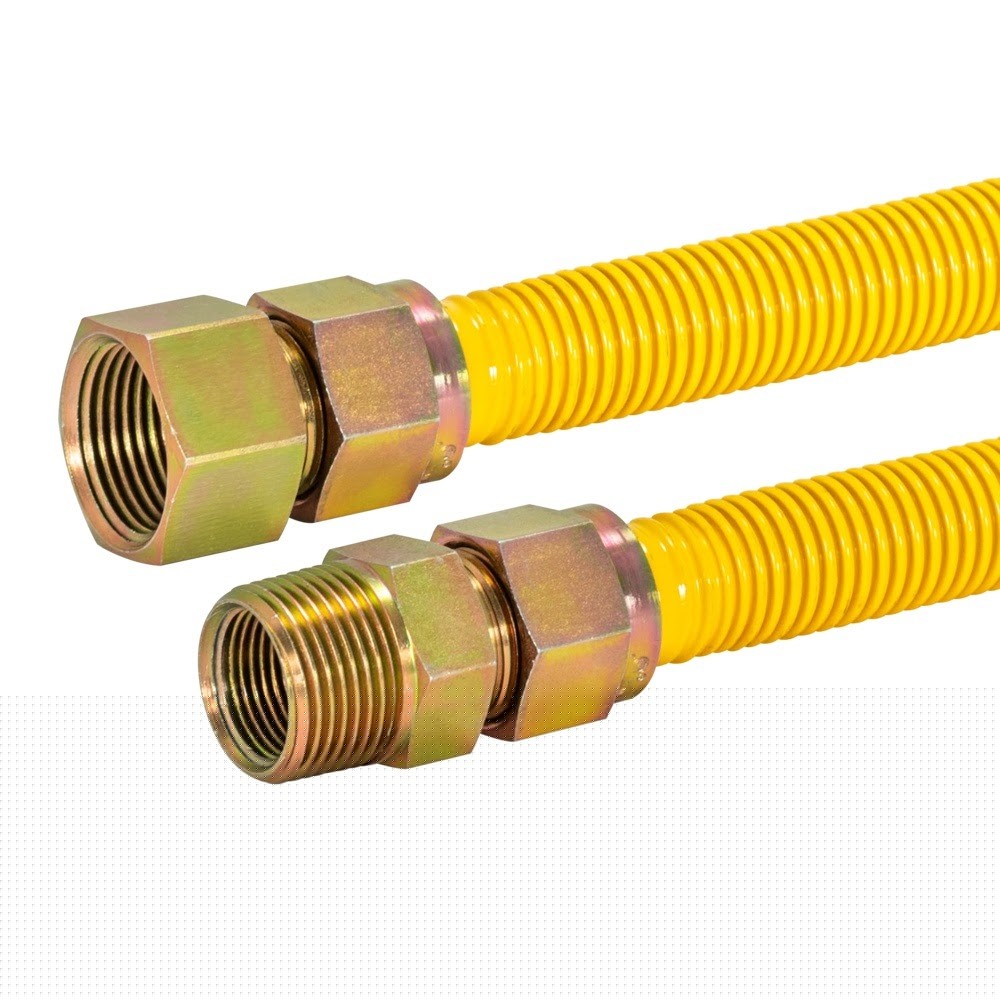

- 3/4 in. MIP x 3/4 in. FIP end fittings
- Yellow epoxy coating helps protect against corrosion, household chemical stains, and UV exposure
- Compatible with natural gas and liquid propane applications
- Approved for indoor and outdoor use

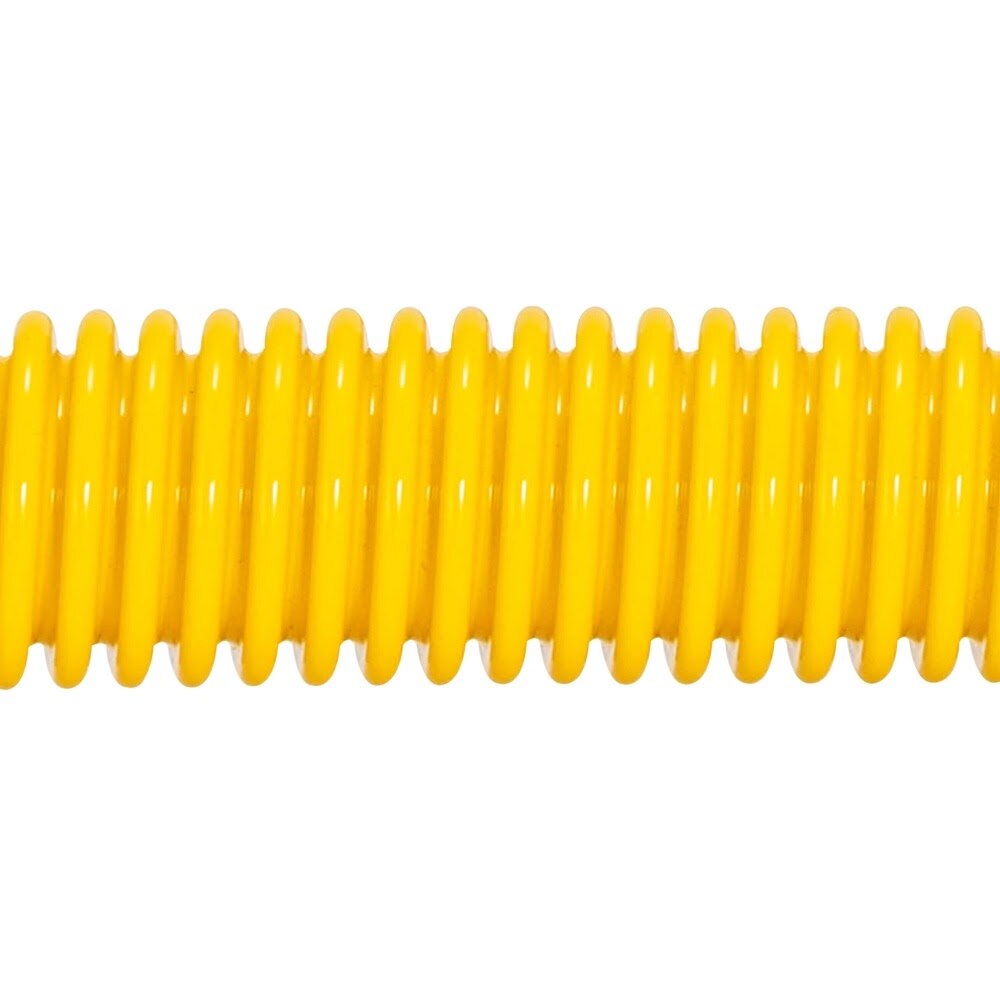

- Deep corrugations enhance flexibility for easier installation
- Designed for tankless water heaters and other high-usage appliances
- Factory leak tested for added peace of mind
Eastman 40YE545518 Specifications
| Product Type | Gas Connector |
| Material | Stainless Steel |
| Outer Diameter | 1 in. |
| Inner Diameter | 3/4 in. |
| Length | 18 in. |
| End Connections | 3/4 in. MIP x 3/4 in. FIP |
| Connection Type | MIP x FIP |
| Coating | Yellow epoxy coated |
| Fuel Type | Natural Gas and Liquid Propane |
| Application | Tankless water heaters and high-usage appliances |
| Indoor/Outdoor Use | Yes |
| Natural Gas Capacity | 270500 BTU |
| LP Capacity | 432800 BTU |
| Temperature Rating | -20 Degrees F to 150 Degrees F+ |
| Factory Leak Tested | Yes |
| Certifications | ANSI Z21.24/CSA 6.10; ANSI Z21.69/CSA 6.16; ANSI Z21.75/CSA 6.27 |
Toolup Part # :
883053
