Eastman 40YE545524B Description

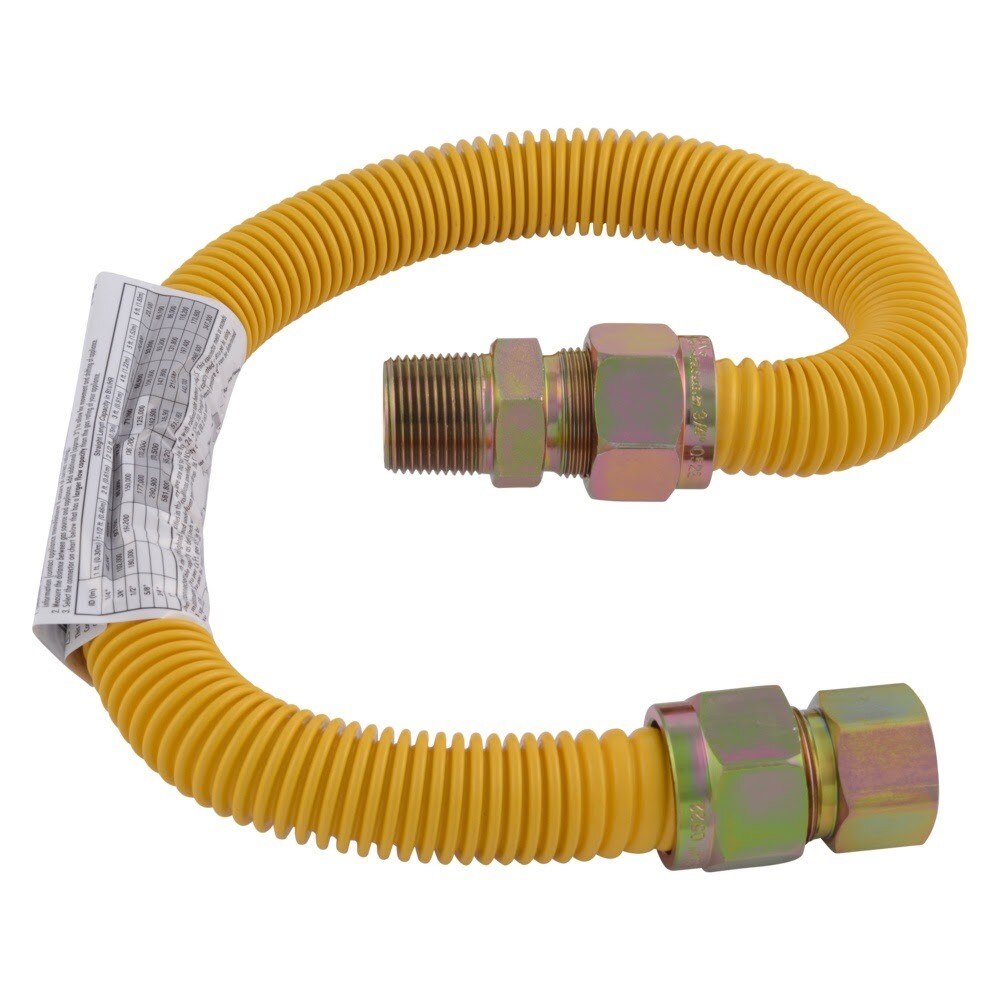

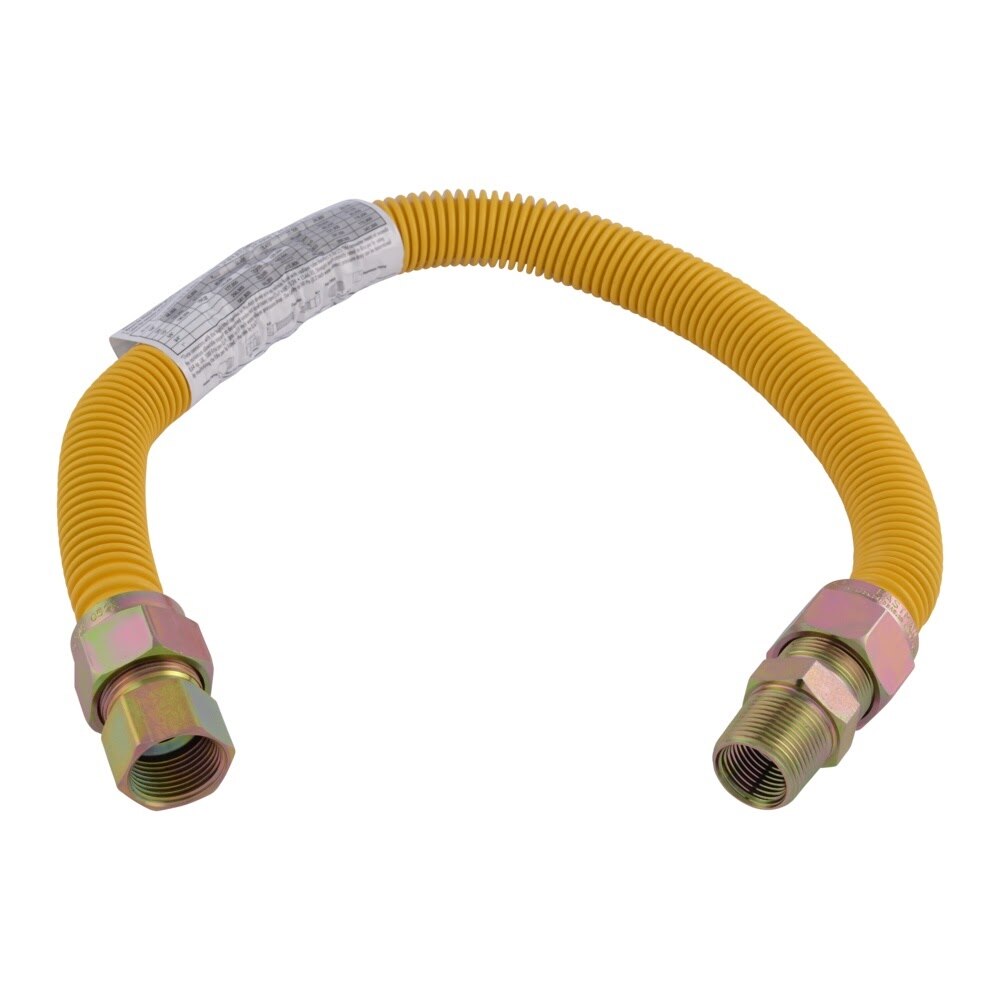

The Eastman 1 in. OD gas connector is a flexible stainless steel connector with a yellow protective coating for tankless water heaters and other high-usage gas appliances. This 24 in. connector features 3/4 in. MIP x 3/4 in. FIP fittings, supports natural gas and liquid propane, and is approved for indoor and outdoor use.
Eastman 40YE545524B Includes
- (1) 24 in. Gas Connector with 3/4 in. MIP x 3/4 in. FIP Fittings
Eastman 40YE545524B Features
- Flexible stainless steel gas connector for tankless water heaters and high-usage appliances
- Yellow epoxy coating helps protect against corrosion, household chemical stains, and UV exposure
- 24 in. length with 1 in. OD and 3/4 in. ID

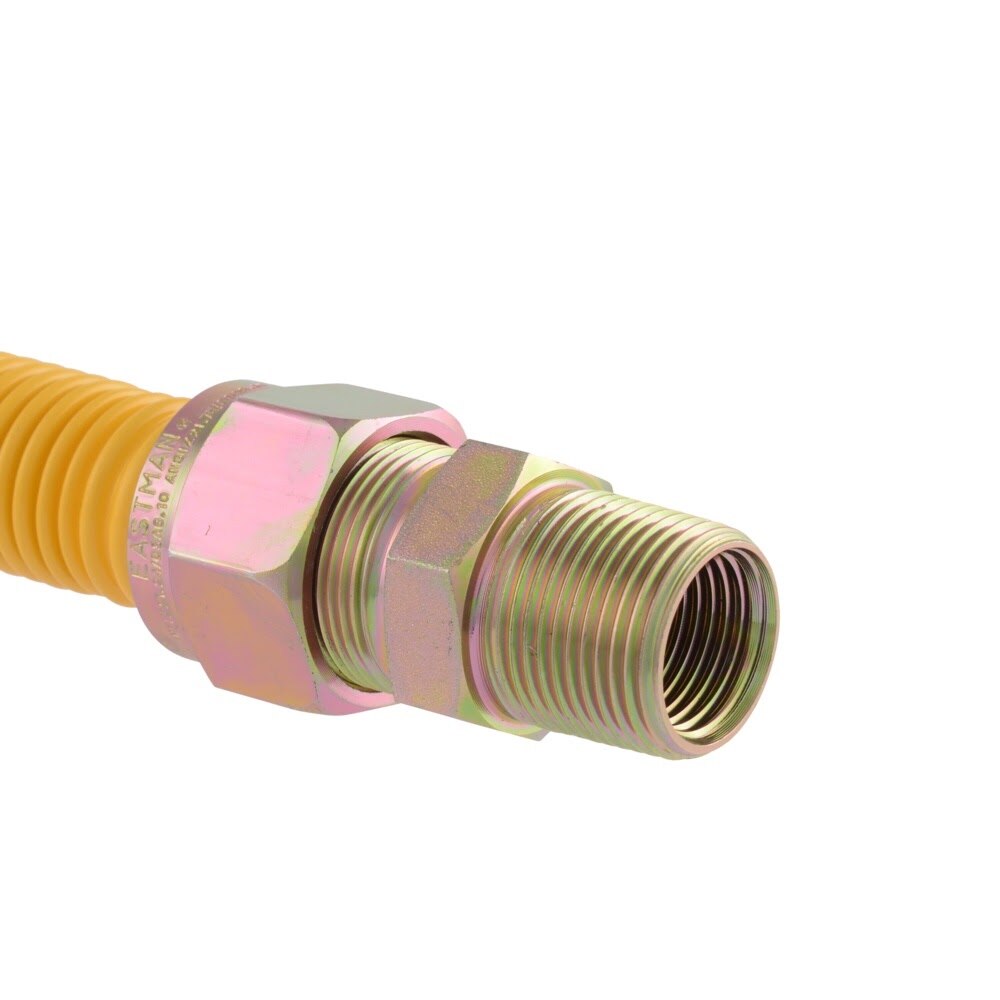

- 3/4 in. MIP x 3/4 in. FIP connection ends
- Compatible with natural gas and liquid propane applications
- Approved for indoor and outdoor use
- Deep corrugations enhance flexibility
- 100% leak tested at the factory
- Easy to install with no special tools required
- Rated for tankless water heaters with natural gas capacity up to 290,900 BTU
Eastman 40YE545524B Specifications
| Product Type | Gas Connector |
| Material | Stainless Steel |
| Coating | Yellow Epoxy Coated |
| Outside Diameter | 1 in. |
| Inside Diameter | 3/4 in. |
| Length | 24 in. |
| Connection 1 | 3/4 in. MIP |
| Connection 2 | 3/4 in. FIP |
| Connection Type | MIP x FIP |
| Fuel Type | Natural Gas and Liquid Propane |
| Natural Gas Capacity | 290900 BTU |
| LP Capacity | 465440 BTU |
| Temperature Rating | -20 Degree F to 150 Degree F+ |
| Use Location | Indoor/Outdoor |
| Certifications | ANSI Z21.24/CSA 6.10; ANSI Z21.69/CSA 6.16; ANSI Z21.75/CSA 6.27 |
Toolup Part # :
882934
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
