Eastman 40YE54V536B Description

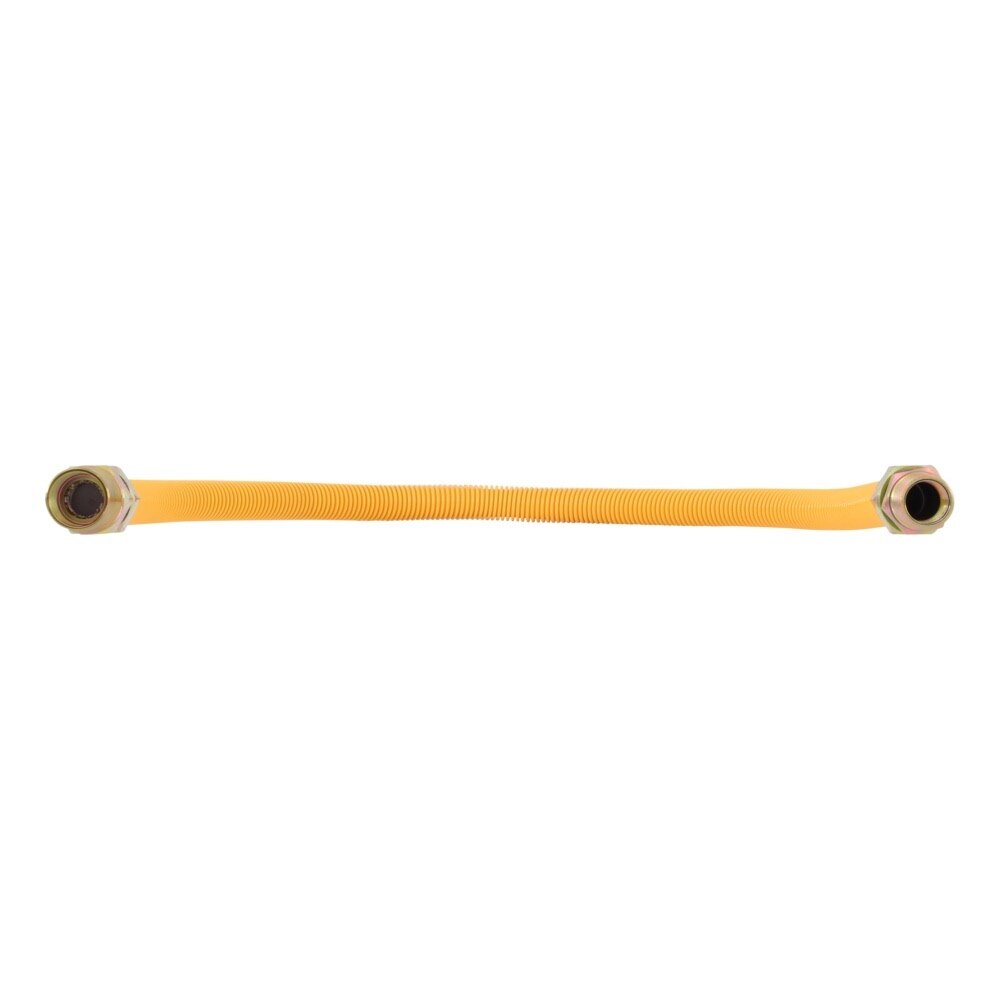

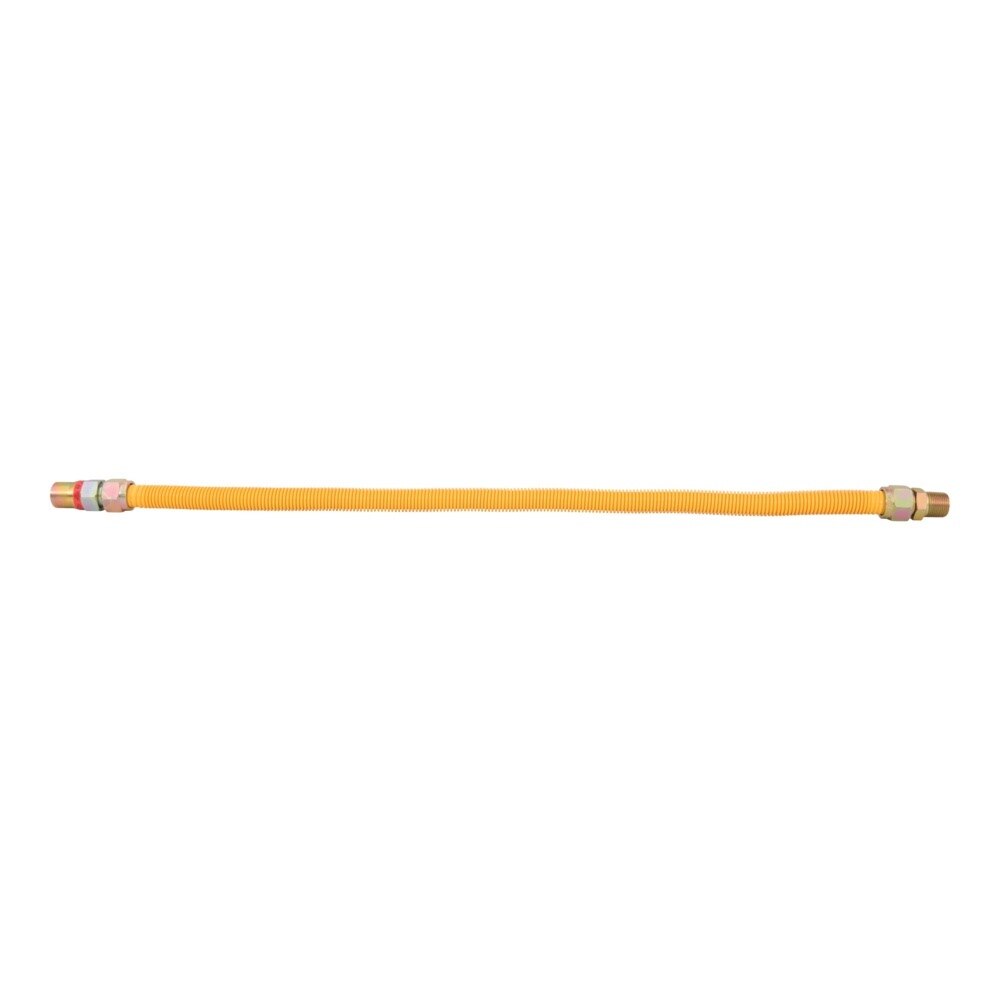

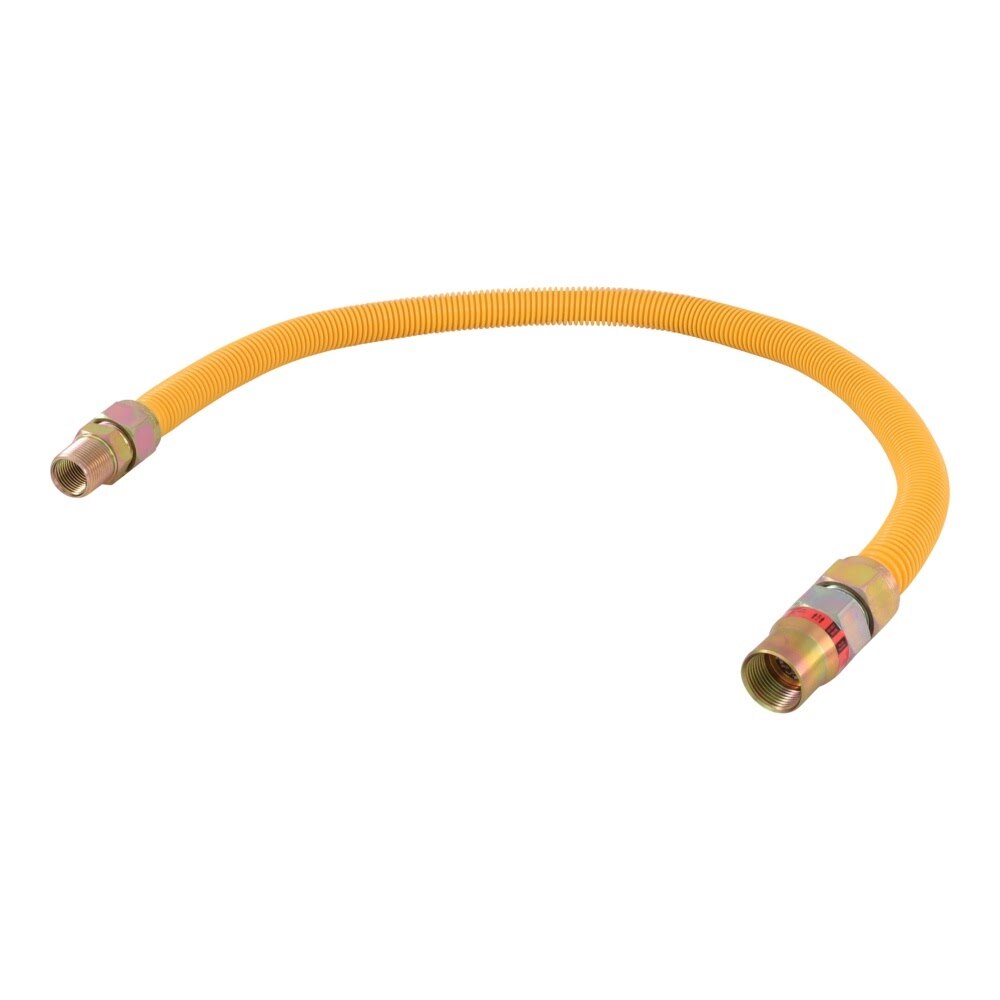

The Eastman 1 in. OD x 36 in. gas connector is a yellow epoxy-coated stainless steel supply line designed for gas appliance installations. It features 3/4 in. MIP x 3/4 in. FIP connections with an excess flow valve for added safety, along with corrosion, UV, and chemical resistance for indoor or outdoor use.
Eastman 40YE54V536B Includes
- (1) 36 in. 1 in. OD epoxy-coated stainless steel gas connector
- (1) 3/4 in. MIP fitting
- (1) 3/4 in. FIP excess flow valve
Eastman 40YE54V536B Features
- Excess flow valve helps protect against gas fires and explosions
- Installs like a standard gas fitting
- Epoxy-coated stainless steel construction resists corrosion, UV rays, and harsh chemicals
- Designed for gas appliance installations including dryers, decorative stoves, gas log fireplaces, and tankless water heaters
- Certified for gas ratings up to 290,900 BTU
- Omnidirectional valve can be installed vertically or horizontally
- Approved for indoor and outdoor use
- CSA certified to ANSI Z21.24/CSA 6.10 and ANSI Z21.75/CSA 6.27
Eastman 40YE54V536B Specifications
| Material | Stainless steel |
| Color | Yellow |
| Length | 36 in. |
| Outside Diameter | 1 in. |
| Inlet Diameter | 3/4 in. |
| Outlet Diameter | 3/4 in. |
| Inlet Fitting Type | MIP |
| Outlet Fitting Type | FIP |
| Valve Type | Excess Flow Valve (EFV) |
| Coating | Epoxy-coated |
| Packaging Type | Bagged |
| Application | Gas appliance |
| Use Location | Indoor/Outdoor |
| Maximum Gas Rating | 290,900 BTU |
| Certification | ANSI Z21.24/CSA 6.10; ANSI Z21.75/CSA 6.27 |
Toolup Part # :
882696
