Eastman 43417 Description

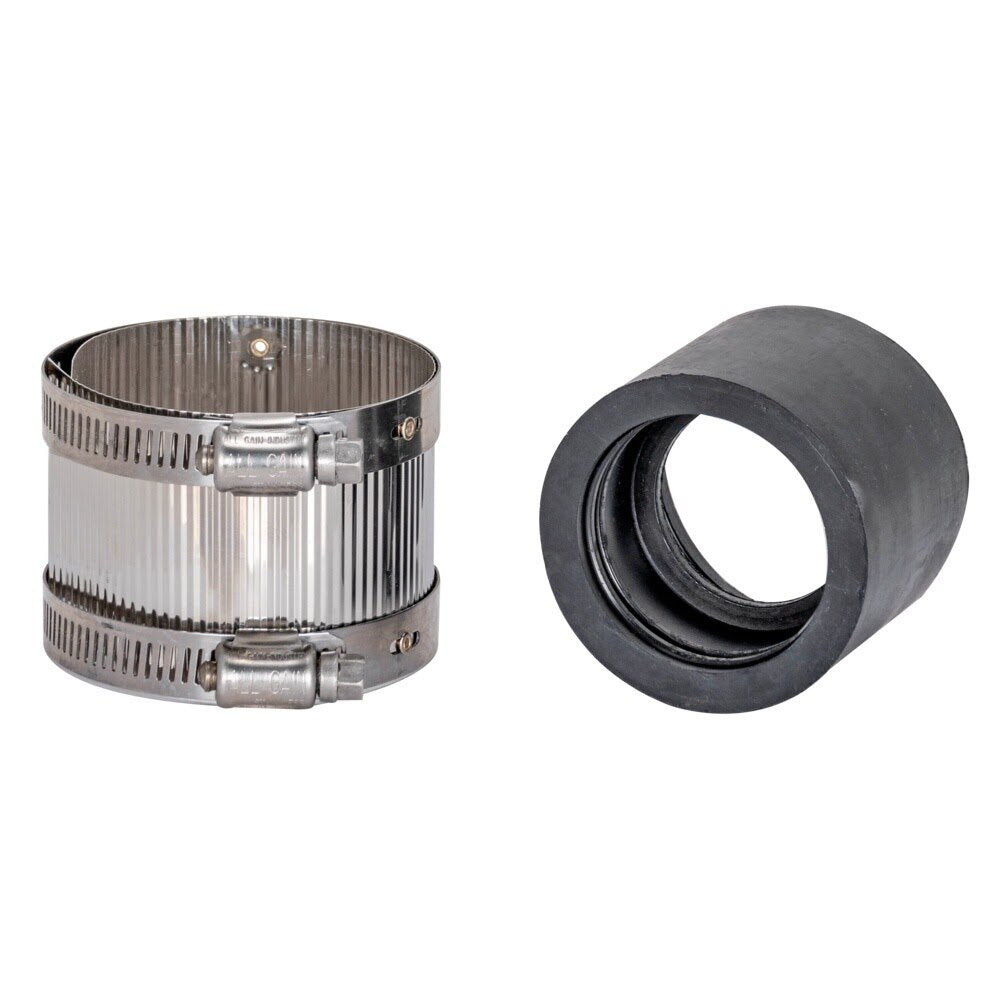

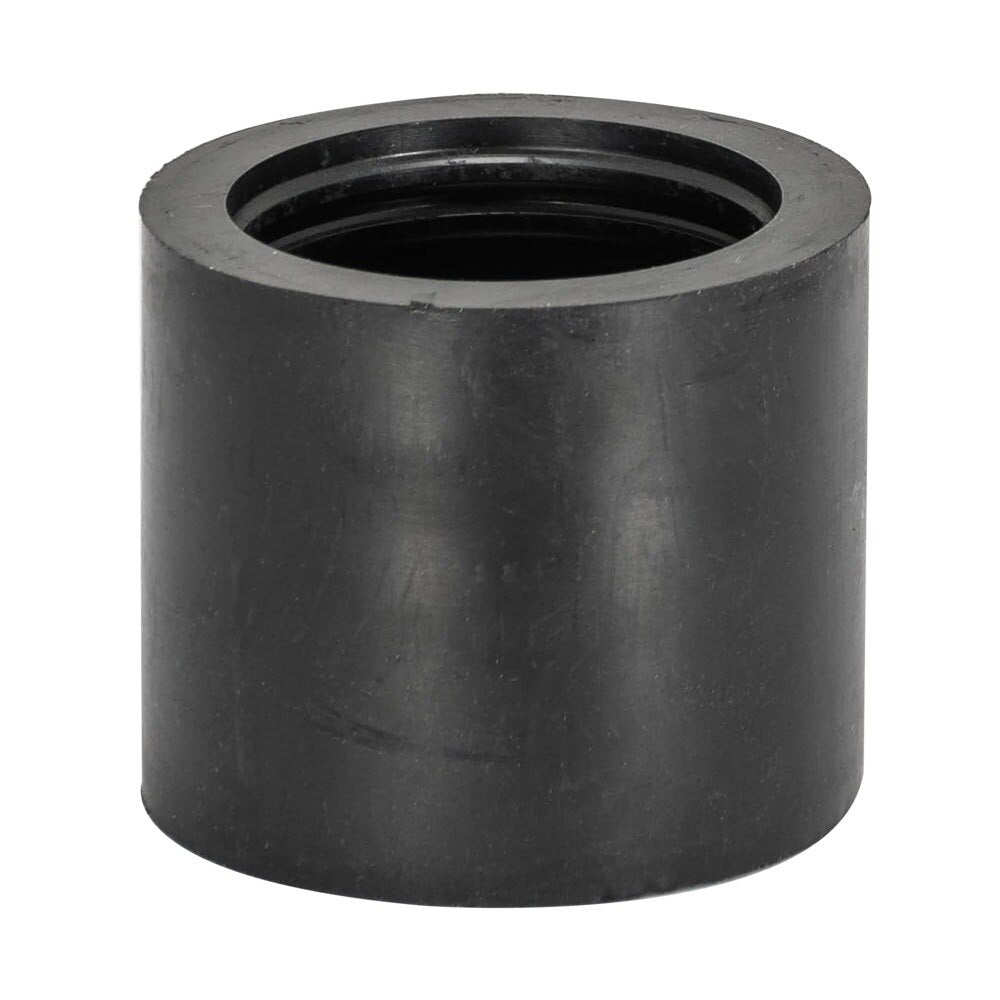

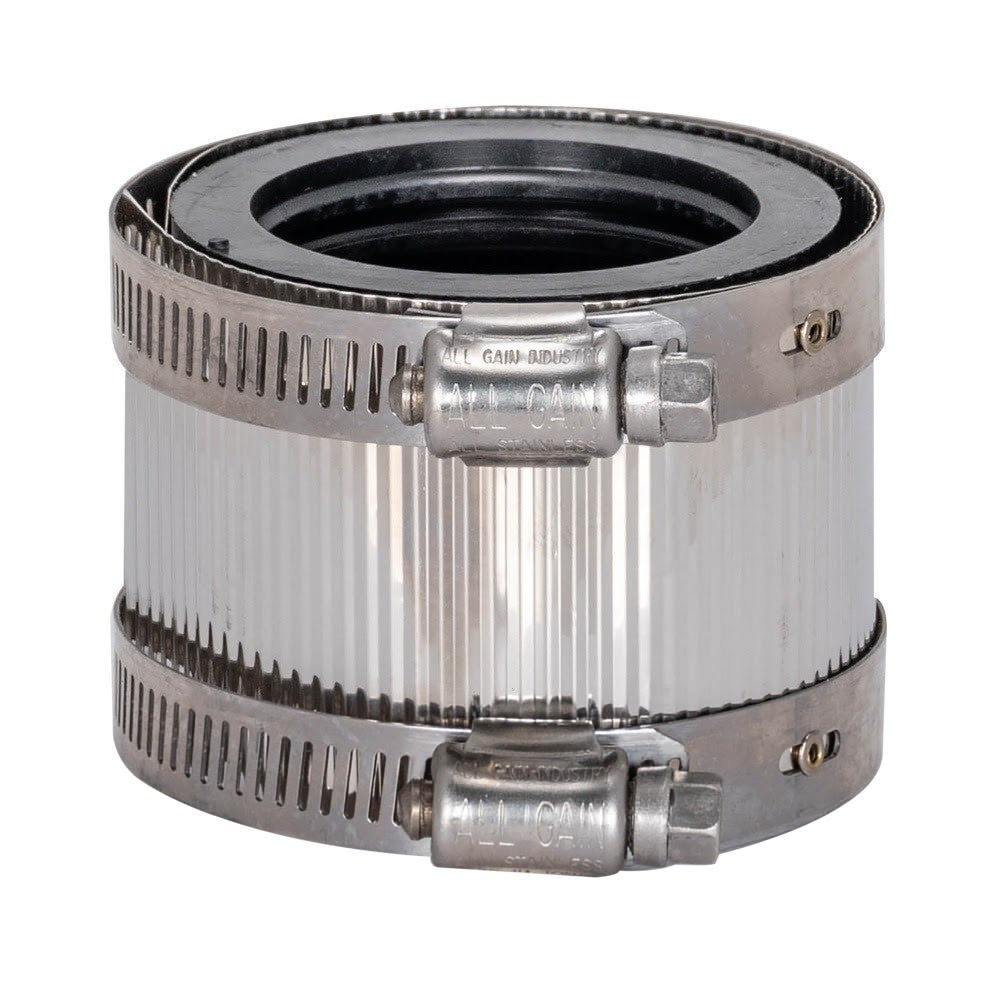

The Eastman 43417 2 in. x 1-1/2 in. neoprene no-hub reducing coupling is designed to join no-hub cast iron pipes and fittings in drain, waste, and vent systems. It features a neoprene gasket with corrosion-resistant stainless steel bands and two clamps for a secure slip-on connection in above-ground or underground installations.
Eastman 43417 Includes
- (1) 2 in. x 1-1/2 in. No-Hub Reducing Coupling
Eastman 43417 Features
- Joins 2 in. and 1-1/2 in. no-hub cast iron pipes and fittings
- Neoprene gasket with corrosion-resistant stainless steel bands
- Two clamps help provide a secure fit
- Approved for cast iron pipe installation
- Suitable for above-ground and underground installation
- Rated for installation torque of 60 in. lbs.
- Maximum working temperature of 180 F
- Designed for drain, waste, and vent systems
- Listed by IAPMO and certified to ASTM C1277
Eastman 43417 Specifications
| Product Type | No-Hub Reducing Coupling |
| Size | 2 in. x 1-1/2 in. |
| Fitting 1 Size | 2 in. |
| Fitting 2 Size | 1-1/2 in. |
| Application | Non-Potable Water |
| System Type | Drain, Waste and Vent |
| Material | Neoprene and Stainless Steel |
| Color | Black |
| Connection Type | Hose Clamp x Hose Clamp |
| Connectivity | Slip On |
| Maximum Working Temperature | 180 F |
| Maximum Working Pressure | 4.3 psi |
| Installation Torque | 60 in. lbs. |
| Product Length (in) | 3.06 |
| Product Width (in) | 3.06 |
| Product Height (in) | 2.24 |
| Product Weight (lb) | 0.38 |
| Warranty | 1 year when used with cast iron pipe |
| Certification | IAPMO listed, ASTM C1277 |
