Eastman 48252 Description

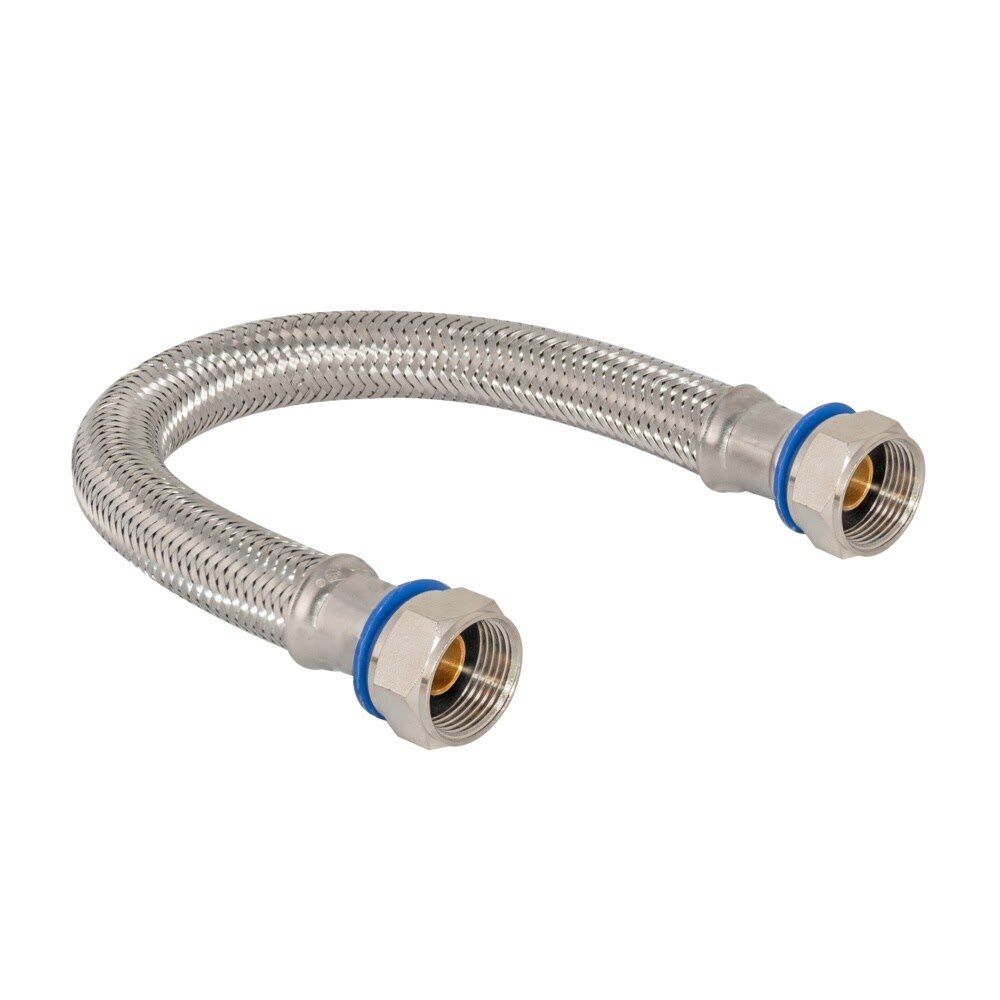

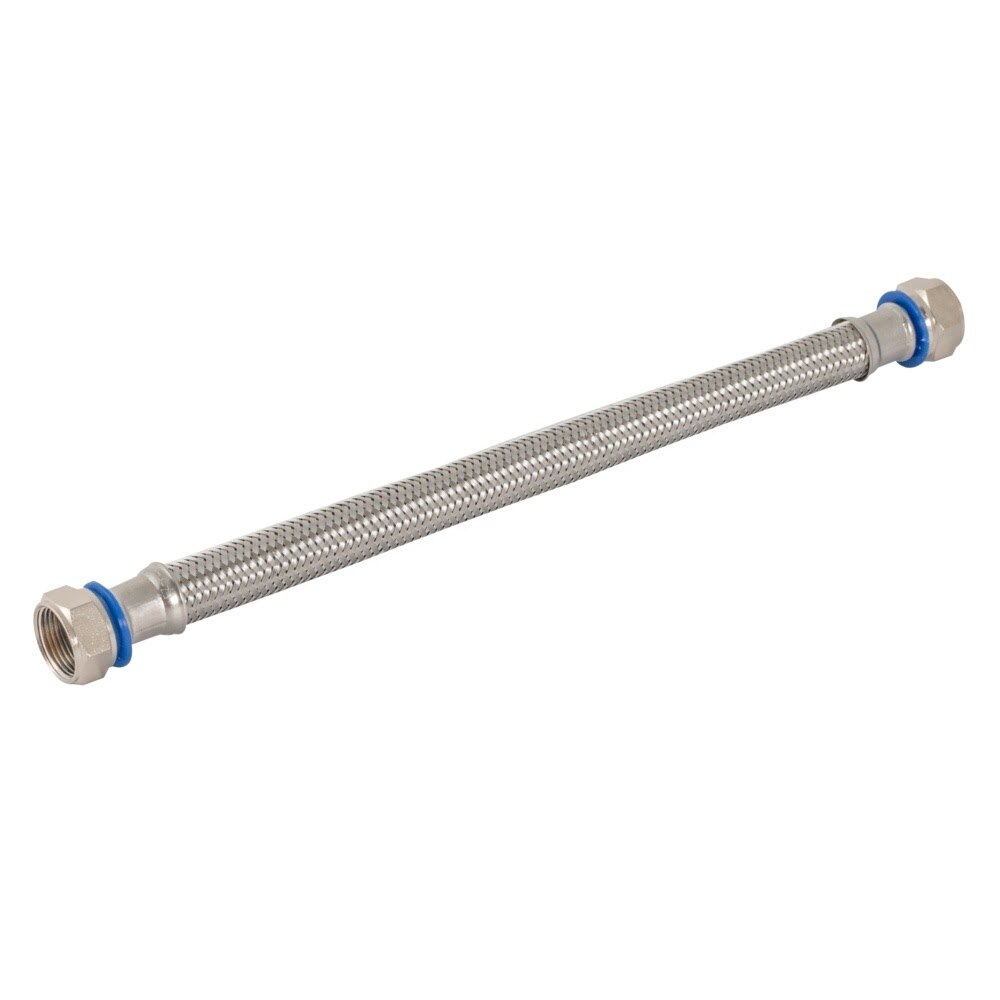

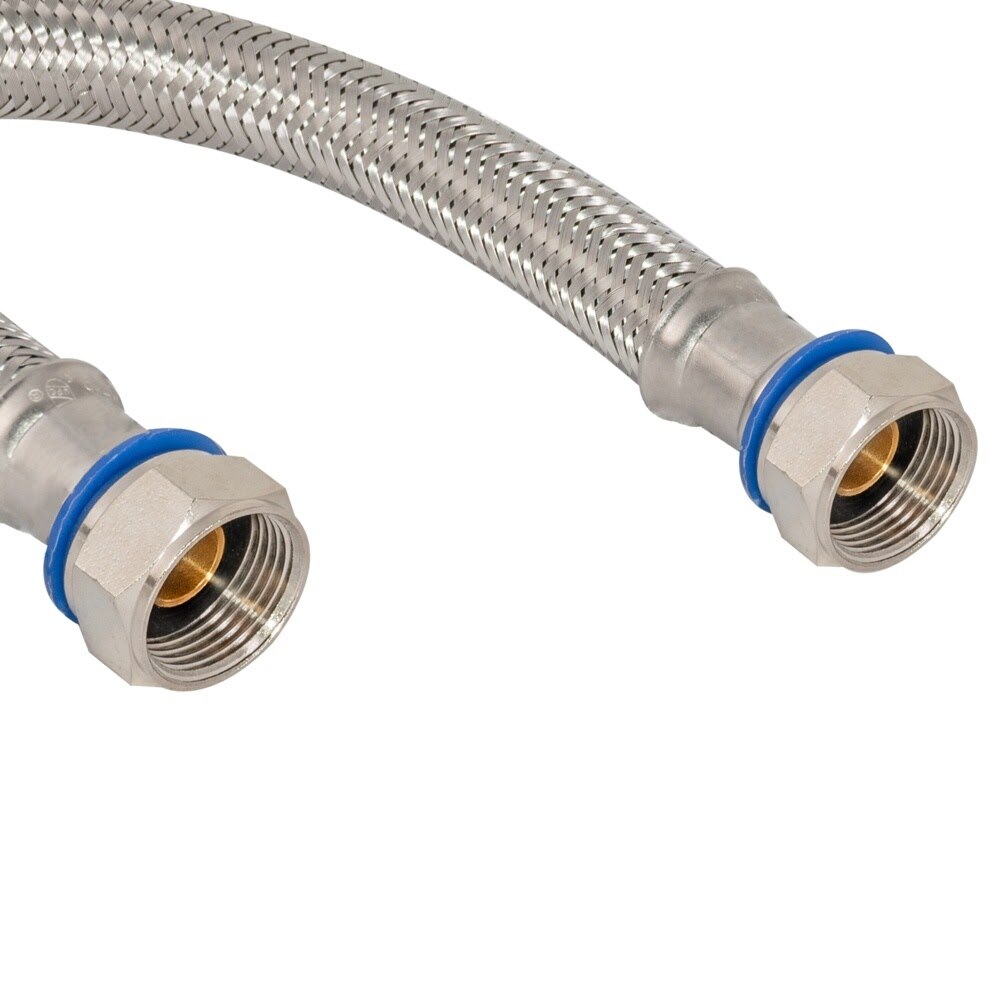

The Eastman 24 in. braided stainless steel PVC water heater connector is designed to provide a reliable water supply connection for water heater installations. It features 3/4 in. FIP x 3/4 in. FIP swivel connections, a flexible braided stainless steel body for easier installation, and durable components including stainless steel ferrules, nickel-plated brass nuts, and an EPDM gasket.
Eastman 48252 Includes
- (1) 24 in. Braided Stainless Steel PVC Water Heater Connector
Eastman 48252 Features
- 24 in. connector for water heater installation
- 3/4 in. FIP x 3/4 in. FIP swivel connections
- Braided stainless steel construction for durability and strength
- Flexible design helps simplify installation in tight spaces
- Nickel-plated brass nuts
- Stainless steel ferrules
- Equipped with an EPDM gasket
- 125 psi working pressure
- 180 psi intermittent impulse pressure
- Working temperature range of 40 DegreeF to 180 DegreeF
Eastman 48252 Specifications
| Brand | Eastman |
| Product Type | Water Heater Connector |
| Application | Water heater installation |
| Nominal Length | 24 in. |
| Inlet Connection | 3/4 in. FIP |
| Outlet Connection | 3/4 in. FIP Swivel |
| Braid Material | Braided stainless steel |
| Ferrule Material | Stainless steel |
| Nut Material | Nickel-plated brass |
| Gasket Material | EPDM |
| Maximum Working Pressure | 125 psi |
| Intermittent Impulse Pressure | 180 psi |
| Working Temperature | 40 DegreeF to 180 DegreeF |
| Product Length | 24.25 in. |
| Product Width | 1.38 in. |
| Product Height | 1.38 in. |
| Product Weight | 0.77 lb |
