Eastman 48258 Description

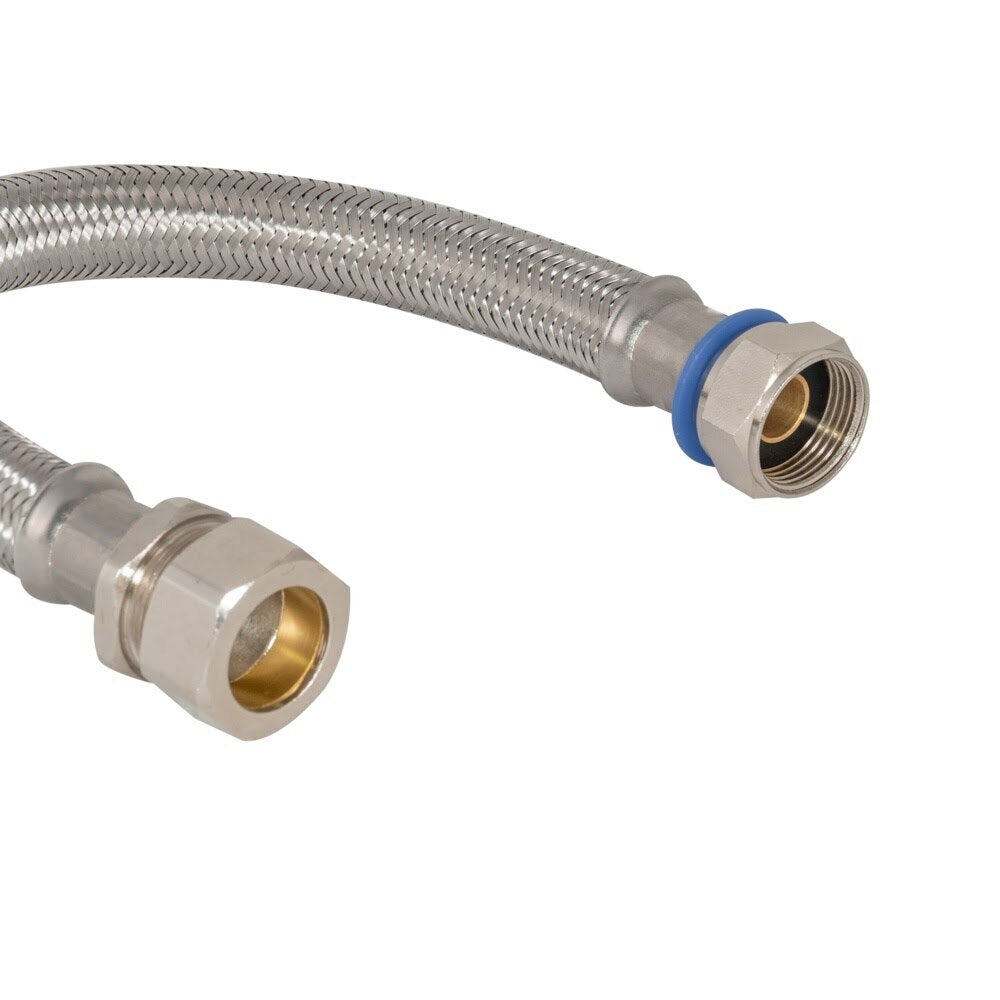

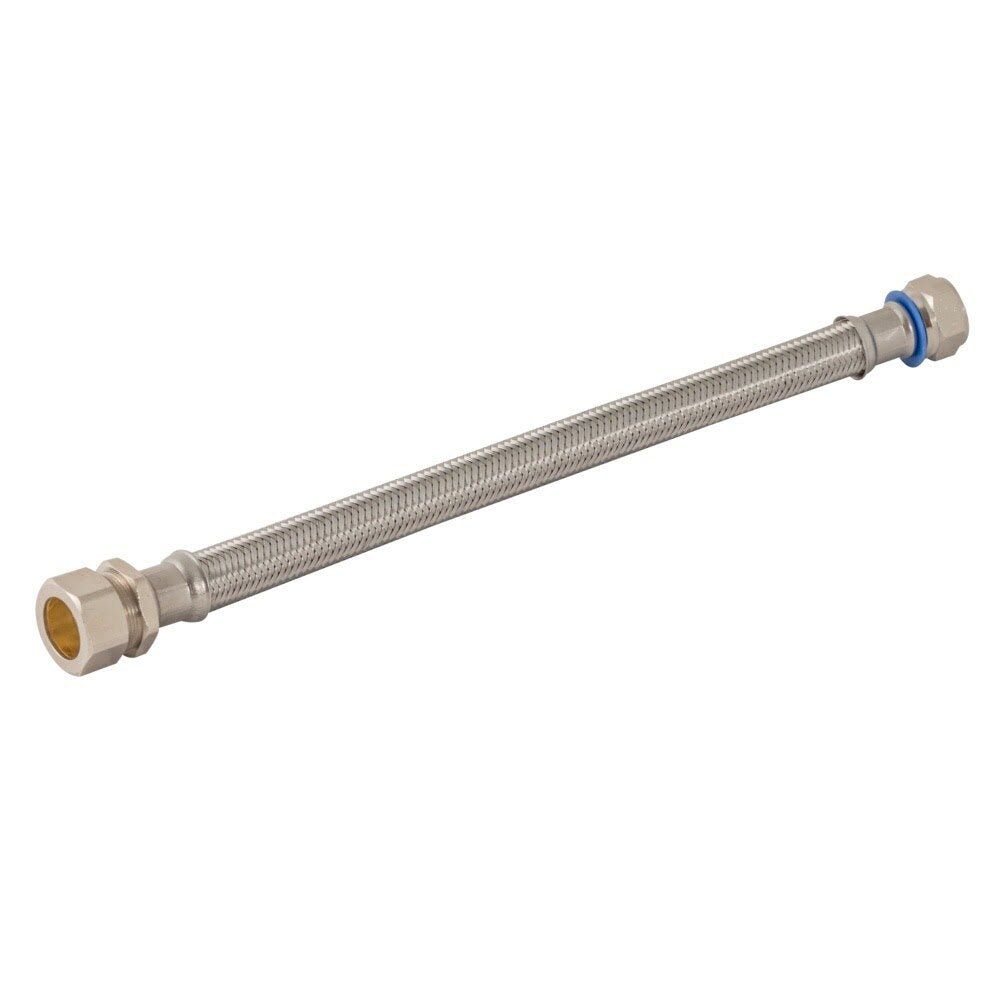

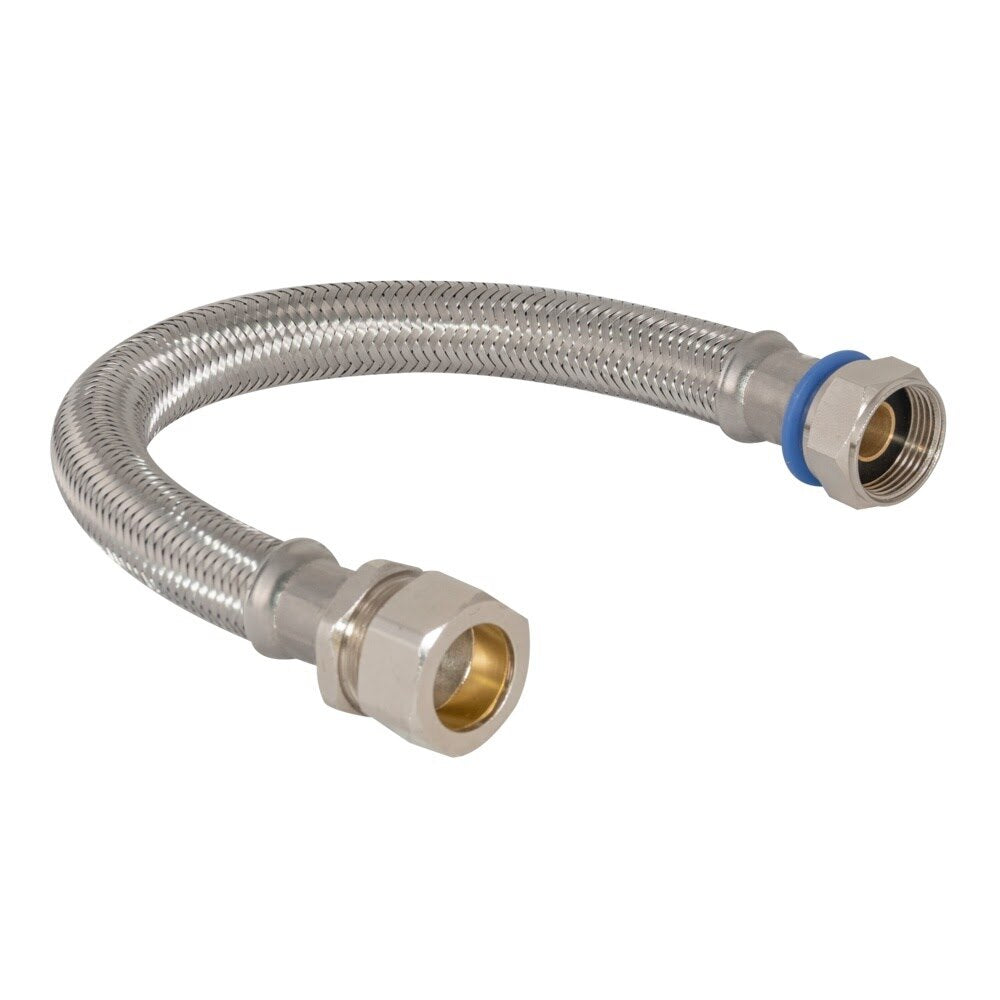

The Eastman 24 in. braided stainless steel PVC water heater connector provides a safe, flexible connection for water heater installations. It features a 3/4 in. FIP swivel inlet, 3/4 in. compression outlet, an EPDM rubber core and gasket, and a durable stainless steel braid designed to resist kinking and crimping.
Eastman 48258 Includes
- (1) 24 in. Braided Stainless Steel PVC Water Heater Connector
Eastman 48258 Features
- Braided stainless steel construction for durability and strength
- 3/4 in. FIP swivel inlet and 3/4 in. compression outlet
- Flexible connector helps simplify water heater installation in tight spaces
- EPDM rubber core with EPDM gasket for a reliable seal
- Grade 304 stainless steel braid resists kinking and crimping
- Nickel-plated brass nuts with stainless steel ferrules
- Rated for 125 psi working pressure and 180 psi intermittent impulse pressure
- Working temperature range from 40 DegreeF to 180 DegreeF
- Provides a safe water supply connection for water heaters
- UPC-approved and compliant with lead-free guidelines
Eastman 48258 Specifications
| Product Type | Water Heater Connector |
| Length | 24 in. |
| Connection Type | 3/4 in. Comp x 3/4 in. FIP Swivel |
| Inlet Connection | 3/4 in. FIP Swivel |
| Outlet Connection | 3/4 in. Compression |
| Core Material | EPDM rubber |
| Braid Material | Grade 304 stainless steel |
| Nut Material | Nickel-plated brass |
| Ferrule Material | Stainless steel |
| Working Pressure | 125 psi |
| Intermittent Impulse Pressure | 180 psi |
| Working Temperature | 40 DegreeF to 180 DegreeF |
| Each Length | 24.41 in. |
| Each Width | 1.58 in. |
| Each Height | 1.58 in. |
| Each Shipping Weight | 0.91 lb |
