Eastman 48262 Description

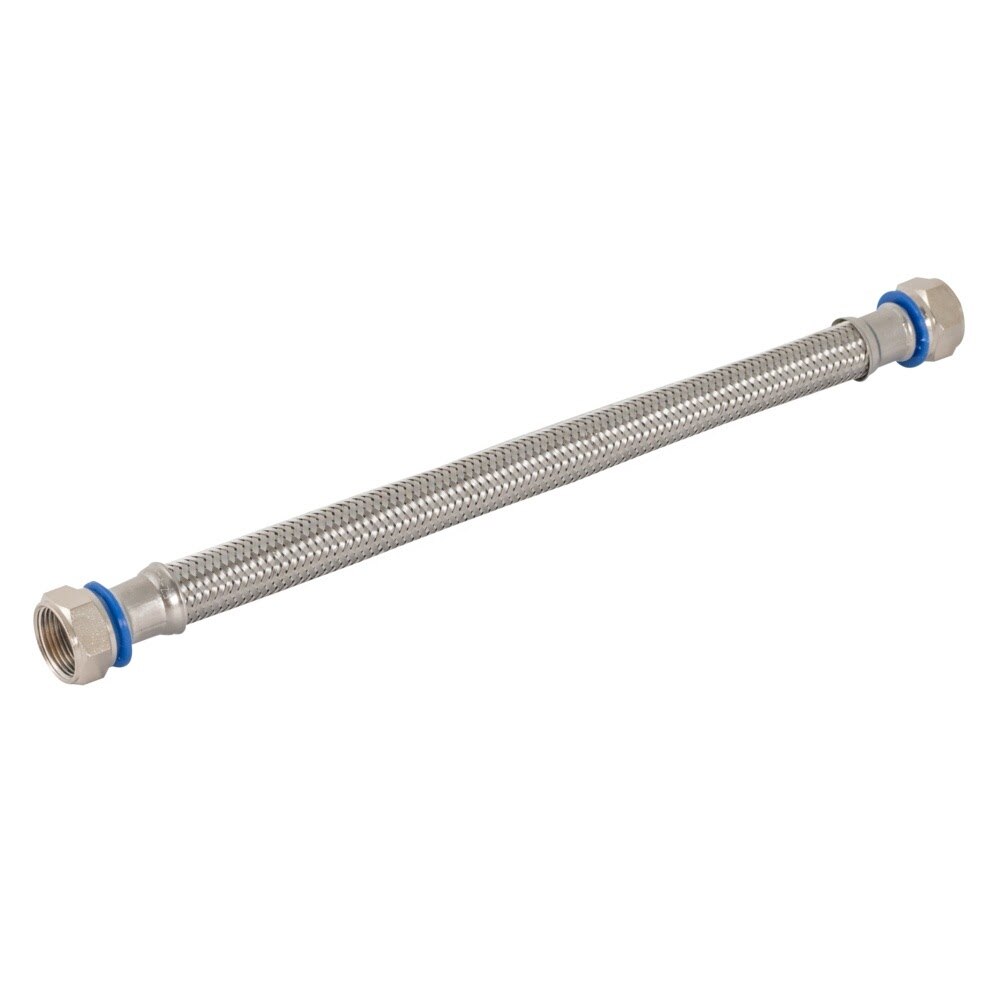

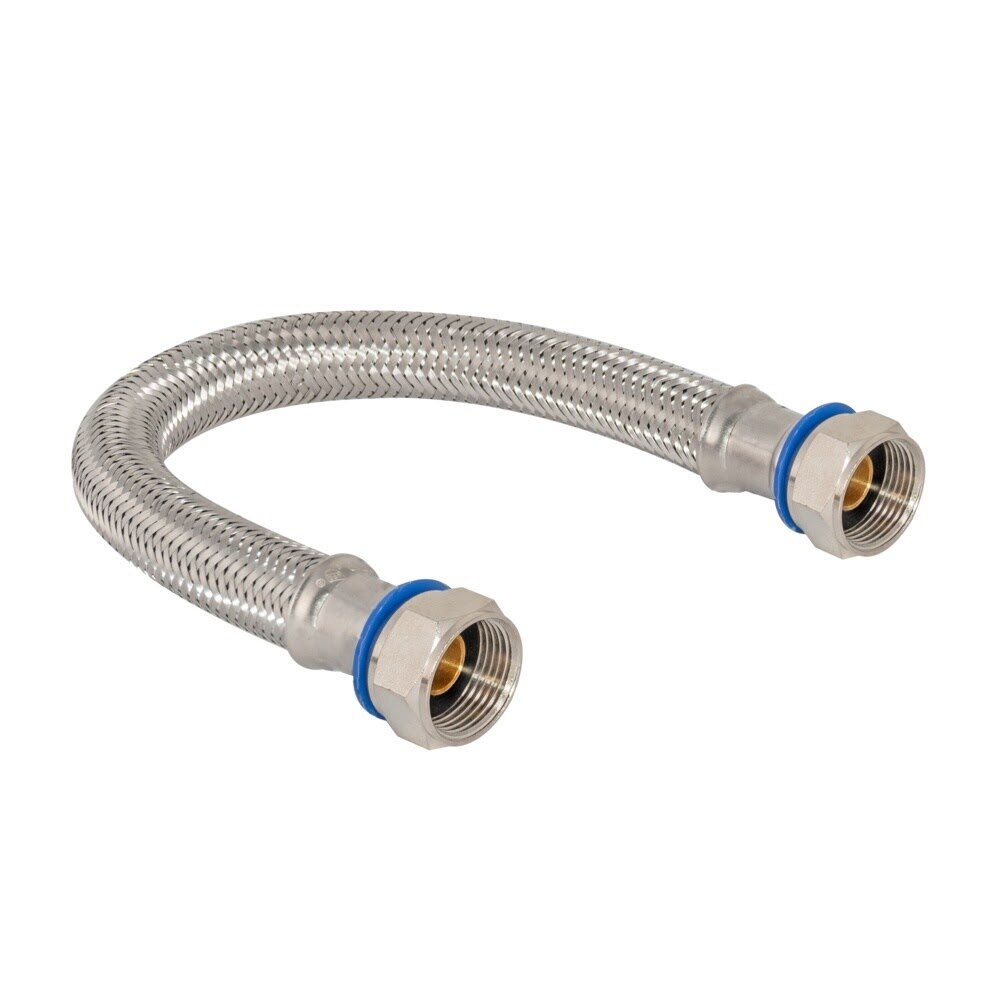

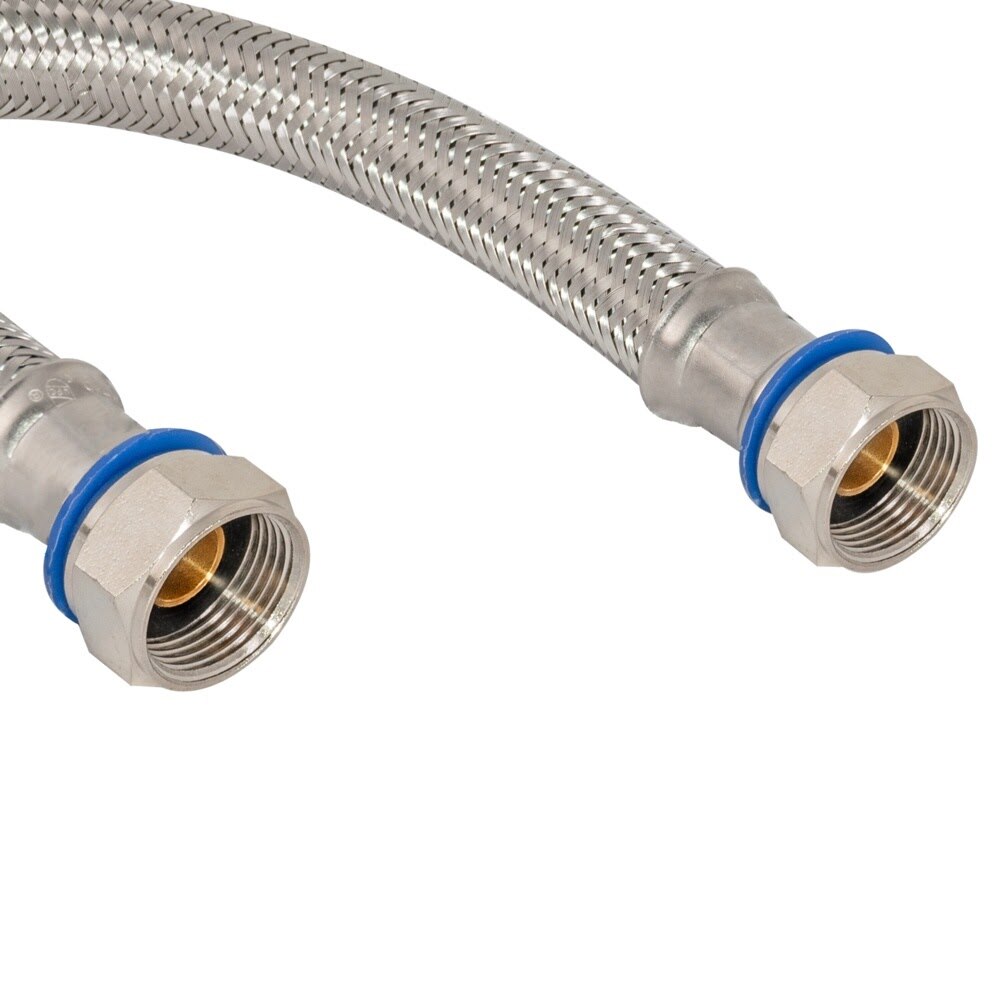

The Eastman 15 in. braided stainless steel PVC water heater connector provides a reliable water supply connection for water heater installations. It features 3/4 in. FIP x 3/4 in. FIP swivel connections, stainless steel ferrules, nickel-plated brass nuts, and an EPDM gasket for durable, flexible performance.
Eastman 48262 Includes
- (1) Water Heater Connector
Eastman 48262 Features
- 15 in. connector for water heater installation
- 3/4 in. FIP x 3/4 in. FIP swivel connection
- Braided stainless steel construction for durability and strength
- Nickel-plated brass nuts
- Stainless steel ferrules
- EPDM gasket helps provide a secure seal
- Flexible design supports easier installation in tight spaces
- 125 psi working pressure
- 180 psi intermittent impulse pressure
- Working temperature range of 40 F to 180 F
Eastman 48262 Specifications
| Length | 15 in. |
| Inlet Size | 3/4 in. |
| Inlet Type | FIP |
| Outlet Size | 3/4 in. |
| Outlet Type | FIP Swivel |
| Application | Water heater installation |
| Braid Material | Stainless steel |
| Nut Material | Nickel-plated brass |
| Ferrule Material | Stainless steel |
| Gasket Material | EPDM |
| Working Pressure | 125 psi |
| Intermittent Impulse Pressure | 180 psi |
| Working Temperature | 40 F to 180 F |
| Shipping Weight | 0.63 lb |
Toolup Part # :
883698
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
