Description
Description
Eastman 48392 Description

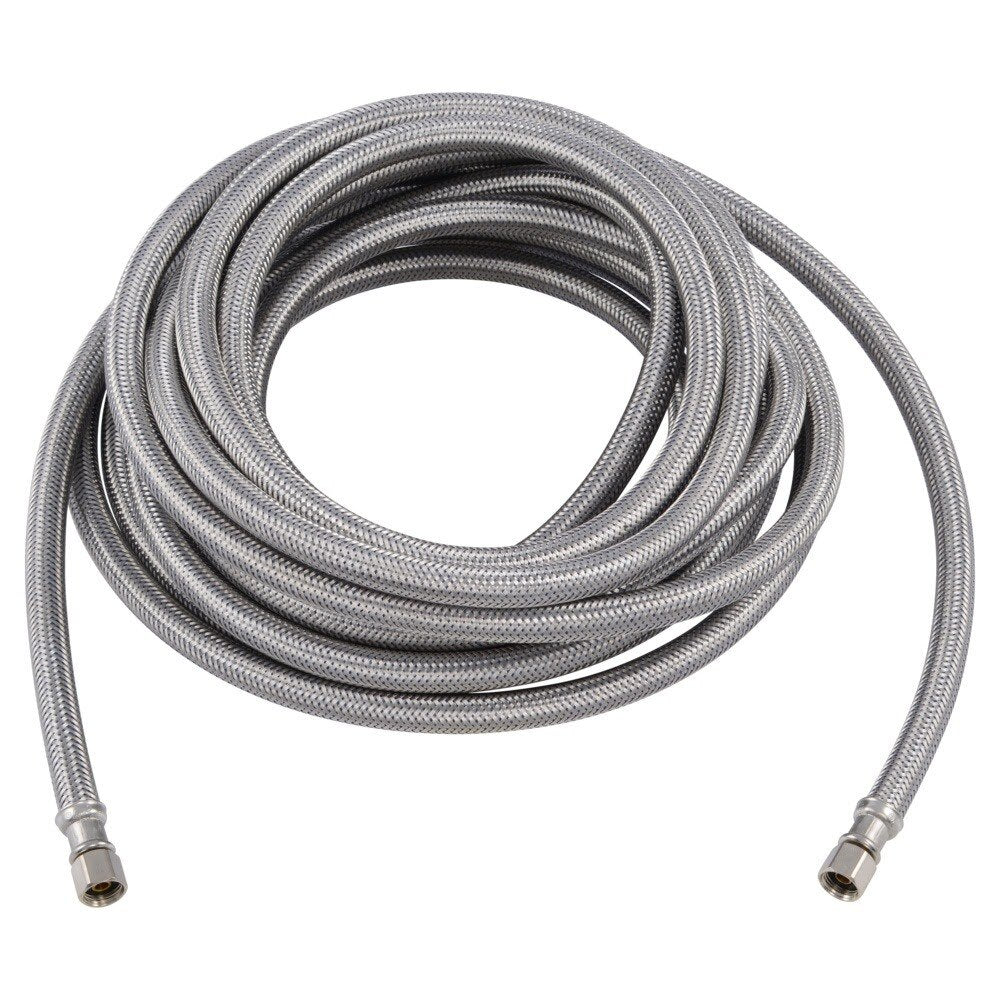

The Eastman 48392 is a 25 ft. braided stainless steel ice maker supply line designed for refrigerators, ice makers, and water dispensers. It features 1/4 in. compression connections on both ends, a flexible corrosion-resistant braided exterior, and durable brass fittings for a secure, leak-resistant installation.
Eastman 48392 Includes
- (1) 25 ft. Braided Stainless Steel Ice Maker Supply Line
Eastman 48392 Features
- 25 ft. supply line for refrigerators, ice makers, and water dispensers
- 1/4 in. compression x 1/4 in. compression connections
- Braided stainless steel exterior helps resist corrosion
- PVC core with braided nylon reinforcement and clear vinyl outer shell

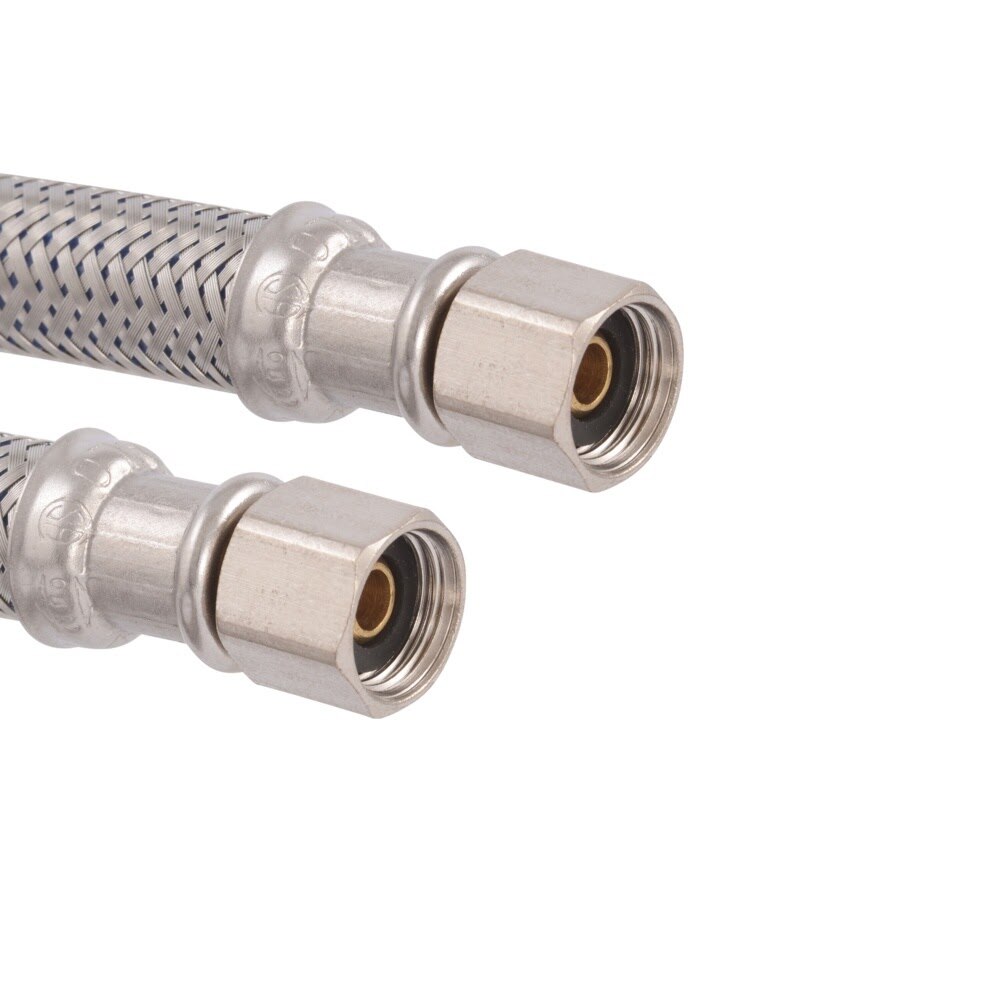

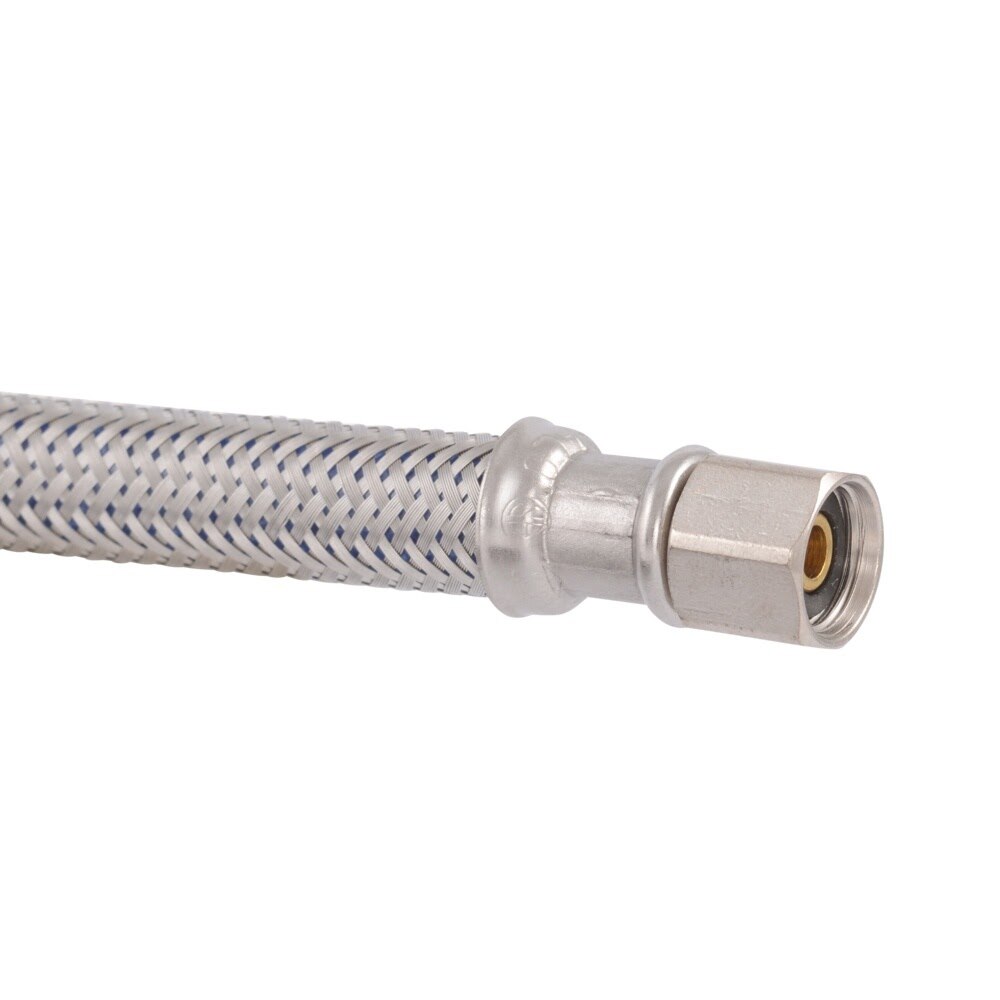

- Nickel-plated brass nuts provide a secure, leak-resistant connection
- Flexible design helps resist kinking and crimping
- Lead-free and NSF compliant for potable water applications
- Working pressure range of 20 to 125 PSI
- Burst pressure up to 1500 PSI
- Temperature range of 40 to 160 degrees F
- Meets ASME A112.18.6/CSA B125.6 standards
- Backed by a 5-year limited warranty
Eastman 48392 Specifications
| Type | Ice maker supply line |
| Length | 25 ft. |
| Inlet Connection Type | Compression |
| Outlet Connection Type | Compression |
| Inlet Connection Size | 1/4 in. |
| Outlet Connection Size | 1/4 in. |
| Material | Braided stainless steel |
| Core Material | PVC |
| Reinforcement | Braided nylon |
| Outer Shell | Clear vinyl |
| Fitting Material | Brass |
| Nut Material | Nickel-plated brass |
| Corrosion Resistant | Yes |
| Flexible | Yes |
| Lead-Free | Yes |
| Working Pressure Range | 20 to 125 PSI |
| Burst Pressure | 1500 PSI |
| Temperature Range | 40 to 160 degrees F |
| Certifications | NSF/ANSI/CAN 61 and NSF/ANSI/CAN 372 |
| Standards | ASME A112.18.6/CSA B125.6 |
| Warranty | 5-year limited |
| Package Quantity | 1 |
| Shipping Weight | 2.60 lb |
Toolup Part # :
882440
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
