Eastman 60005 Description

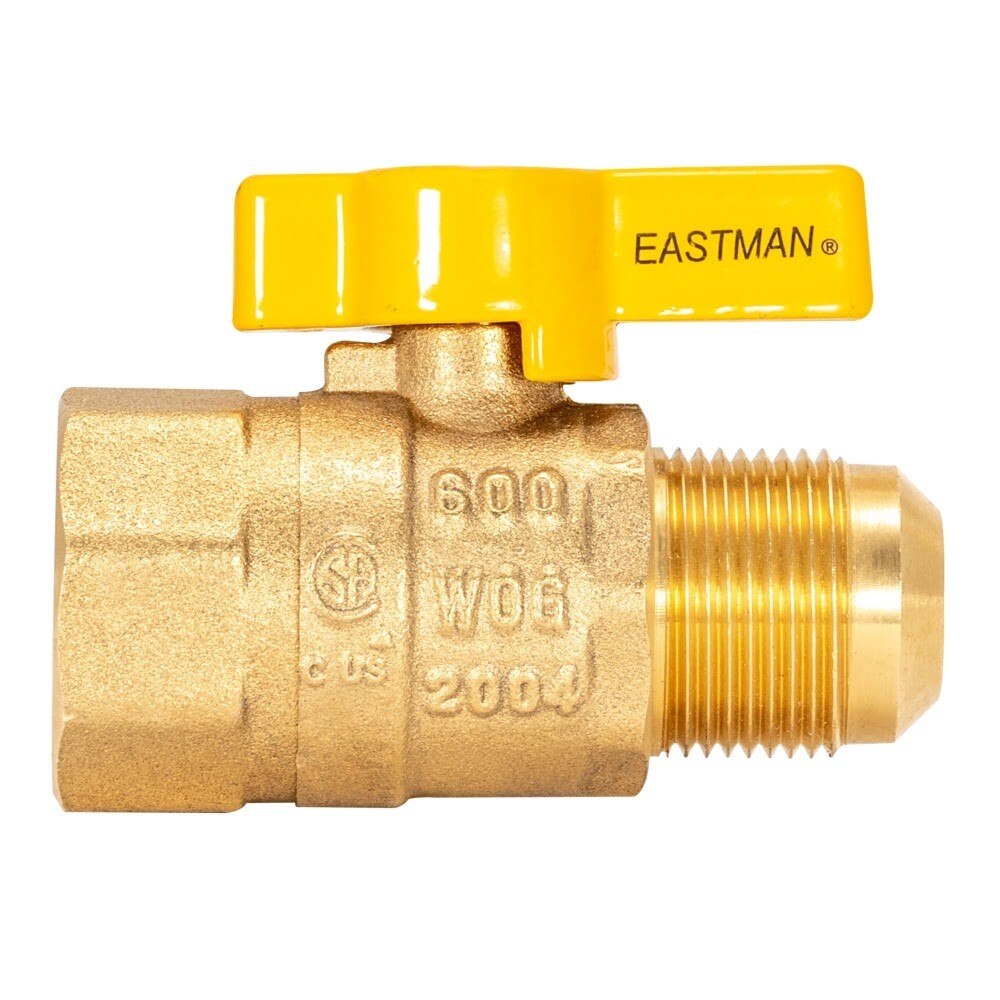

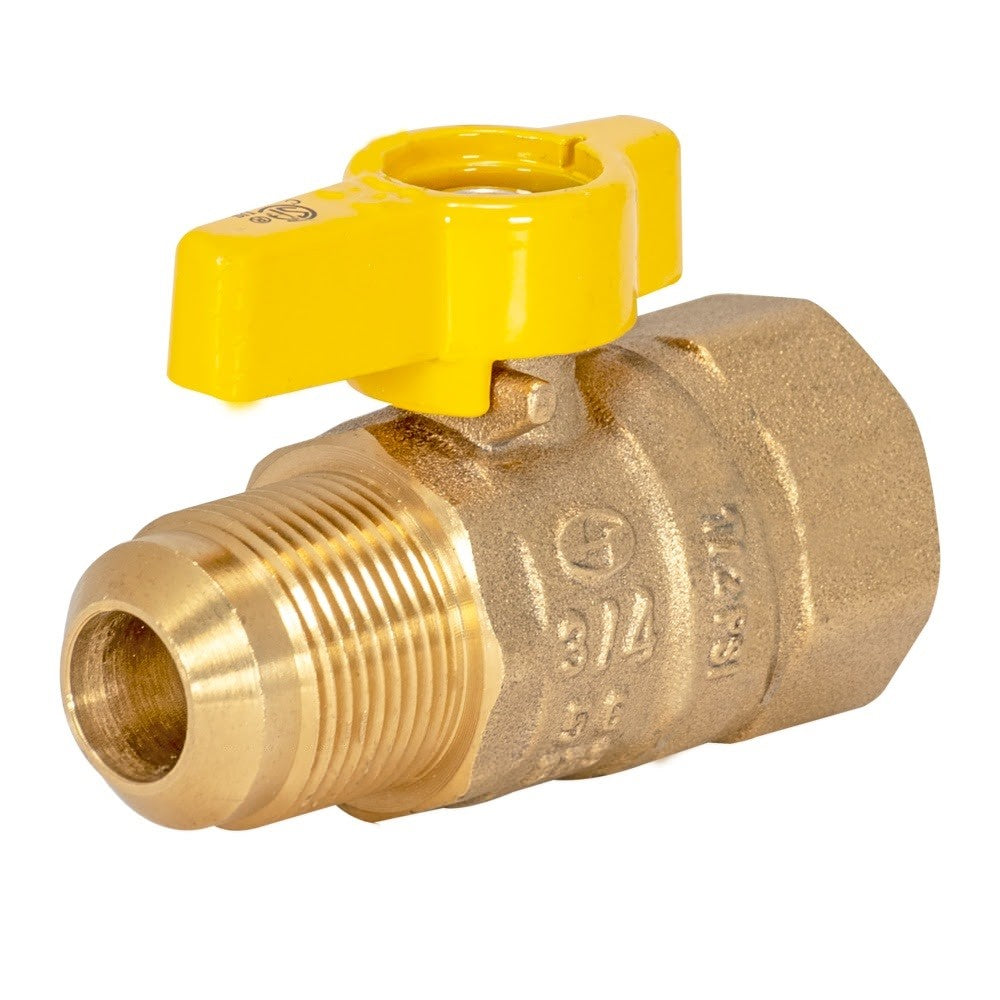

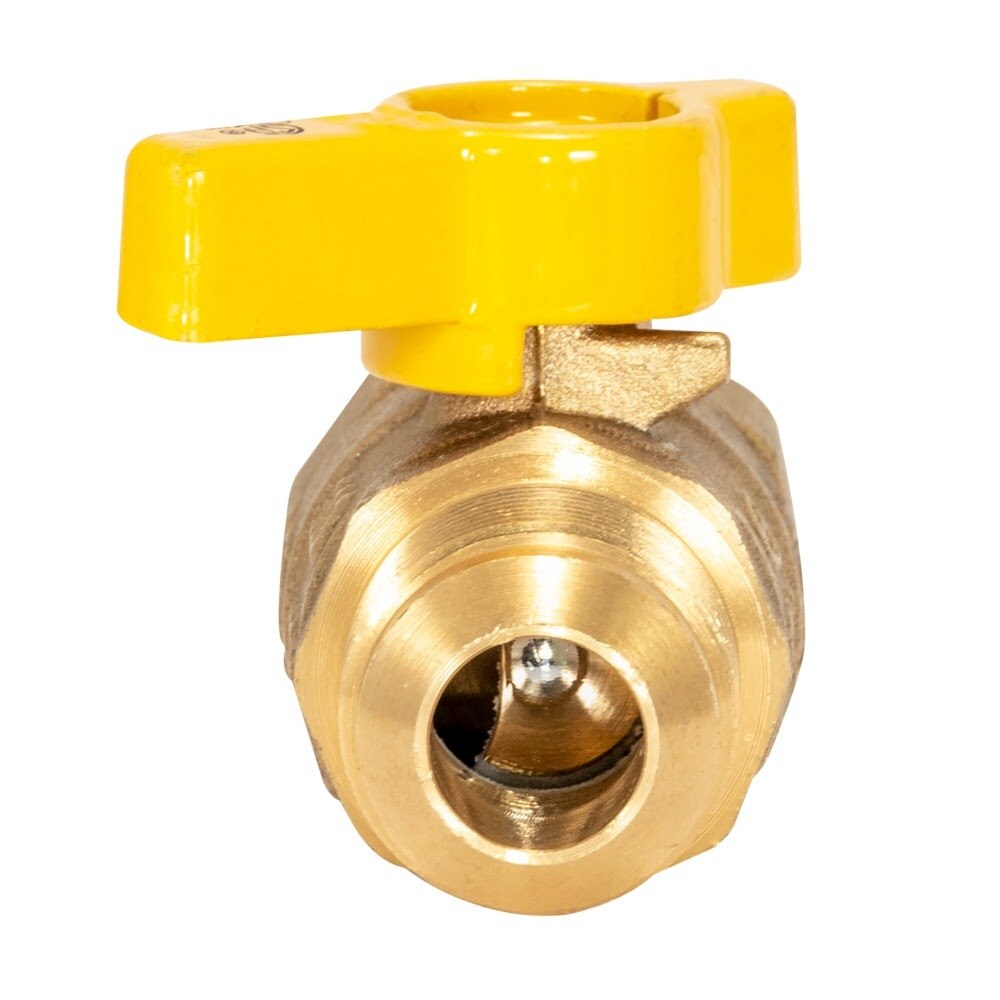

This straight brass gas ball valve provides a durable in-line connection between a 5/8 in. OD flare fitting and a 3/4 in. FIP connection. It features a quarter-turn aluminum lever handle, a two-piece brass body with double O-ring packing, and is rated for liquefied petroleum gas, LP gas, and air mixtures up to 175 PSI.
Eastman 60005 Includes
- (1) 5/8 in. OD Flare x 3/4 in. FIP Straight Brass Gas Valve
Eastman 60005 Features
- Quarter-turn aluminum lever handle allows easy on and off flow control
- Two-piece brass body is built for strength and durability
- Double O-ring packing helps provide a secure seal
- Straight in-line design connects pipes running in the same direction
- Compatible with liquefied petroleum gas, LP gas, and air mixtures up to 175 PSI
- 5/8 in. OD flare connection uses 15/16 in. - 16 thread
- Rated for 5 PSI indoor shut off and 600 PSI WOG
Eastman 60005 Specifications
| Valve Type | Straight gas ball valve |
| Material | Brass |
| Handle Material | Aluminum |
| Body Construction | Two-piece brass body with double O-ring packing |
| Connection 1 | 5/8 in. OD flare |
| Thread Size | 15/16 in. - 16 |
| Connection 2 | 3/4 in. FIP |
| Operation | 1/4-turn |
| Application | Liquefied petroleum gas, LP gas, and air mixtures |
| Maximum Pressure | 175 PSI |
| Indoor Shut Off Rating | 5 PSI |
| WOG Rating | 600 PSI |
| Product Length (in) | 2.60 |
| Product Width (in) | 2.00 |
| Product Height (in) | 1.25 |
| Product Weight (lb) | 0.50 |
Toolup Part # :
883935
