Eastman 60232 Description

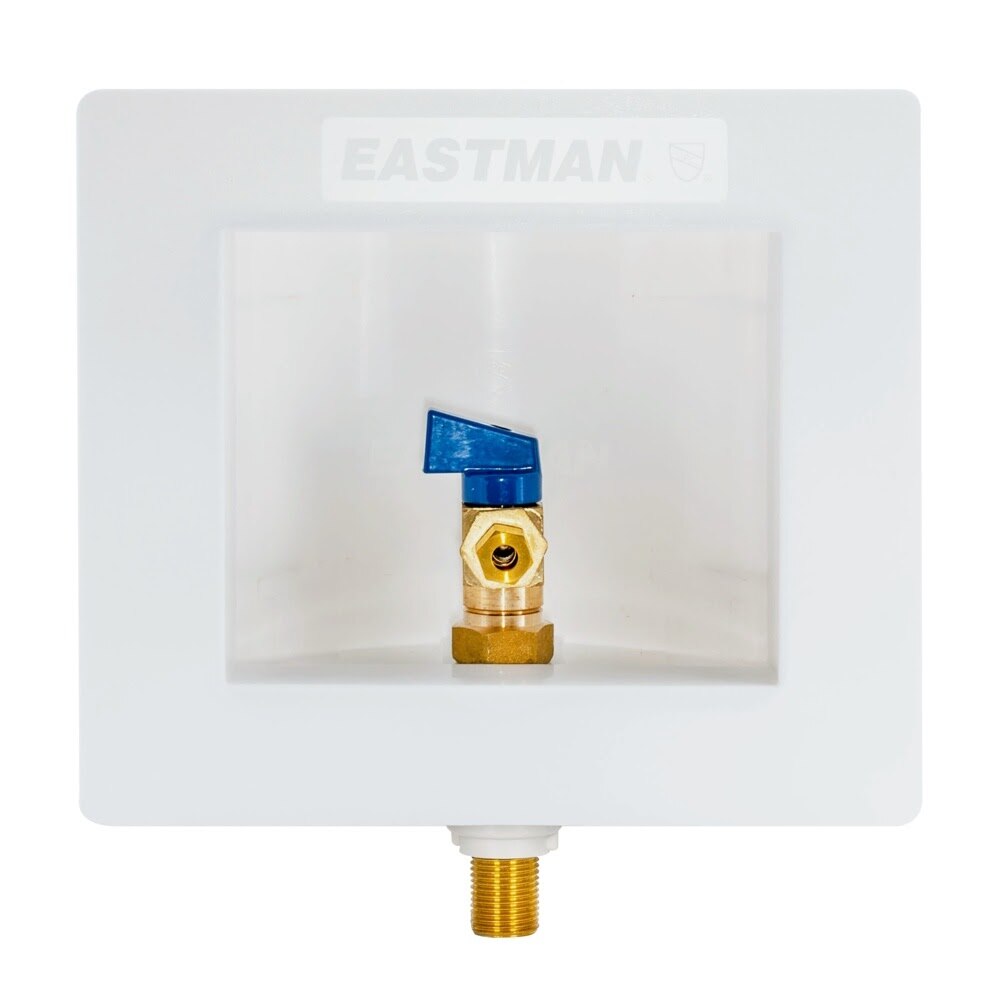

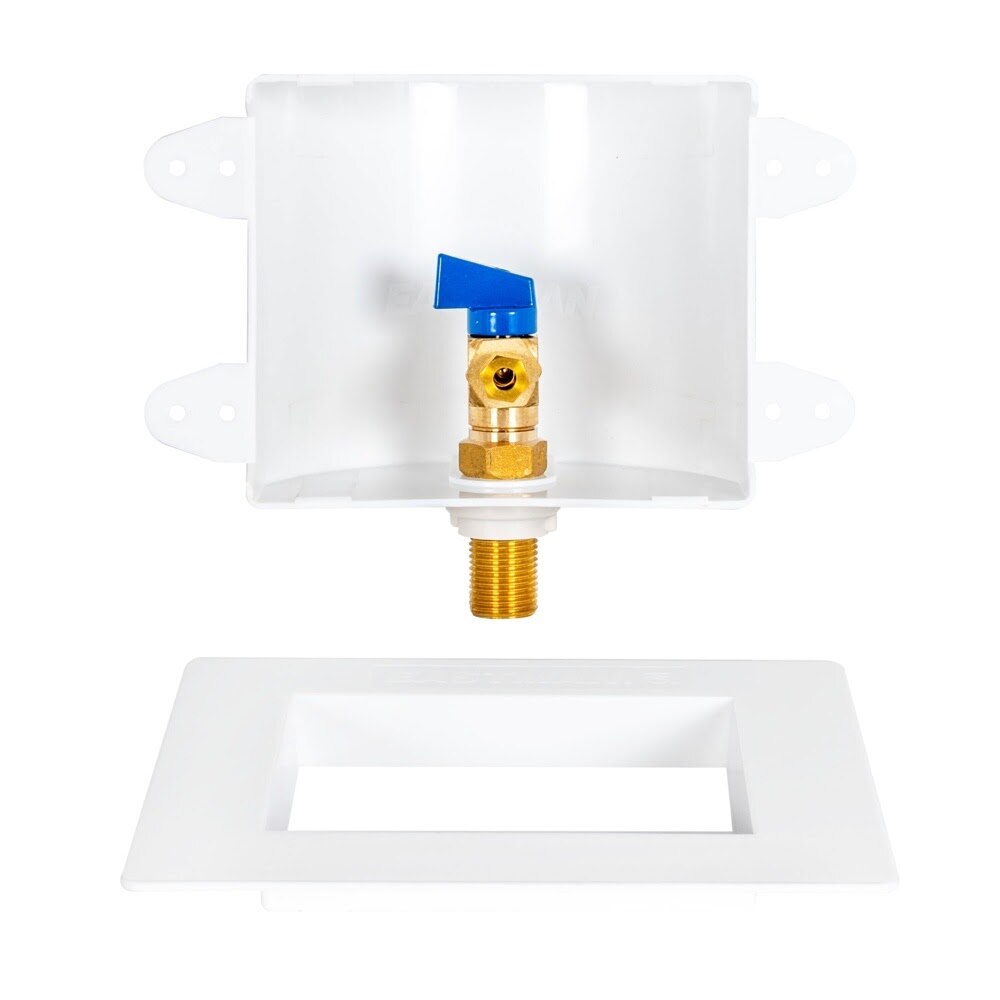

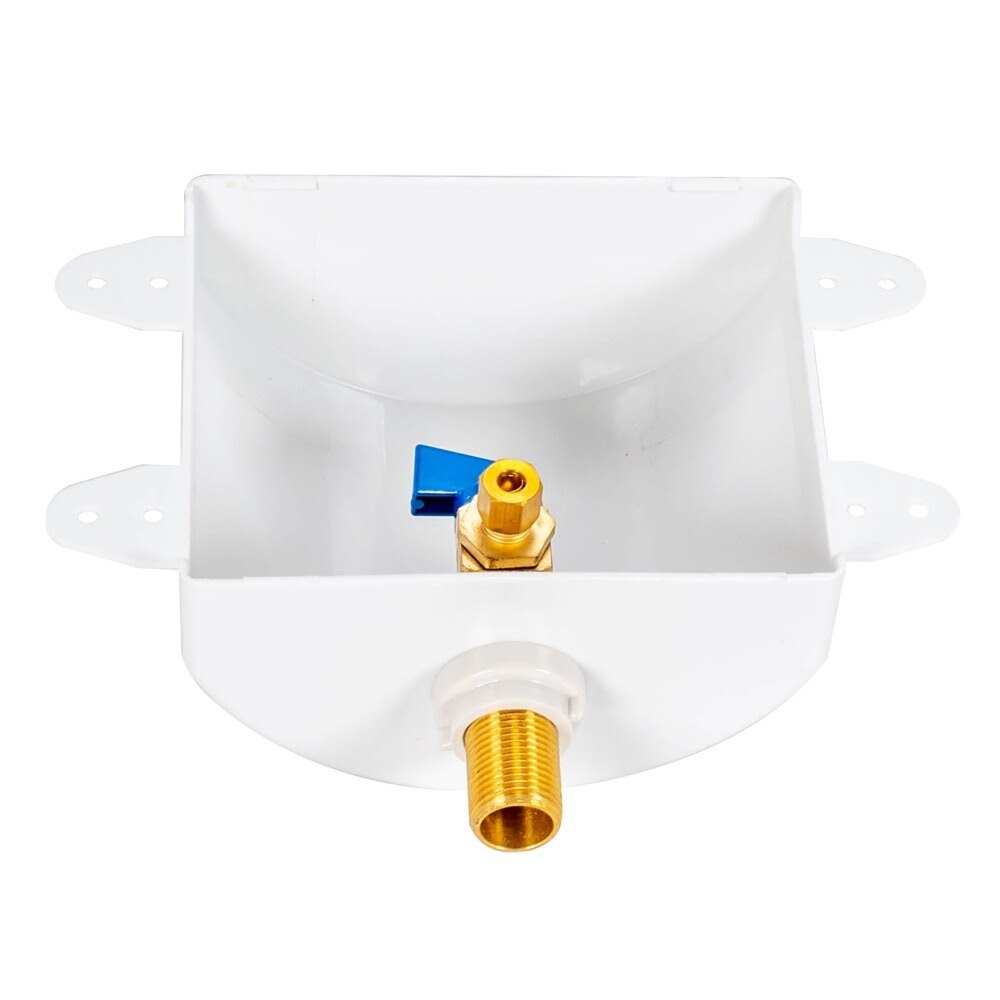

The Eastman ice maker outlet box with 1/2 in. sweat connection provides a recessed water supply connection for refrigerators, water dispensers, and ice makers. Built with a one-piece box and flange design, it includes a pre-installed support bracket, faceplate cover, and a quarter-turn ball valve for convenient shutoff during maintenance.
Eastman 60232 Includes
- (1) Ice Maker Outlet Box
- (1) Faceplate Cover
- (1) Pre-Installed Support Bracket
- (1) Quarter-Turn Ball Valve
Eastman 60232 Features
- 1/2 in. sweat connection for ice maker water supply lines
- Designed for recessed residential applications
- One-piece box and flange design
- Includes a pre-installed support bracket
- Includes a faceplate cover for a clean finished look
- Quarter-turn ball valve allows easy shutoff during maintenance
- Suitable for refrigerators, water dispensers, and ice makers
- Service temperature range of 34 Degree F to 180 Degree F
- Maximum working pressure of 125 psi
- Complies with lead-free law and is UPC approved
Eastman 60232 Specifications
| Brand | Eastman |
| Connection Size | 1/2 in. |
| Connection Type | Sweat |
| Valve Type | Quarter-turn ball valve |
| Application | Refrigerators, water dispensers, and ice makers |
| Installation Type | Recessed residential |
| Design | One-piece box and flange |
| Service Temperature Range | 34 Degree F to 180 Degree F (1 Degree C to 82 Degree C) |
| Maximum Working Pressure | 125 psi |
| Compliance | Lead-free law compliant; UPC approved |
| Item Length (in) | 8.66 |
| Item Width (in) | 3.74 |
| Item Height (in) | 7.48 |
| Shipping Weight | 1.00 lb |
Toolup Part # :
883151
