Eastman 60233 Description

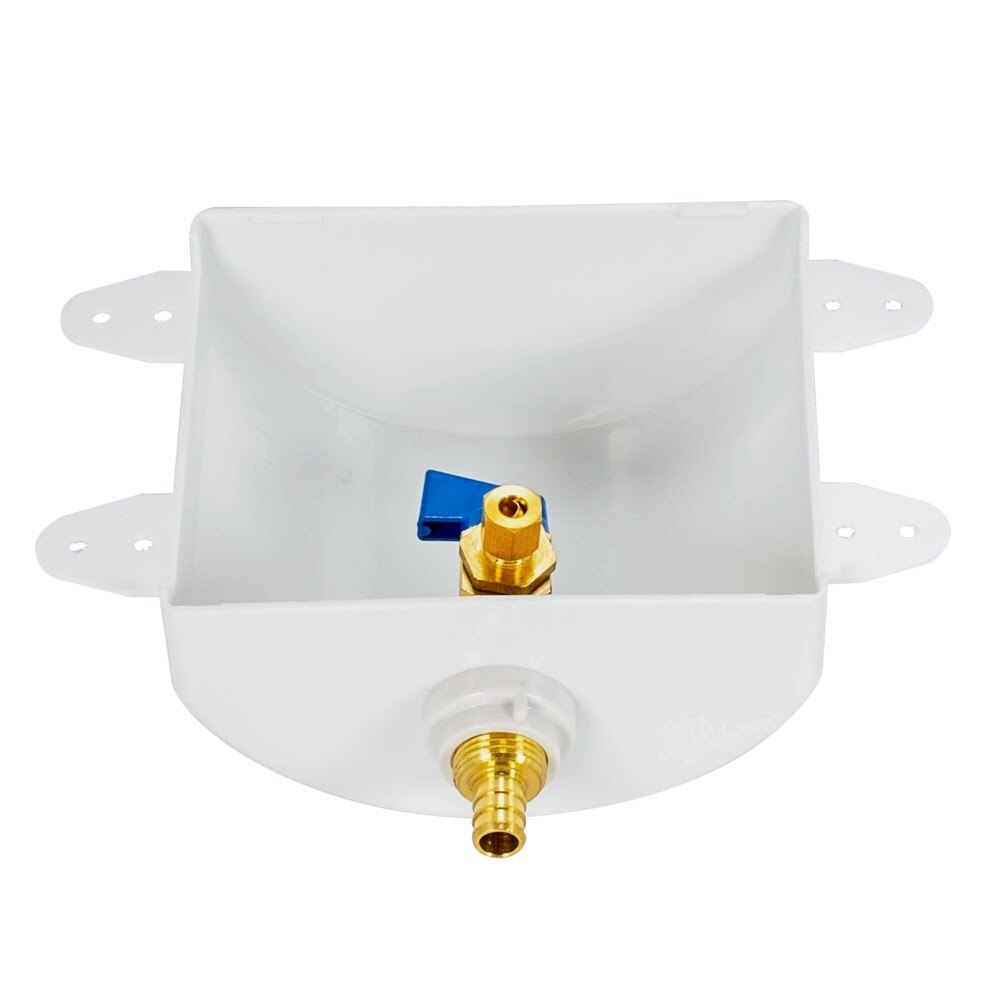

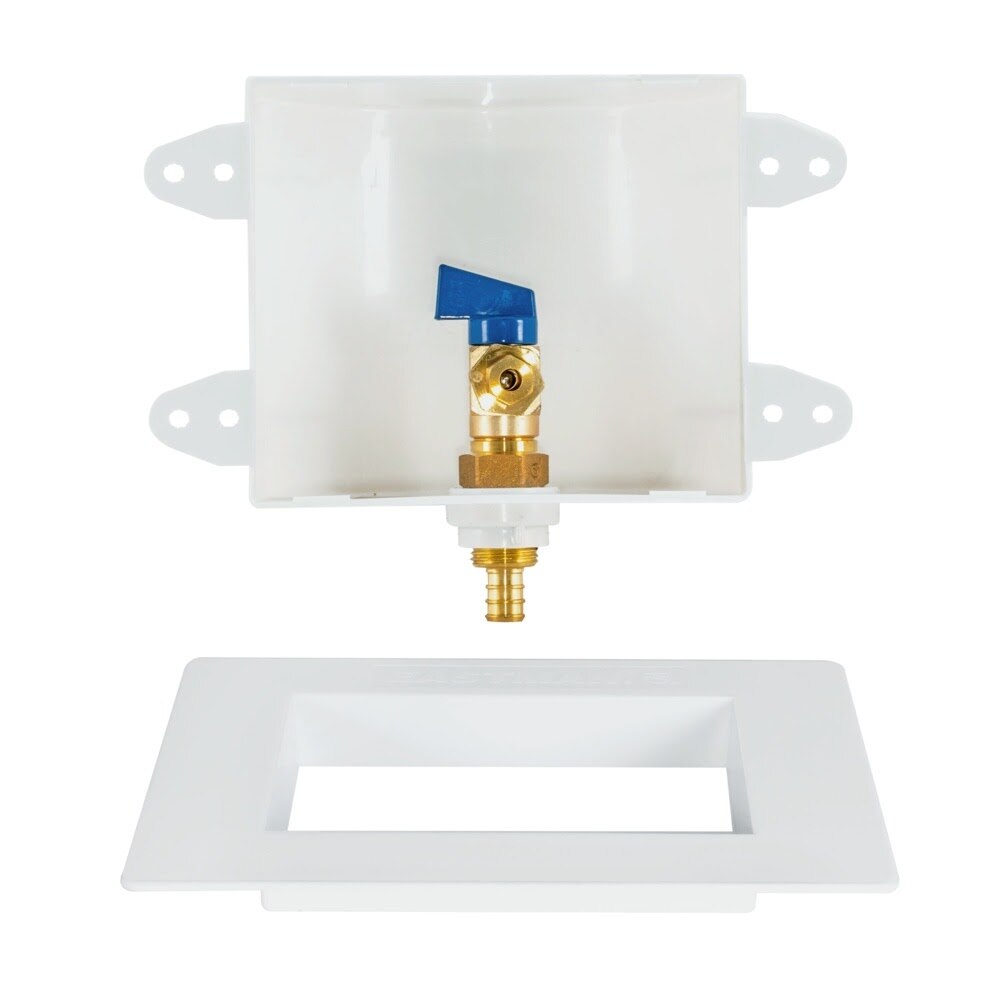

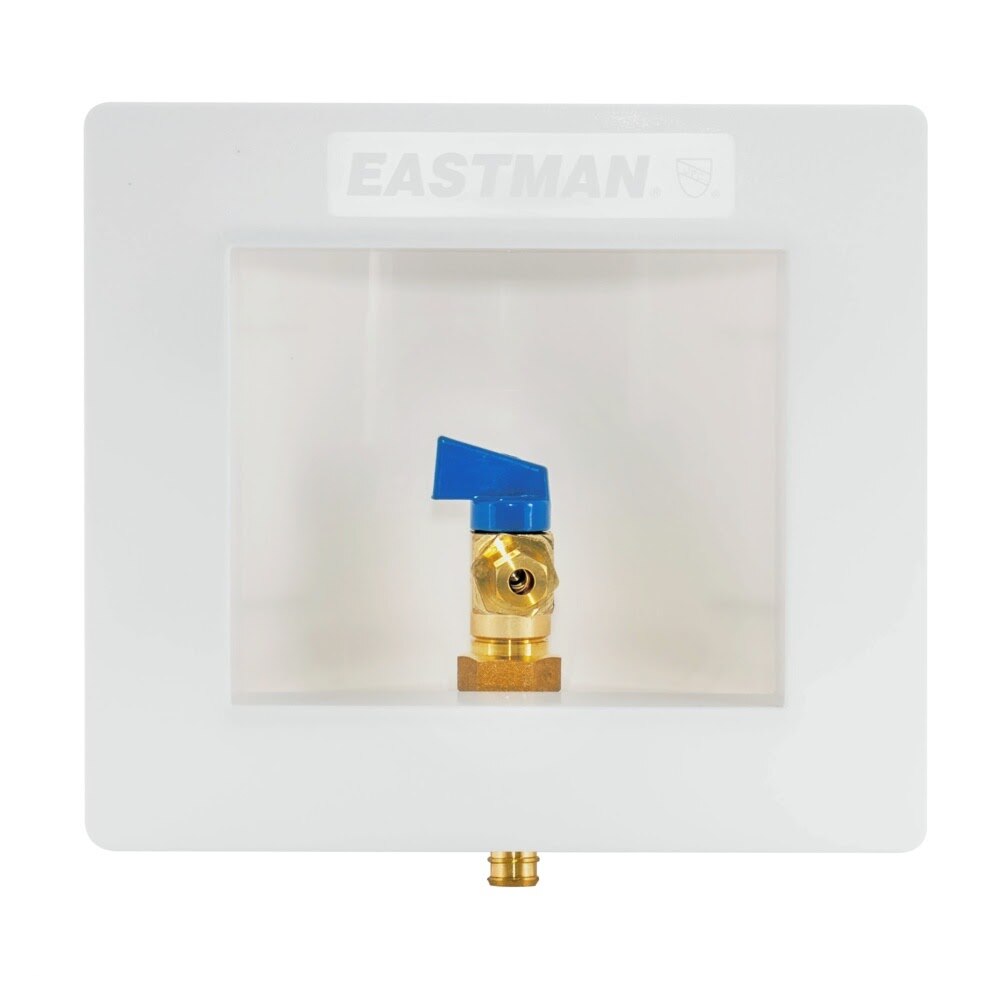

The Eastman ice maker outlet box provides a safe recessed water supply connection for refrigerators, water dispensers, and ice makers. This 1/2 in. crimp PEX model features a one-piece box and flange design, a pre-installed support bracket, a faceplate cover, and a 1/4-turn ball valve for convenient shutoff during maintenance. It is designed for service temperatures from 34 Degree F to 180 Degree F with an allowable working pressure of 125 psi, and it complies with lead-free law.
Eastman 60233 Includes
- (1) Ice Maker Outlet Box
- (1) Faceplate Cover
- (1) Pre-Installed Support Bracket
- (1) 1/4-Turn Ball Valve
Eastman 60233 Features
- 1/2 in. Crimp PEX (F1807) connection
- Designed for recessed residential applications
- One-piece box and flange design
- Includes pre-installed support bracket
- Comes with faceplate cover
- Equipped with a 1/4-turn ball valve for shutoff during maintenance
- Provides a safe water supply installation for refrigerators, water dispensers, and ice makers
- Rated for temperatures from 34 Degree F to 180 Degree F
- 125 psi allowable working pressure
- Complies with lead-free law
- UPC approved
Eastman 60233 Specifications
| Brand | Eastman |
| Part Number | 60233 |
| Product Type | Ice Maker Outlet Box |
| Connection Type | 1/2 in. Crimp PEX (F1807) |
| Valve Type | 1/4-turn ball valve |
| Application | Refrigerators, water dispensers, and ice makers |
| Installation Type | Recessed residential applications |
| Design | One-piece box and flange |
| Working Pressure | 125 psi |
| Temperature Range | 34 Degree F to 180 Degree F |
| Lead Free | Yes |
| UPC Approved | Yes |
| Product Length (in) | 8.66 |
| Product Width (in) | 3.74 |
| Product Height (in) | 7.48 |
| Shipping Weight (lb) | 1.03 |
