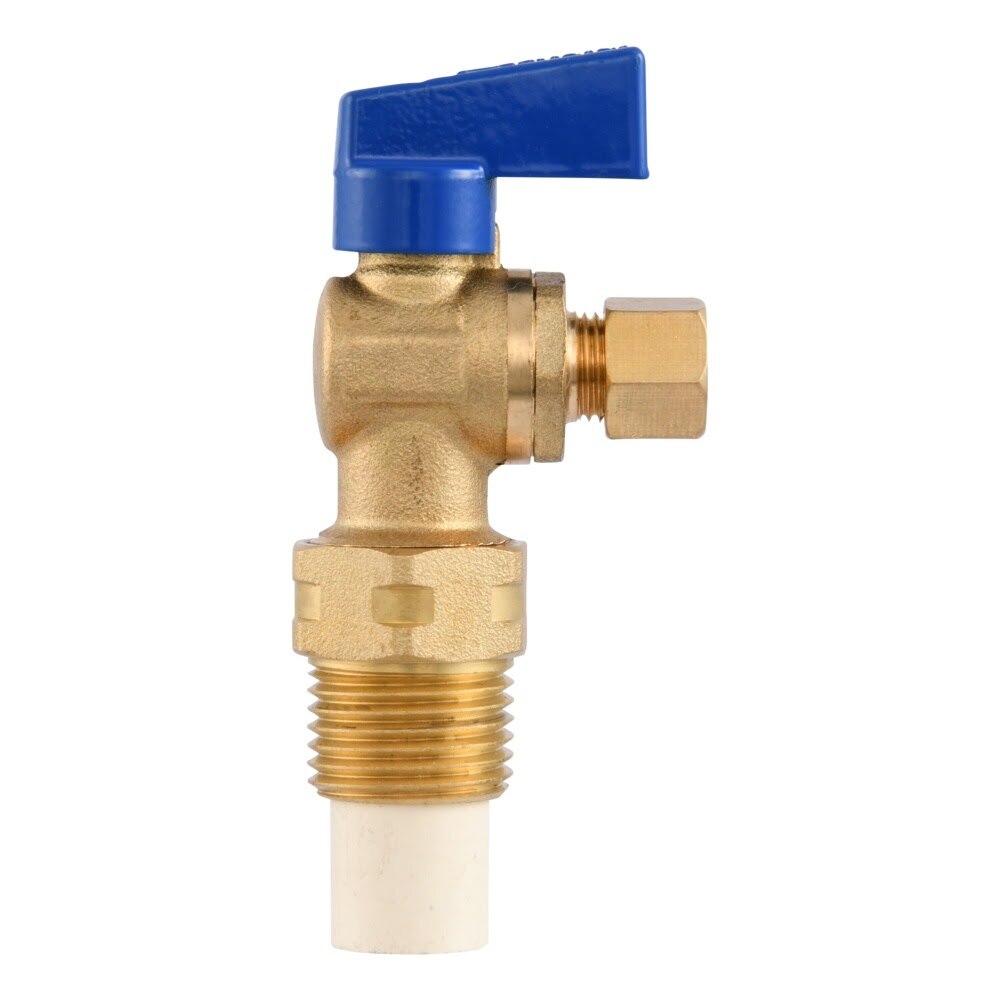

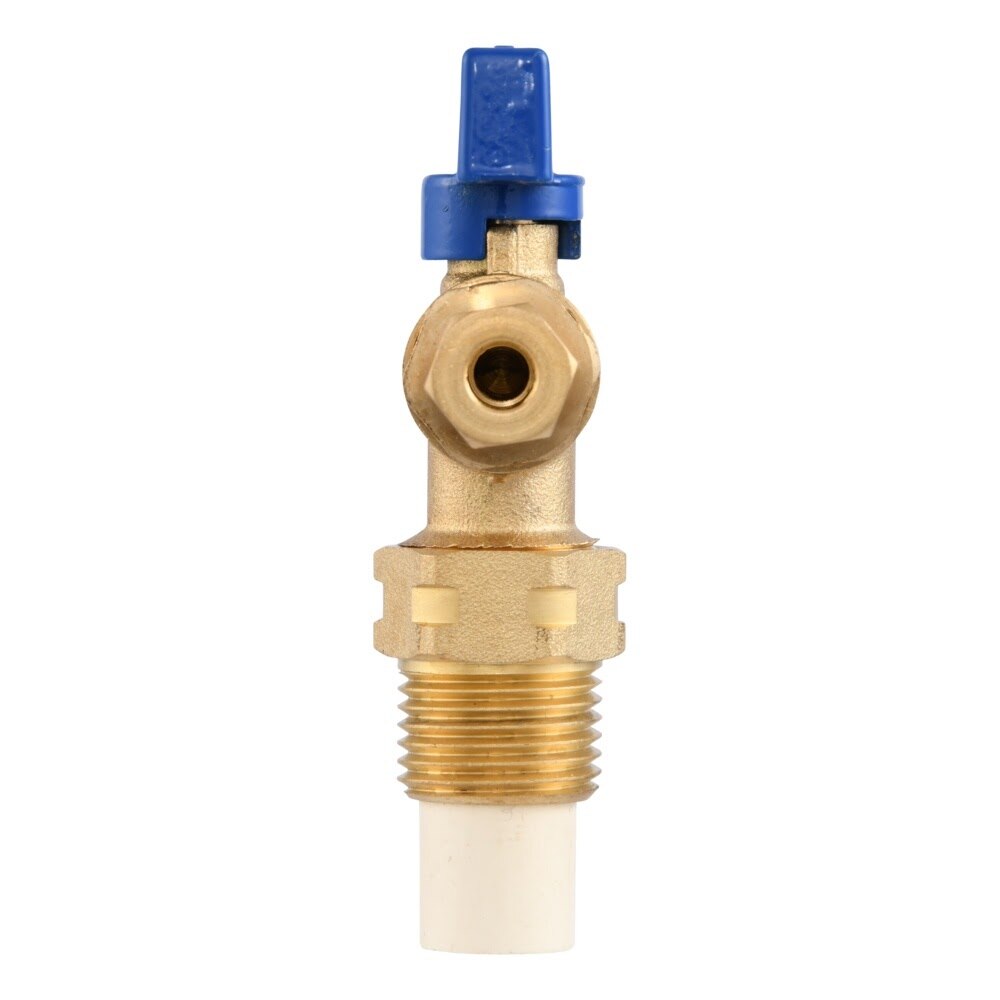

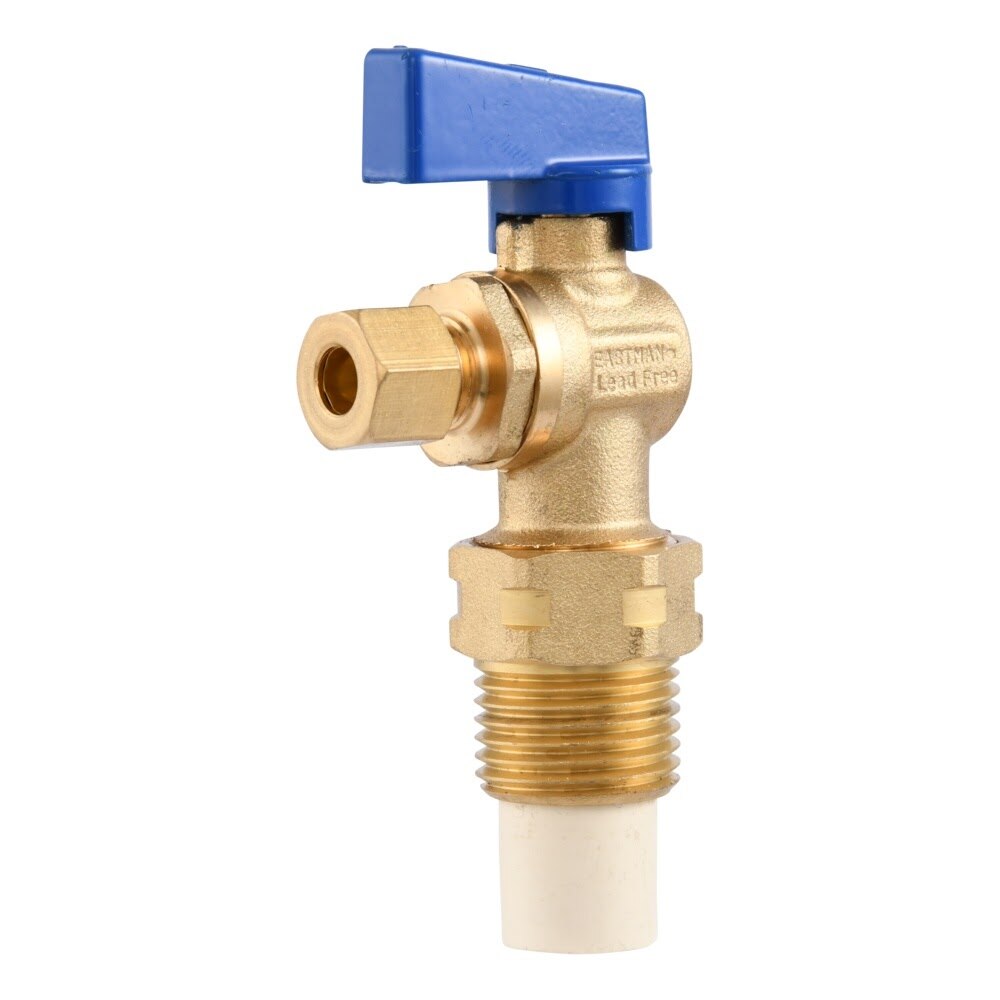

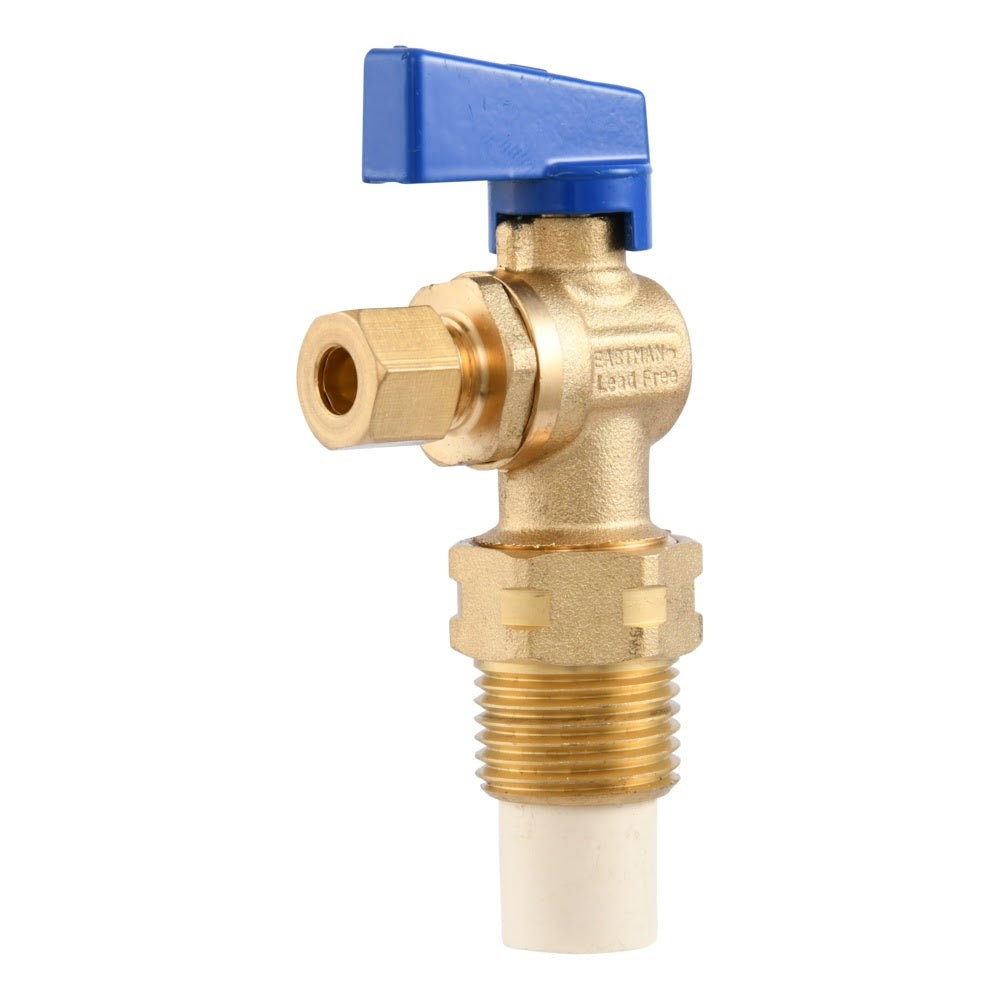

Eastman 60234 Description
The Eastman ice maker outlet box with a 1/2 in. CPVC connection provides a safe recessed water supply installation for refrigerators, water dispensers, and ice makers. It features a one-piece box and flange design and includes a 1/4-turn ball valve for convenient shutoff during maintenance.
Eastman 60234 Includes
- (1) Ice Maker Outlet Box
- (1) Faceplate Cover
- (1) Pre-Installed Support Bracket
- (1) 1/4-Turn Ball Valve
Eastman 60234 Features
- Provides a safe water supply installation for refrigerators, water dispensers, and ice makers
- 1/2 in. CPVC connection
- One-piece box and flange design
- Includes a pre-installed support bracket and faceplate cover
- 1/4-turn ball valve allows quick shutoff during maintenance
- Designed for recessed residential applications
- Rated for service temperatures from 34 Degree F to 180 Degree F
- Maximum working pressure of 125 psi
- Complies with lead-free law
- UPC approved
Eastman 60234 Specifications
| Connection Size | 1/2 in. |
| Connection Type | CPVC |
| Valve Type | 1/4-turn ball valve |
| Design | One-piece box and flange |
| Application | Refrigerators, water dispensers and ice makers |
| Installation Type | Recessed residential |
| Temperature Range | 34 Degree F to 180 Degree F |
| Maximum Working Pressure | 125 psi |
| Compliance | Lead-free law |
| Certification | UPC approved |
| Product Length (in) | 8.66 |
| Product Width (in) | 3.74 |
| Product Height (in) | 7.48 |
| Product Weight (lb) | 0.31 |
Toolup Part # :
884359
