Eastman 98524 Description

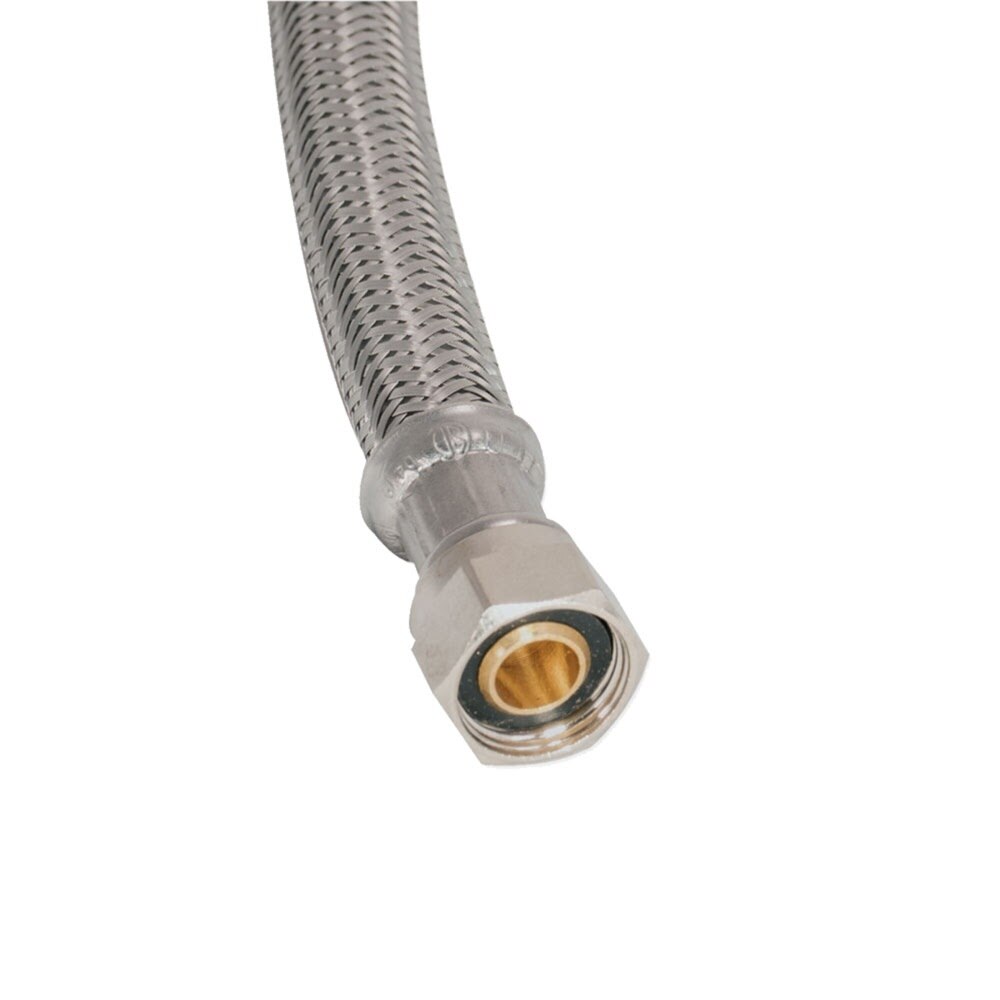

The Eastman 8 ft braided stainless steel dishwasher connector provides a secure, flexible connection between your dishwasher and water supply. It features a durable PVC core with braided nylon reinforcement, corrosion-resistant grade 304 stainless steel exterior, and 3/8 in compression connections for reliable installation.

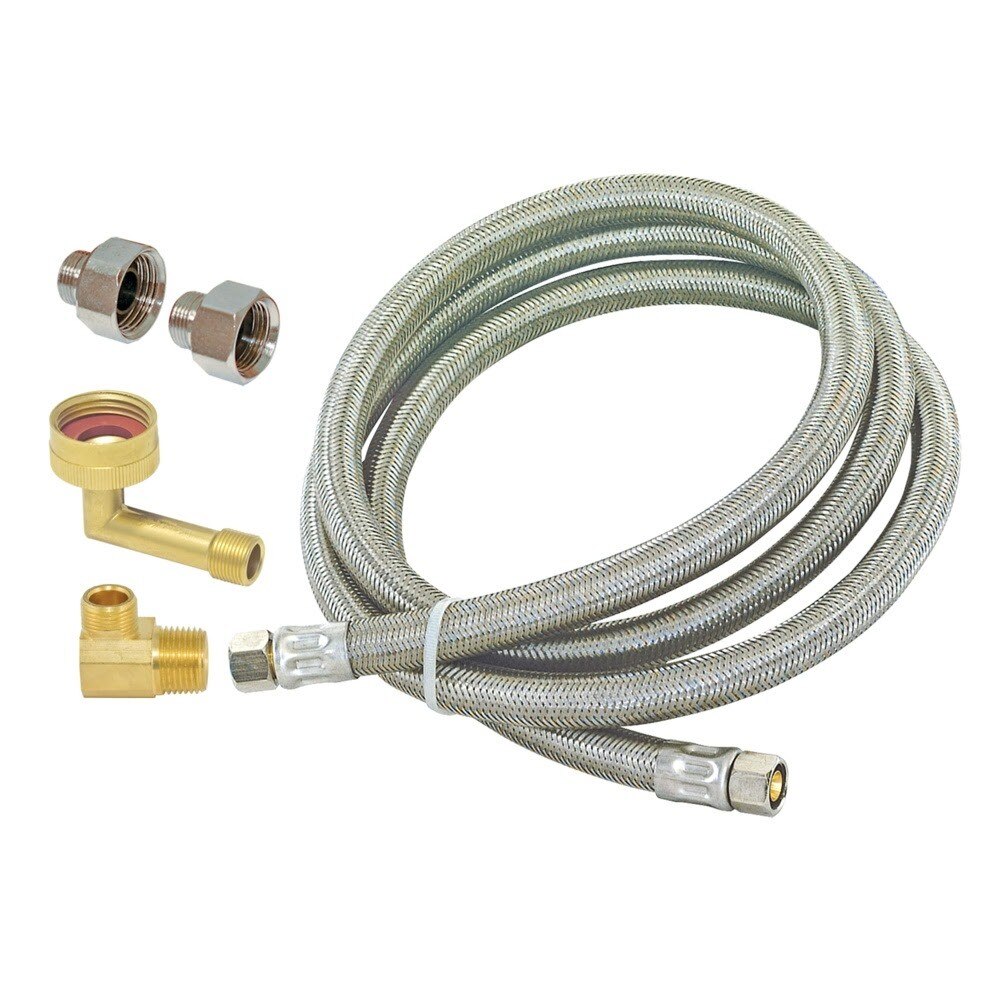

Eastman 98524 Includes
- (1) 8 ft Stainless Steel Dishwasher Connector

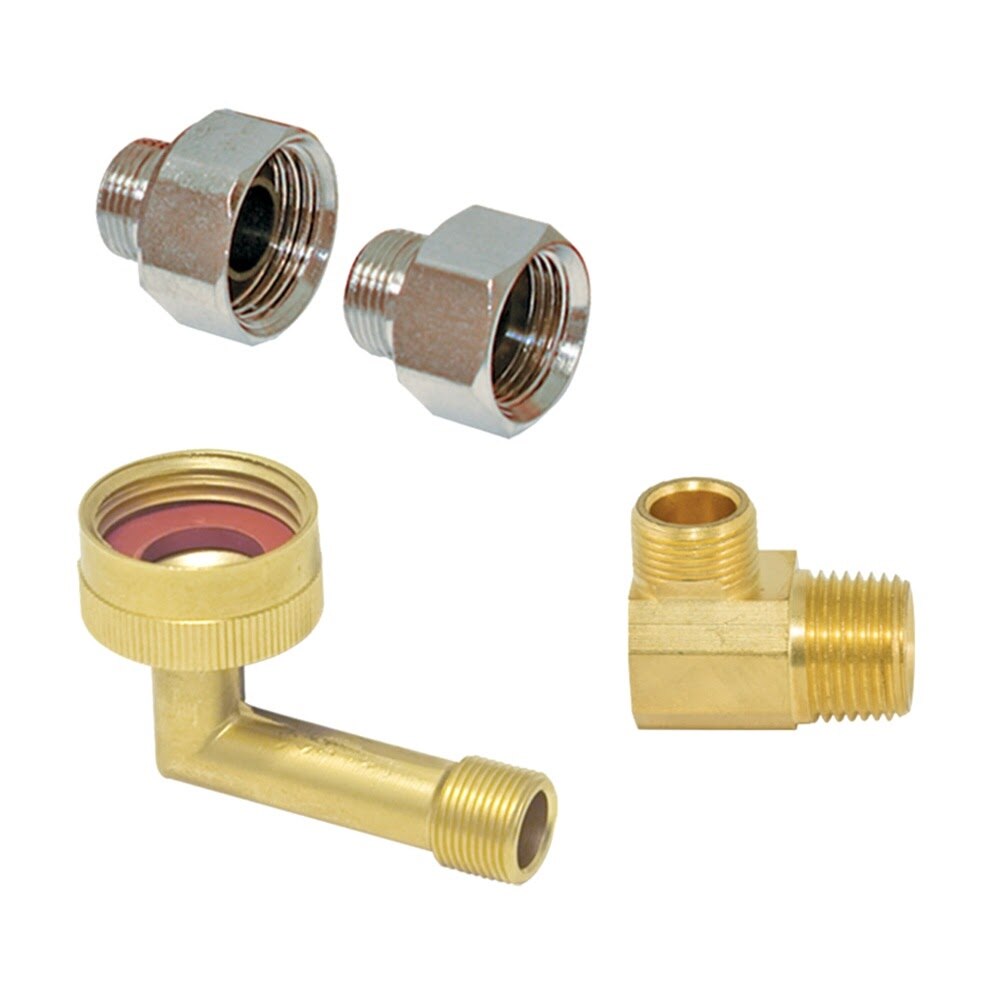

- (1) 3/8 in MIP Elbow
- (1) 3/4 in FHT Elbow
- (1) 1/2 in Compression Adapter
- (1) 1/2 in FIP Adapter
Eastman 98524 Features
- Braided grade 304 stainless steel exterior for corrosion resistance and flexibility
- PVC core with multi-filament braided nylon reinforcement for durability
- 8 ft hose length for dishwasher water supply connections
- 3/8 in compression inlet and outlet connections
- Includes fittings for versatile installation
- Lead-free and NSF compliant for potable water use
- Meets ASME A112.18.6 and CSA B125.6 standards
- 20 to 125 PSI working pressure with 1500 PSI burst pressure
- Operates in temperatures from 40 to 160 degrees F
- Backed by a 5-year limited warranty
Eastman 98524 Specifications
| Type | Dishwasher connector |
| Hose Length | 8 ft |
| Material | Stainless steel |
| Core Material | PVC |
| Reinforcement | Multi-filament braided nylon |
| Exterior | Grade 304 braided stainless steel |
| Fitting Material | Brass |
| Inlet Connection Type | Compression |
| Outlet Connection Type | Compression |
| Inlet Size | 3/8 in |
| Outlet Size | 3/8 in |
| Working Pressure | 20 to 125 PSI |
| Maximum Burst Pressure | 1500 PSI |
| Working Temperature Range | 40 to 160 degrees F |
| Corrosion Resistant | Yes |
| Lead-Free | Yes |
| Flexible | Yes |
| Complies with Federal Lead Guidelines | Yes |
| Standards | NSF/ANSI/CAN 372; ASME A112.18.6/CSA B125.6 |
| Warranty | 5-year limited |
| Package Quantity | 1 |
