Eastman 98552LA Description

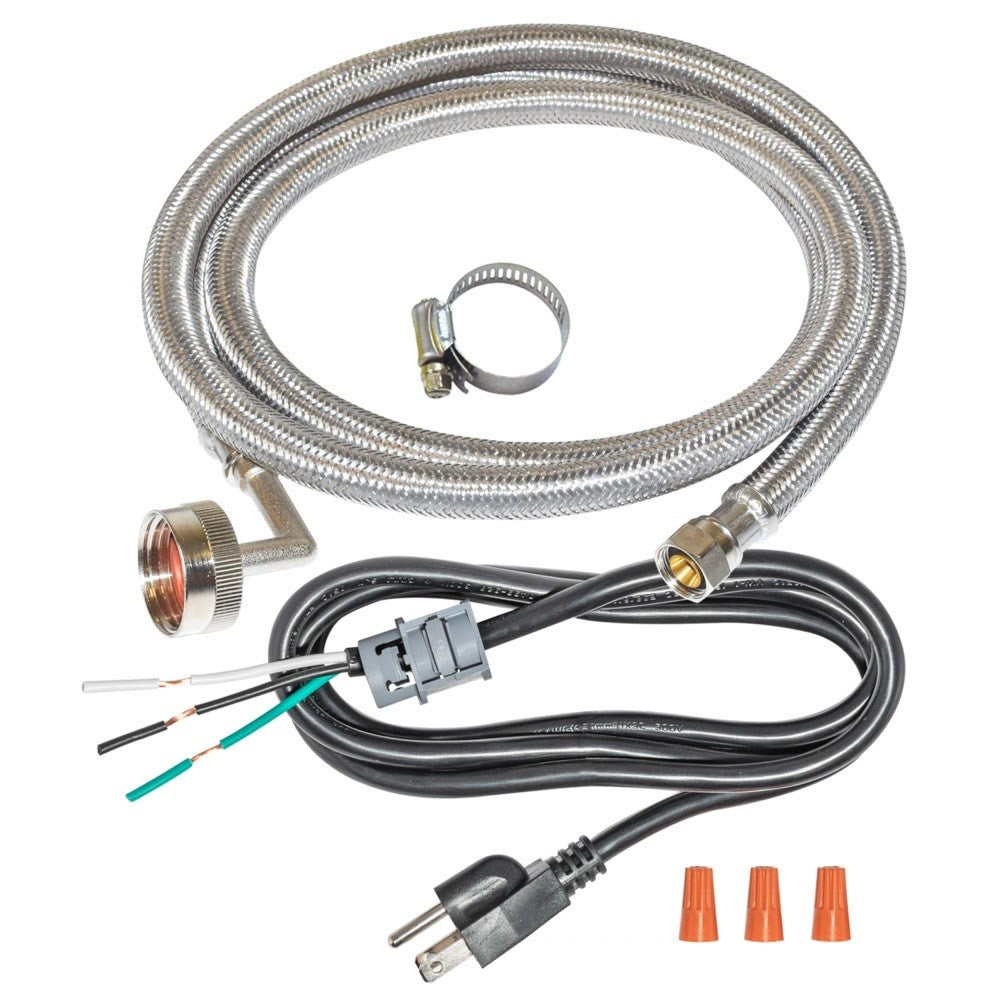

The Eastman dishwasher installation kit provides the components needed for a secure dishwasher hookup. It includes an 8 ft. braided stainless steel supply line with a 3/4 in. hose thread brass elbow and 3/8 in. compression connection, plus a 6 ft. UL-listed power cord with a quick-connect harness, three wire nuts, and a stainless steel hose clamp.
Eastman 98552LA Includes
- (1) Dishwasher Installation Kit
- (1) 8 ft. Braided Stainless Steel Supply Line
- (1) Brass Elbow
- (1) 6 ft. Power Cord with Quick-Connect Harness
- (3) Wire Nuts
- (1) Stainless Steel Hose Clamp
Eastman 98552LA Features
- Braided stainless steel supply line helps resist corrosion, kinking, and crimping

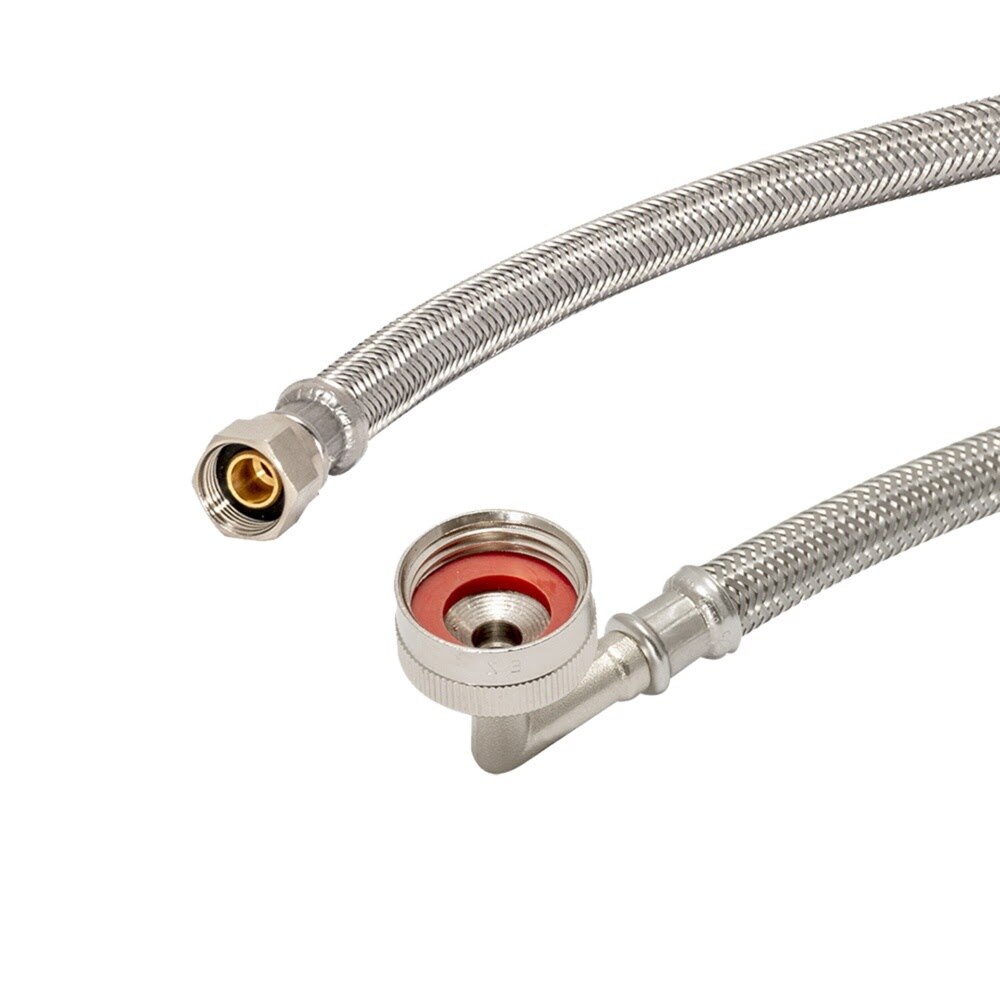

- Brass elbow with 3/4 in. hose thread x 3/8 in. compression connections
- Includes 6 ft. UL-listed power cord with quick-connect harness
- Comes with 3 wire nuts and 1 stainless steel hose clamp
- Lead-free and NSF/ANSI/CAN 372 compliant for potable water use
- Meets ASME A112.18.6 / CSA B125.6 standards
- Working pressure range of 20 to 125 PSI
- Temperature range of 40 F to 160 F
- Backed by a 5-year limited warranty
Eastman 98552LA Specifications
| Type | Dishwasher Installation Kit |
| Supply Line Material | Braided Stainless Steel |
| Fitting Material | Brass |
| Supply Line Length | 8 ft. |
| Cord Length | 6 ft. |
| Inlet Fitting Type | Compression |
| Inlet Size | 3/8 in. |
| Outlet Fitting Type | Hose Thread |
| Outlet Size | 3/4 in. |
| Corrosion Resistant | Yes |
| Flexible | Yes |
| Lead Free | Yes |
| Working Pressure | 20 to 125 PSI |
| Burst Pressure | 1500 PSI |
| Temperature Range | 40 F to 160 F |
| Standards | NSF/ANSI/CAN 372; ASME A112.18.6 / CSA B125.6 |
| Warranty | 5-year limited |
| Package Length | 12.40 in. |
| Package Width | 9.29 in. |
| Package Height | 1.50 in. |
| Shipping Weight | 1.57 lb. |
