Edwards ED9-AC1052 Brake, 10" with 4-Way Die Open Cavity

Edwards AC1052 Description

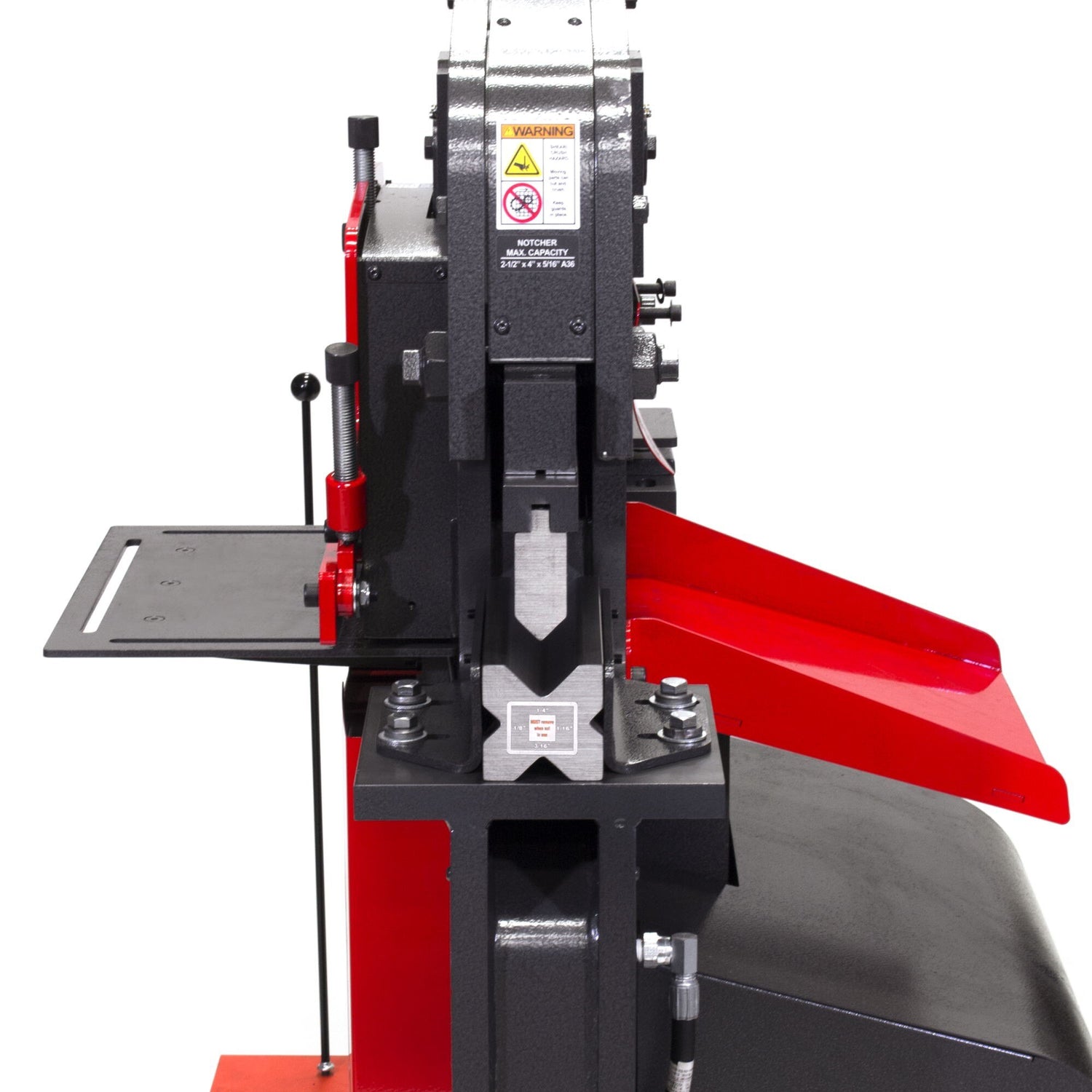

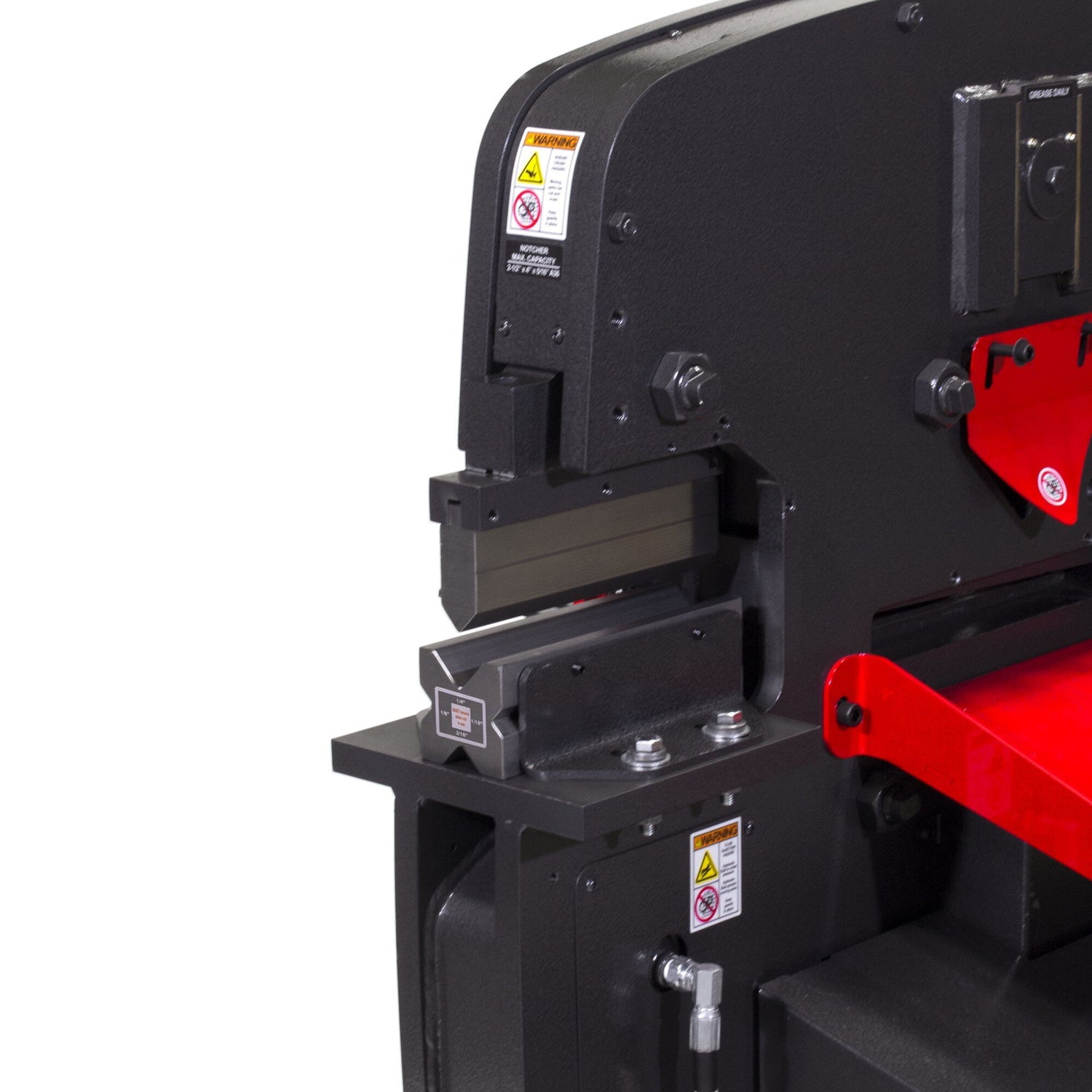

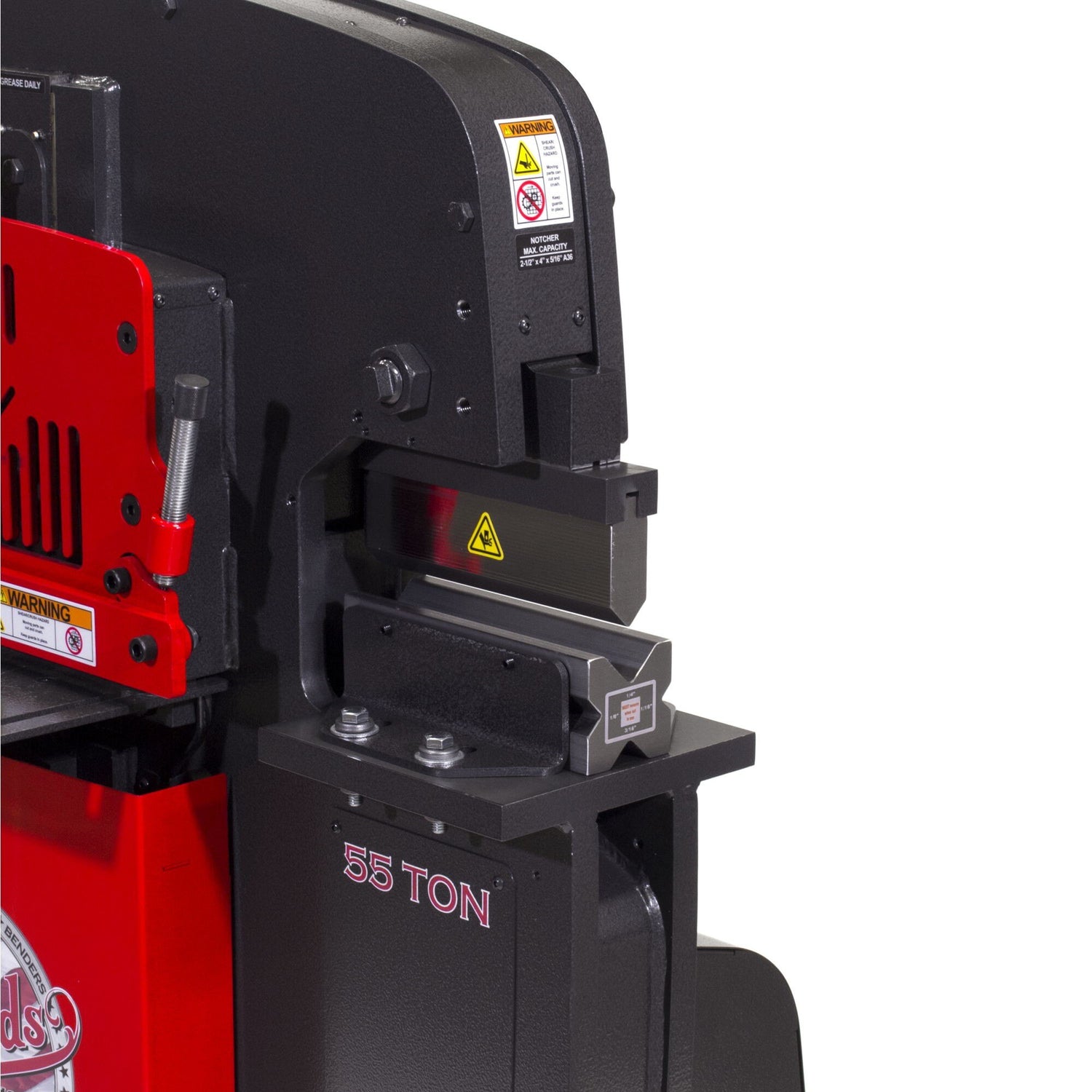

Brackets, frames, pans and tanks are just a few of the applications appropriate for the Edwards Brake Tooling. Available in 7", 8", 10" and 12" lengths (length varies by machine), Brake Tooling includes a standard punch and a four-way die that allows for 1/16", 1/8", 3/16" and 1/4" material to be broke to a 90° angle. The bottom brake die is held with brackets that easily bolt to the mounting table. Repeatable bending is achievable with the combination of Brake Tooling and the Ironworker's electric stroke control.
