Edwards | SKU:
ED9-HAT2530

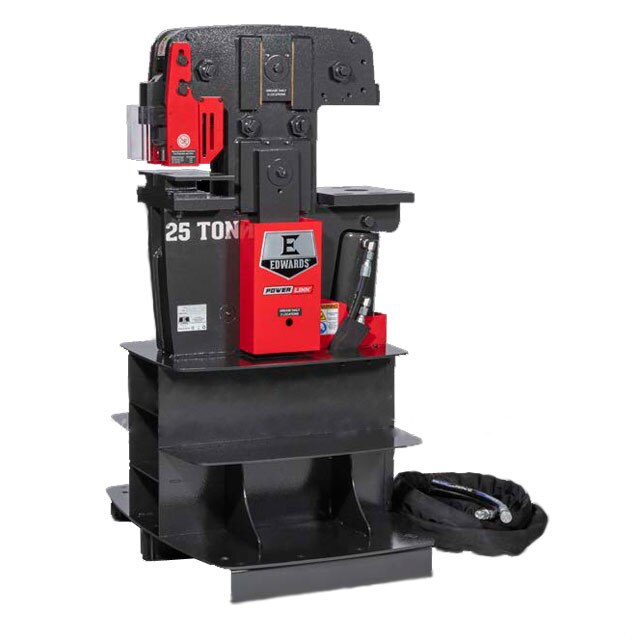

Edwards ED9-HAT2530 25 Ton Dual Station and Portable Power Unit 3 Phase, 460 Volt
Free Shipping
$11,529.00
$13,783.03
Unit price
/
Unavailable
Description
Description
Edwards HAT2530 Includes
- (1) 25 Ton Dual Station
- (1) Portable Power Unit 3 Phase, 460 Volt
Edwards HAT2530 Features
- FLEXIBILITY

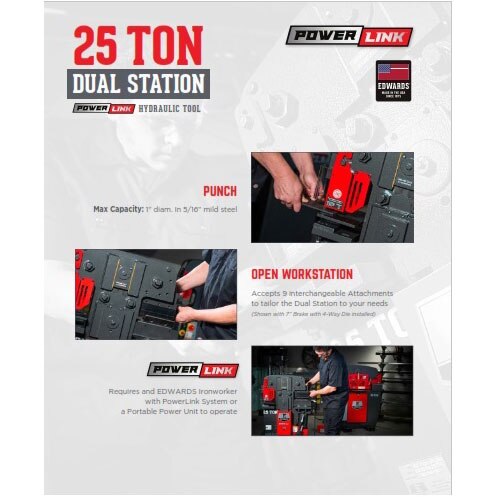

- Two workstations: – Standard (1) – Punch – Open (1) – Customize your 25 Ton Dual Station with optional Attachments
- 9 interchangeable Attachments available to tailor the 25 Ton Dual Station to your needs
- 7 optional Accessories available to increase precision and efficiency
- PRODUCTIVITY
- Requires an EDWARDS Ironworker with PowerLink System or a Portable Power Unit to operate

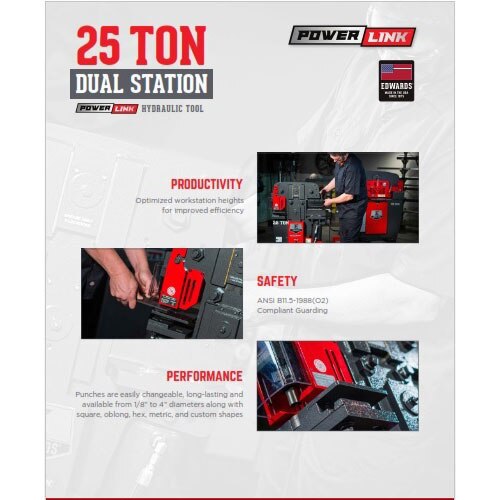

- Optimized workstation heights for improved efficiency
- Electric foot pedal with integrated jog control
- 20’ quick-connect hose for simple “plug & play” operation
- SAFETY
- ANSI B11.5-1988(02) Compliant Guarding
- PERFORMANCE
- Durable, heavy-duty, Made In USA steel construction
- Vertical movement produces even pressure resulting in precise punching and shearing with minimal distortion that results in extended tooling life
- Punches are easily changeable, long-lasting and available from 1/8” to 4” diameters with square, oblong, hex, metric, and custom shapes

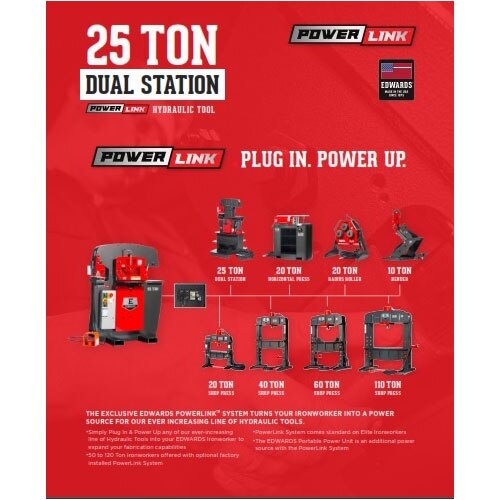

- 25 TON DUAL STATION BUNDLETHE EXCLUSIVE EDWARDS POWERLINKTM SYSTEM TURNS YOUR IRONWORKER INTO A POWER SOURCE FOR OUR EVER INCREASING LINE OF HYDRAULIC TOOLS. Simply Plug In & Power Up any of our ever-increasing line of Hydraulic Tools into your EDWARDS Ironworker to expand your fabrication capabilities 50 to 120 Ton Ironworkers offered with optional factory installed PowerLink System PowerLink System comes standard on Elite Ironworkers The EDWARDS Portable Power Unit is an additional power source with the PowerLink System
Edwards HAT2530 Specifications
Punch Rating (tons) | 25 |
Punch Capacity (in.) | 1 diam. in 5/16 mild steel |
Punch Work Height (in.) | 36-3/4 |
Punch Throat Depth (in.) | 5 |
Punch Stroke (in.) | 1 |
Open Station Work Height (in.) | 34-3/4 |
Open Station Throat Depth (in.) | 5 |
COO | US |
Volt | 460 |
