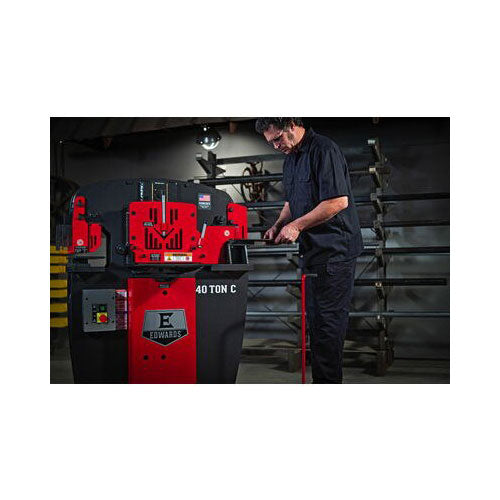

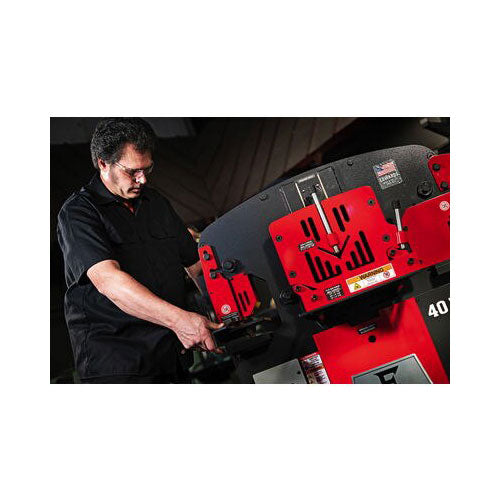

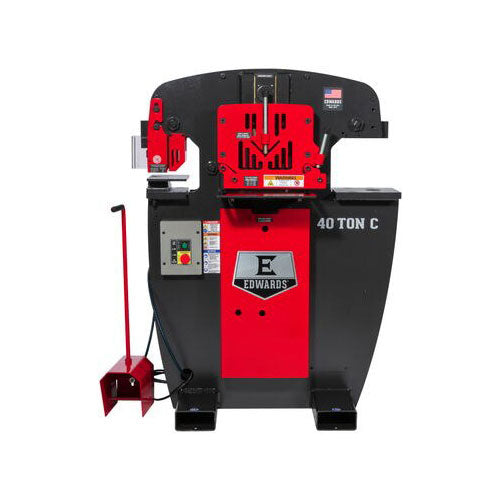

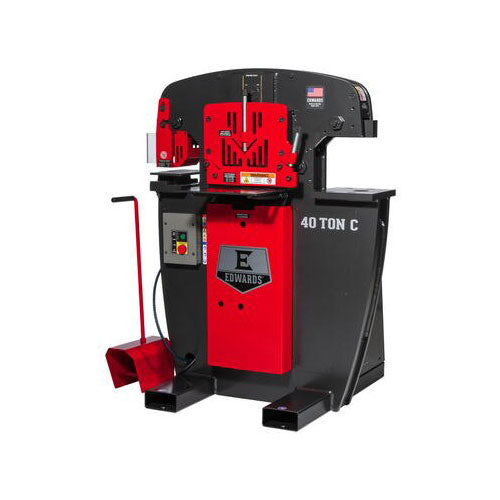

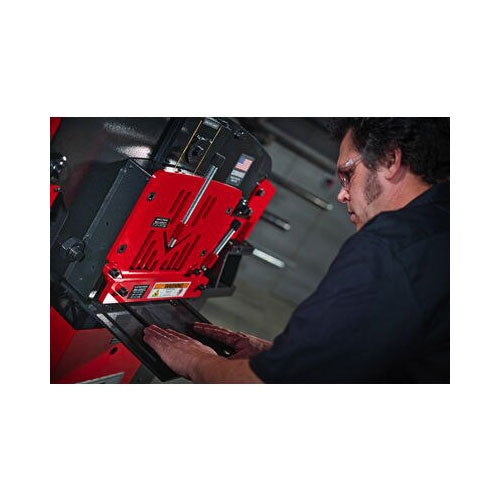

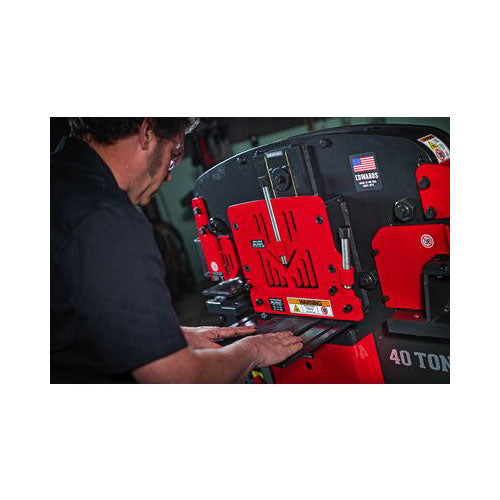

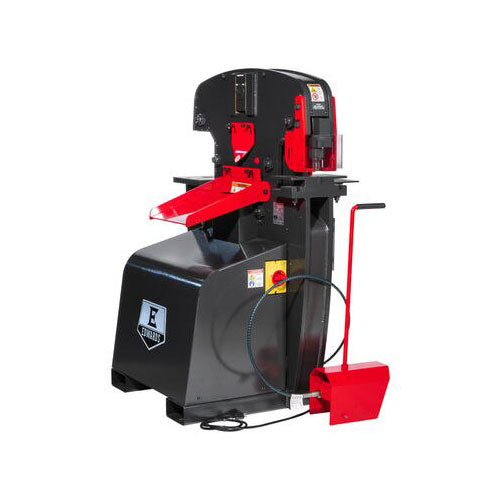

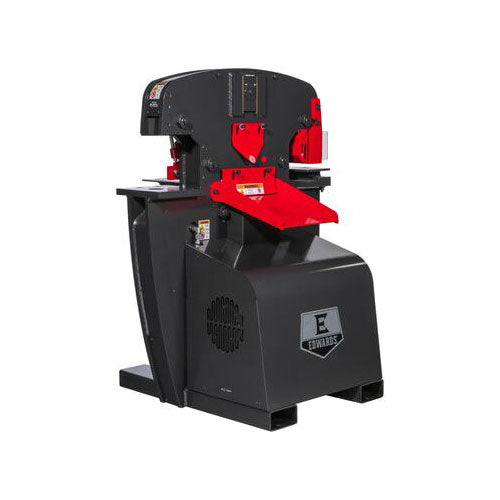

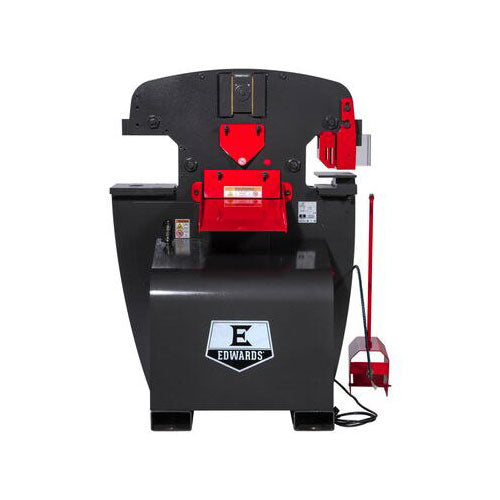

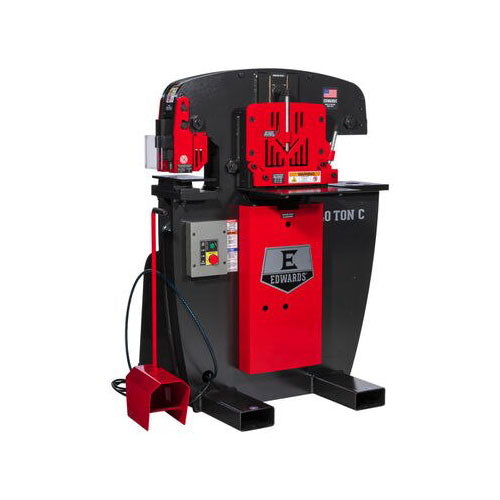

Edwards ED9-IW40C-1P120 40 Ton Ironworker C 1 Phase, 115 Volt
Free Shipping
$12,209.00
$14,825.21
Unit price
/
Unavailable
Description
Description
Edwards IW40C-1P120 Includes
- (4) Stations
- (1) Shear (8 x 1/4 inch capacity bar shear)
- (1) Punching station (1 inch thru 1/2 inch plate)
- (1) Angle shear (3 x 3 x 1/4)
- (1) Open station for optional tooling
Edwards IW40C-1P120 Features
- FLEXIBILITY
- Four workstations: – Standard (3) – Punch, Flat Bar Shear & Angle Shear – Open (1) – Customize your ironworker with 11 optional Attachments
- 11 interchangeable Attachments available to tailor the Ironworker to your needs
- 16 optional Accessories available to increase precision and efficiency
- Operates on 115V power allowing use almost anywhere
- PRODUCTIVITY
- Compact machine that allows for fast and easy transitions between fabrication operations: punch, shear, notch, bend and cope all in one machine
- Optimized workstation heights for improved efficiency
- SAFETY
- ANSI B11.5-1988(02) Compliant Guarding
- ETL Certified Controls
- Integrated Lock-out/Tag-out system with E-Stop for added safety
- PERFORMANCE
- Durable, heavy-duty, Made In USA steel construction
- Vertical movement produces even pressure resulting in precise punching and shearing with minimal distortion that results in extended tooling life
- Punches are easily changeable, long-lasting and available from 1/8” to 4” diameters along with square, oblong, hex, metric, and custom shapes
- Flat Bar Shear blades are made of precision machined, high-quality tool steel with 4 cutting edges for extended life
- Angle Shear blades have 2 corner radii for both thin and thick material and are made of precision tool steel with 2 cutting edges for extended life
Edwards IW40C-1P120 Specifications
| Punch Rating (tons) | 40 Punch |
| Max Capacity (in.) | 1 diam. in 1/2 mild steel |
| Punch Work Height (in.) | 36-1/2 |
| Punch Throat Depth (in.) | 7 |
| Punch Stroke (in.) | 1-5/8 |
| Flat Bar Shear Max Capacity (in.) | 1/4 x 8 3/8 x 6 1/2 x 4 |
| Flat Bar Shear Work Height (in.) | 34-3/4 |
| Flat Bar Shear Max Round Capacity (in.) | 1/2 |
| Flat Bar Shear Max Square Capacity (in.) | 1/2 |
| Angle Shear Max Capacity (in.) | 3 x 3 x 1/4 |
| Angle Shear Work Height (in.) | 40 |
| Open Station Work Height (in.) | 34-1/2 |
| Open Station Throat Depth (in.) | 10-1/2 |
| Power Requirement | 115V |
| Motor (HP) | 2 |
| Amps | 17 |
| Hydraulics (GPM) | 5 |
| Hydraulics (PSI) | 2750 |
| Product Dimensions (in.) | 36-1/8 x 40 x 53 |
| Shipping Dimensions (in.) | 45 x 51 x 46The Edwards 40 Ton C Ironworker is ideally suited for home, farm fabrication and medium-sized job shops. Standard features include a Punch Assembly with Pedestal Die Table, Flat Bar Shear, Angle Shear and a universal open tooling station designed to accept optional Tooling Accessories (link). There are 11 interchangeable Attachments and 16 Accessories available allowing customization of an Ironworker to your needs. |
