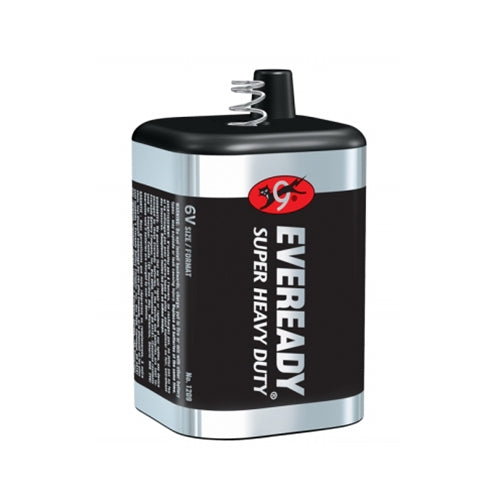

ENERGIZER 1209 SPECIFICATIONS:
Chemical System: Zinc-Manganese Dioxide (Zn/MnO 2)(No Added Mercury or Cadmium)
Designation: ANSI-908D, IEC-4R25
Battery Voltage: 6.0 Volts
Operating Temp: -18ºC to 55ºC (0ºF to 130ºF)
Average Weight: 600 grams (21.2 oz.)
Volume: 492 cubic centimeters (30 cubic inch)
Average Capacity: 11 Ah to 0.8 volts / cell (Rated at 25mA continuous at 21ºC)
Cell: Four No. 60 (size "F") in series
Jacket: Plastic
Terminal: Coil Spring
ENERGIZER 1209 INCLUDES:
* (1)6V hd spring top battery
ENERGIZER 1209 FEATURES:
* INTERNAL RESISTANCE VS. TEMPERATURE The measurement is an approximation of the battery's actual internal resistance. It is sensitive to the loads and operator technique.
* Schedule: Background Load 600 ohms Pulse Load 10 ohms Pulse Duration 1 second
Temperature - Typical Ri (ohms)
45ºC (113ºF)- 0.7
21ºC (70ºF) - 0.9
0ºC (32ºF) - 1.0
-21ºC (-4ºF) - 10.0
Chemical System: Zinc-Manganese Dioxide (Zn/MnO 2)(No Added Mercury or Cadmium)
Designation: ANSI-908D, IEC-4R25
Battery Voltage: 6.0 Volts
Operating Temp: -18ºC to 55ºC (0ºF to 130ºF)
Average Weight: 600 grams (21.2 oz.)
Volume: 492 cubic centimeters (30 cubic inch)
Average Capacity: 11 Ah to 0.8 volts / cell (Rated at 25mA continuous at 21ºC)
Cell: Four No. 60 (size "F") in series
Jacket: Plastic
Terminal: Coil Spring
ENERGIZER 1209 INCLUDES:
* (1)6V hd spring top battery
ENERGIZER 1209 FEATURES:
* INTERNAL RESISTANCE VS. TEMPERATURE The measurement is an approximation of the battery's actual internal resistance. It is sensitive to the loads and operator technique.
* Schedule: Background Load 600 ohms Pulse Load 10 ohms Pulse Duration 1 second
Temperature - Typical Ri (ohms)
45ºC (113ºF)- 0.7
21ºC (70ºF) - 0.9
0ºC (32ºF) - 1.0
-21ºC (-4ºF) - 10.0
