FallTech 82808TP1 Description

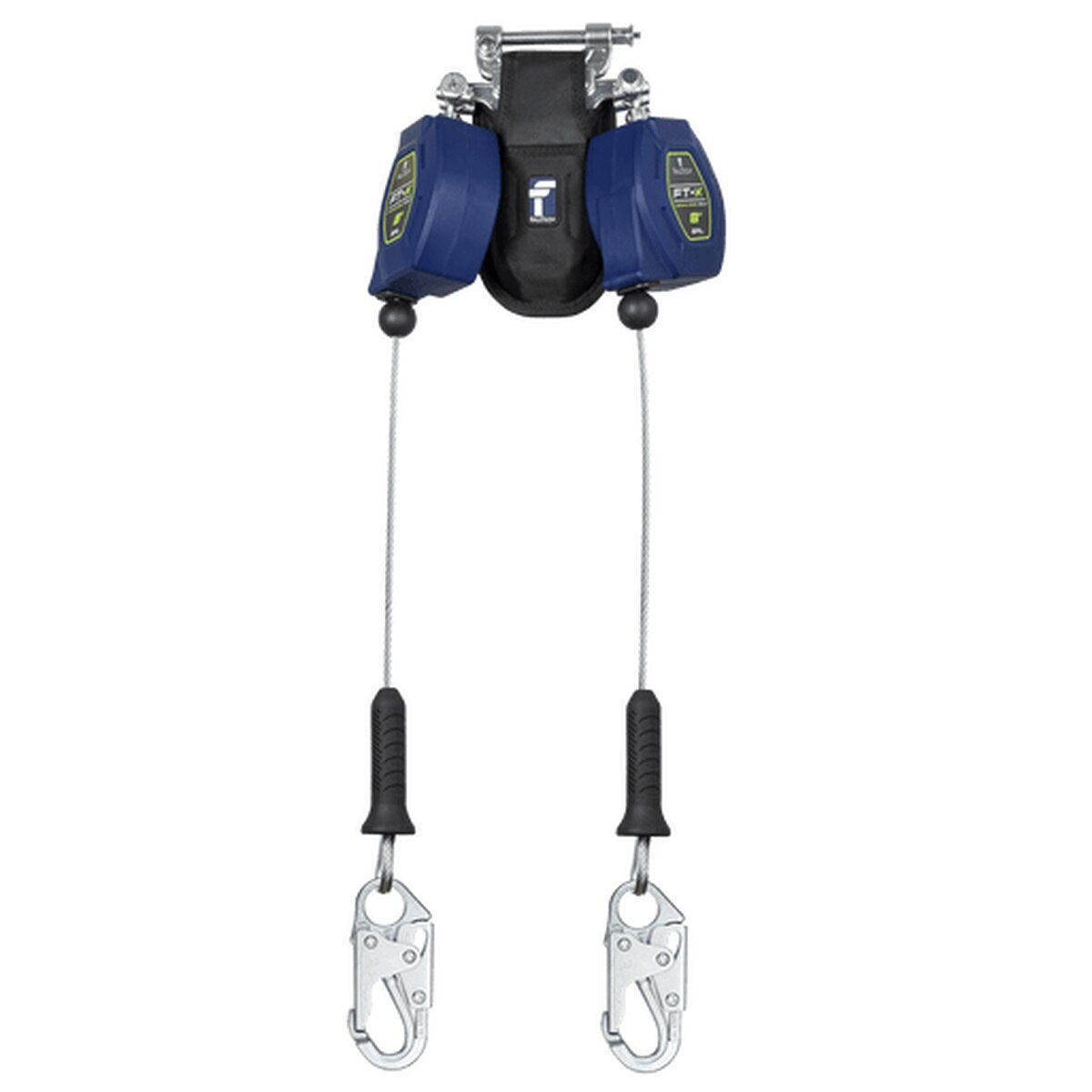

The FallTech FT-X Cable twin-leg Personal SRL-P is a Class 2 leading edge rated self-retracting lifeline featuring an 8 ft galvanized steel wire rope lifeline, steel snap hooks, and SpeedLink field replaceability to help reduce equipment downtime.
FallTech 82808TP1 Includes
- (1) FallTech 82808TP1 FT-X Cable Class 2 Leading Edge Personal SRL-P, Twin-leg (8 ft)
FallTech 82808TP1 Features
- Class 2 SRL-P for leading edge applications
- 8 ft twin-leg configuration for improved mobility and tie-off options
- 3/16 in galvanized steel wire rope lifeline
- Steel snap hook anchorage connectors
- Light effective working weight with less than 5 lb on the back while in use
- Compact design helps align with worker motion for comfort and productivity
- Internal mechanism design minimizes unintentional lockups
- Energy absorber includes fall clearance charts and tables inside the cover
- Suitable for below D-ring tie-off up to 5 ft and leading edge hazards (including steel and precast concrete)
- Rated for workers up to 420 lb including clothes, tools, and gear
- SpeedLink field replaceability of damaged retractable units reduces downtime and cost of ownership
- AXIS enabled for calculating minimum fall clearance using the AXIS safety calculator
- Complies with ANSI Z359.14-2021 Class 2 SRL-P; OSHA 1926.502 and 1910.66; CSA Z259.2.2-2017
FallTech 82808TP1 Specifications
| Product Type | Class 2 Leading Edge SRL-P |
| Configuration | Twin-leg |
| Lifeline Length | 8 ft |
| Lifeline Material | Galvanized steel wire rope |
| Cable Diameter | 3/16 in |
| Static Strength | 3,600 lb min. |
| Max Arrest Force | 1,800 lb |
| Avg Arrest Force | 1,350 lb max. |
| Max Arrest Distance | 42 in |
| ANSI SRL Class/Type | Class 2 SRL-P |
| ANSI User Capacity | 130 to 310 lb max. |
| OSHA User Capacity | 130 to 420 lb max. |
| Energy Absorber Material | Polyester tear-away |
| Anchorage Connector Material | Plated alloy steel |
| Anchorage Connector Strength | 5,000 lb min. static strength with 3,600 lb gate strength |
| Dorsal Connector Type | Dorsal SRL slide connector |
| Dorsal Connector Material | Aluminum alloy |
| Dorsal Connector Strength | 3,600 lb min. |
| Product Weight | 1.8 lb |
| Package Depth | 17 in |
| Package Width | 12 in |
| Package Height | 6 in |
| Package Weight | 16.4 lb |
| Standards | ANSI Z359.14-2021; OSHA 1926.502 and 1910.66; CSA Z259.2.2-2017 |
| UNSPSC | 46182305 |
