Falltech 84108SP1 Description

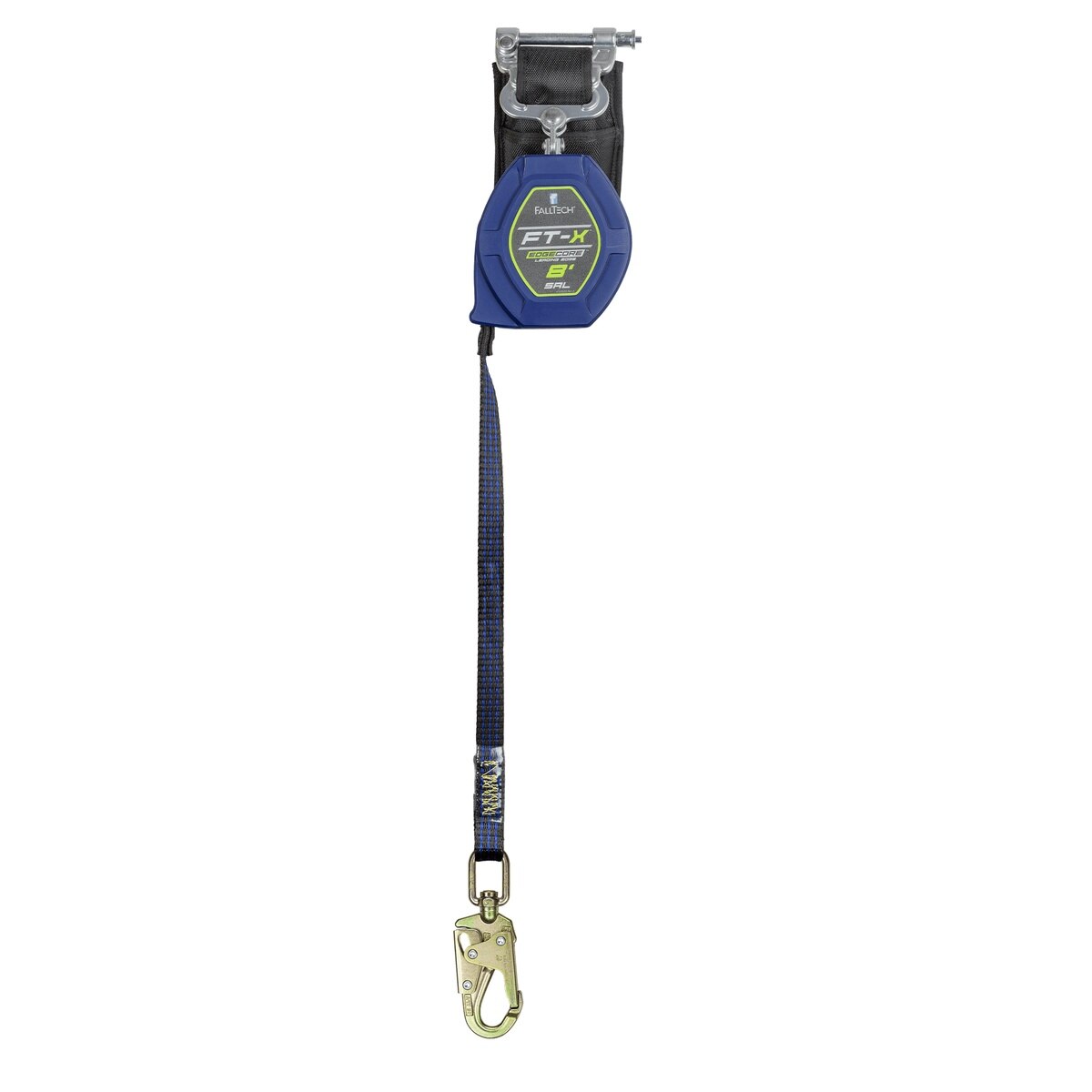

Falltech FT-X EdgeCore Class 2 Leading Edge Personal SRL-P provides an 8 ft synthetic EdgeCore lifeline designed for leading edge applications, featuring a single-leg configuration with a steel swivel snap hook anchorage connector and a dorsal SRL slide connector for secure, compliant fall protection.
Falltech 84108SP1 Includes
- (1) 8 ft FT-X EdgeCore Class 2 Leading Edge Personal SRL-P, Single-leg with Steel Swivel Snap Hook
Falltech 84108SP1 Features
- 8 ft Class 2 leading edge personal SRL-P in a single-leg configuration
- EdgeCore lifeline constructed from Kevlar cables with a UV-resistant composite jacket to reduce weight versus typical 3/16 in galvanized cable designs
- Compact design helps align the SRL with worker motion for improved comfort and productivity
- Internal mechanism design helps minimize unintentional lockups for smoother movement
- Energy absorber cover includes fall clearance charts and tables
- Suitable for below D-ring tie-off up to 5 ft and leading edge exposures including steel and precast concrete
- AXIS enabled to calculate minimum fall clearance with the AXIS safety calculator
- Rated for workers up to 420 lb (including clothes, tools, and gear)
- Complies with ANSI Z359.14-2021 Class 2 SRL-P and CSA Z259.2.2-2017
Falltech 84108SP1 Specifications
| Product Type | Class 2 Leading Edge SRL-P |
| SRL Length | 8 ft |
| Configuration | Single-leg |
| Anchorage Connector | Steel swivel snap hook (plated alloy steel) |
| Dorsal Connector | Dorsal SRL slide connector (aluminum alloy) |
| Lifeline Material | EdgeCore synthetic lifeline (Kevlar cables with UV-resistant composite jacket) |
| Energy Absorber Material | Polyester tear-away |
| ANSI SRL Class/Type | Class 2 SRL-P |
| Static Strength | 3,600 lb min. |
| Max. Arrest Force | 1,800 lb |
| Avg. Arrest Force | 1,350 lb max. |
| Max. Arrest Distance | 42 in |
| ANSI User Capacity | 130 to 310 lb max. |
| OSHA User Capacity | 130 to 420 lb max. |
| Standards | ANSI Z359.14-2021; OSHA 1926.502 and 1910.66; CSA Z259.2.2-2017 |
| Product Weight | 1.8 lb |
| UNSPSC | 46182305 |
