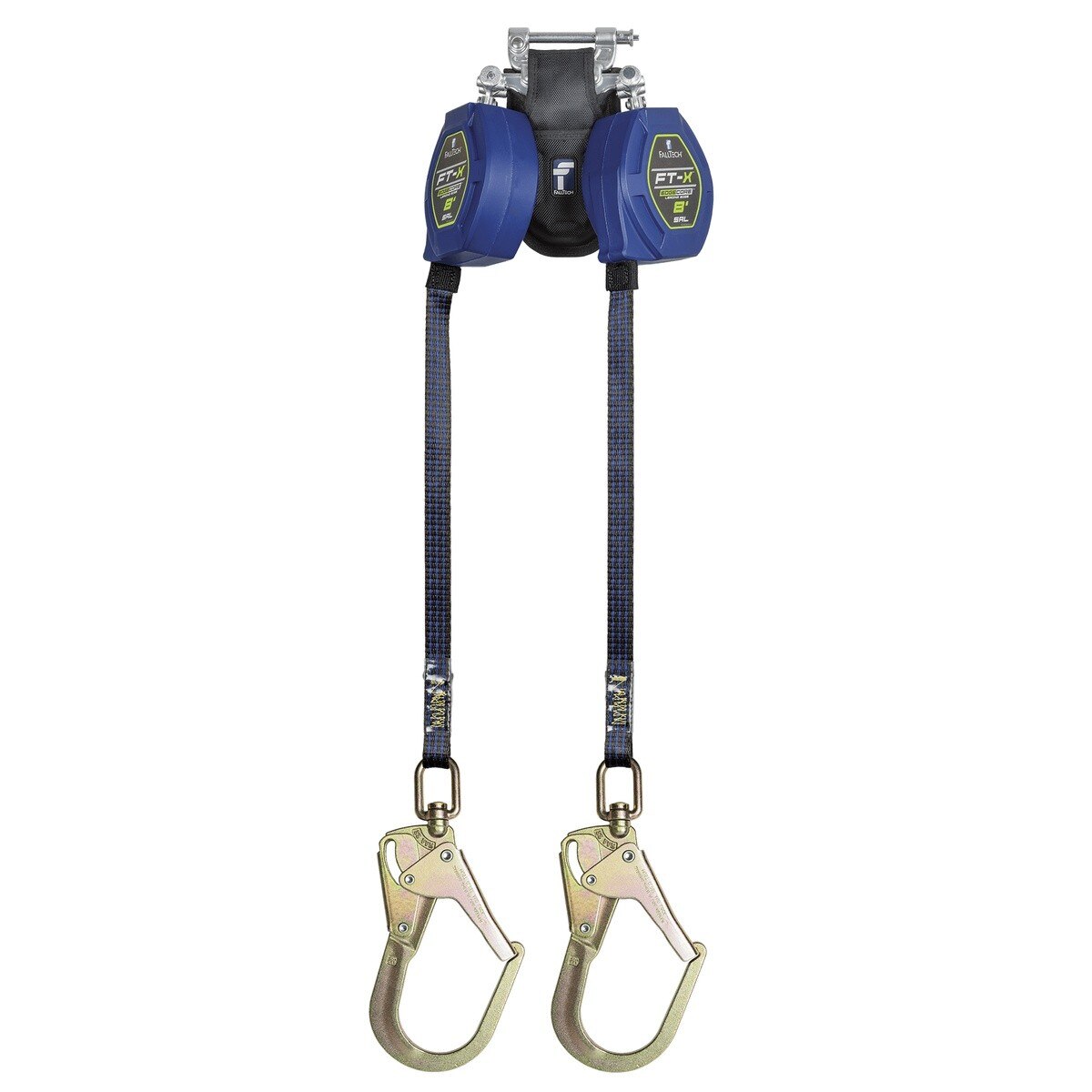

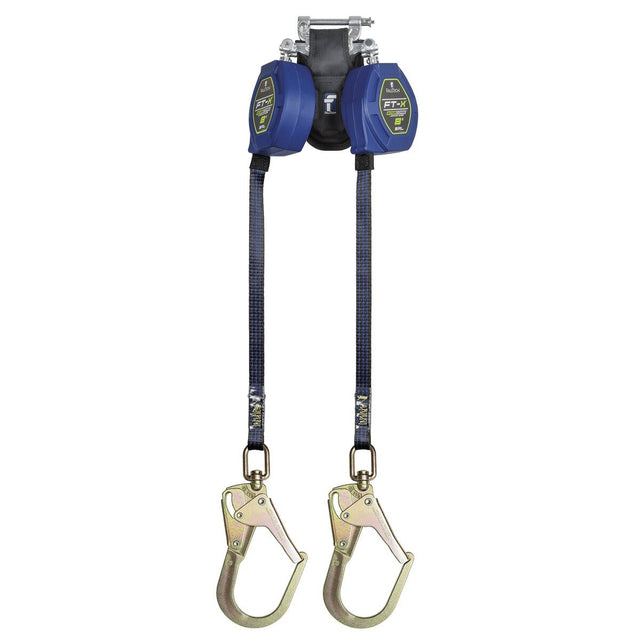

Falltech 84108TP3 Description
The Falltech FT-X EdgeCore personal SRL-P is an 8 ft Class 2 leading-edge, twin-leg self-retracting lifeline designed for demanding jobsite tie-off, including below D-ring tie-off and leading edge exposures. It features an EdgeCore synthetic lifeline and SpeedLink field replaceability to help reduce downtime and overall cost of ownership.
Falltech 84108TP3 Includes
- (1) 8 ft FT-X EdgeCore Class 2 Leading Edge Personal SRL-P, Twin-leg with Steel Swivel Rebar Hooks with SpeedLink (84108TP3)
Falltech 84108TP3 Features
- 8 ft Class 2 leading edge personal SRL-P configuration
- Twin-leg design with steel swivel rebar hooks
- EdgeCore synthetic lifeline constructed with Kevlar cables and a UV-resistant composite jacket
- Internal mechanism designed to minimize unintentional lockups for improved mobility
- Energy absorber cover includes fall clearance charts and tables
- Suitable for below D-ring tie-off up to 5 ft and leading edge exposures including steel and precast concrete
- SpeedLink field replaceability of damaged retractable units to reduce downtime
- Rated for workers up to 420 lb (including clothing, tools, and gear)
- AXIS enabled for fall clearance calculations using the AXIS safety calculator
- Complies with ANSI Z359.14-2021 Class 2 SRL-P and applicable OSHA requirements
Falltech 84108TP3 Specifications
| Product Type | Class 2 Leading Edge SRL-P |
| SRL Length | 8 ft |
| Configuration | Twin-leg |
| Anchorage Connector | Steel swivel rebar hooks (plated alloy steel) |
| Dorsal Connector | Dorsal SRL slide connector (aluminum alloy) |
| Lifeline Material | EdgeCore synthetic lifeline (Kevlar cables with UV-resistant composite jacket) |
| Energy Absorber Material | Polyester tear-away |
| Static Strength | 3,600 lb min. |
| Avg. Arrest Force | 1,350 lb max. |
| Max. Arrest Force | 1,800 lb |
| Max. Arrest Distance | 42 in |
| ANSI User Capacity | 130 to 310 lb max. |
| OSHA User Capacity | 130 to 420 lb max. |
| Standards | ANSI Z359.14-2021; OSHA 1926.502 and 1910.66; CSA Z259.2.2-2017 |
Toolup Part # :
784264
