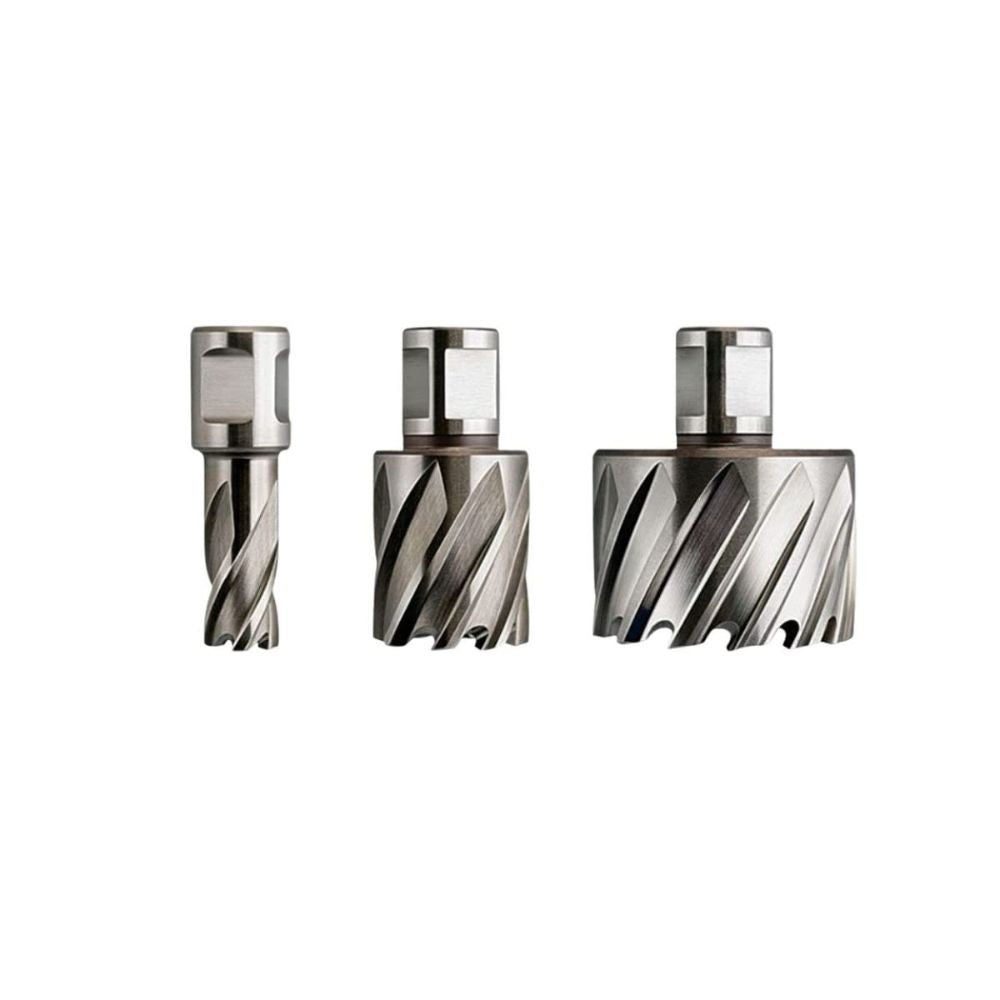

Fein 63134222003 8750S, 7/8" x 3" HSS Nova Annular Cutter
Description
Description
Fein 63134222003 Description
The Jancy Slugger uncoated, high-speed steel metric annular cutter with 3” depth and a 3/4” annular cutter shank is used to create metric-sized through holes as deep as 1” in a range of materials, with best performance in mild steel and structural steel. An annular cutter removes only the circumference of a through hole (extending through the workpiece), releasing the central material as a slug when the hole has been cut. The center-free design of the tool results in energy efficiency and reduced cycle time: the operator can produce holes three to five times faster than with a conventional twist drill that must convert the entire hole into chips. In addition, this tool’s multiple cutting edges can create an accurate, burr-free hole that minimizes the need for secondary operations such as pre-drilling and reaming.
Fein 63134222003 Includes
- (1) Annular Cutter
Fein 63134222003 Features
- Drill holes 3 times faster than twist drills
- Drill unique and curved surfaces
- Allow overlap cuts on existing holes
- Produce reamed quality burr-free holes
- Coolant fed cutting edges
- Produces solid slug
- Reduce machine size and horsepower requirements
- Manufactured with C.N.C. accuracy
- Resharpenable cutting edges
- Eliminate time consuming, costly pilot holes and step drilling
- Made from (M2) High Speed Steel for long service life
- 3/4 in. Weldon shank allows cutter to be used with other competitive magnetic drills
Fein 63134222003 Specifications
| Cutter Diameter | 7/8" |
| Shank Diameter | 3/4" |
| Maximum Cutting Depth | 3" |
| Stack Cut Teeth | Yes |
| Pilot Pin Included | No |
| Requires Pilot Pin | 16005 |
| Material | High Speed Steel |
| Shank Type | Weldon |
| Application | Aluminum and Other Non-Ferrous Metals |
