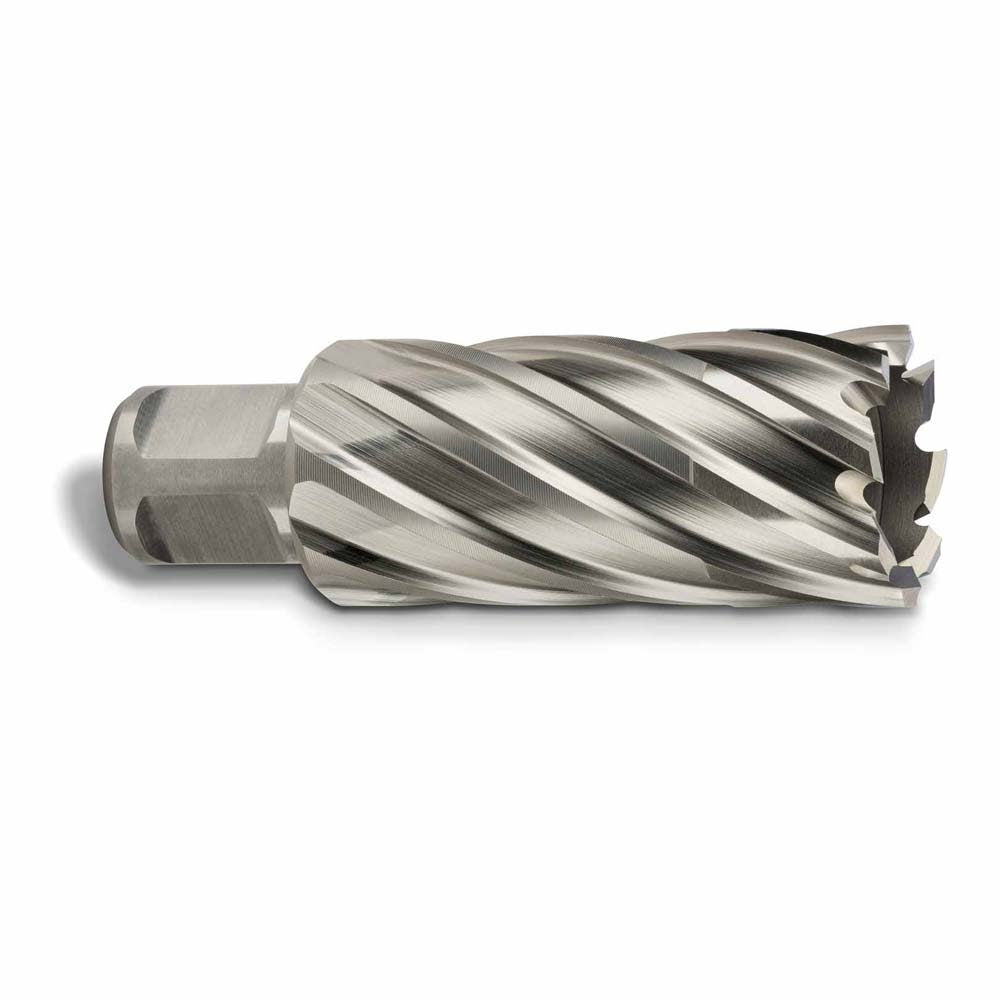

Fein 63134333042 1-5/16" x 2" HSS Annular Cutter 3/4" Straight Shank with Pilot Pin
Description
Description
Fein 63134333042 Description
The Jancy Slugger uncoated, high-speed steel annular cutter with 2” depth and a 3/4” annular cutter shank is used to create through holes as deep as 2” in a range of materials, with best performance in mild steel and structural steel. An annular cutter removes only the circumference of a through hole (extending through the workpiece), releasing the central material as a slug when the hole has been cut. The center-free design of the tool results in energy efficiency and reduced cycle time: the operator can produce holes three to five times faster than with a conventional twist drill that must convert the entire hole into chips. In addition, this tool’s multiple cutting edges can create an accurate, burr-free hole that minimizes the need for secondary operations such as pre-drilling and reaming.
Fein 63134333042 Includes
- (1) Annular Cutter
- (1) Centering Pin
Fein 63134333042 Features
- Drill holes 3 times faster than twist drills
- Drill unique and curved surfaces
- Allow overlap cuts on existing holes
- Produce reamed quality burr-free holes
- Coolant fed cutting edges
- Produces solid slug.
- Reduce machine size and horsepower requirements
- Manufactured with C.N.C. accuracy
- Resharpenable cutting edges
- Eliminate time consuming, costly pilot holes and step drilling
Fein 63134333042 Specifications
| Material | High Speed Steel (M2) |
| Dimeter | 1-5/16" |
| Shank Diameter | 3/4" |
| Drilling Depth | 2" |
| Use Fein Pilot # | 16004 |
