Fein 71161565090 Description
The Fein ASCM 18-4 QMP AS cordless hammer drill/driver top set delivers high torque performance with a 4-speed brushless motor, QuickIN accessory interface, and selectable hammer mode for drilling in masonry up to 1/2 in. Includes a CORE 18V 4.0Ah battery, rapid charger, QuickIN accessories, and L-BOXX storage for jobsite readiness.

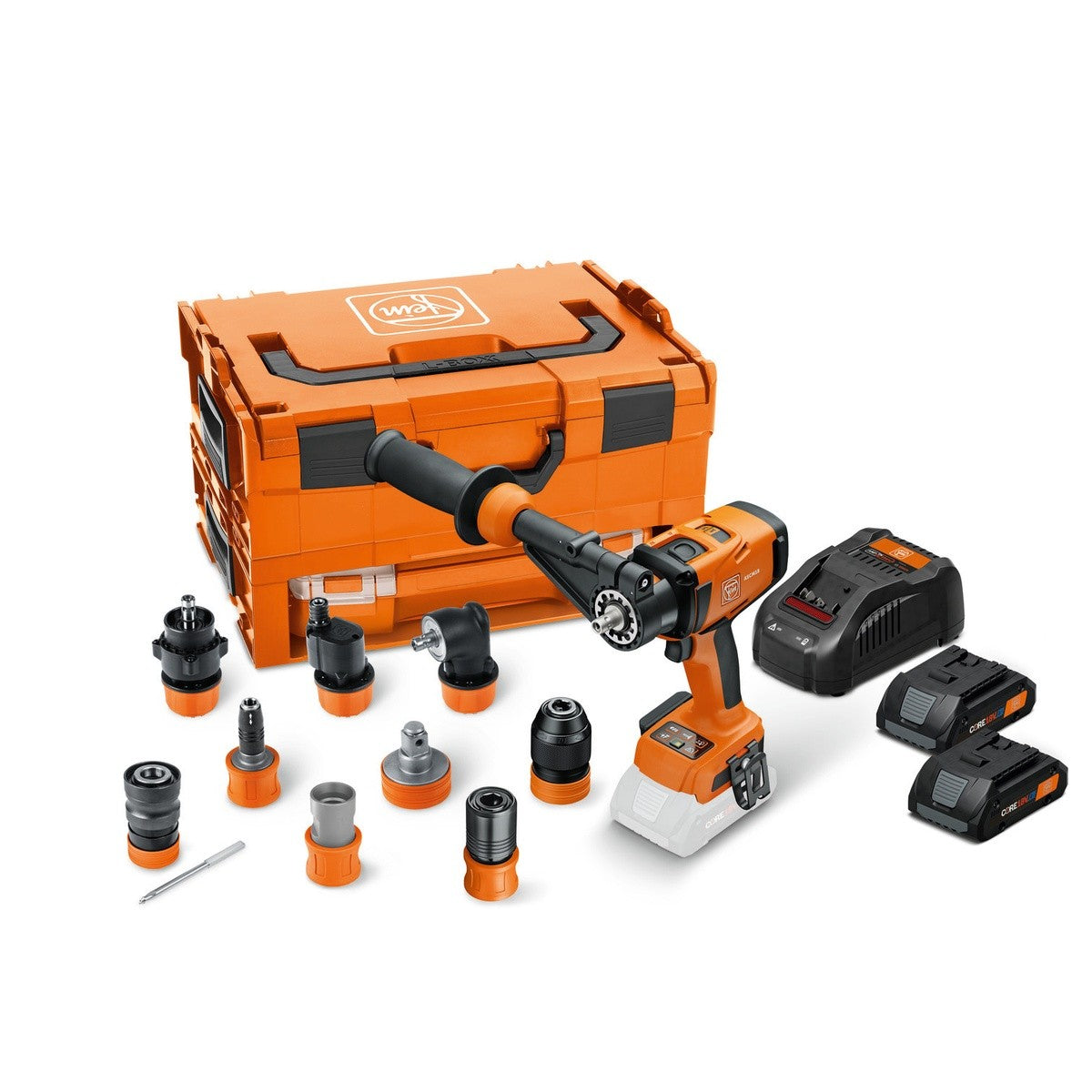

Fein 71161565090 Includes

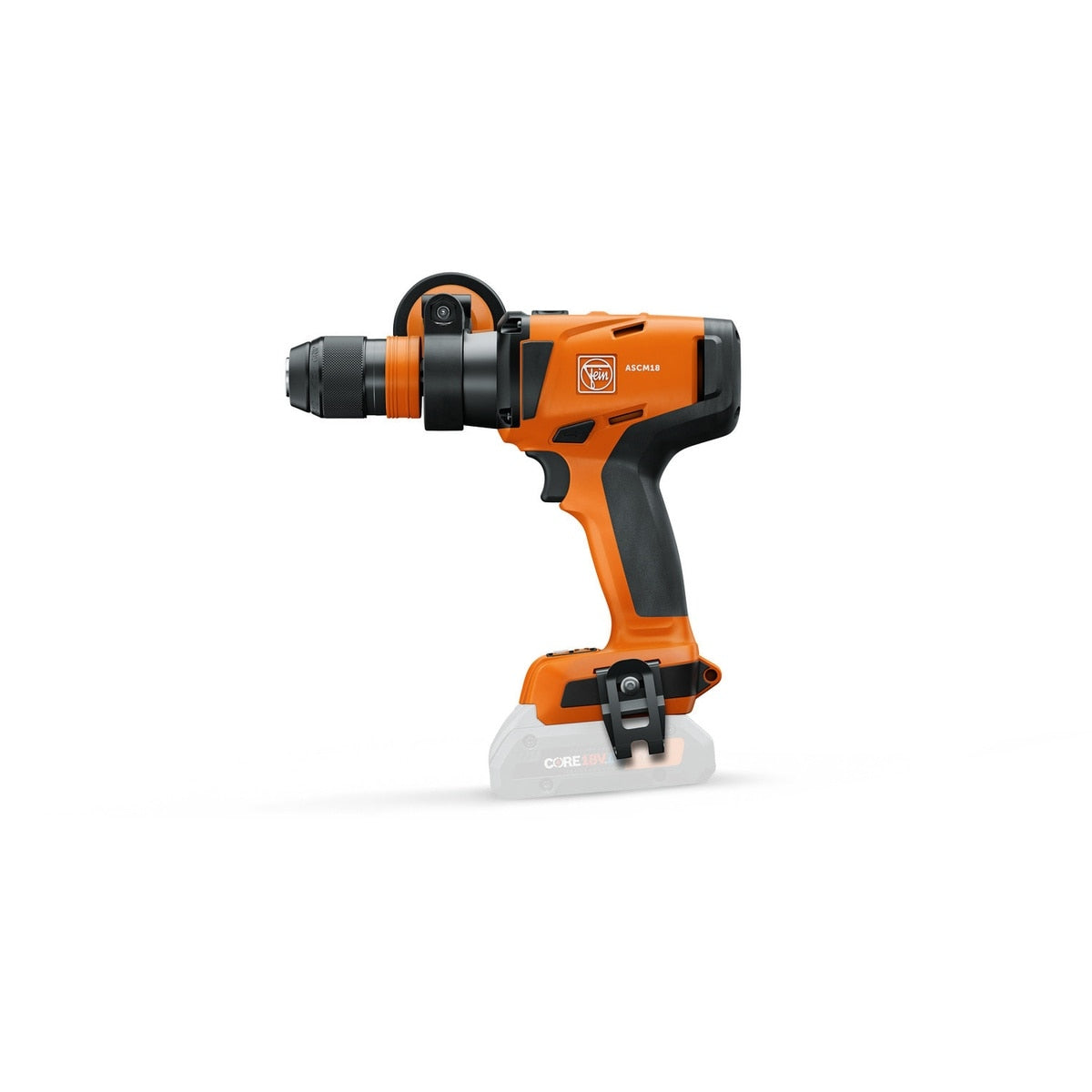

- (1) ASCM 18-4 QMP AS Cordless Hammer Drill/Driver (with handle, belt clip, magnetic bit holder)
- (1) CORE 18V 4.0Ah Battery Pack
- (1) GAL 1880 CV AS Rapid Charger
- (1) QuickIN Accessory Set (8 Pieces)
- (1) Tool Case (L-BOXX 136)
- (1) i-BOXX 72
- (1) i-BOXX Rack
Fein 71161565090 Features
- Selectable hammer function for drilling in stone and masonry up to 1/2 in.
- Brushless FEIN PowerDrive motor designed for high performance and long service life
- 4-speed gearbox for application versatility
- High torque output up to 1,150 in/lb
- QuickIN solid metal drill chuck with carbide jaws and 1,062 in/lb clamping force
- Electronic torque setting with 15+1 steps
- Intuitive control panel with dimmable LED work light
- Includes magnetic bit holder and belt clip
- QuickIN accessory set supports drilling, driving, tapping, and angled or offset work
- Over screw driving function helps prevent screws from driving too deep into wood
- Restart protection and electronic overload protection for safer operation
- Compatible with Bosch Professional 18V batteries (since 2008) and AMPShare batteries
- COOLPACK 2.0 technology supports longer battery service life
- L-BOXX system included for organized transport and storage
Fein 71161565090 Specifications
| Tool Category | Cordless Drill/Drivers |
| Battery Voltage | 18 V |
| Battery Interface | 18 V AMPShare |
| Battery Capacity | 4.0 Ah |
| Motor Type | Brushless |
| Gearbox | 4-speed |
| Accessory Interface | QuickIN |
| No Load Speed (RPM) | 430 / 850 / 2000 / 4000 |
| Impacts per Minute (IPM) | 6450 / 12750 / 30000 / 60000 |
| Max Torque (Hard/Soft) | 1,151 in/lb (130 Nm) (620 in/lb (70 Nm) / 443 in/lb (50 Nm)) |
| Torque Steps | 15 + 1 |
| Chuck Capacity | 1/16 in to 1/2 in (1.5 mm to 13 mm) |
| Fastening Capacity | 3/8 in x 15-3/4 in (10 x 400 mm) |
| Drilling Capacity (Steel Twist Drill) | 1/2 in (13 mm) |
| Holesaw Capacity (Wood) | 2-3/8 in (60 mm) |
| Capacity in Stone | 1/2 in (13 mm) |
| Tapping Capacity | 1/2 in (M14) |
| Tool Weight (Without Battery) | 3.09 lb (1.40 kg) |
| Materials | Metal and Plastic |
| Country of Origin | DE |
| Product Length (in) | 18.897 |
| Product Width (in) | 12.598 |
| Product Height (in) | 5.511 |
| Shipping Weight (lb) | 9.03 |
