INCLUDES:
• (1) Magnetic Base Drill - 2" Capacity
• (1) Coolant Tank
• (1) Safety Strap
• (1) Chip Hook
• (1) Pilot Pin 4 1/8 in (105 mm)
• (1) Chip Guard
• (1) Drift
• (1) Tool Case
FEATURES:
• Simple and error-proof control concept in the operator's field of view.
• Double drill motor guides enable use of the longest annular cutters.
• Reversible
• Electronic speed control.
• High-power motor with stable speed.
• High magnetic holding force.
• A Convenient magnetic holding force indicator supports the safe positioning of the tool.
• Integrated coolant tank ensures high core drill tool life.
• Control pads in the field of view.
• * optional using accessory.
• ** only in manual machine operation
SPECIFICATIONS:
• Power consumption: 1,200 W
• Power output: 610 W
• Load speed: 1st gear: 130 - 260 rpm
• Load speed: 2nd gear: 260 - 520 rpm
• Tool mount: MT 3
• Carbide cutter max. dia.: 2 [50] in[mm]
• HSS cutter max. dia.: 1-9/16 [40] in[mm]
• Twist drill max. dia.: 7/8 [23] in[mm]
• Tapping: M 16
• Max. countersinking dia.: 2 [50] in[mm]
• Reaming max. dia.: 7/8 [23] in[mm]
• Cutter holder: 3/4" straight shank
• Cutter change: tool-free
• Stroke: 5-11/16 [145] in[mm]
• Total stroke range: 12-3/8 [315] in[mm]
• Power Source: Corded Electric

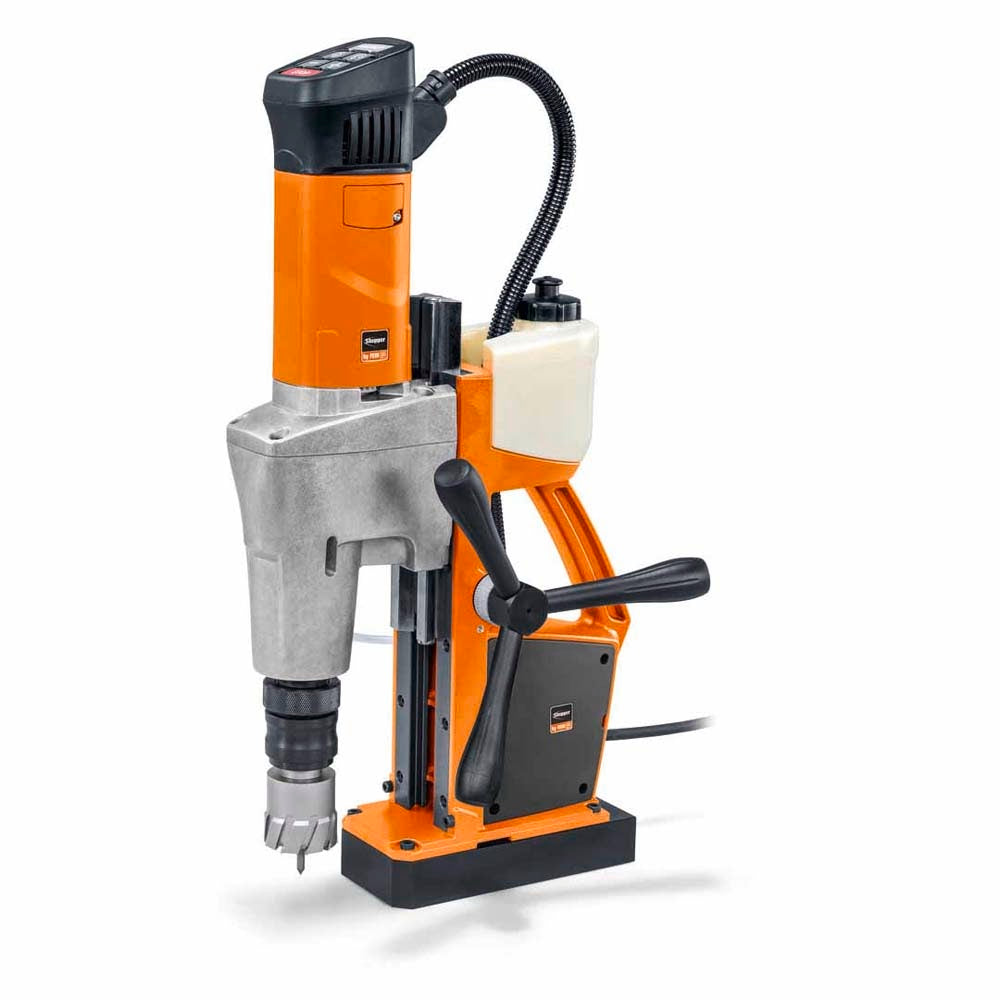

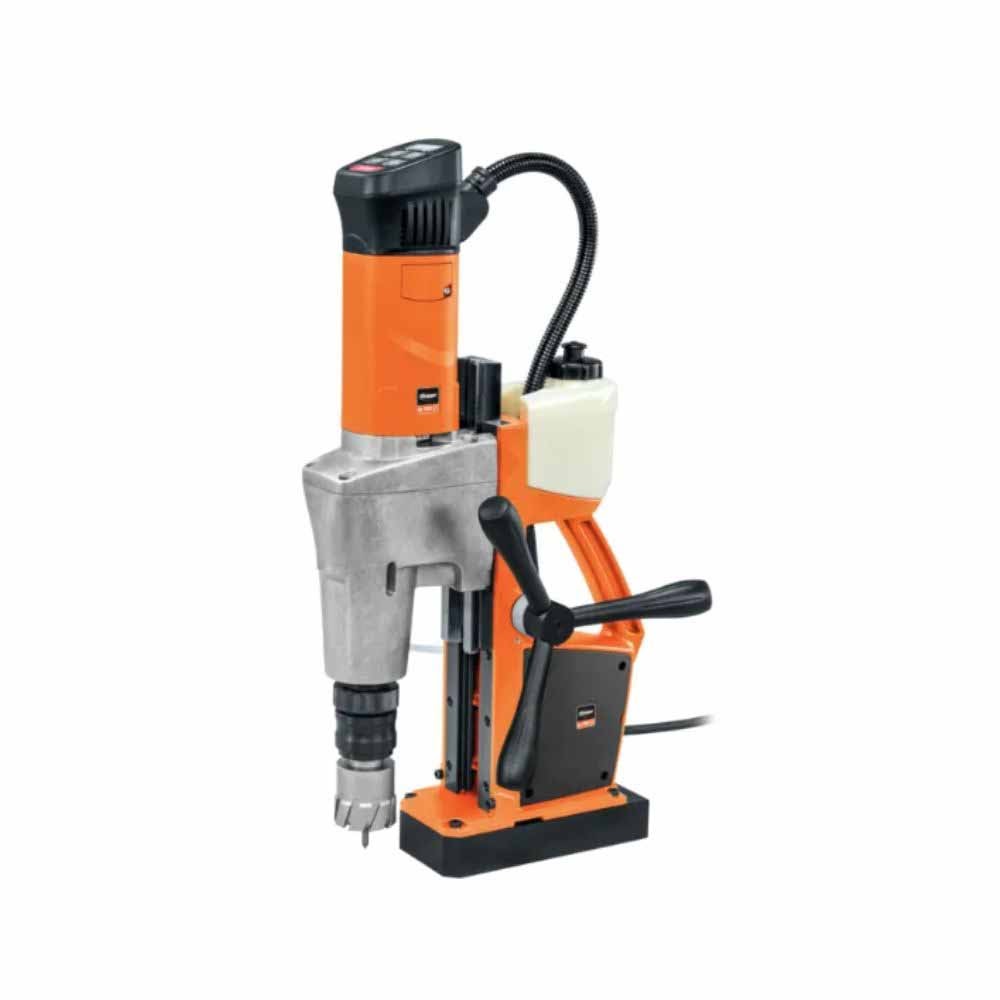

The JCM 200U Mag Drill Unit can handle annular cutters up to 2 inches (50mm) in diameter. With a 2-speed gearbox, it provides great utility for both workshop and construction site operations, ensuring flexibility and efficiency. Its small design and two drill motor guides assure consistent performance, making it suitable for use in a variety of professional scenarios.
• (1) Magnetic Base Drill - 2" Capacity
• (1) Coolant Tank
• (1) Safety Strap
• (1) Chip Hook
• (1) Pilot Pin 4 1/8 in (105 mm)
• (1) Chip Guard
• (1) Drift
• (1) Tool Case
FEATURES:
• Simple and error-proof control concept in the operator's field of view.
• Double drill motor guides enable use of the longest annular cutters.
• Reversible
• Electronic speed control.
• High-power motor with stable speed.
• High magnetic holding force.
• A Convenient magnetic holding force indicator supports the safe positioning of the tool.
• Integrated coolant tank ensures high core drill tool life.
• Control pads in the field of view.
• * optional using accessory.
• ** only in manual machine operation
SPECIFICATIONS:
• Power consumption: 1,200 W
• Power output: 610 W
• Load speed: 1st gear: 130 - 260 rpm
• Load speed: 2nd gear: 260 - 520 rpm
• Tool mount: MT 3
• Carbide cutter max. dia.: 2 [50] in[mm]
• HSS cutter max. dia.: 1-9/16 [40] in[mm]
• Twist drill max. dia.: 7/8 [23] in[mm]
• Tapping: M 16
• Max. countersinking dia.: 2 [50] in[mm]
• Reaming max. dia.: 7/8 [23] in[mm]
• Cutter holder: 3/4" straight shank
• Cutter change: tool-free
• Stroke: 5-11/16 [145] in[mm]
• Total stroke range: 12-3/8 [315] in[mm]
• Power Source: Corded Electric
The JCM 200U Mag Drill Unit can handle annular cutters up to 2 inches (50mm) in diameter. With a 2-speed gearbox, it provides great utility for both workshop and construction site operations, ensuring flexibility and efficiency. Its small design and two drill motor guides assure consistent performance, making it suitable for use in a variety of professional scenarios.
Toolup Part # :
747836
