Fein | SKU:
72704661120

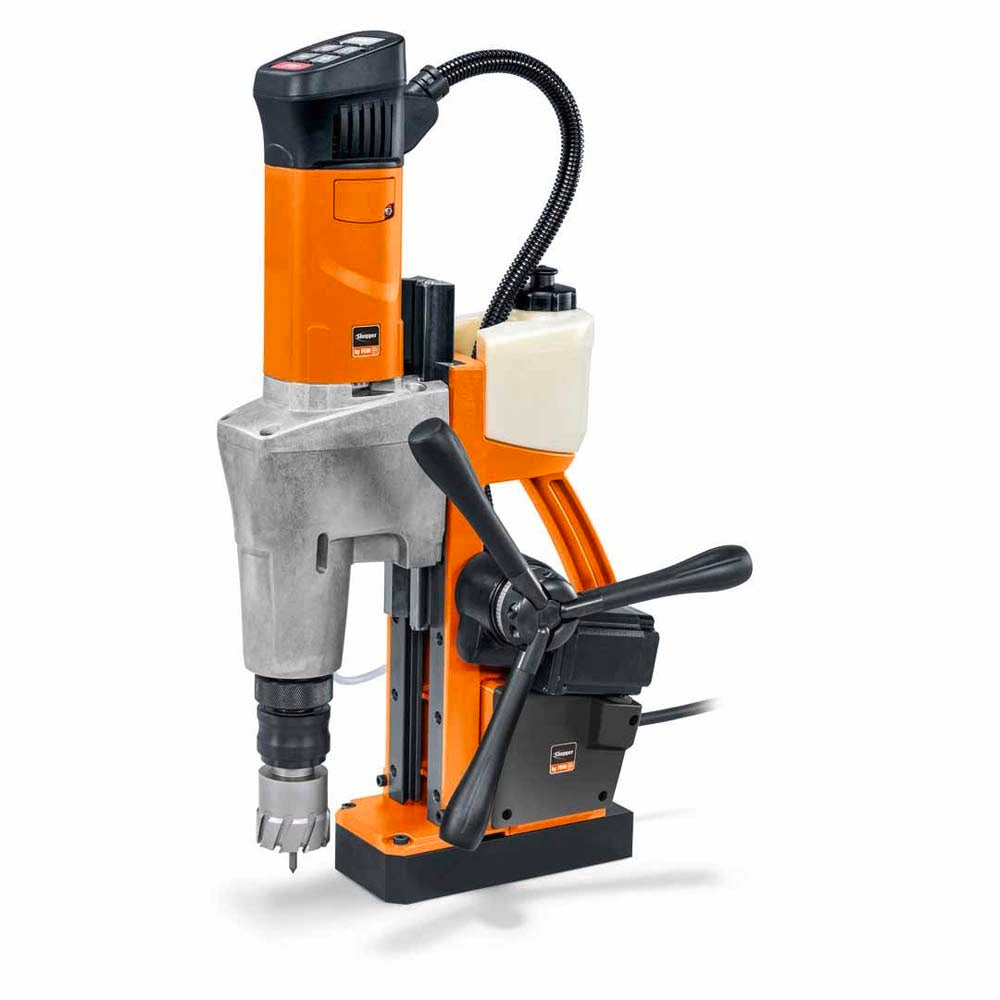

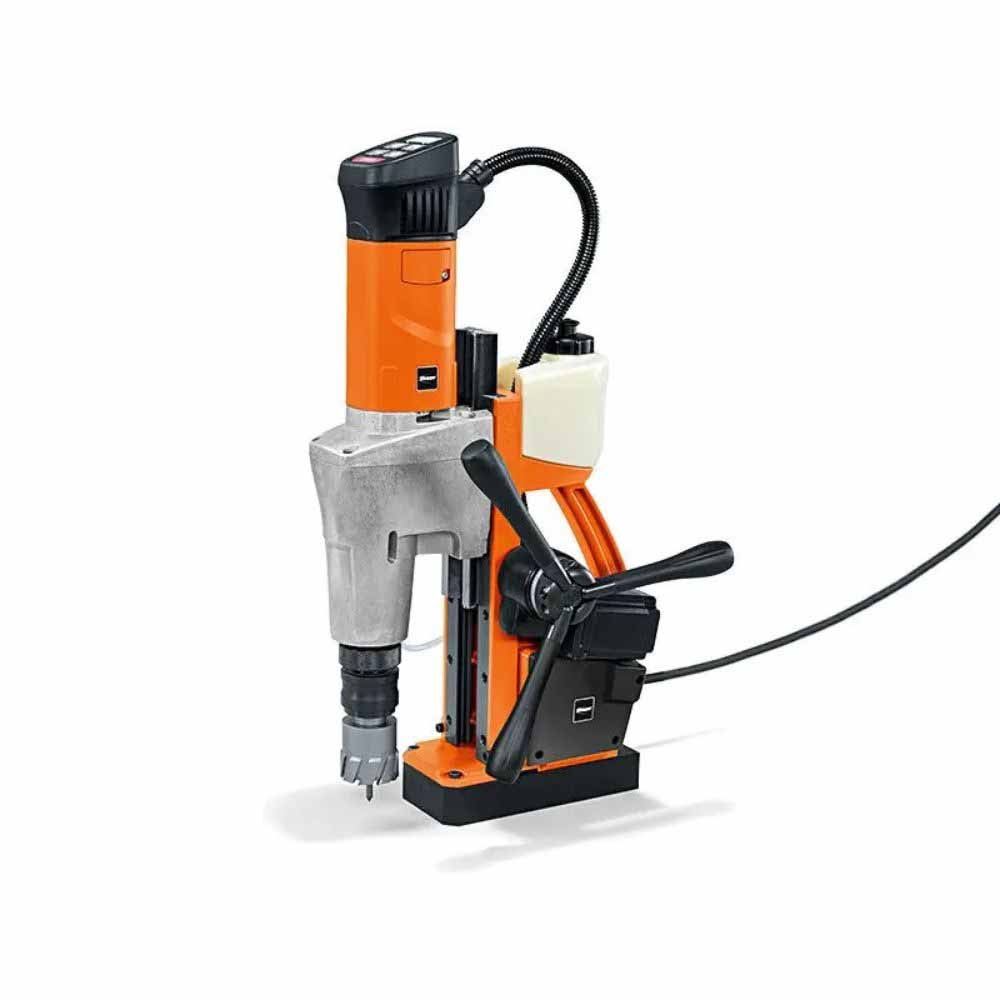

Fein 72704661120 JCM 200AUTO Magnetic Base Drill 2" Capacity
Free Shipping
$2,699.95
$3,348.00
Unit price
/
Unavailable
Description
Description
INCLUDES:
• (1) Auto Magnetic Base Drill - 2" Capacity
• (1) Coolant Tank
• (1) Safety Strap
• (1) Chip Hook
• (1) Pilot Pin 4 1/8 in (105 mm)
• (1) Drift
• (1) Chip guard
• (1) Tool Case
FEATURES:
• Predictable work times on contract and serial work due to repeatable and consistent drilling times.
• Universal operation, such as tapping in manual machine mode using forward/reverse and the MT3 interface.
• High-power motor with stable speed.
• Electronic speed control.
• High magnetic holding force.
• A Convenient magnetic holding force indicator supports the safe positioning of the tool.
• Integrated coolant tank ensures high core drill tool life.
• Motion sensor.
• Made in Germany
SPECIFICATIONS:
• Power consumption: 1,200 W
• Power output: 610 W
• Load speed: 1st gear: 130 - 260 rpm
• Load speed: 2nd gear: 260 - 520 rpm
• Tool mount: MT 3
• Carbide cutter max. dia.: 2 [50] in[mm]
• HSS cutter max. dia.: 1-9/16 [40] in[mm]
• Twist drill max. dia.: 3/4 [18] /7/8 [23] ** in[mm]
• Tapping: M 16**
• Max. countersinking dia.: 2 [50] ** in[mm]
• Reaming max. dia.: 7/8 [23] ** in[mm]
• Cutter holder: 3/4" straight shank
• Cutter change: tool-free
• Stroke: 5-11/16 [145] in[mm]
• Total stroke range: 12-3/8 [315] in[mm]
• Cable with plug: 13 [4] ft[m]
• Power Source: Corded Electric
The CM 200 AUTO Mag Drill is a flexible automatic Mag Drill capable of drilling holes up to 2 inches (50 mm) in diameter. With its lightweight and intelligent design, this fully automatic equipment has two speeds, increasing efficiency in both workshop and construction site situations. Its high-power motor with constant speed assures dependable and universal operation, streamlining tasks and lowering costs.
• (1) Auto Magnetic Base Drill - 2" Capacity
• (1) Coolant Tank
• (1) Safety Strap
• (1) Chip Hook
• (1) Pilot Pin 4 1/8 in (105 mm)
• (1) Drift
• (1) Chip guard
• (1) Tool Case
FEATURES:
• Predictable work times on contract and serial work due to repeatable and consistent drilling times.
• Universal operation, such as tapping in manual machine mode using forward/reverse and the MT3 interface.
• High-power motor with stable speed.
• Electronic speed control.
• High magnetic holding force.
• A Convenient magnetic holding force indicator supports the safe positioning of the tool.
• Integrated coolant tank ensures high core drill tool life.
• Motion sensor.
• Made in Germany
SPECIFICATIONS:
• Power consumption: 1,200 W
• Power output: 610 W
• Load speed: 1st gear: 130 - 260 rpm
• Load speed: 2nd gear: 260 - 520 rpm
• Tool mount: MT 3
• Carbide cutter max. dia.: 2 [50] in[mm]
• HSS cutter max. dia.: 1-9/16 [40] in[mm]
• Twist drill max. dia.: 3/4 [18] /7/8 [23] ** in[mm]
• Tapping: M 16**
• Max. countersinking dia.: 2 [50] ** in[mm]
• Reaming max. dia.: 7/8 [23] ** in[mm]
• Cutter holder: 3/4" straight shank
• Cutter change: tool-free
• Stroke: 5-11/16 [145] in[mm]
• Total stroke range: 12-3/8 [315] in[mm]
• Cable with plug: 13 [4] ft[m]
• Power Source: Corded Electric
The CM 200 AUTO Mag Drill is a flexible automatic Mag Drill capable of drilling holes up to 2 inches (50 mm) in diameter. With its lightweight and intelligent design, this fully automatic equipment has two speeds, increasing efficiency in both workshop and construction site situations. Its high-power motor with constant speed assures dependable and universal operation, streamlining tasks and lowering costs.
