Fein | SKU:
72705661120

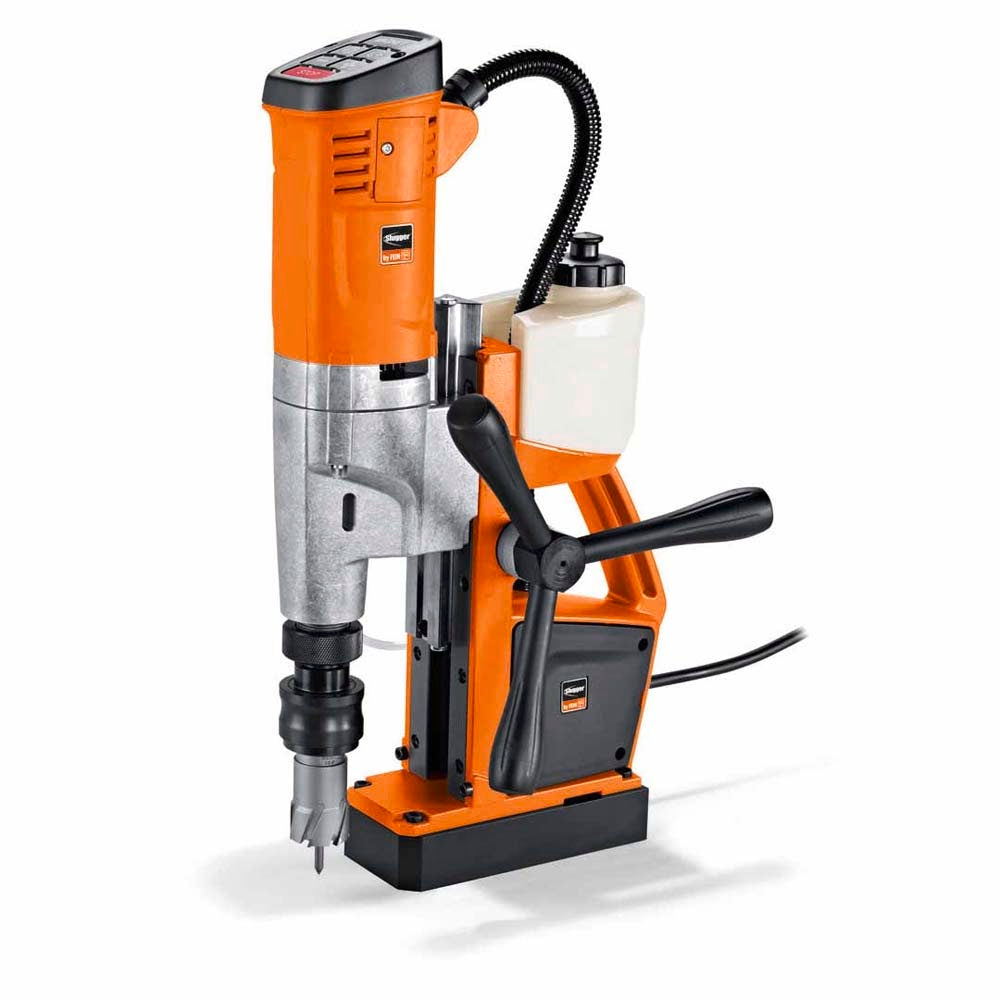

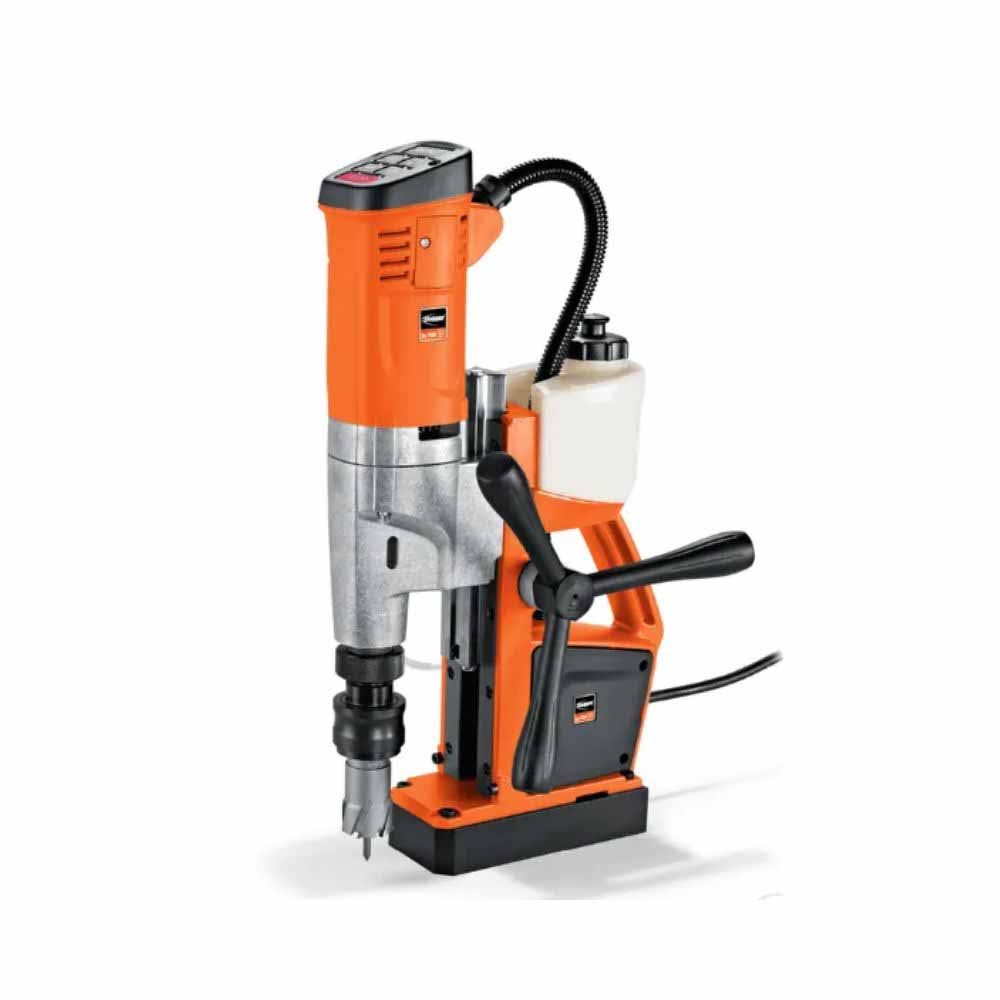

Fein 72705661120 JMU 137 MQW Magnetic Base Drill 1-3/8" Capacity
Free Shipping
$1,549.95
$1,898.00
Unit price
/
Unavailable
Description
Description
INCLUDES:
• (1) Magnetic Base Drill - 1-3/8" Capacity
• (1) Coolant Tank
• (1) Safety Strap
• (1) Chip Hook
• (1) Pilot Pin
• (1) Chip Guard
• (1) Tool Case
FEATURES:
• Perfect power-to-weight ratio, thanks to compact, weight-optimized design and FEIN 1 100 W high-performance motor with tacho electronics for high speed stability for reliable and efficient operation.
• Right/left rotation, electronic speed adjustment and 10-1/4 [260] in[mm] stroke range enable universal work applications such as core drilling, spiral drilling, tapping as well as countersinking and reaming.
• Small, with MT2 tool mount.
• Simple and error-proof control concept in the operator's field of view.
• A Convenient magnetic holding force indicator supports the safe positioning of the tool.
• High magnetic holding force.
• Motion sensor.
• Additional magnet switch in the drill stand.
• Integrated coolant tank ensures high core drill tool life.
• Hand feed wheel can be mounted on either side.
• Memory function speed storage.
• Made in Germany
SPECIFICATIONS:
• Power consumption: 1,100 W
• Power output: 550 W
• Full load speed: 130 - 520 rpm
• Tool mount: MT 2
• Carbide cutter max. dia.: 1-3/8 [35] in[mm]
• HSS cutter max. dia.: 1-3/8 [35] in[mm]
• Cutter max. drilling depth: 2 [50] (3 [75] )* in[mm]
• Tapping: M 14
• Max. countersinking dia.: 1-1/4 [31] in[mm]
• Reaming max. dia.: 3/4 [18] in[mm]
• Cutter holder: 3/4" straight shank
• Cutter change: tool-free
• Stroke: 5-5/16 [135] in[mm]
• Total stroke range: 10-1/4 [260] in[mm]
• Magnetic holding force: 2248 [10,000] lbs[N]
• Cable with plug: 13 [4] ft[m]
• Weight: 23.59 lbs
• Power Source: Corded Electric
The JMU 137 MQW Magnetic Base Drill 1-3/8" Capacity - Universal Series is a compact yet strong equipment for a variety of drilling jobs on construction sites. Its long-stroke design and single-speed operation provide effective drilling performance while being easy to use. Its forward/reverse rotation and MT2 tool mount offer optimal functionality for a variety of drilling applications.
• (1) Magnetic Base Drill - 1-3/8" Capacity
• (1) Coolant Tank
• (1) Safety Strap
• (1) Chip Hook
• (1) Pilot Pin
• (1) Chip Guard
• (1) Tool Case
FEATURES:
• Perfect power-to-weight ratio, thanks to compact, weight-optimized design and FEIN 1 100 W high-performance motor with tacho electronics for high speed stability for reliable and efficient operation.
• Right/left rotation, electronic speed adjustment and 10-1/4 [260] in[mm] stroke range enable universal work applications such as core drilling, spiral drilling, tapping as well as countersinking and reaming.
• Small, with MT2 tool mount.
• Simple and error-proof control concept in the operator's field of view.
• A Convenient magnetic holding force indicator supports the safe positioning of the tool.
• High magnetic holding force.
• Motion sensor.
• Additional magnet switch in the drill stand.
• Integrated coolant tank ensures high core drill tool life.
• Hand feed wheel can be mounted on either side.
• Memory function speed storage.
• Made in Germany
SPECIFICATIONS:
• Power consumption: 1,100 W
• Power output: 550 W
• Full load speed: 130 - 520 rpm
• Tool mount: MT 2
• Carbide cutter max. dia.: 1-3/8 [35] in[mm]
• HSS cutter max. dia.: 1-3/8 [35] in[mm]
• Cutter max. drilling depth: 2 [50] (3 [75] )* in[mm]
• Tapping: M 14
• Max. countersinking dia.: 1-1/4 [31] in[mm]
• Reaming max. dia.: 3/4 [18] in[mm]
• Cutter holder: 3/4" straight shank
• Cutter change: tool-free
• Stroke: 5-5/16 [135] in[mm]
• Total stroke range: 10-1/4 [260] in[mm]
• Magnetic holding force: 2248 [10,000] lbs[N]
• Cable with plug: 13 [4] ft[m]
• Weight: 23.59 lbs
• Power Source: Corded Electric
The JMU 137 MQW Magnetic Base Drill 1-3/8" Capacity - Universal Series is a compact yet strong equipment for a variety of drilling jobs on construction sites. Its long-stroke design and single-speed operation provide effective drilling performance while being easy to use. Its forward/reverse rotation and MT2 tool mount offer optimal functionality for a variety of drilling applications.
