Fein 72705861120 JMU 137-2 QW Magnetic Base Drill 1-3/8" Capacity
Description
Description
Fein 72705861120 Description

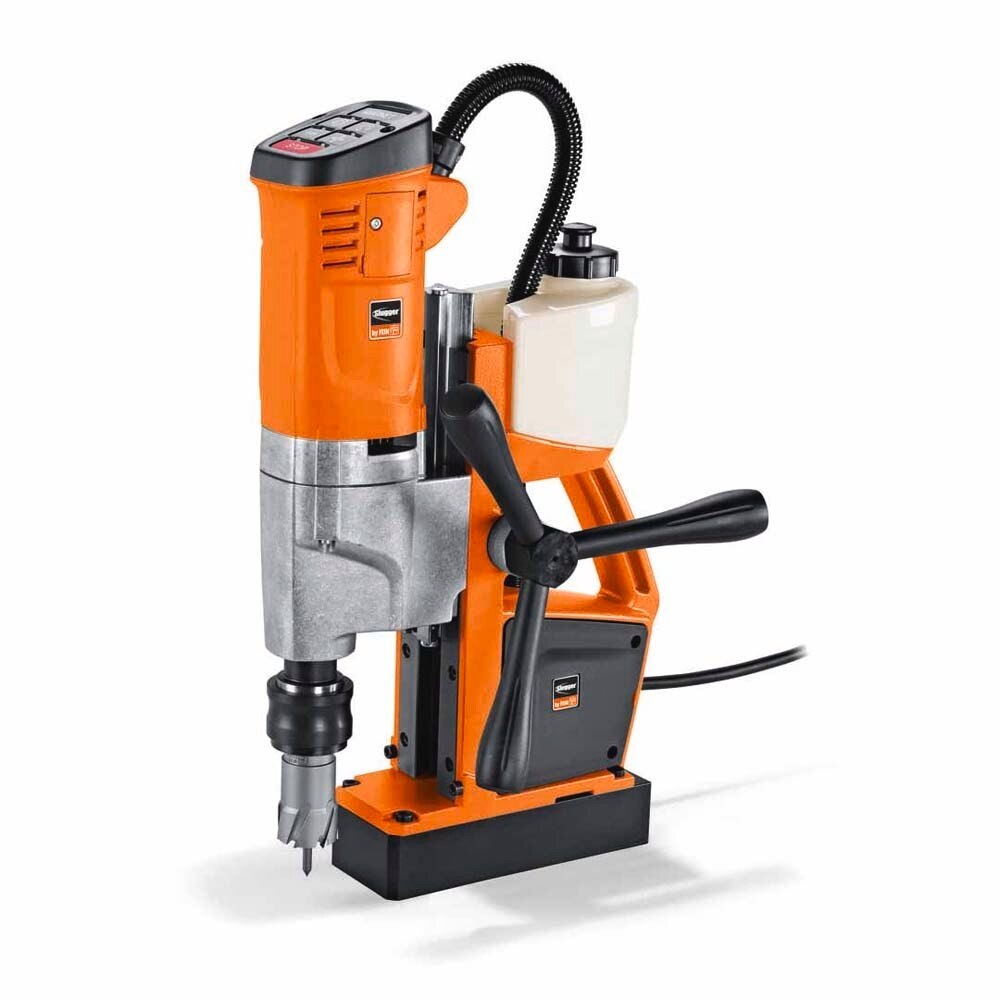

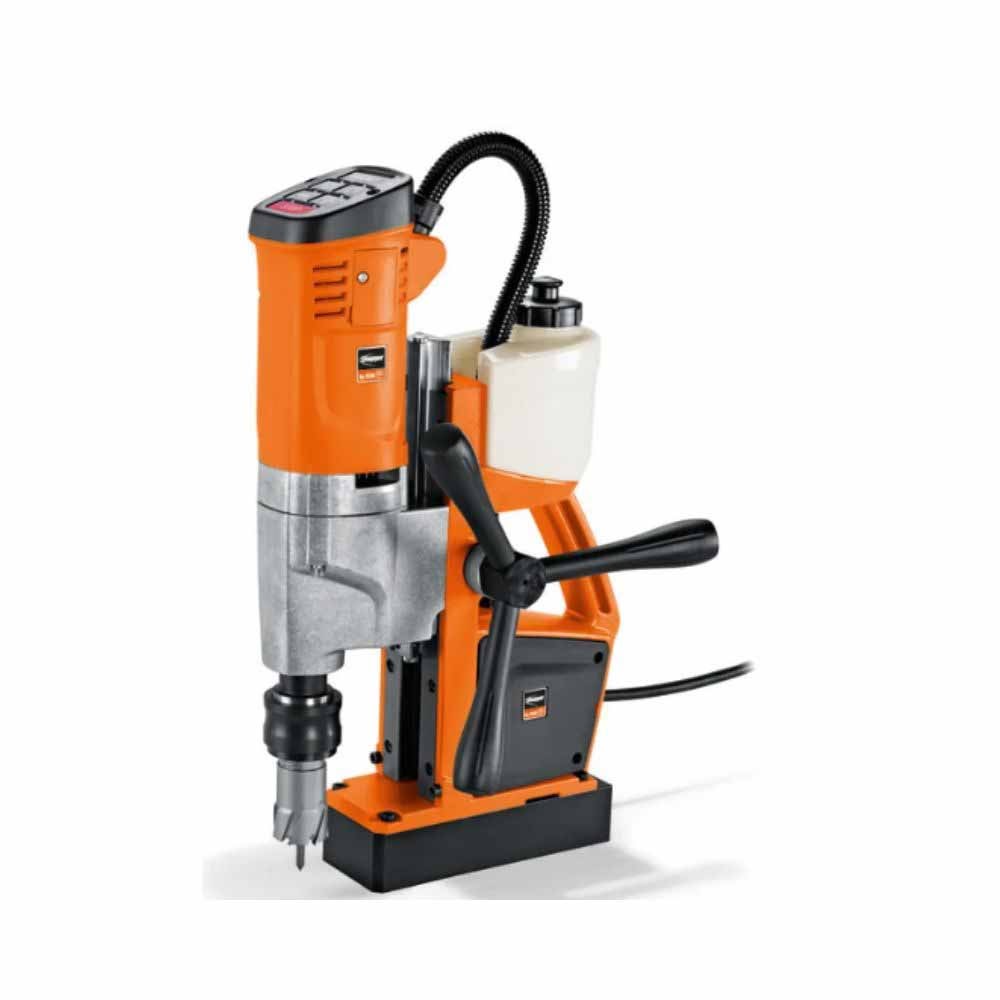

The Fein JMU 137-2QW Universal Magnetic Core Drill (72705861120) is a compact and lightweight machine with a perfect power to weight ratio that makes it ideal for work at heights and in tight spaces. It is versatile and offers universal use in applications such as core drilling, twist drilling, tapping, countersinking, and reaming due to forward and reverse rotation capability, electronic speed setting, and a 10-1/4" stroke. With a weight-optimized construction, a high performance motor, and tilt sensor the JMU 137-2QW is capable of magnetic core drills up to 1-3/8" (35 mm) at depths up to 2".
Fein 72705861120 Includes
- (1) JMU 137-2QW Universal Magnetic Core Drill (72705861120)
- (1) Case
- (1) Coolant Tank
- (1) Safety Strap
- (1) Chip Hook
- (1) Centering Pin
- (1) Touch Guard
- (1) 3-Jaw Chuck
Fein 72705861120 Features
- Pivoting motor cable protection sleeve
- Reversible
- Electronic speed control
- Mechanic 2-gearbox for twist drilling
- 3-coil magnet, only 2-3/4 in [70 mm] wide
- Simple and error-proof control concept
- Additional magnet switch in the drill stand
- Tool-free core bit fast change system
- Speed-controlled tacho electronics
- Magnetic holding force gauge
- Integrated cooling tank
- Hand feed wheel can be mounted on either side
- Tilt sensor
- Memory function speed storage
Fein 72705861120 Specifications
| Carbide Annular Cutters Max. Diameter | 1-3/8" |
| HSS Annular Cutters Max. Diameter | 1-3-8" |
| Mag Base, Max. Drilling Depth | 2" |
| Twist Drill Max. Diameter | 5/8" |
| Tapping | 5/8" |
| Power Consumption | 1,100 Watts |
| Power Output | 550 Watts |
| 1st Gear | 130-520 rpm |
| 2nd Gear | 400-1,600 rpm |
| Annular Cutter Holder | 3/4" Weldon |
| Annular Cutter Change | tool-free |
| Stroke | 5-5/16" |
| Magnetic Holding Force | 2,136 lbs |
| Magnetic Base Sizes | 7-5//16" x 2-3/4" |
| Cable Length with Plug | 13 ft |
