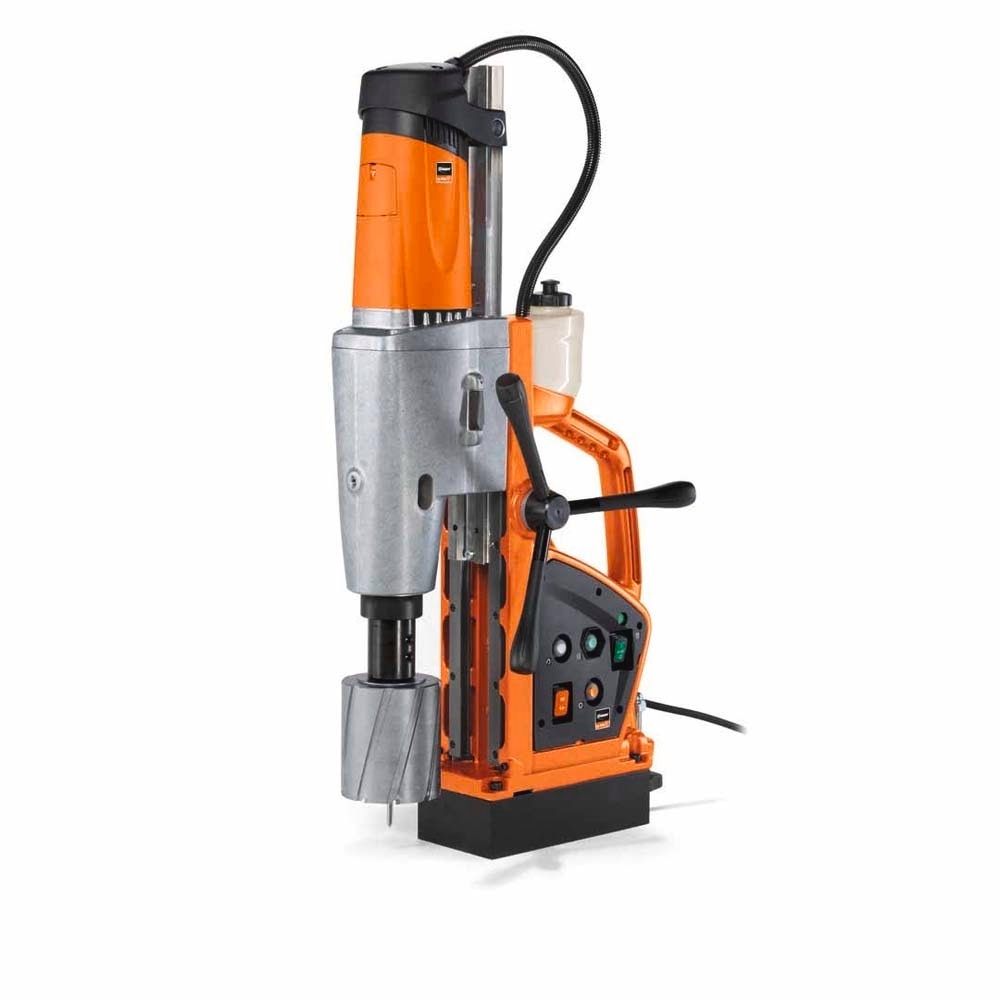

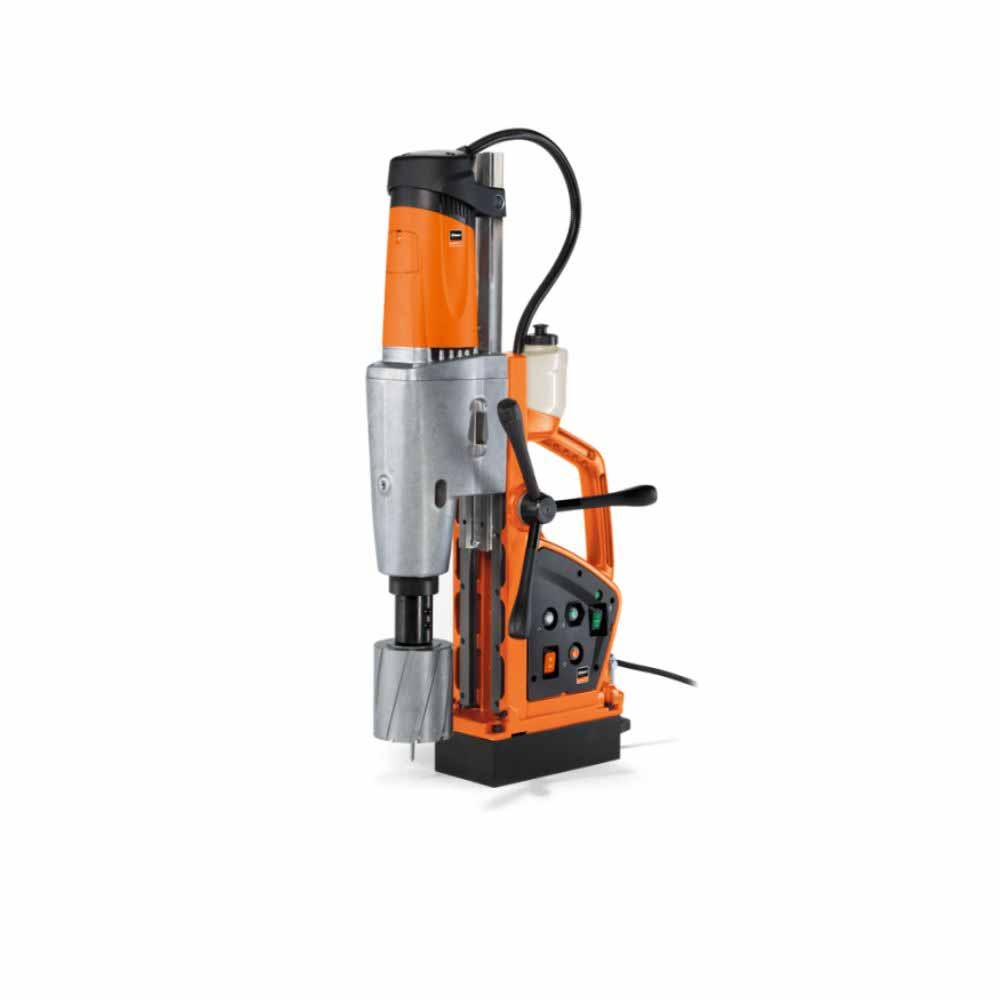

Fein 72706061090 JMU 404M Magentic Base Drill 4-5/16" Capacity

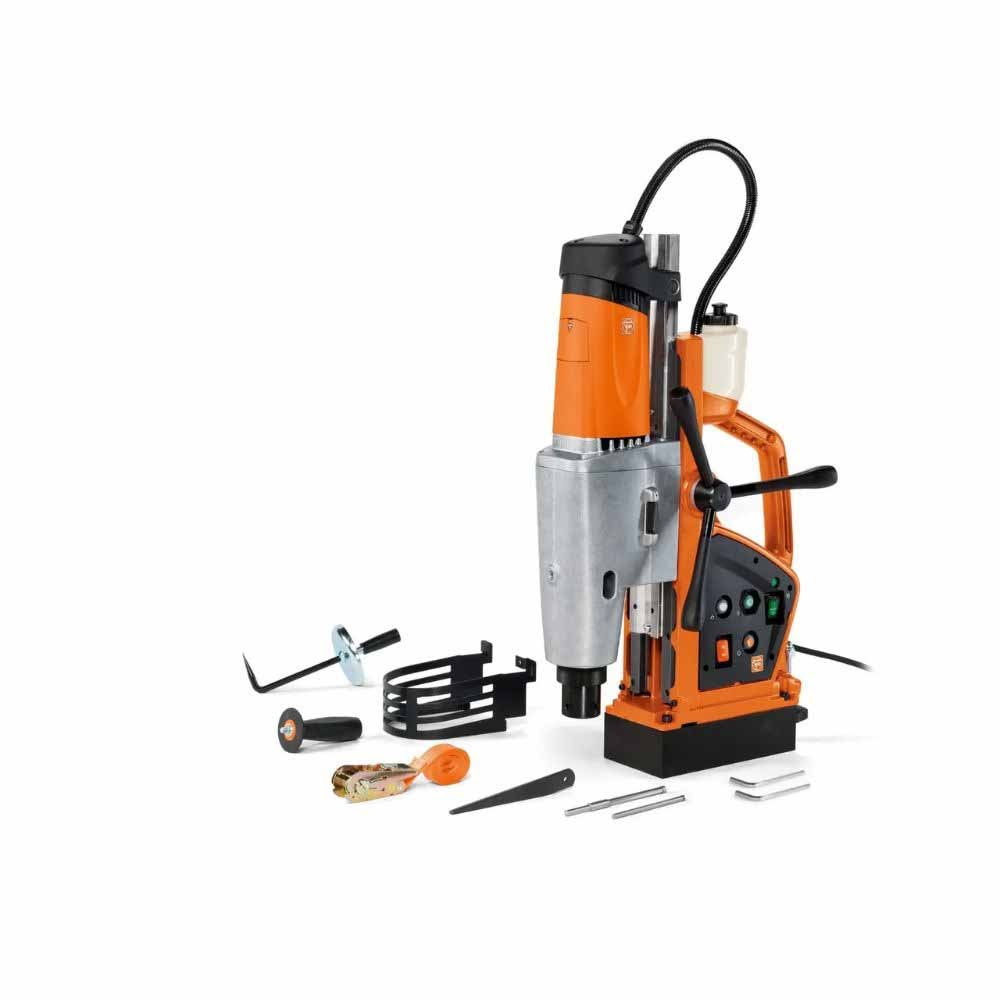

INCLUDES:
• (1) Universal Magnetic Base Drill - 4-5/16" Capacity
• (1) Weldon 32 mounting shaft
• (1) Adapter with Weldon 1-1/4 fitting and 3/4 output in Weldon
• (1) Coolant Tank
• (1) Safety Strap with Ratchet
• (1) Chip Hook
• (2) Pilot Pins - 6.35 mm dia. x 125 mm and 7.98 mm dia. x 184 mm
• (1) Chip Guard
• (1) Drift
• (2) Hexagonal Socket Keys 3/16" and 1/4" [5 and 6 mm]
• (1) Additional Handle
• (1) Tool Case

FEATURES:
• FEIN high-power 1700 W motor powering a 4-speed gearbox.
• 3-stage manual stroke range, the largest in its class.
• Reversible
• MT 4 compatible
• Swivel mounted cableprotects the tool from being damaged.
• Magnetic holding force display. Tilt sensor stops tool immediately in the event of slipping or tipping.
• Safety clutch stops the rotary hammer drill should the drill chuck jam.

SPECIFICATIONS:
• Power consumption: 1,700 W
• Power output: 850 W
• Load speed: 1st gear: 60 / 120 rpm
• Load speed: 2nd gear: 90 / 170 rpm
• Load speed: 3rd gear: 150 / 300 rpm
• Load speed: 4th gear: 230 / 430 rpm
• No-load speed: 1st gear: 100 / 190 rpm
• No-load speed: 3rd gear: 270 / 500 rpm
• No-load speed: 4th gear: 420 / 750 rpm
• Tool mount: MT 4
• Carbide cutter max. dia.: 4 [101] in[mm]
• HSS cutter max. dia.: 2-15/16 [75] in[mm]
• Cutter max. drilling depth: 4 [101] in[mm]
• Twist drill max. dia.: 1-3/8 [35] in[mm]
• Tapping: M 36
• Max. countersinking dia.: 2-3/8 [60] in[mm]
• Reaming max. dia.: 1-3/8 [35] in[mm]
• Cutter holder: Weldon 32
• Power Source: Corded Electric

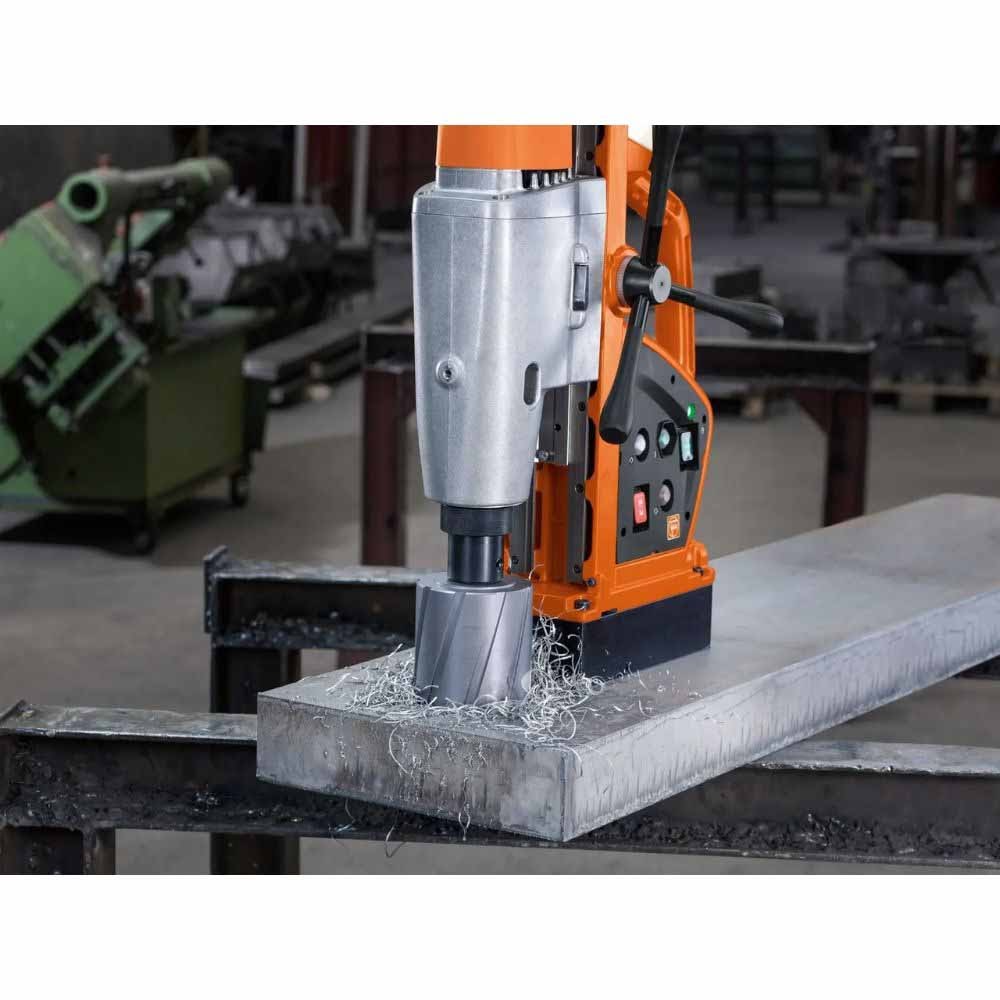

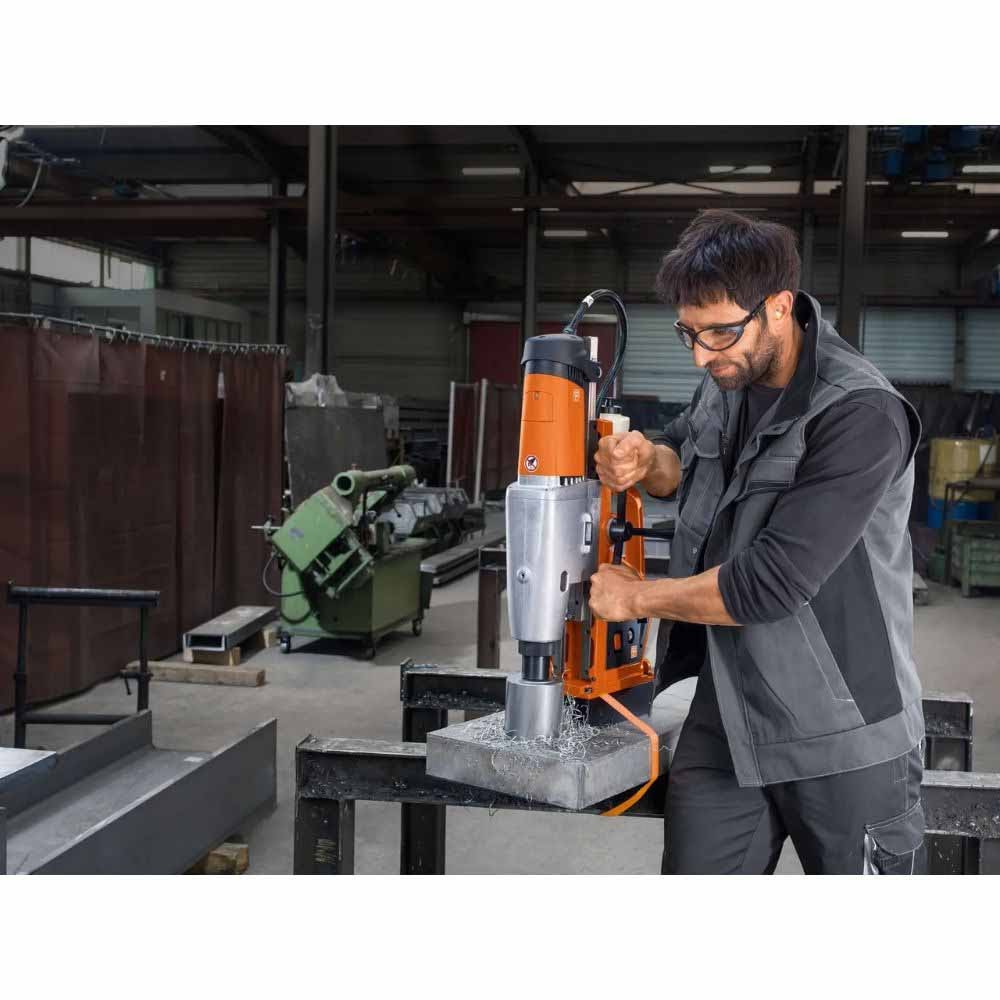

The JJMU 404 M Universal Magnetic Core Drill is intended for heavy-duty drilling applications in workshops. With a maximum drilling capacity of 4-5/16 inches [110mm] and a high-performance 1,700W motor, it provides remarkable power and efficiency. Its forward/reverse running, 4-speed settings, and MT4 tool mounting offer adaptability and precision for a variety of drilling applications.
