Fein | SKU:
72707361090

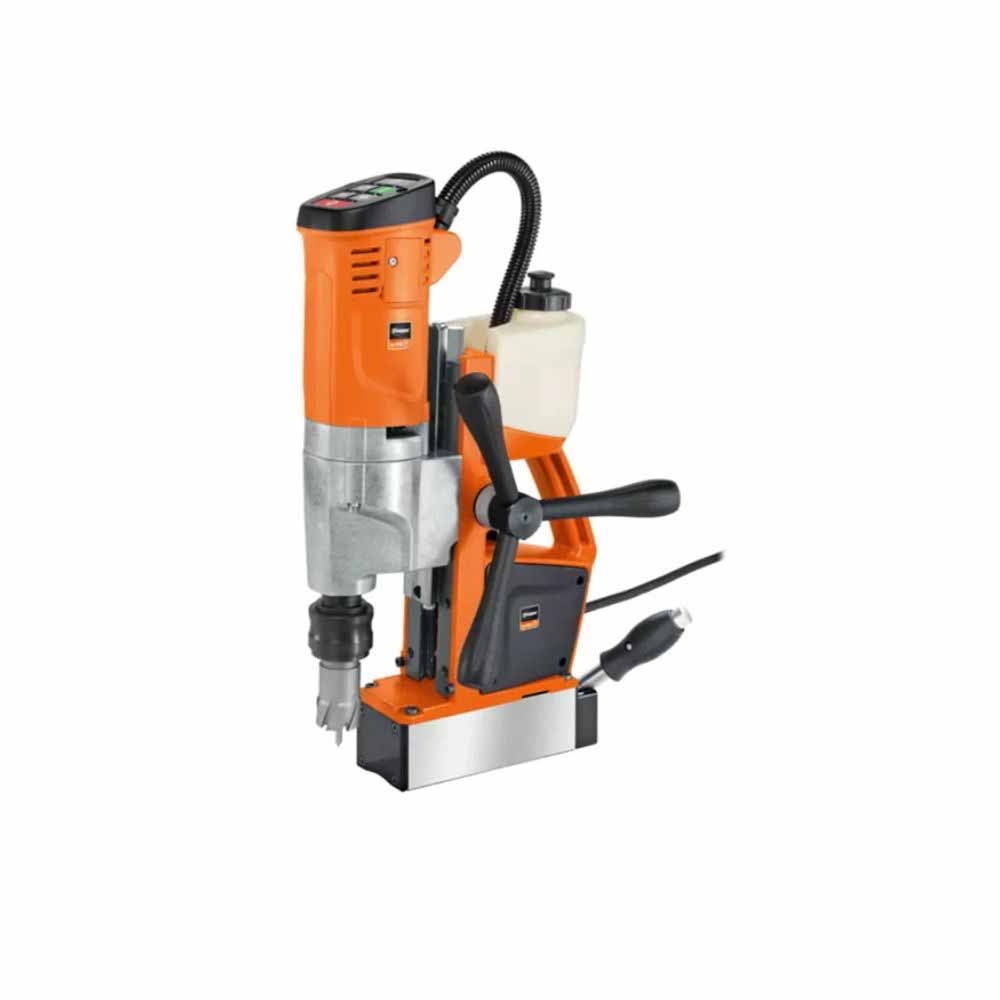

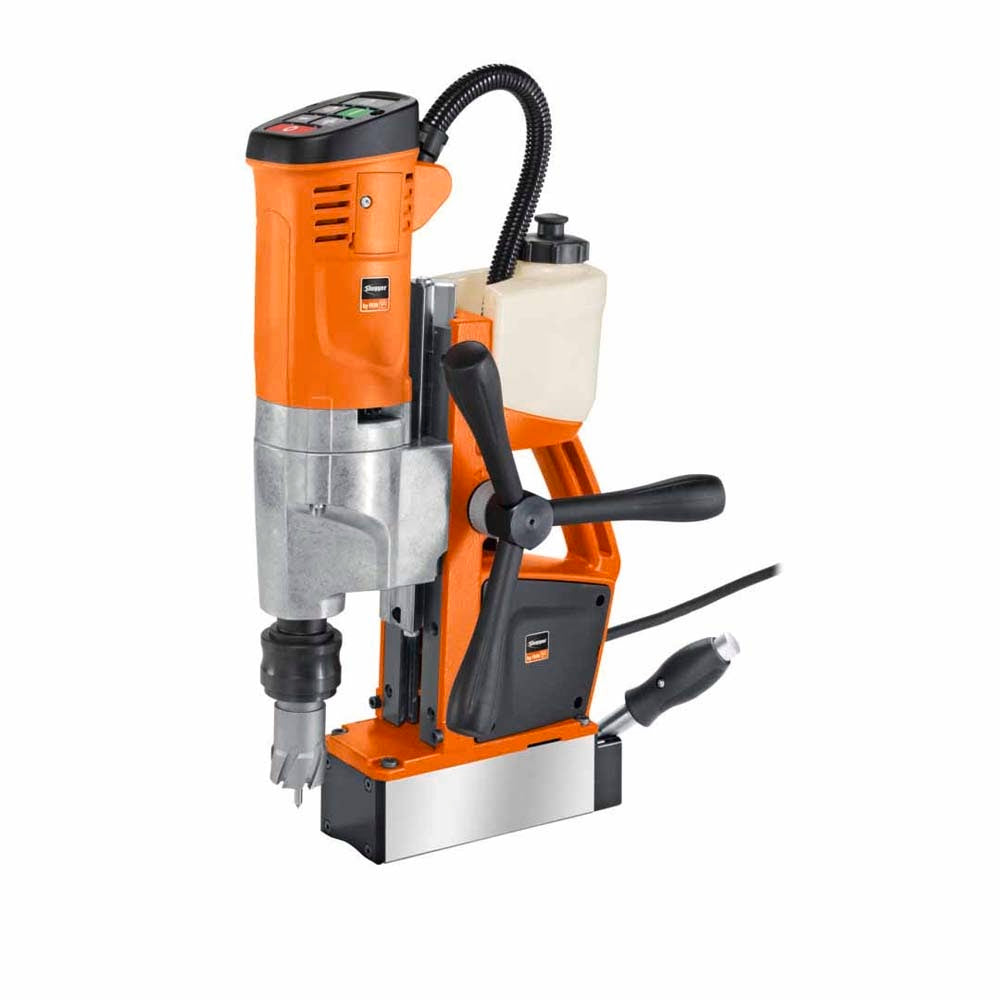

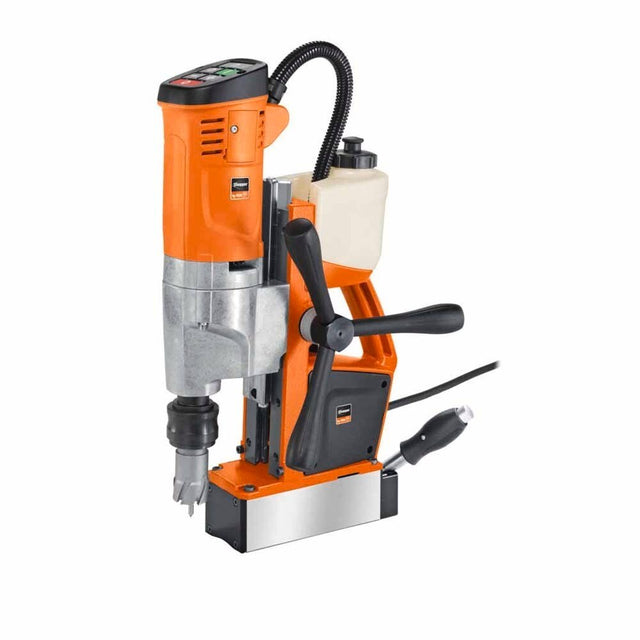

Fein 72707361090 JMU 137PQW Magnetic Base Drill 1-3/8" Capacity
Free Shipping
$1,749.95
$2,148.00
Unit price
/
Unavailable
Description
Description
INCLUDES:
• (1) Universal Magnetic Core Dril - 1-3/8" Capacity
• (1) Coolant Tank
• (1) Safety Strap
• (1) Chip Hook
• (3) Pilot Pins
• (1) Chip Guard
• (1) Tool Case
FEATURES:
• Lightweight, compact tool with powerful torque for sustained high work progress thanks to the FEIN high-performance motor with tacho electronics.
• Machine with extra large stroke for all drilling work, such as mag base and twist drilling, tapping, countersinking and reaming.
• Extra narrow permanent magnet with magnetic bias.
• Motion sensor.
• Simple and error-proof control concept in the operator's field of view.
• A Convenient magnetic holding force indicator supports the safe positioning of the tool.
• Reversible.
• Integrated coolant tank ensures high core drill tool life.
SPECIFICATIONS:
• Power consumption: 1,010 W
• Power output: 550 W
• Full load speed: 130 - 520 rpm
• Carbide cutter max. dia.: 1-3/8 [35] in[mm]
• HSS cutter max. dia.: 1-3/8 [35] in[mm]
• Cutter max. drilling depth: 2 [50] in[mm]
• Twist drill max. dia.: 5/8 [16] in[mm]
• Max. countersinking dia.: 1-1/4 [31] in[mm]
• Reaming max. dia.: 5/8 [16] in[mm]
• Cutter holder: 3/4" straight shank
• Cutter change: tool-free
• Stroke: 5-5/16 [135] in[mm]
• Total stroke range: 10-1/4 [260] in[mm]
• Magnetic holding force: 2023 [9,000] lbs[N]
• Cable with plug: 13 [4] ft[m]
• Weight: 27.56 lbs
• Power Source: Corded Electric
The JMU 137 PQW Universal Magnetic Core Drill can drill holes up to 1-3/8" (35 mm) in diameter. With its small size and long-stroke design, this 1-speed drill provides forward and reverse rotation, as well as a permanent magnet, ensuring maximum functionality for safe and varied construction site operations. Whether drilling into metal or other materials, this drill provides dependable performance in a variety of applications.
• (1) Universal Magnetic Core Dril - 1-3/8" Capacity
• (1) Coolant Tank
• (1) Safety Strap
• (1) Chip Hook
• (3) Pilot Pins
• (1) Chip Guard
• (1) Tool Case
FEATURES:
• Lightweight, compact tool with powerful torque for sustained high work progress thanks to the FEIN high-performance motor with tacho electronics.
• Machine with extra large stroke for all drilling work, such as mag base and twist drilling, tapping, countersinking and reaming.
• Extra narrow permanent magnet with magnetic bias.
• Motion sensor.
• Simple and error-proof control concept in the operator's field of view.
• A Convenient magnetic holding force indicator supports the safe positioning of the tool.
• Reversible.
• Integrated coolant tank ensures high core drill tool life.
SPECIFICATIONS:
• Power consumption: 1,010 W
• Power output: 550 W
• Full load speed: 130 - 520 rpm
• Carbide cutter max. dia.: 1-3/8 [35] in[mm]
• HSS cutter max. dia.: 1-3/8 [35] in[mm]
• Cutter max. drilling depth: 2 [50] in[mm]
• Twist drill max. dia.: 5/8 [16] in[mm]
• Max. countersinking dia.: 1-1/4 [31] in[mm]
• Reaming max. dia.: 5/8 [16] in[mm]
• Cutter holder: 3/4" straight shank
• Cutter change: tool-free
• Stroke: 5-5/16 [135] in[mm]
• Total stroke range: 10-1/4 [260] in[mm]
• Magnetic holding force: 2023 [9,000] lbs[N]
• Cable with plug: 13 [4] ft[m]
• Weight: 27.56 lbs
• Power Source: Corded Electric
The JMU 137 PQW Universal Magnetic Core Drill can drill holes up to 1-3/8" (35 mm) in diameter. With its small size and long-stroke design, this 1-speed drill provides forward and reverse rotation, as well as a permanent magnet, ensuring maximum functionality for safe and varied construction site operations. Whether drilling into metal or other materials, this drill provides dependable performance in a variety of applications.
