Fein | SKU:
72732362090

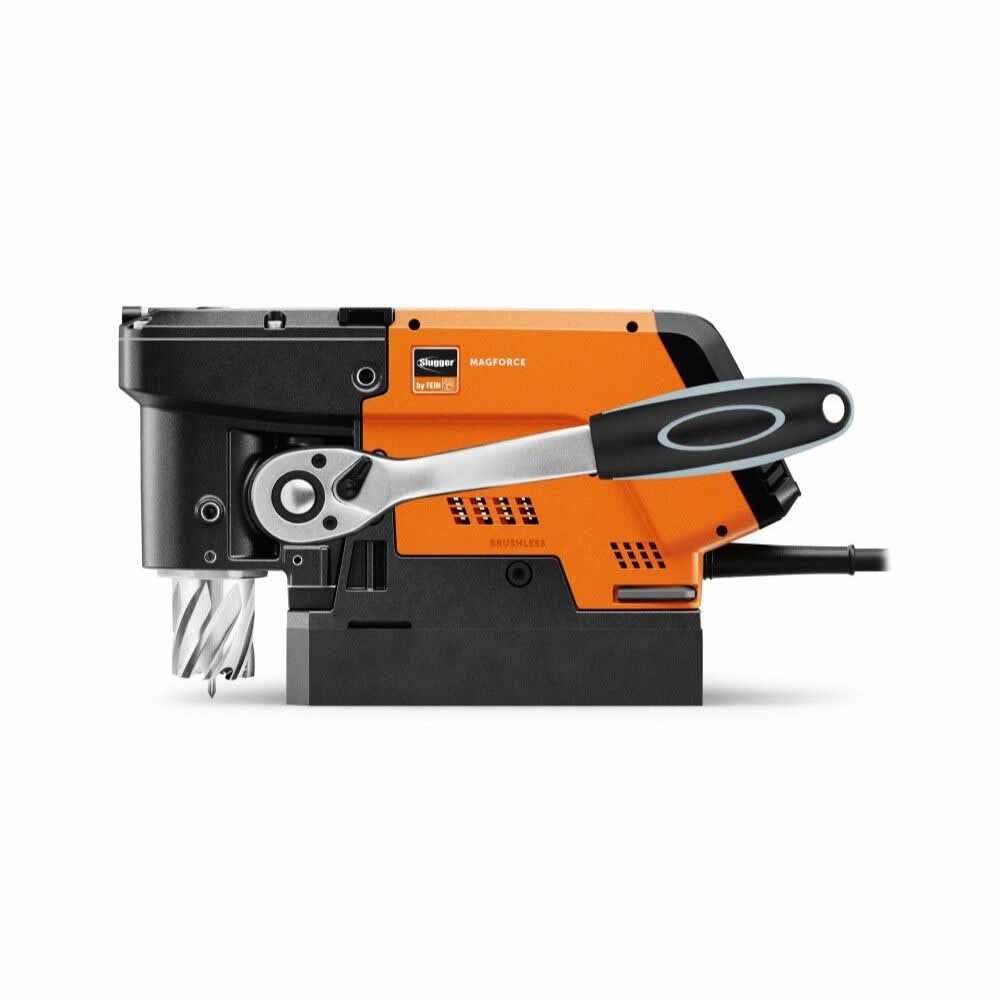

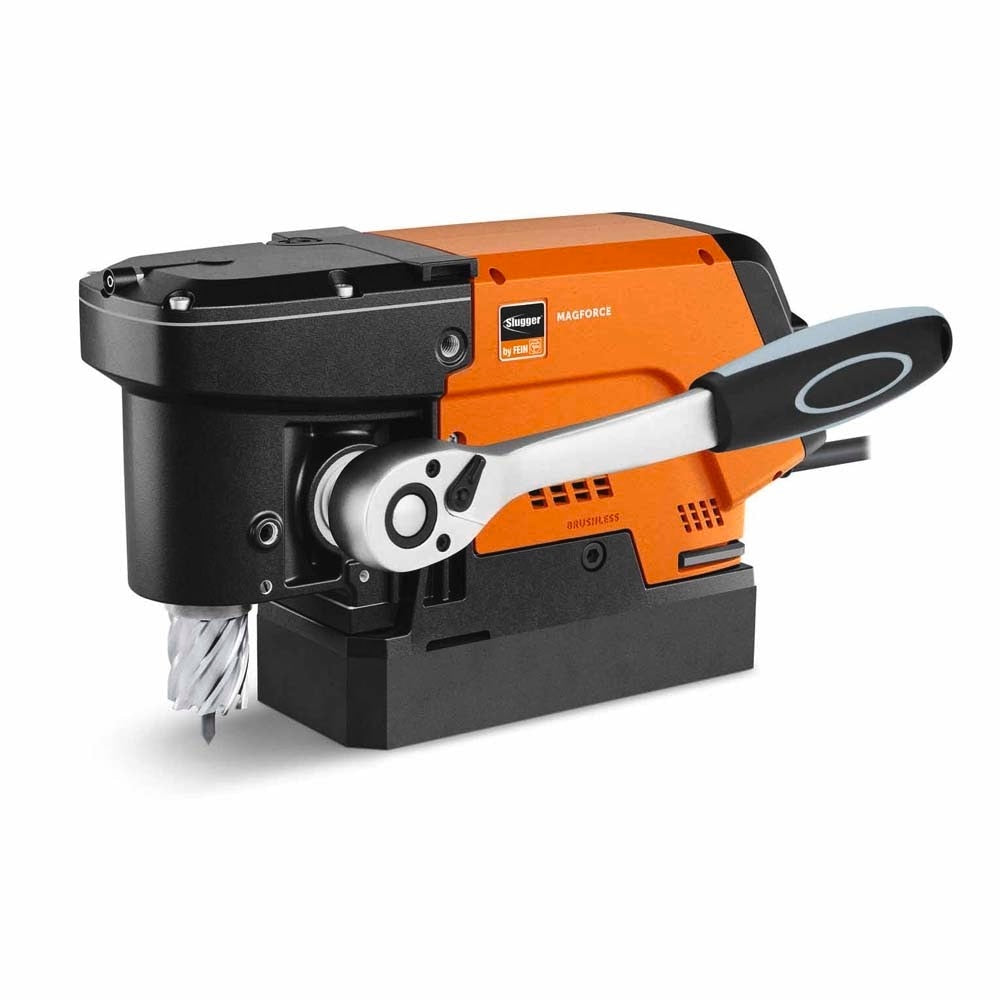

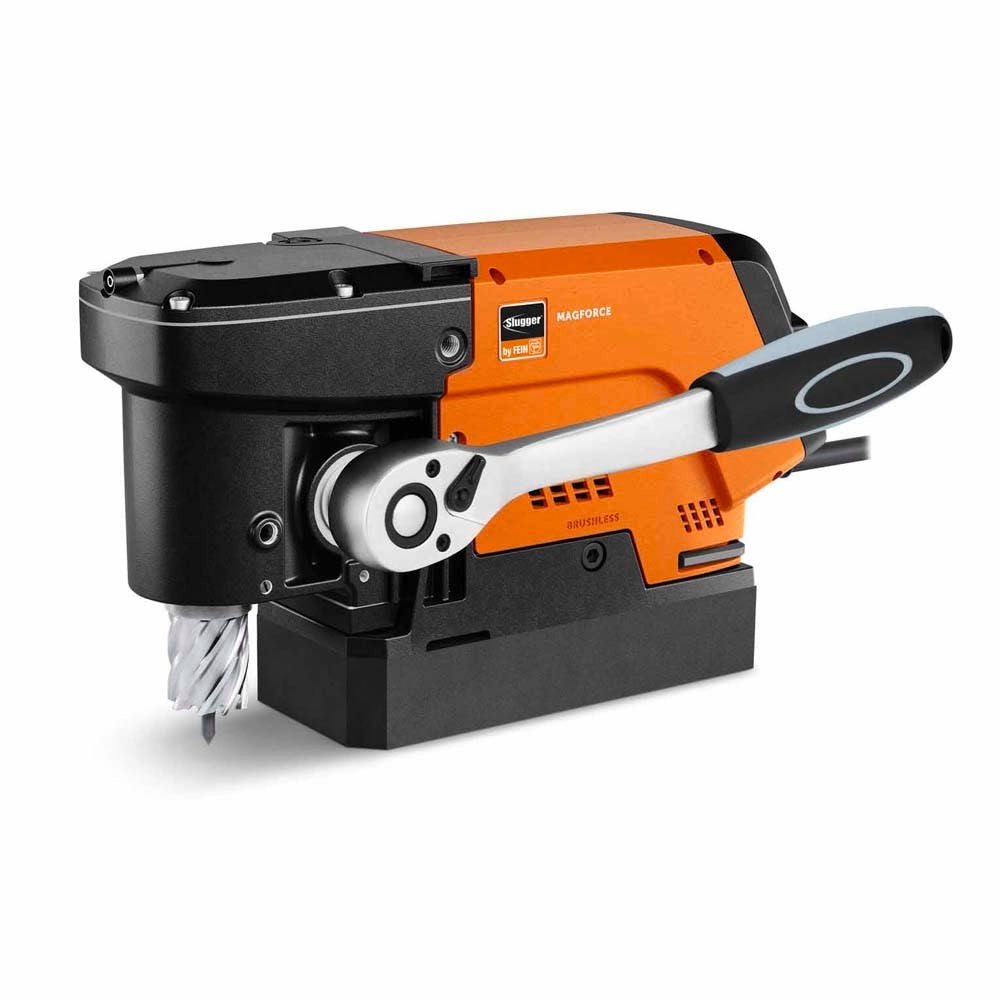

Fein 72732362090 JMC Magforce 90 Magnetic Base Drill 1-3/8" Capacity
Free Shipping
$1,299.95
$1,562.00
Unit price
/
Unavailable
Description
Description

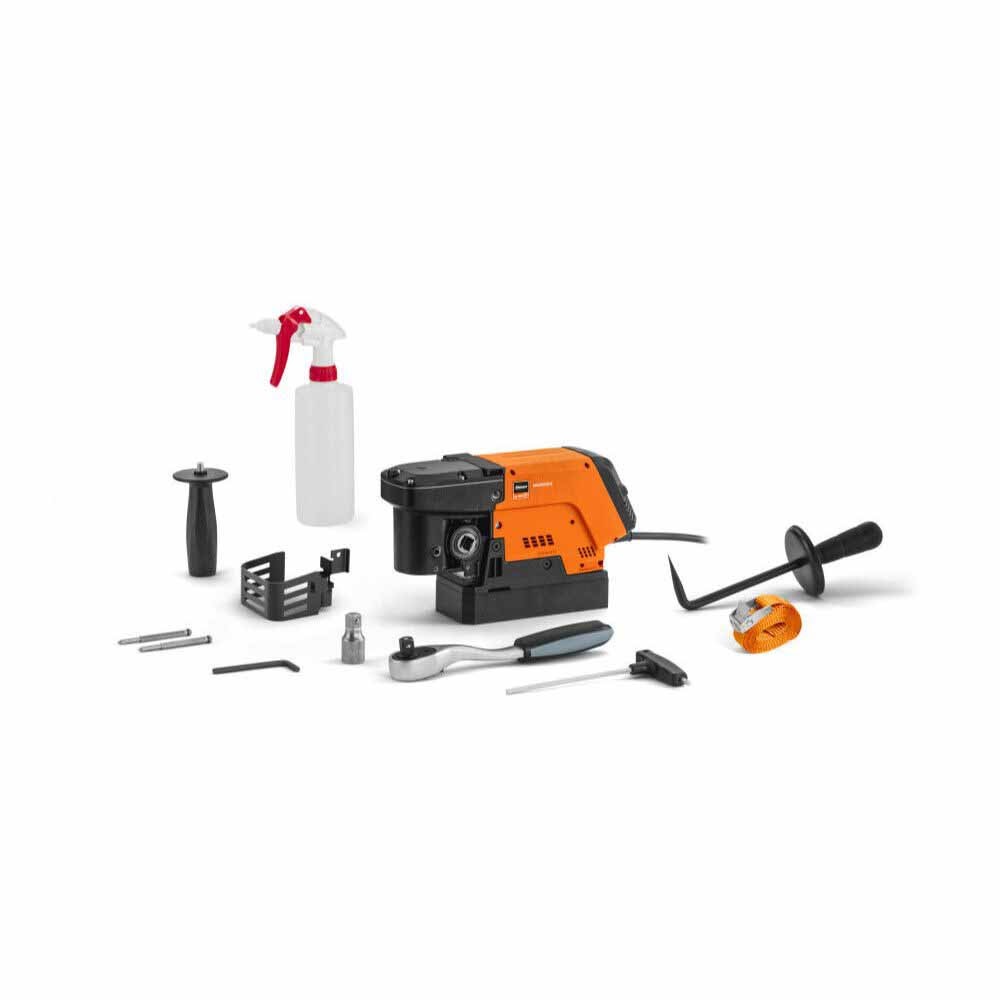

INCLUDES:
• (1) Magnetic Base Drill - 1-3/8" Capacity
• (1) 1/2" Ratchet
• (1) 1/2" Socket Wrench Extension
• (1) Coolant Pump
• (1) Safety Strap
• (1) Chip Hook
• (1) Centering Pin - 3-1/8" x 3/16'' [80 x 4.75 mm]
• (1) Centering Pin - 3-1/4" x 1/4" [82 x 6.35 mm]
• (1) Chip Guard
• (1) Additional Handle
• (1) Allen Key - 5 mm
• (1) Hexagonal Socket key with T-grip 5 mm
• (1) Plastic Carrying Case (L-BOXX 238)
FEATURES:
• Powerful, maintenance-free 10 A [1,200 W] HighPerformance brushless motor.
• Take on any drilling application with its variable speed and forward/reverse operation.
• Ratcheting handle allows you to work in even the tightest spaces.
• German-engineered to be extremely durable, wear-resistant for drilling in tough applications.
• Work safely: includes tilt sensor safety shutoff, easy to read magnetic holding force display, and personal safety switches.
• Internal cabling reduces risk of damage and downtime for your mag drill.
• Includes: 1 JME SHORTSLUGGER II magnetic base drill,1 touch guard, 1 safety strap, 1 coolant bottle, 1 T-handle Allen key 5 mm, 1 pilot pin 100 mm, and 1 carrying case.
• User controls are always in view and intuitive to use because each control feels different.
• High gear level for clear view of the hole location.
• Large installation space below the drill spindle with a stroke of 1-13/16 [46] in[mm].
• Drive shaft combined 1/2 in square and 8 mm
• Integrated handle.
• "Memory function" speed storage.
SPECIFICATIONS:
• Power consumption: 1,200 W
• Power output: 680 W
• Full load speed: 130 - 610 rpm
• No load speed: 130 - 660 rpm
• Carbide cutter max. dia.: 1-3/8 [35] in[mm]
• HSS cutter max. dia.: 1-3/8 [35] in[mm]
• Cutter max. drilling depth: 1-3/8 [35] in[mm]
• Tapping: 3/8" (M10)
• Max. countersinking dia.: 1-1/4 [32] in[mm]
• Reaming max. dia.: in[mm]
• Cutter holder: 3/4" straight shank
• Stroke: 1-13/16 [46] in[mm]
• Minimum clearance: 40 mm
• Construction height: 6-5/8" [169] in[mm]
• Length: 11-7/16" [290] in[mm]
• Magnetic holding force: 2248 [10,000] lbs[N]
• Cable with plug: 10 [3] ft[m]
• Weight: 18.74 lbs
• Power Source: Corded Electric
The JMC MAGFORCE 90 Magnetic Base Drill is the ideal choice for compact and versatile drilling. With a magnetic base and a capacity of up to 1-3/8 inches (36mm), it is the smallest and lightest drill available. Its forward/reverse operation allows for easy access to confined locations as well as effortless overhead or vertical work. With variable speed control, it can handle any drilling task with precision and convenience.
• (1) Magnetic Base Drill - 1-3/8" Capacity
• (1) 1/2" Ratchet
• (1) 1/2" Socket Wrench Extension
• (1) Coolant Pump
• (1) Safety Strap
• (1) Chip Hook
• (1) Centering Pin - 3-1/8" x 3/16'' [80 x 4.75 mm]
• (1) Centering Pin - 3-1/4" x 1/4" [82 x 6.35 mm]
• (1) Chip Guard
• (1) Additional Handle
• (1) Allen Key - 5 mm
• (1) Hexagonal Socket key with T-grip 5 mm
• (1) Plastic Carrying Case (L-BOXX 238)
FEATURES:
• Powerful, maintenance-free 10 A [1,200 W] HighPerformance brushless motor.
• Take on any drilling application with its variable speed and forward/reverse operation.
• Ratcheting handle allows you to work in even the tightest spaces.
• German-engineered to be extremely durable, wear-resistant for drilling in tough applications.
• Work safely: includes tilt sensor safety shutoff, easy to read magnetic holding force display, and personal safety switches.
• Internal cabling reduces risk of damage and downtime for your mag drill.
• Includes: 1 JME SHORTSLUGGER II magnetic base drill,1 touch guard, 1 safety strap, 1 coolant bottle, 1 T-handle Allen key 5 mm, 1 pilot pin 100 mm, and 1 carrying case.
• User controls are always in view and intuitive to use because each control feels different.
• High gear level for clear view of the hole location.
• Large installation space below the drill spindle with a stroke of 1-13/16 [46] in[mm].
• Drive shaft combined 1/2 in square and 8 mm
• Integrated handle.
• "Memory function" speed storage.
SPECIFICATIONS:
• Power consumption: 1,200 W
• Power output: 680 W
• Full load speed: 130 - 610 rpm
• No load speed: 130 - 660 rpm
• Carbide cutter max. dia.: 1-3/8 [35] in[mm]
• HSS cutter max. dia.: 1-3/8 [35] in[mm]
• Cutter max. drilling depth: 1-3/8 [35] in[mm]
• Tapping: 3/8" (M10)
• Max. countersinking dia.: 1-1/4 [32] in[mm]
• Reaming max. dia.: in[mm]
• Cutter holder: 3/4" straight shank
• Stroke: 1-13/16 [46] in[mm]
• Minimum clearance: 40 mm
• Construction height: 6-5/8" [169] in[mm]
• Length: 11-7/16" [290] in[mm]
• Magnetic holding force: 2248 [10,000] lbs[N]
• Cable with plug: 10 [3] ft[m]
• Weight: 18.74 lbs
• Power Source: Corded Electric
The JMC MAGFORCE 90 Magnetic Base Drill is the ideal choice for compact and versatile drilling. With a magnetic base and a capacity of up to 1-3/8 inches (36mm), it is the smallest and lightest drill available. Its forward/reverse operation allows for easy access to confined locations as well as effortless overhead or vertical work. With variable speed control, it can handle any drilling task with precision and convenience.
