Description
Description

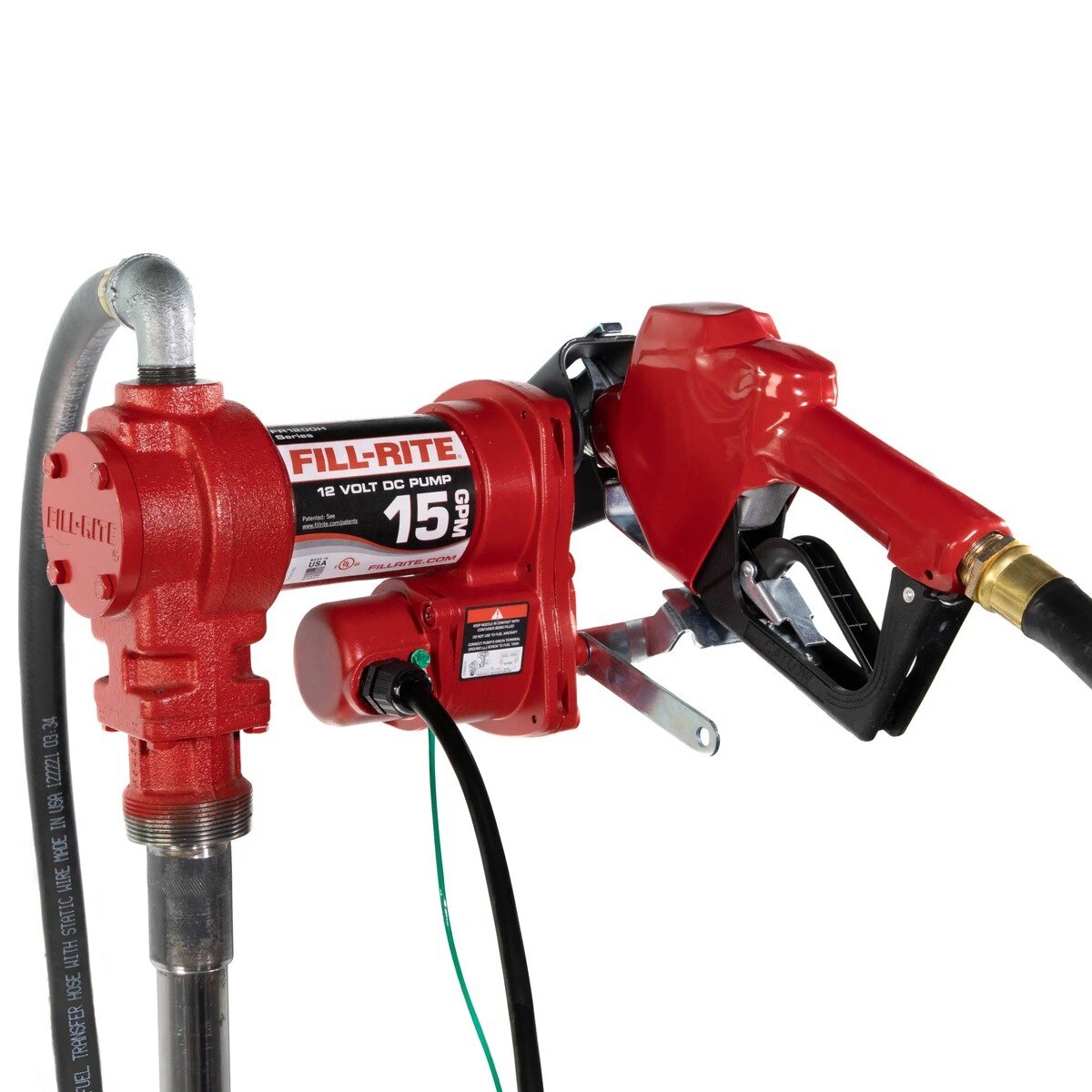

Fill-Rite FR1210HA Description
The Fill-Rite FR1210HA is a heavy duty 12V DC fuel transfer pump kit that delivers up to 15 GPM for fast refueling of mobile tanks and transfer tanks. Built with durable cast-iron construction and rotary vane pump technology, it is designed for daily use with common fuels and features a thermally protected motor plus a built-in strainer to help protect equipment. This kit includes an auto unleaded nozzle, 3/4 in. x 12 ft. hose, suction pipe, wiring components, and mounting accessories for a complete installation.

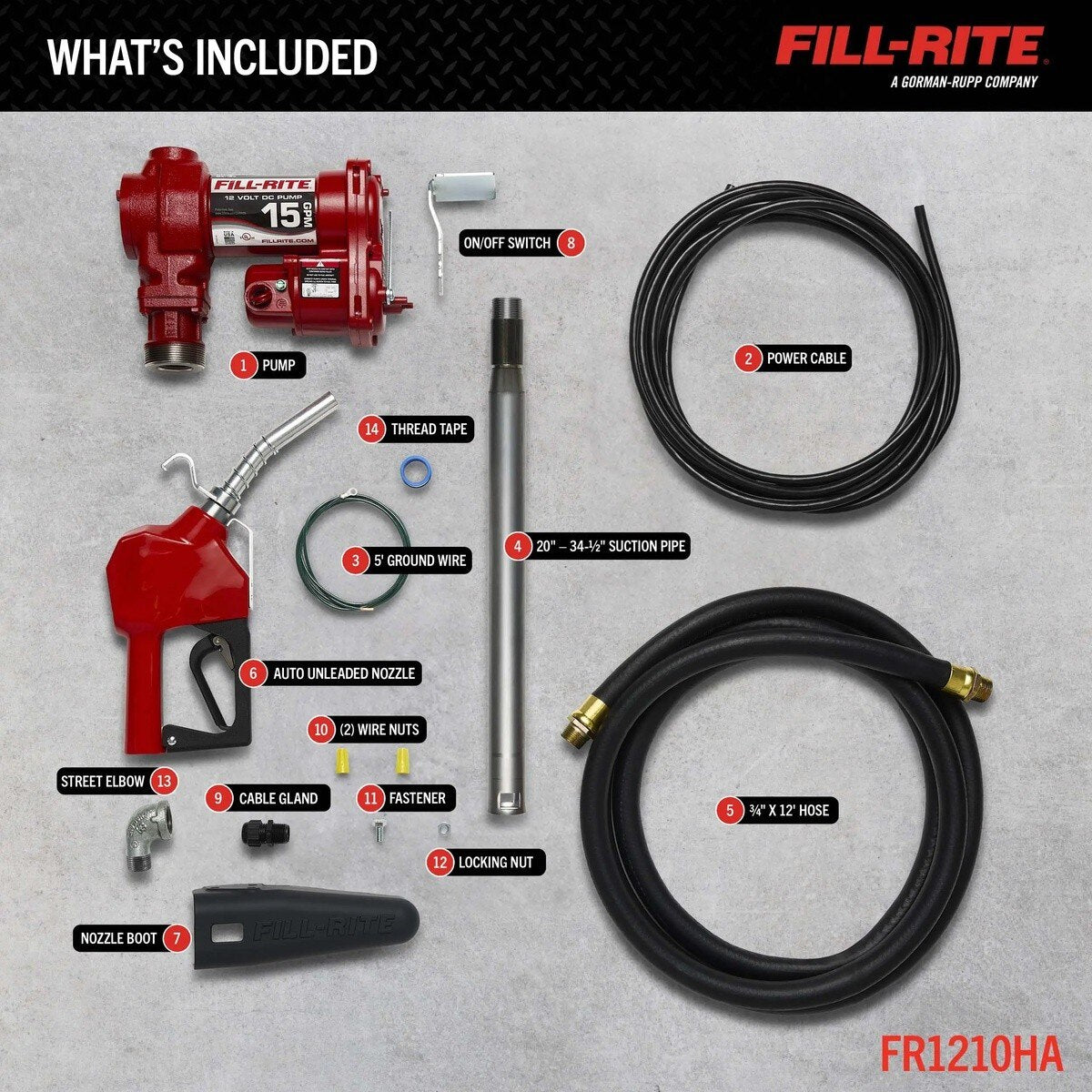

Fill-Rite FR1210HA Includes
- (1) FR1210HA 15 GPM 12V DC Pump Kit with Auto Nozzle
- (1) Pump
- (1) Power Cable
- (1) 5 ft Ground Wire
- (1) 20 in to 34-1/2 in Suction Pipe
- (1) 3/4 in x 12 ft Hose
- (1) Auto Unleaded Nozzle
- (1) Nozzle Boot
- (1) On/Off Switch
- (1) Cable Gland
- (2) Wire Nuts
- (1) Fastener
- (1) Locking Nut
- (1) Street Elbow
- (1) Thread Tape
Fill-Rite FR1210HA Features
- Delivers up to 15 GPM fuel transfer performance

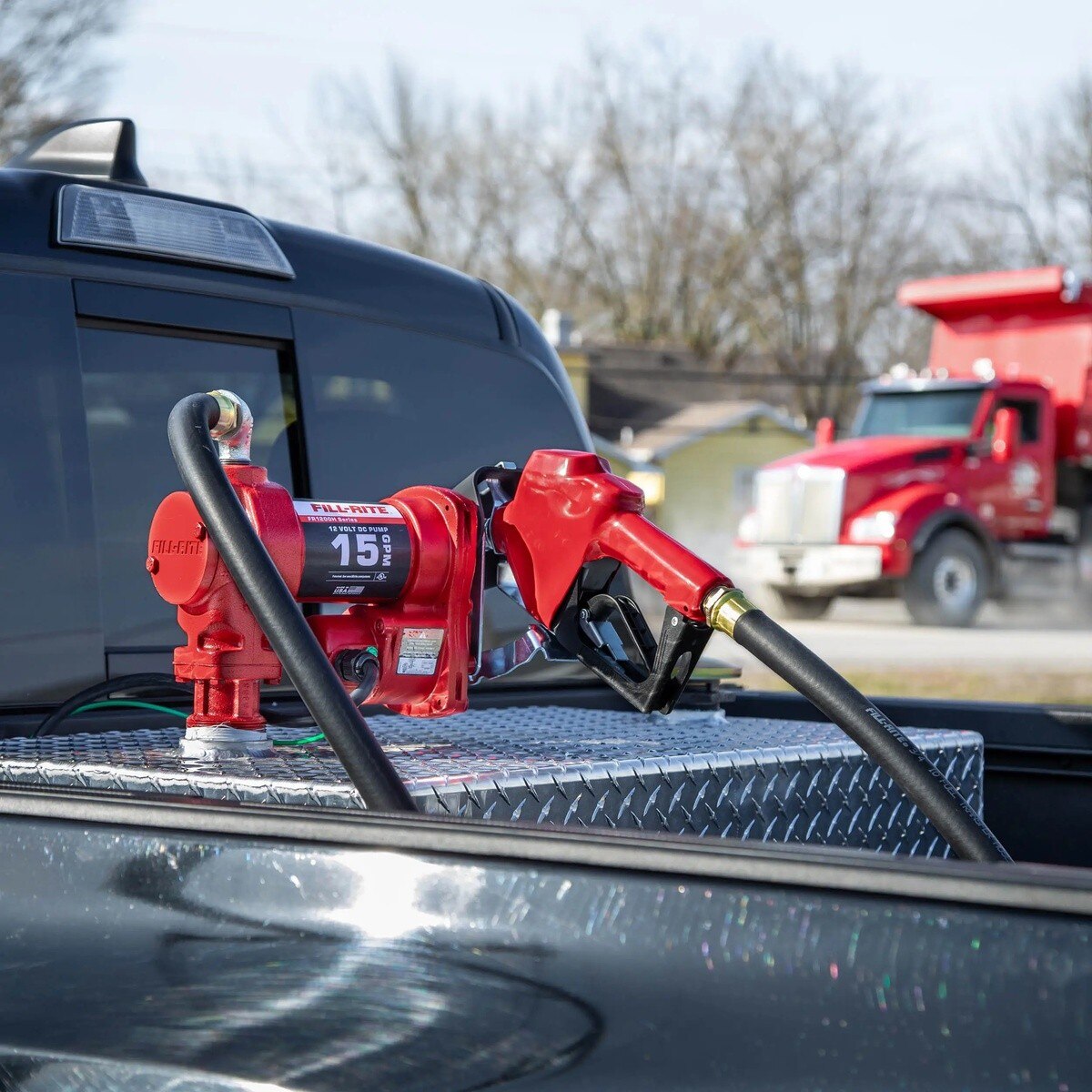

- 12V DC powered for mobile and transfer tank applications
- Heavy duty cast-iron construction for durability in the field
- Rotary vane pump technology for reliable daily operation

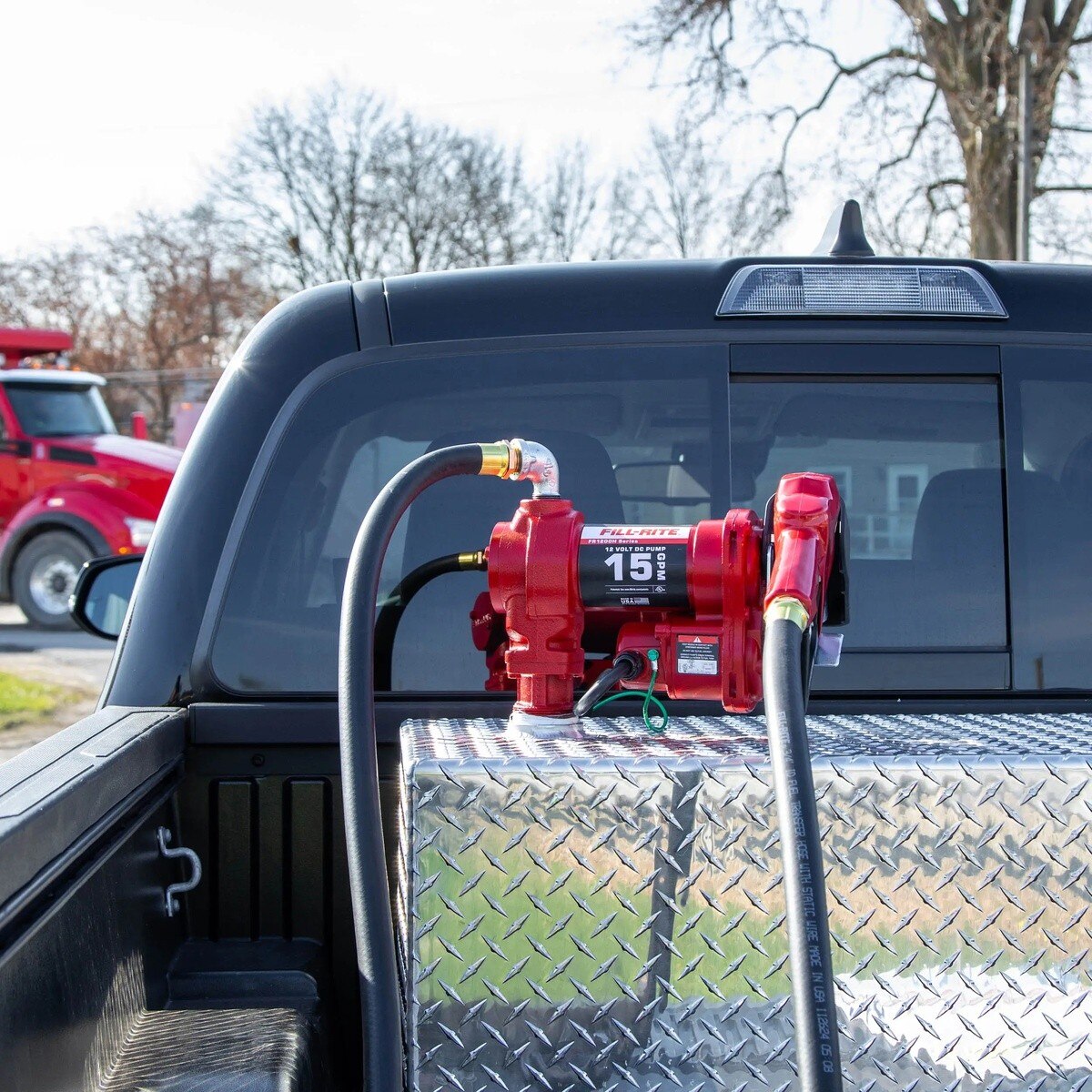

- 2 in bung mount design for mounting to transfer tanks
- Compatible with gasoline, diesel, ethanol blends up to E15, biodiesel blends up to B20, kerosene, and mineral spirits
- Thermally protected motor helps prevent overheating
- Built-in mesh strainer helps filter particulates from fuel
- Adjustable electrical junction box rotates 180 Degree for easier wiring and flexible installation
- Includes auto unleaded nozzle for automatic shutoff dispensing
Fill-Rite FR1210HA Specifications
| Model | FR1210HA |
| Flow Rate | 15 GPM |
| Power | 12V DC |
| Pump Type | Rotary Vane |
| Construction | Cast Iron |
| Mount Type | 2 in Bung Mount |
| Compatible Fluids | Gasoline, Diesel, Ethanol blends up to E15, Biodiesel blends up to B20, Kerosene, Mineral Spirits |
| Junction Box Rotation | 180 Degree |
| Motor Protection | Thermal Overload Protection |
| Strainer | Built-in Mesh Strainer |
| Hose Size | 3/4 in x 12 ft |
| Suction Pipe Length | 20 in to 34-1/2 in |
| Ground Wire Length | 5 ft |
| Nozzle Type | Auto Unleaded Nozzle |
| Warranty | Limited Lifetime Warranty |
