Tuthill | SKU:
FR4210G
Fill-Rite FR4210G 12 Volt DC High Flow Pump with Hose and Manual Nozzle
Free Shipping
$589.99
$734.00
Unit price
/
Unavailable
Description
Description
Tuthill FR4210H Description

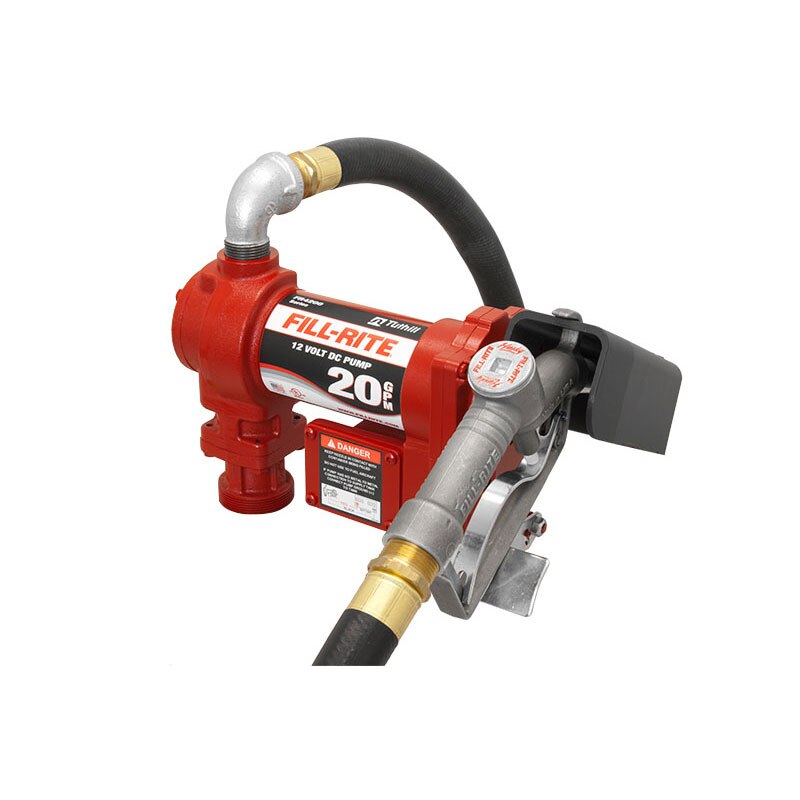

12V DC, 20 GPM heavy duty, cast-iron, rotary vane fuel transfer pump. Designed for gasoline, diesel, biodiesel up to B20, E15, kerosene and mineral spirits. Includes pump, 1" manual nozzle, 1" x 12" hose with static ground wire, 18’ battery cable, and 20"-34" steel telescoping suction pipe. UL/cUL, ATEX, CE motor. Two-year warranty. Made in USA.

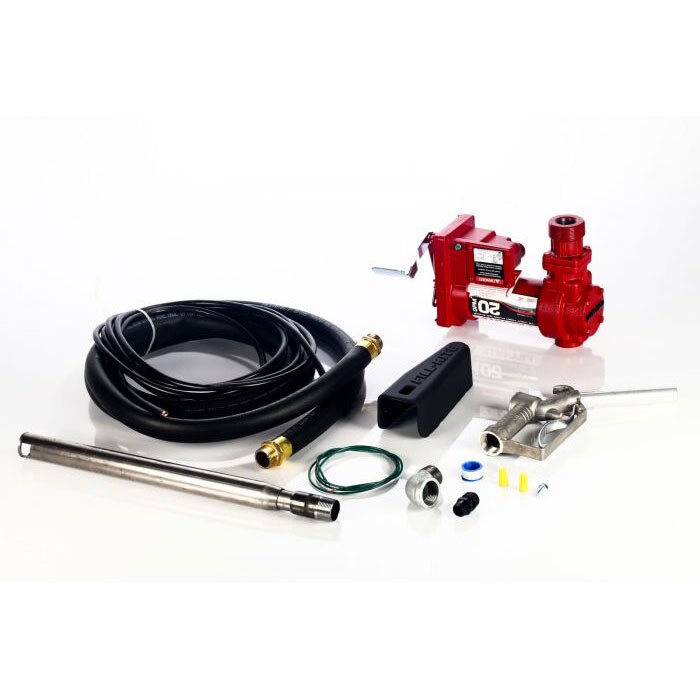

Tuthill FR4210H Includes
- (1) Pump
- (1) 1" Manual nozzle
- (1) 1" x 12" Hose with static ground wire
- (1) 18’ Battery cable
- (1) 20"-34" Steel telescoping suction pipe
Tuthill FR4210H Features
- 20 GPM (76 LPM)
- UL listed motor
- Heavy duty cast iron
- Compatible with Diesel, Gasoline, Kerosene, E15, Biodiesel up to B20
- 2 year warranty
- 2 in. threaded base for tank mounting
- Heavy duty cast iron construction
- Cast bronze rotor with bronze rotary vanes
- Built-in strainer
- 1 in. x 12' ft. hose with static wire
- Manual nozzle
- Replaces FR4210D
Tuthill FR4210H Specifications
| Voltage | 12V |
| Flowrate | 20 GPM |
| Discharge Pressure | 16 PSI |
| Motor HP | 1/4 HP |
| Motor RPM | 2600 RPM |
| Current (Max) | 20 Amps |
| Inlet Size | 1" |
| Outlet Size | 1" |
| Discharge Head | 37' |
| Suction Lift | 6.5' |
| Nozzle | 1" Manual |
| Discharge Hose | 1" x 12' |
| Suction Pipe | 1" x 34" Steel Telescoping |
| Battery Cable | 18' (12 AWG) |
