Fluke 123B/NA Industrial Scopemeter, 20MHZ
Description
Description
Fluke 4755667 Description

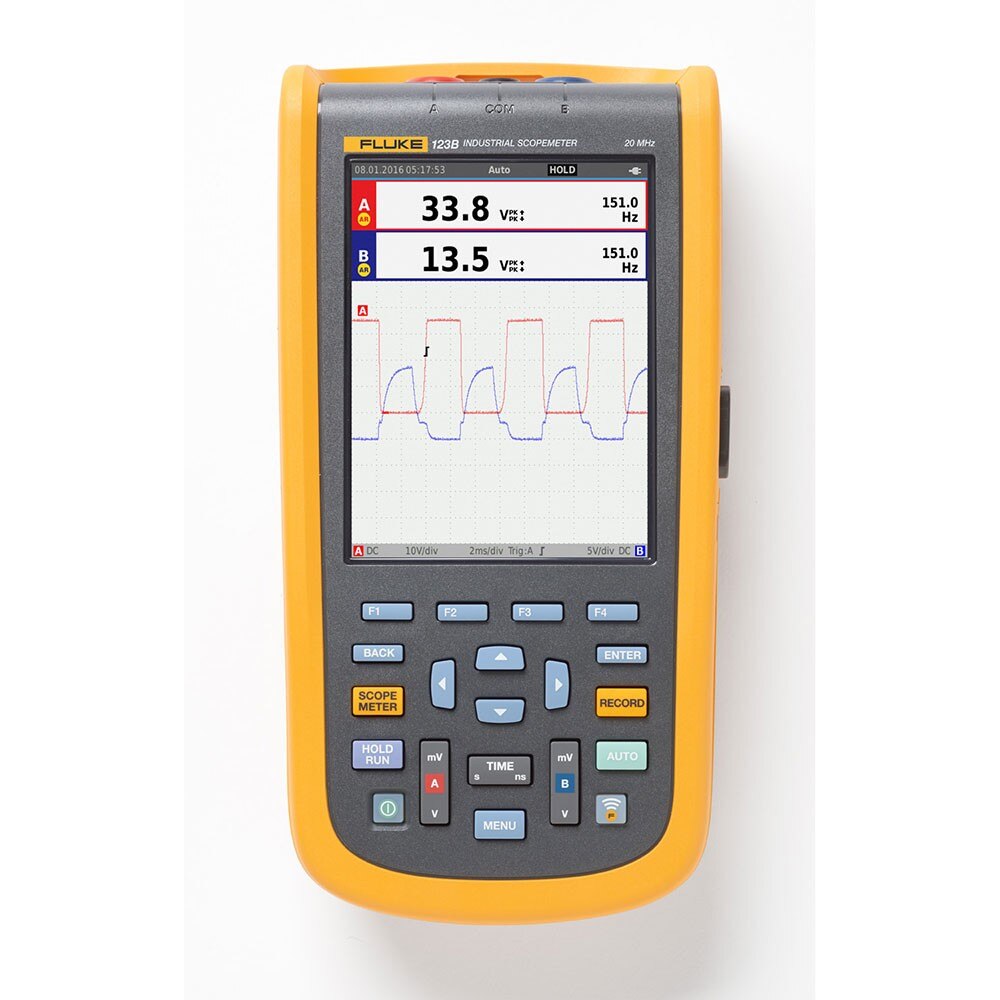

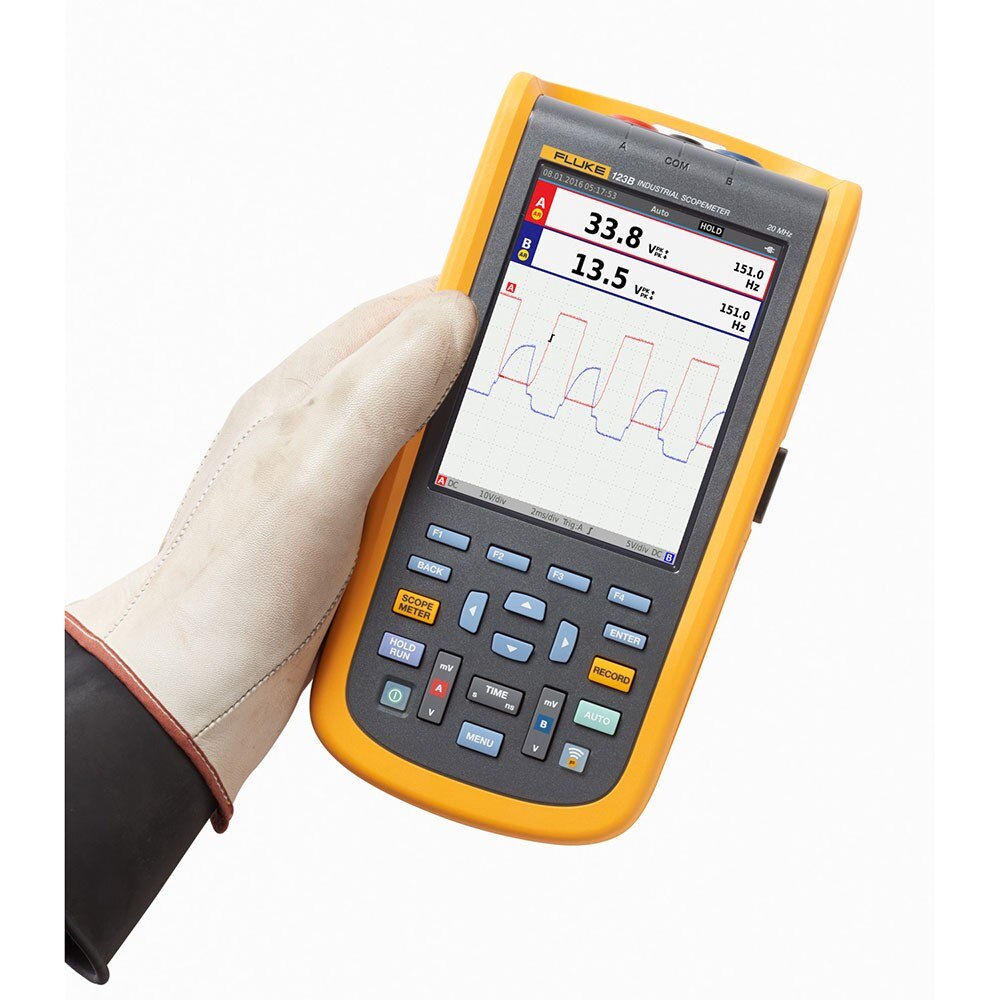

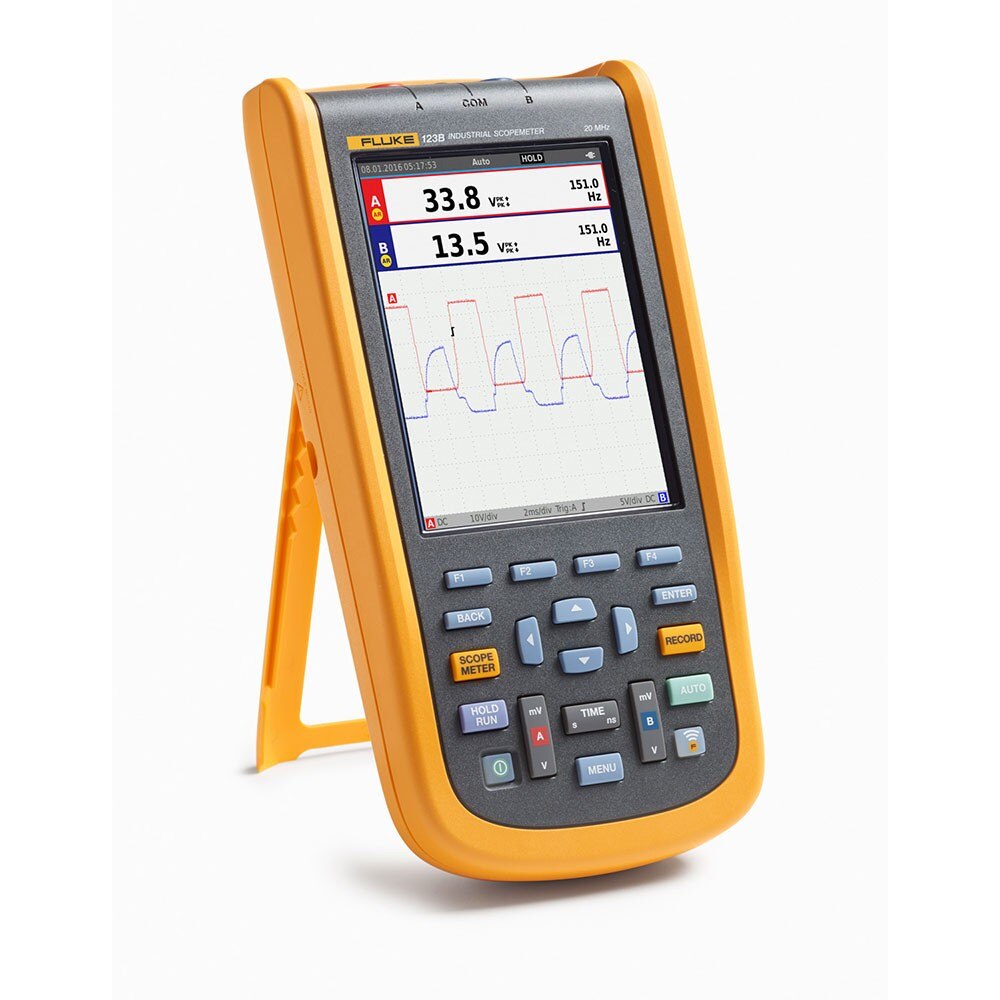

The Fluke 123BNA 20 MHz, 2-Channel, 40 MS/s Industrial ScopeMeter Hand-Held Oscilloscope with Fluke Connect Compatibility is the rugged oscilloscope solution for industrial electrical and electro-mechanical equipment troubleshooting and maintenance applications. It is a truly integrated test tool with oscilloscope, multimeter and high-speed recorder in one, easy-to-use instrument. The 123B/NA also integrates with Fluke Connect mobile app to enable further collaboration, data analysis and archiving of critical test information. The Fluke 123B/NA includes innovative functions designed to help technicians troubleshoot faster and get the answers they need to keep their systems up and running. Display waveforms with Connect and View trigger and setup technology and automatically view related numerical measurements using Fluke IntellaSet technology, all without making manual measurement adjustments. With Recorder Event Detect capabilities, elusive intermittent events are captured and logged for easy viewing and analysis.

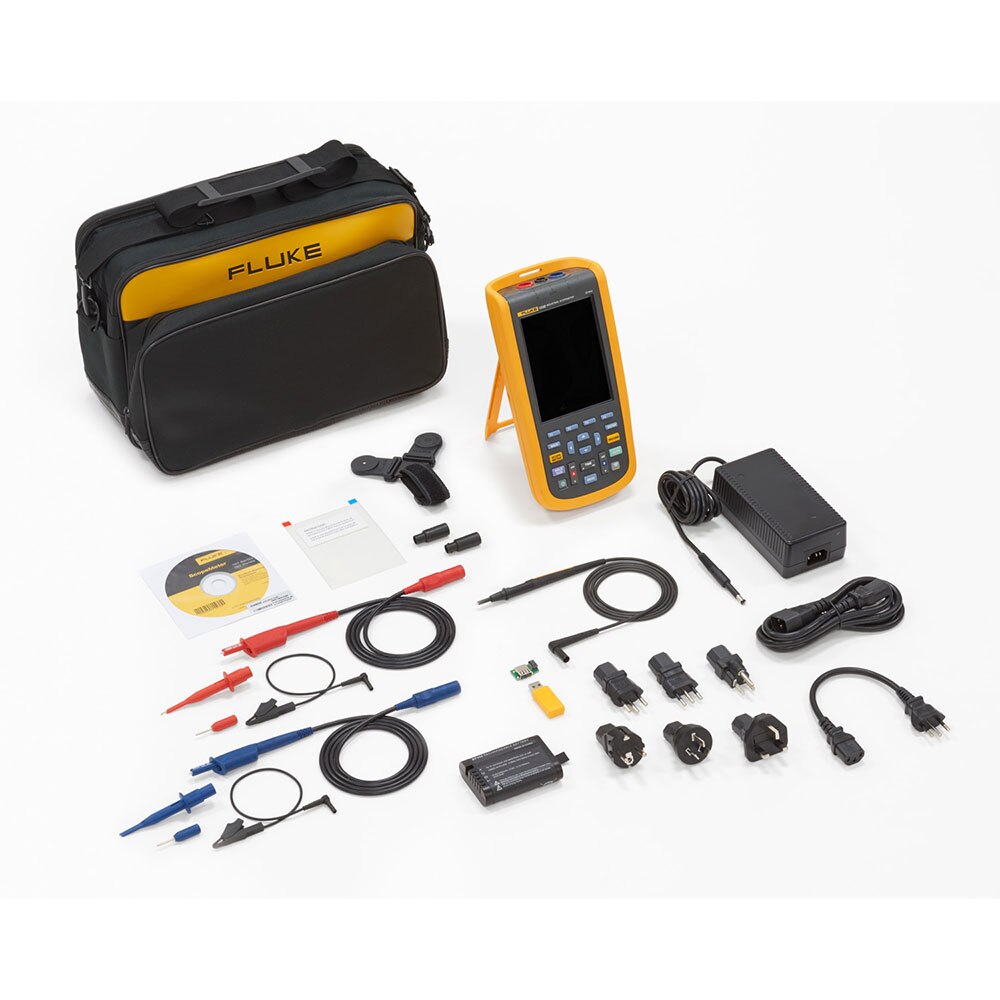

Fluke 4755667 Includes
- (1) Rechargeable Li-ion Battery Pack
- (1) Switch Mode Power Supply, Adapter/Battery Charger
- (1) Shielded Test Leads with Black Ground Leads
- (1) Black Test Lead (for Grounding)
- (1) Set of Red and Black Hook Clips
- (1) Black Banana-to-BNC Adapter
- (1) USB Angled Adapter
- (1) WiFi USB Adapter
Fluke 4755667 Features
- Full function dual input scope and meter
- Oscilloscope bandwidth: 20 MHz
- Meter and scope recorder
- Two 5,000-count true-rms digital multimeters
- Connect-and-View trigger simplicity for hands-off operation
- IntellaSet technology automatically and intelligently adjusts numerical readouts
- Dual-input waveform and meter reading recorder for trending data over extended periods
- Recorder Event Detect captures elusive intermittent signals
- WiFi adapter connects to internal USB port to wirelessly transfer information to PC, laptop or Fluke Connect mobile app
Fluke 4755667 Specifications
| Tester Type | Hand-Held Oscilloscope |
| Bandwidth | 20MHz |
| Max Real Time Sample Rate | 1μs to 5 s/div |
| Scope Measurements | Voltage |
| True RMS MM | Two 5000-count |
| Batteries | Lithium Ion, Rechargeable Battery Pack |
| Accessories | Includes shielded and grounding test leads |
