Fluke | SKU:
FLUKE-125B/NA/S

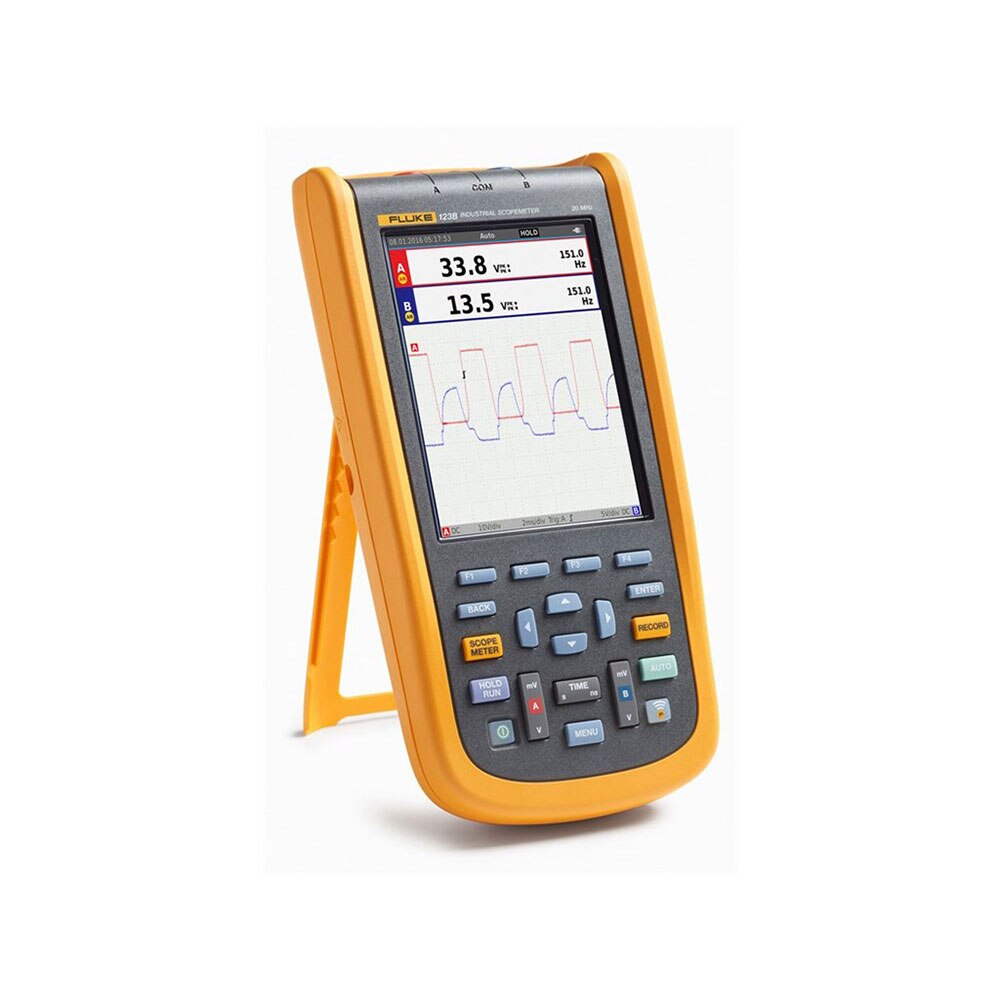

Fluke 125B/NA/S Industrial Scopemeter
Free Shipping
$3,865.99
Unit price
/
Unavailable
Description
Description
Fluke 4756068 Description
This industrial ScopeMeter® is the rugged oscilloscope and recorder solution for industrial electrical and electro-mechanical equipment.
Fluke 4756068 Includes
- (1) Industrial ScopeMeter® Hand Held Oscilloscope
- (2) Shielded test leads with ground leads
- (1) Black test lead
- (1) Red and blue hook clips
- (1) Banana to BNC adapter
- (1) Charger/Power adapter
- (1) WiFi USB adapter
- (1) FlukeView™ for Windows® software
- (1) Magnetic hanger
- (1) Screen protector
- (1) Soft carrying case
- (1) Li-Ion battery pack
Fluke 4756068 Features
- Dual-input digital oscilloscope and multimeter
- Increased resolution and work load coverage with 40 MHz oscilloscope bandwidth
- Two 5,000-count true-rms digital multimeters
- Connect-and-View™ trigger simplicity for hands-off operation; IntellaSet™ technology automatically and intelligently adjusts numerical readout
- Dual-input waveform and meter reading recorder for trending data over extended periods
- Recorder Event Detect captures elusive intermittent signals
- WiFi adapter connected to internal USB port to wirelessly transfer information to the PC, laptop or Fluke Connect® mobile app*
- FlukeView® ScopeMeter® Software for Windows®
- Check Industrial networks with BusHealth physical layer tests against defined reference levels
- Single Phase Power Quality and Harmonics Analzyer
Fluke 4756068 Specifications
| DC Voltage Ranges | 500 mV, 5 V, 50 V, 500 V, 750 V |
| Accuracy | ± (0.5 % +5 counts) |
| True-rms Voltages (V ac and V ac+dc) Ranges | 500 mV, 5 V, 50 V, 500 V, 750 V |
| Accuracy for 5 % to 100 % of range (AC or dc coupled) | 60 Hz to 20 kHz | ± (2.5 % +15 counts) |
