Fluke | SKU:
FLUKE-1503

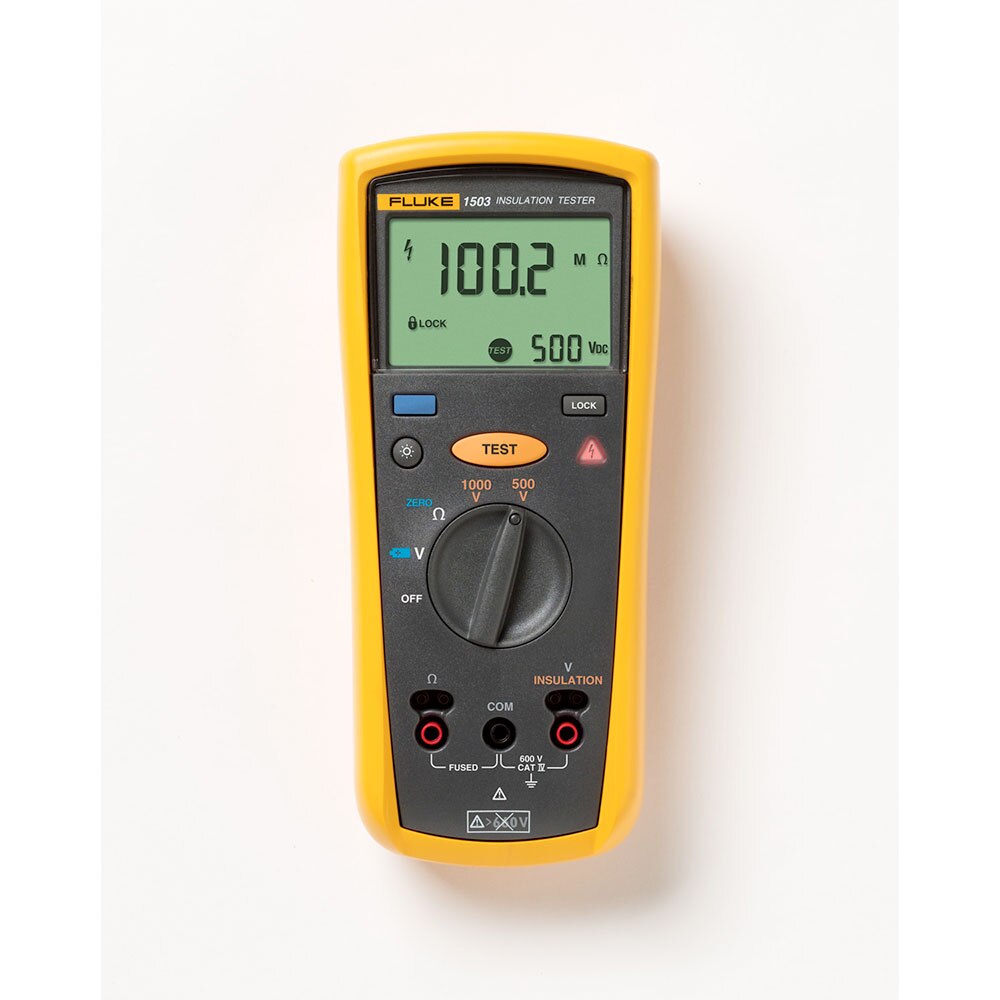

Fluke 1503 Insulation ResistanceTester
Free Shipping
$597.99
$727.99
Unit price
/
Unavailable
Loading delivery estimate...
Description
Description
Fluke 1503 Data Sheet

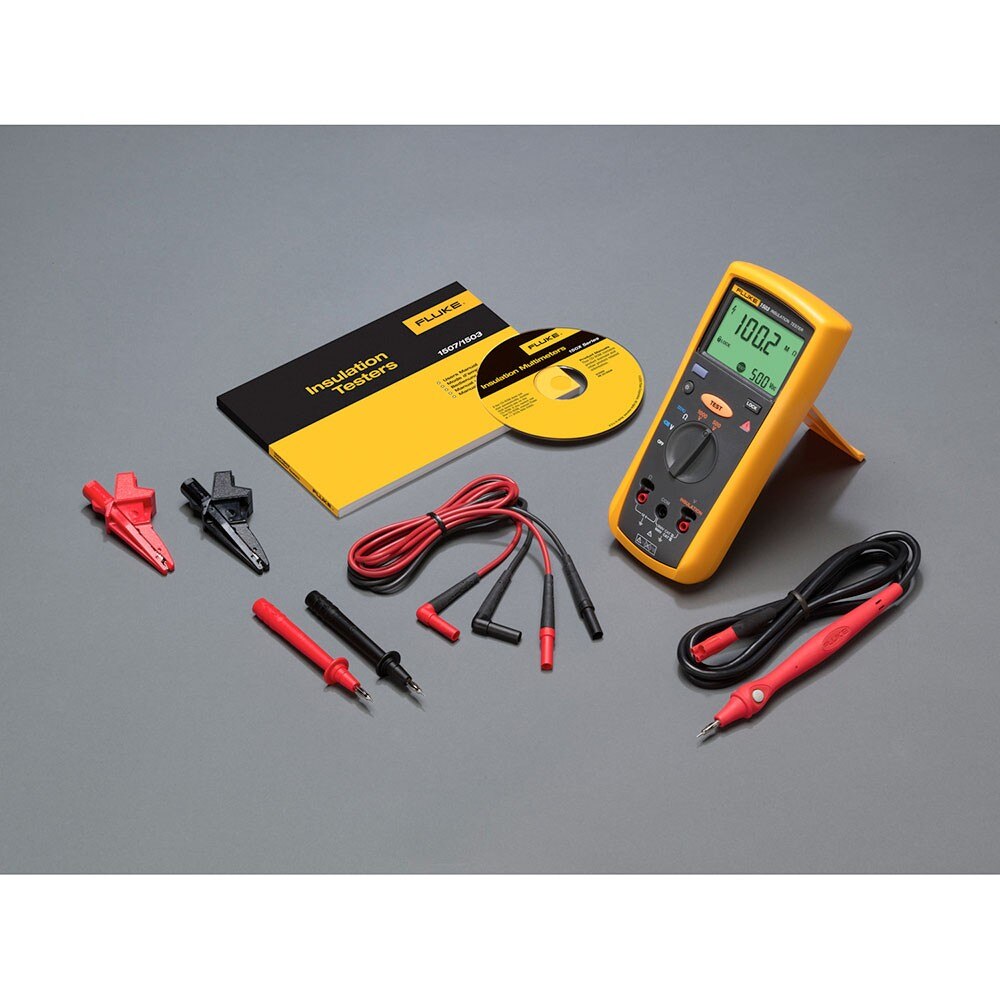

INCLUDES:
• (1) Remote Probe
• (1) Silicone Test Lead Set
• (1) Test Probe Set
• (1) Large Alligator Clip Set
• (1) Holster
• (1) User Manual
FEATURES:
• Insulation test range: 0.1 MΩ to 2000 MΩ
• Insulation test voltages: 500 V, 1000 V
• Repetitive or hard-to-reach testing is easy with the remote test probe
• Auto-discharge of capacitive voltage for added user protection
• Save Battery power with Auto Power Off
• Read measurements easily with large, backlit display
• CAT IV 600 V overvoltage category rating for added user protection
SPECIFICATIONS:
• Unit Weight (KG): 1.38
• Unit Height (CM): 7.5
• Unit Length (CM): 29.9
• Unit Width (CM): 15
• AC/DC voltage: 0.1 V to 600 V
• Resistance: 0.01 Ω to 20.00 kΩ

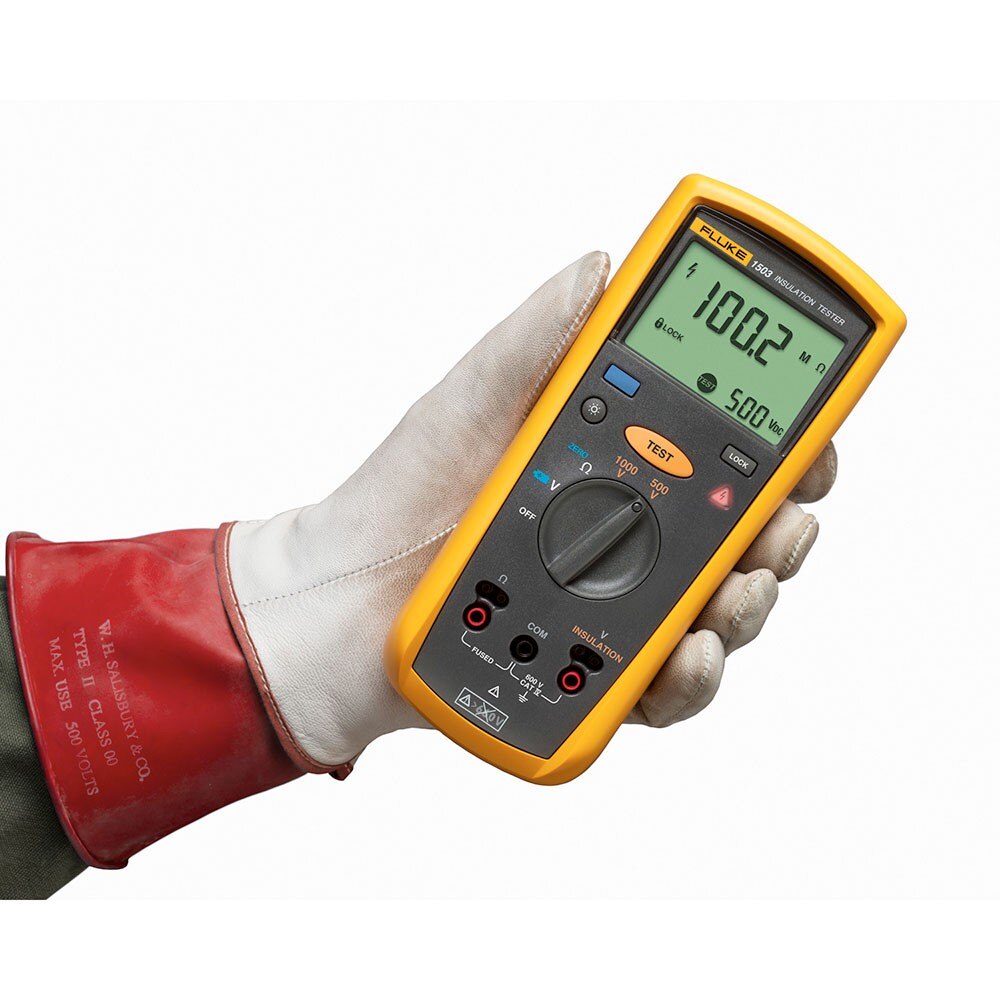

The Fluke 1503 is a great choice for basic residential and commercial electrical insulation testing. This rugged, compact tool fits in the palm of your hand. The 1503 is the same form factor as the Fluke 1507 but with a few less features. You can count on it to handle the most common tests at a most affordable price. Additional features, like the remote probe, reduce the time needed to perform repetitive testing.
INCLUDES:
• (1) Remote Probe
• (1) Silicone Test Lead Set
• (1) Test Probe Set
• (1) Large Alligator Clip Set
• (1) Holster
• (1) User Manual
FEATURES:
• Insulation test range: 0.1 MΩ to 2000 MΩ
• Insulation test voltages: 500 V, 1000 V
• Repetitive or hard-to-reach testing is easy with the remote test probe
• Auto-discharge of capacitive voltage for added user protection
• Save Battery power with Auto Power Off
• Read measurements easily with large, backlit display
• CAT IV 600 V overvoltage category rating for added user protection
SPECIFICATIONS:
• Unit Weight (KG): 1.38
• Unit Height (CM): 7.5
• Unit Length (CM): 29.9
• Unit Width (CM): 15
• AC/DC voltage: 0.1 V to 600 V
• Resistance: 0.01 Ω to 20.00 kΩ
The Fluke 1503 is a great choice for basic residential and commercial electrical insulation testing. This rugged, compact tool fits in the palm of your hand. The 1503 is the same form factor as the Fluke 1507 but with a few less features. You can count on it to handle the most common tests at a most affordable price. Additional features, like the remote probe, reduce the time needed to perform repetitive testing.
