Fluke | SKU:
FLUKE-1550C/KIT
Fluke 1550C/KIT 5 kV Insulation Tester Kit
Free Shipping
$6,935.99
Unit price
/
Unavailable
Description
Description
Fluke 1550C Kit Data Sheet

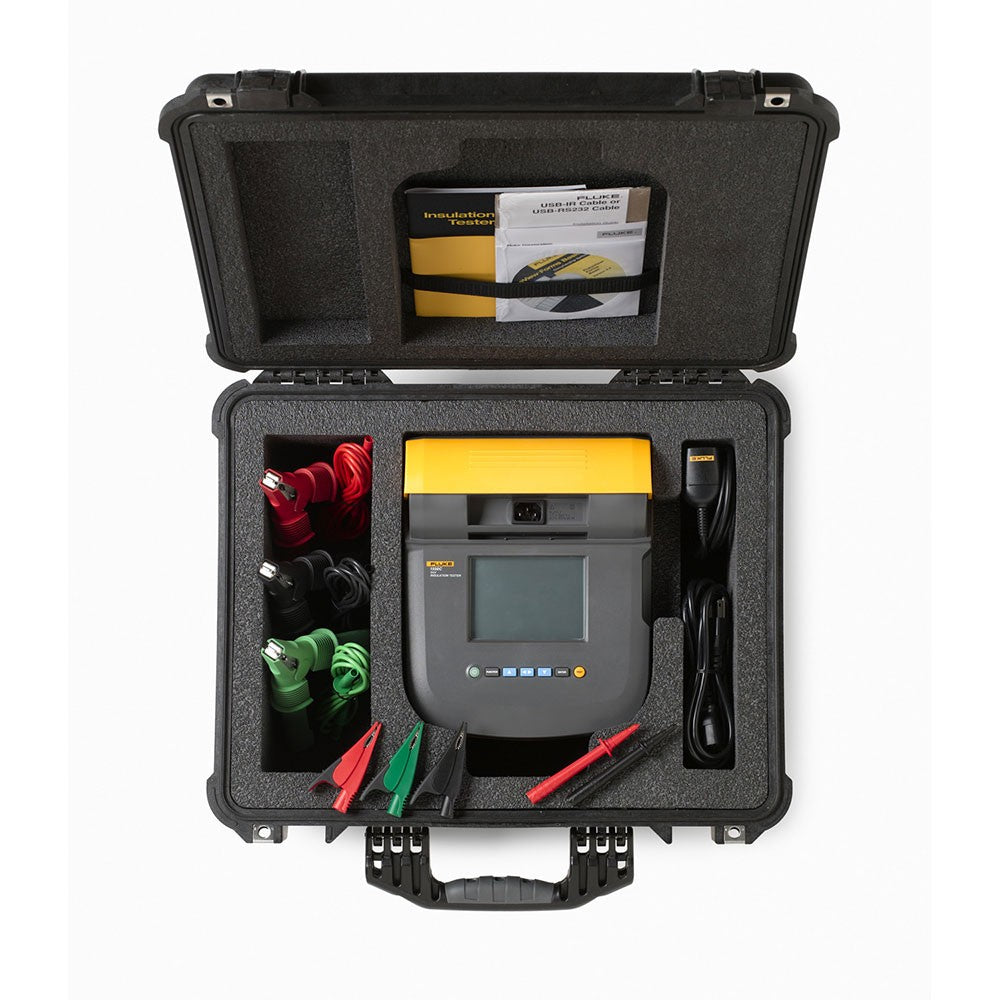

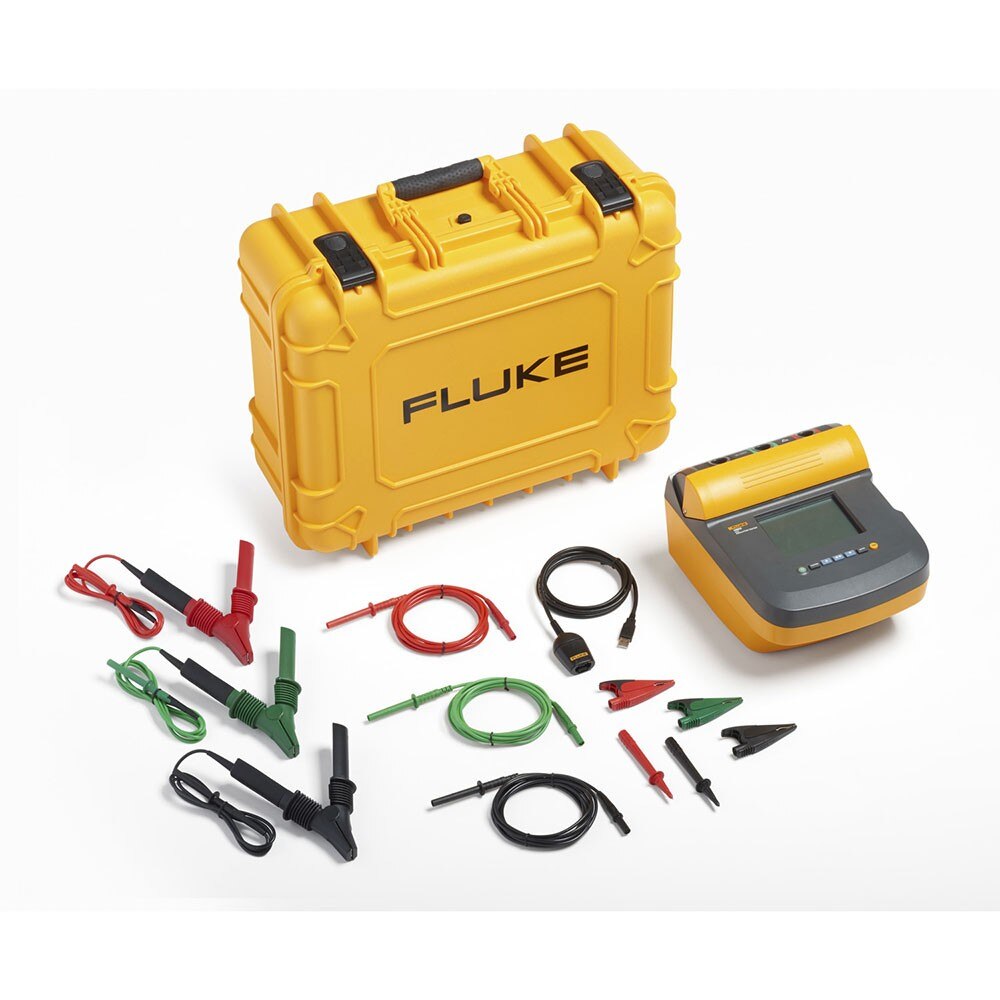

INCLUDES:
(1) Set of Test cables with alligator clips (red, black, green)
(1) Infrared adapter with interface cable
(1) FlukeView® Forms Basic CD-ROM
(1) AC power cord
(1) IP67 Hard Case
(1) Certificate of Calibration
(1) English manual
(1) User's manual on CD-ROM
(1) Quick reference card
(1) Software license agreement
(1) Registration card
(1) FlukeView® Forms installation guide
(1) USB-IR cable installation guide
(1) Heavy duty alligator clip leads
FEATURES:
Quickly configure, start and stop tests on the 1550C remotely, a safe distance away from any operating, energized equipment, using Fluke Connect® and a smart phone
Real time trending gives you easy-to-see visual cues, rather than hard to read, rapidly changing values
Drag and drop report creation using Fluke Connect desktop saves time and makes test results easier to understand
Fluke Connect saves test results to the cloud for analysis and preventive maintenance
SPECIFICATIONS:
Display: 75 x 105 mm
Power: 12 V lead-acid rechargeable battery, Yuasa NP2.8-12
Charger Input (AC): 85 V to 250 V AC 50/60 Hz 20 VA
This Class II (double insulated) instrument is supplied with a Class 1 (grounded) power cord. The protective earth terminal (ground pin) is not connected internally. The extra pin is for added plug retention only.
Dimensions: 269 x 277 x 160 mm (10.6 x 10.9 x 6.3 in)
Weight: 3.7 kg (8.2 lb)
Temperature (operating): -20°C to 50°C (-4°F to 122°F)
Temperature (storage): -20°C to 65°C (-4°F to 149°F)
Humidity: 80% to 31°C decreasing linearly to 50% at 50°C
Altitude: 2000 m
Enclosure sealing: IP40
Input overload protection: 1000 V AC
Electromagnetic compatibility: EN 61326
Safety compliance: IEC 61010-1: Overvoltage category II, Pollution Degree 2. IEC 61010-2-030: IEC 61557-1, IEC 61557-2

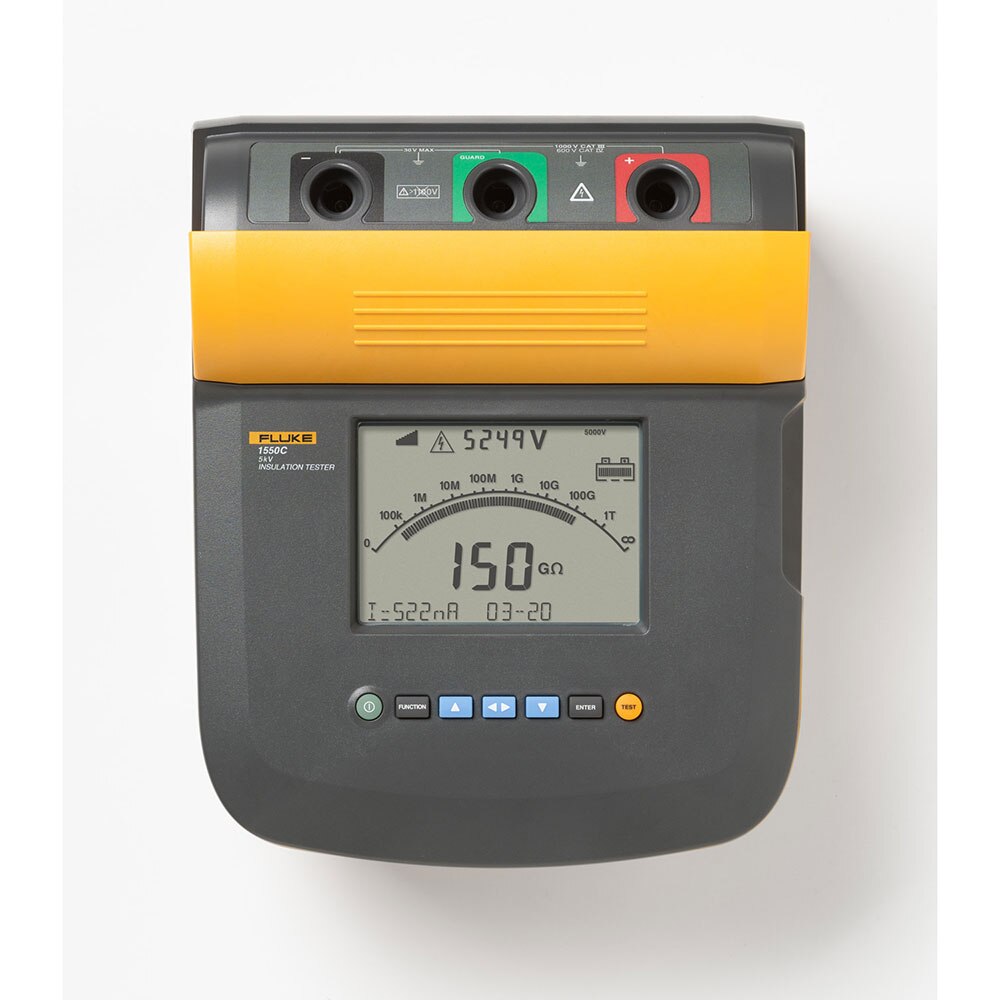

The Fluke 1550C performs digital insulation testing up to 5 kV, and makes data collection easy through the Fluke Connect wireless app. Remote operation lets you spend as little time as possible in potentially hazardous zones. Real-time trending shows a live graph on your phone, rather than a hard-to-read set of changing values. And you can create reports quickly, simply using drag-and-drop “ something you wont find anywhere else. Its the perfect tool for preventive or predictive maintenance programs designed to identify potential equipment failures before they occur. And it comes with a three-year warranty and CAT IV 600 V safety rating.
INCLUDES:
(1) Set of Test cables with alligator clips (red, black, green)
(1) Infrared adapter with interface cable
(1) FlukeView® Forms Basic CD-ROM
(1) AC power cord
(1) IP67 Hard Case
(1) Certificate of Calibration
(1) English manual
(1) User's manual on CD-ROM
(1) Quick reference card
(1) Software license agreement
(1) Registration card
(1) FlukeView® Forms installation guide
(1) USB-IR cable installation guide
(1) Heavy duty alligator clip leads
FEATURES:
Quickly configure, start and stop tests on the 1550C remotely, a safe distance away from any operating, energized equipment, using Fluke Connect® and a smart phone
Real time trending gives you easy-to-see visual cues, rather than hard to read, rapidly changing values
Drag and drop report creation using Fluke Connect desktop saves time and makes test results easier to understand
Fluke Connect saves test results to the cloud for analysis and preventive maintenance
SPECIFICATIONS:
Display: 75 x 105 mm
Power: 12 V lead-acid rechargeable battery, Yuasa NP2.8-12
Charger Input (AC): 85 V to 250 V AC 50/60 Hz 20 VA
This Class II (double insulated) instrument is supplied with a Class 1 (grounded) power cord. The protective earth terminal (ground pin) is not connected internally. The extra pin is for added plug retention only.
Dimensions: 269 x 277 x 160 mm (10.6 x 10.9 x 6.3 in)
Weight: 3.7 kg (8.2 lb)
Temperature (operating): -20°C to 50°C (-4°F to 122°F)
Temperature (storage): -20°C to 65°C (-4°F to 149°F)
Humidity: 80% to 31°C decreasing linearly to 50% at 50°C
Altitude: 2000 m
Enclosure sealing: IP40
Input overload protection: 1000 V AC
Electromagnetic compatibility: EN 61326
Safety compliance: IEC 61010-1: Overvoltage category II, Pollution Degree 2. IEC 61010-2-030: IEC 61557-1, IEC 61557-2
The Fluke 1550C performs digital insulation testing up to 5 kV, and makes data collection easy through the Fluke Connect wireless app. Remote operation lets you spend as little time as possible in potentially hazardous zones. Real-time trending shows a live graph on your phone, rather than a hard-to-read set of changing values. And you can create reports quickly, simply using drag-and-drop “ something you wont find anywhere else. Its the perfect tool for preventive or predictive maintenance programs designed to identify potential equipment failures before they occur. And it comes with a three-year warranty and CAT IV 600 V safety rating.
